Parameters of AIO-5 Lite

• Working voltage: 12-18V/DC
• Screen size: 5 inches
• Working temperature: -20-65øC
• LCD Material: IPS
• Product Dimensions: 136.2*78.8*26.8mm
• Brightness: 1000Nit
• Weight: 310g
• Peak Brightness: 1200Nit
• Waterproof Rating: IP67
• Automatic Brightness: Supported
• RAM: 4GB
• Touch: Supported
• Built-in Storage: 32GB EMMC
• WIFI: Supports 2.4/5.8G
• Operating System: CGOS(Linux)
• GPS: External 10HZ GPS Module Supported GPS + BeiDou Satellite
• SD Card Support: 256GB
• Bluetooth 1: Supports BLE 5.0 for connection to mobile
• Bluetooth 2:Supports BLE50 for connecting headphones and devices

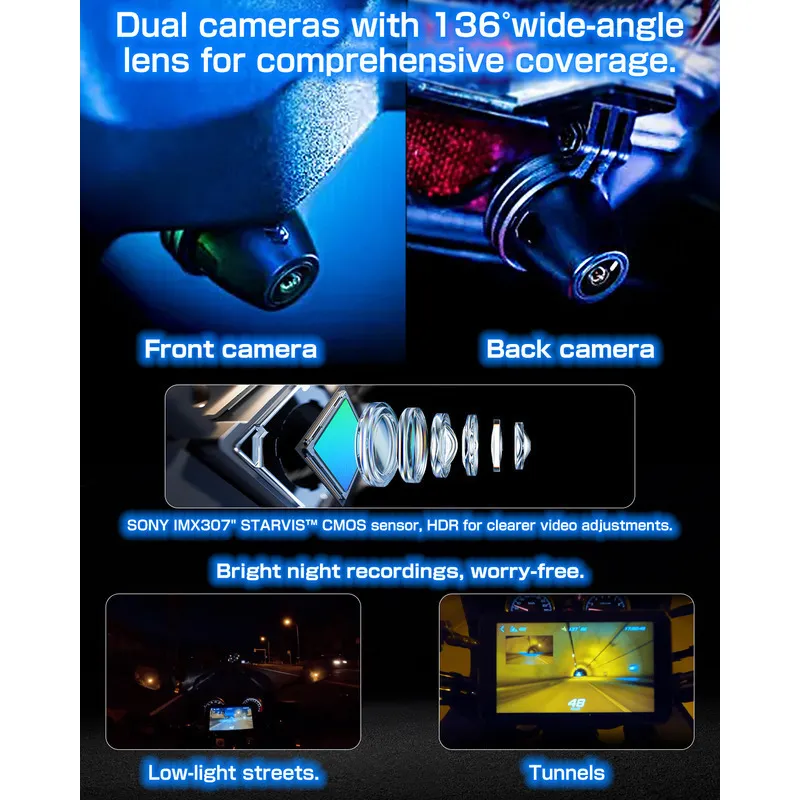

Camera Parameters

• Image Sensor: IMX307
• Resolution: 1920*1080
• Frame rate: 30FPS
• Lens Angle: D136.6ø (H115.6ø, V61.6ø)
• Lens Structure: 2 Glass + 4 Plastic + 1 IR-CUT f=3.0mm
• Does it support HDR: Yes.
• Camera size: 45*35*56mm
• Working Voltage: 5V
• Camera Weight: 80g
• Front Camera Cable Length: 1M
• Rear Camera Cable Length: 2.5m

Package

• AIO-5 Lite
• Camera x 2
• GPS Module
• Mounting Bracket
• Variable-Radius Ring aperture: Suitable for 22-32mm pipe diameter
• Buckle Clip x 2
• Ball Joint Component
• Power Cable
• Magic Strap x 2
• User's manual
• Installation Tools
