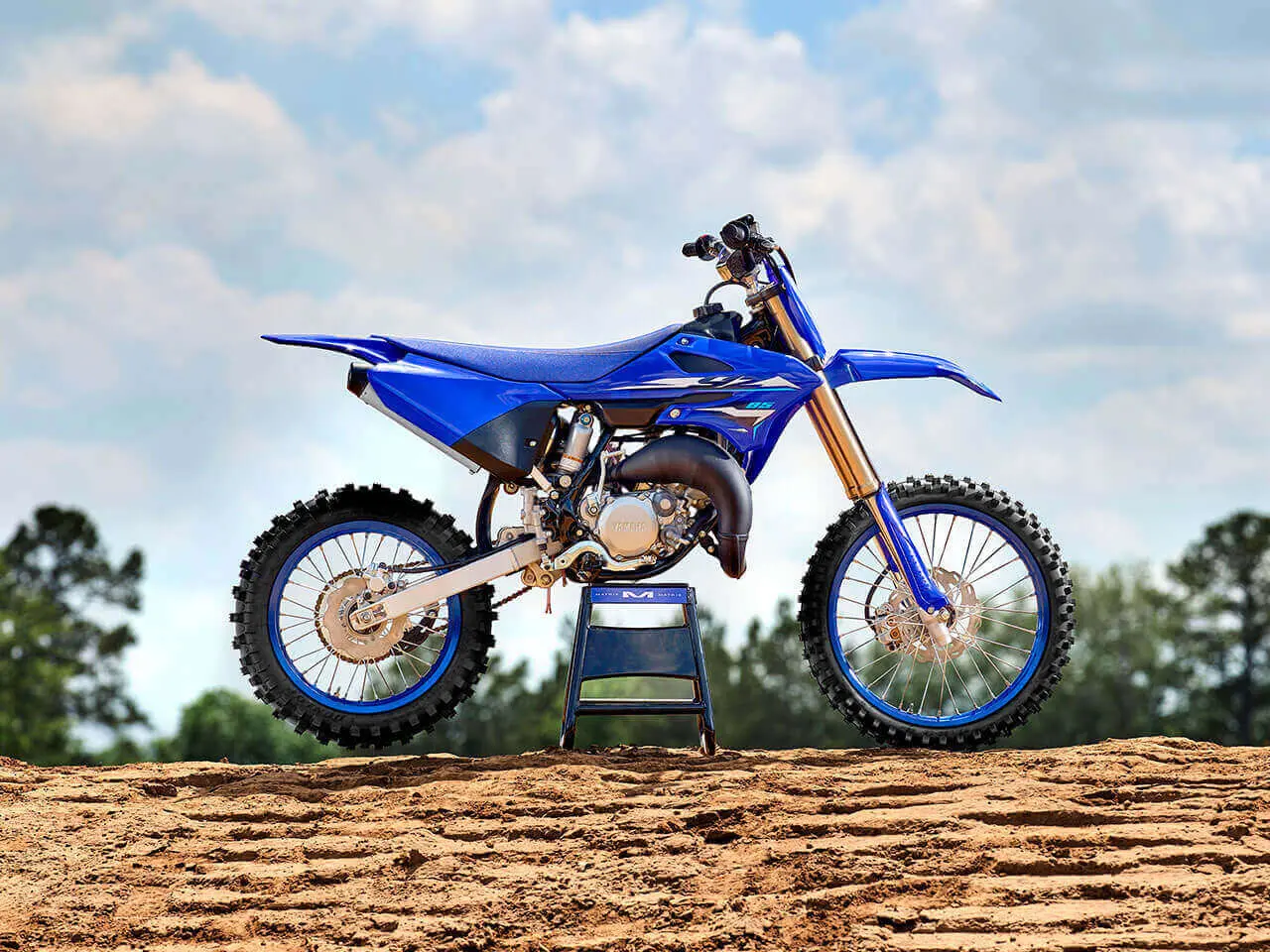

YZ85LW

Adding to the performance of the standard model, the YZ85 Large Wheel (LW) raises the bar for off-road capability with a larger 19-inch front wheel and 16-inch rear wheel clad in high performance 70/100/19 front and 90/100/16 rear Dunlop® MX3S tyres.

Perfect for the advanced 85cc rider looking for a more "big-bike" feel. Along with its high performance YPVS-equipped 2-stroke engine, lightweight chassis, adjustable suspension and competition friendly ergonomics, the YZ85LW is ready to power you to the next level.

MAKE AN ENQUIRY

Features

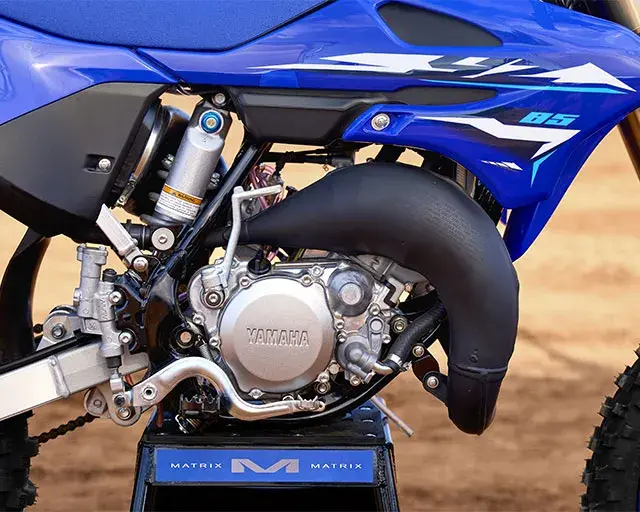

YPVS 2-stroke engine
YPVS 2-stroke engine

The 85cc liquid cooled engine features the Yamaha Power Valve System (YPVS) that boosts overall performance and contributes towards the bike’s easy to use torque. Running with a high compression ratio – and equipped with a close ratio 6-speed transmission – the YZ85 delivers outstanding acceleration with race winning power.

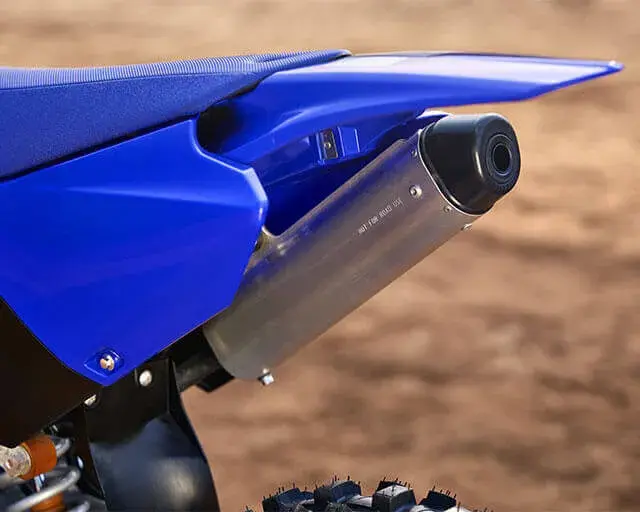

Lightweight chassis design
Lightweight chassis design

Built for demanding junior racers, the YZ85LW's chassis is optimised for strength, rigidity and overall handling stability. The aluminium swingarm offers refined balance between longitudinal and torsional rigidity, and the removable rear subframe constructed from lightweight, high-strength aluminium reduces weight.

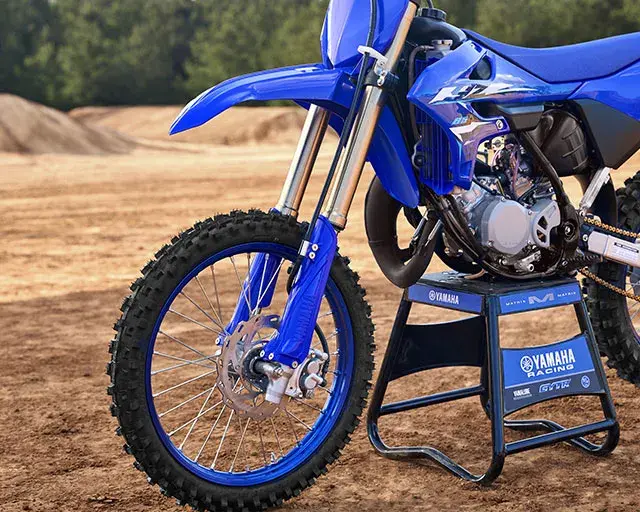

Fully adjustable front forks
Fully adjustable front forks

The lightweight 36mm KYB® inverted cartridge fork features 275mm of travel with compression and rebound damping adjustability. Complete with low-friction outer tubes and internals, the damping settings offer enhanced performance across a range of conditions and rider abilities.

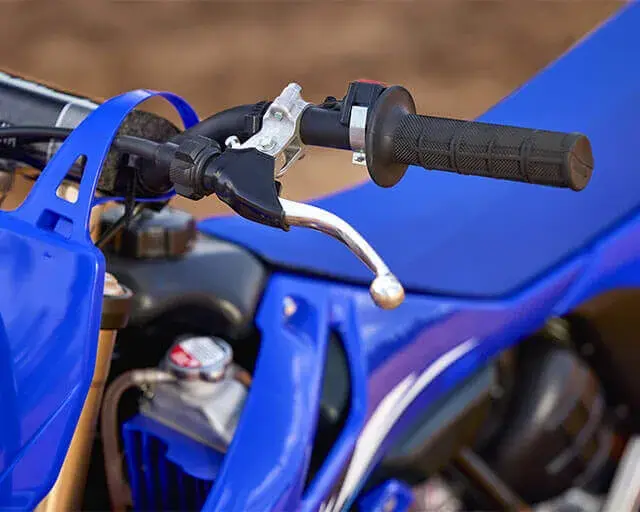

Adjustable rider ergonomics
Adjustable rider ergonomics

The four-position adjustable handlebar mounts and taper-style handlebar allow the rider to tune the handlebar position to suit their size and preferences. Flat seat and narrow fuel tank design, along with smoothly integrated body panels and slim shroud width, combine to enable greater freedom of movement for increased control and confidence.

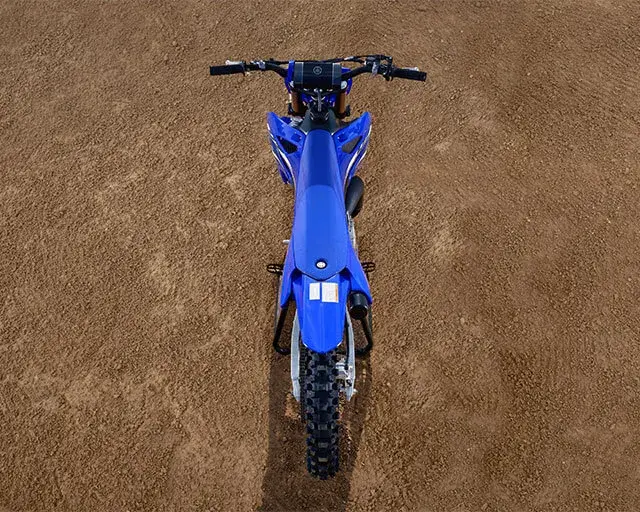

Advanced Intake Design
Advanced Intake Design

Advanced intake design allows for a straighter, more efficient draw of air into the intake tract. High-flow airbox ensures excellent air filter performance and easy maintenance.

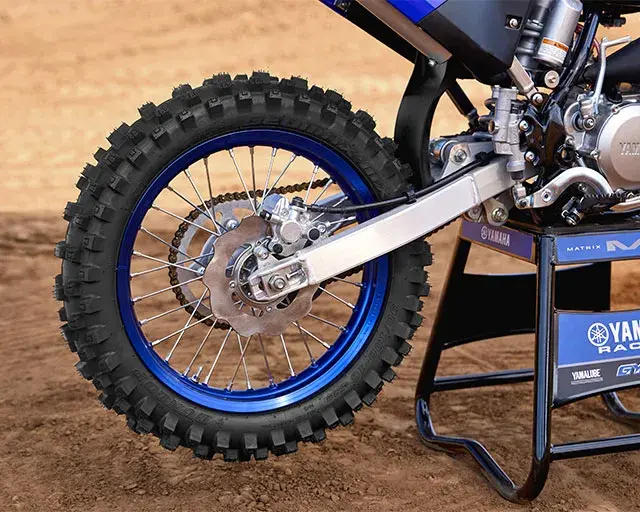

Wave-style Brake Discs
Wave-style Brake Discs

Big wave-style brake discs offer improved self-cleaning and cooler-running performance. The 220mm front disc and 190mm rear disc deliver strong, precise stopping power. Rear brake master cylinder also includes built-in sub-reservoir to provide more linear brake response and increased control.

Technical Specifications

YZ85LW
Engine Type
Liquid-cooled, 2-stroke with YPVS
Displacement (cc)
85
Bore x Stroke (mm)
47.5 x 47.8
Compression Ratio
8.1-9.6 : 1
Lubrication System
Premix
Fuel Management
PWK28
Ignition
CDI
Starter System
Kick
Fuel Tank Capacity (L)
5
Final Transmission
Chain
Transmission
Constant mesh 6-speed
Length (mm)
1895
Width (mm)
760
Height (mm)
1175
Seat Height (mm)
885
Wheelbase (mm)
1285
Ground Clearance (mm)
360
Wet Weight (kg)
75
Frame Type
Semi double cradle
Suspension Front
Telescopic forks, 275mm travel
Suspension Rear
Swingarm (link suspension), 287mm travel
Brakes Front
Hydraulic single disc, 220mm
Brakes Rear
Hydraulic single disc, 190mm
Tyres Front
70/100-19 Dunlop Geomax MX3SF
Tyres Rear
90/100-16 Dunlop Geomax MX3S
