With its compact body, simple controls and automatic 49cc engine, the YFZ50 is the perfect way to start out. Built for children between six and nine, this mini ATV is ready to provide hours of family fun.
Safety comes first, and the YFZ50 has a range of features that give parents a high degree of control. Speed can be limited by the throttle screw and rev limiter switch – and a lanyard attached to a tether switch can cut the engine instantly.
Easy to use, fun to ride and simple to maintain, the Yamaha YFZ50 is the clear choice for responsible adults – and with its YFZ450R racer-inspired styling, this mini ATV looks set to be at the top of your kid’s wish list.

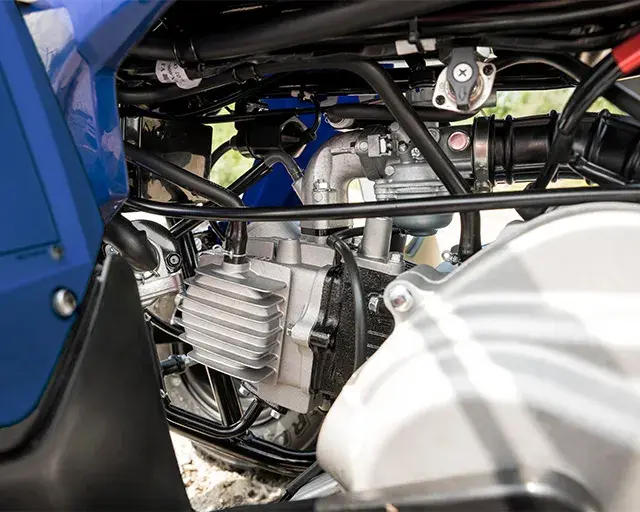

The YFZ50 is engineered as the ideal starting point for aspiring ATV riders aged 6 and up, with a low-maintenance 49cc engine tuned to develop responsive, controllable performance. A combination of engine limiters and a power cut-off tether switch make it easy to allow young riders to adapt to the ATV as their skills grow.

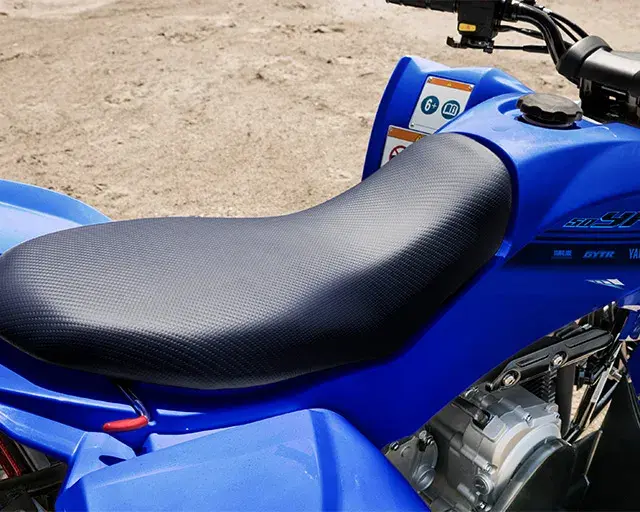

Comfortable Chassis
A robust steel frame design incorporates a large 5.7 litre fuel tank, plush seat and roomy integrated floorboards.

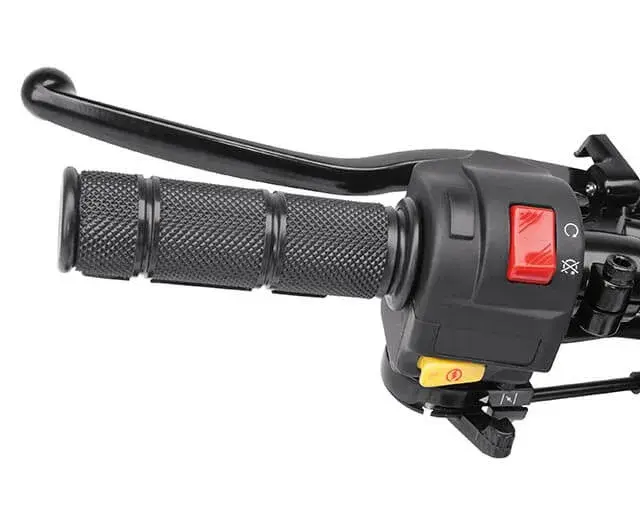

Electric Starter
Push-button electric starting comes standard, of course, and an emergency kick starter is also provided in a storage spot under the seat for additional peace of mind.

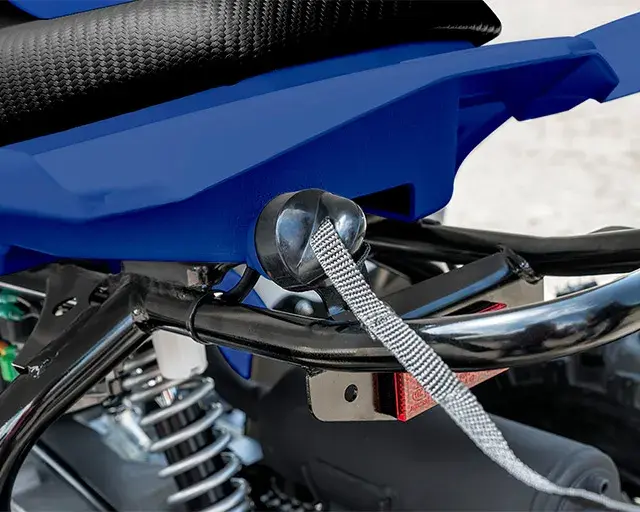

Engine Limiter and Tether Switch
To help young beginners grow into accomplished ATV riders, the YFZ50 includes a two-stage rpm limiter as well as a throttle limiter to restrict the engines performance and adapt to the riders advancing skill levels. A tethered switch allows parents to closely monitor new riders and cut power to the engine if necessary as new riders learn the basics of ATV control.

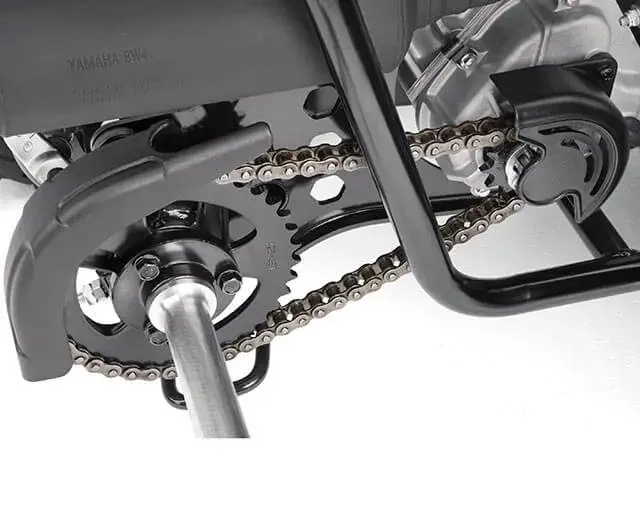

Sporty Drivetrain
Engine power is transferred to the rear wheels via a tried-and-true O-ring chain drive, running along a swingarm thats set at an optimized angle for rear shock performance.
Technical Specifications
Engine Type
Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
Displacement (cc)
49.4
Bore x Stroke (mm)
39.0 x 41.4
Compression Ratio
8.5 : 1
Lubrication System
Wet sump
Fuel Management
V12 x 1
Ignition
CDI
Starter System
Electric and Kick
Fuel Tank Capacity (L)
5.8
Final Transmission
Chain
Transmission
V-belt automatic
Length (mm)
1250
Width (mm)
820
Height (mm)
770
Seat Height (mm)
585
Wheelbase (mm)
830
Ground Clearance (mm)
88
Wet Weight (kg)
100
Frame Type
Steel tube
Suspension Front
Single A-arm, 60mm travel
Suspension Rear
Swingarm, 51mm travel
Brakes Front
Drum
Brakes Rear
Drum
Tyres Front
AT16 x 6.5-7
Tyres Rear
AT16 x 7-7
