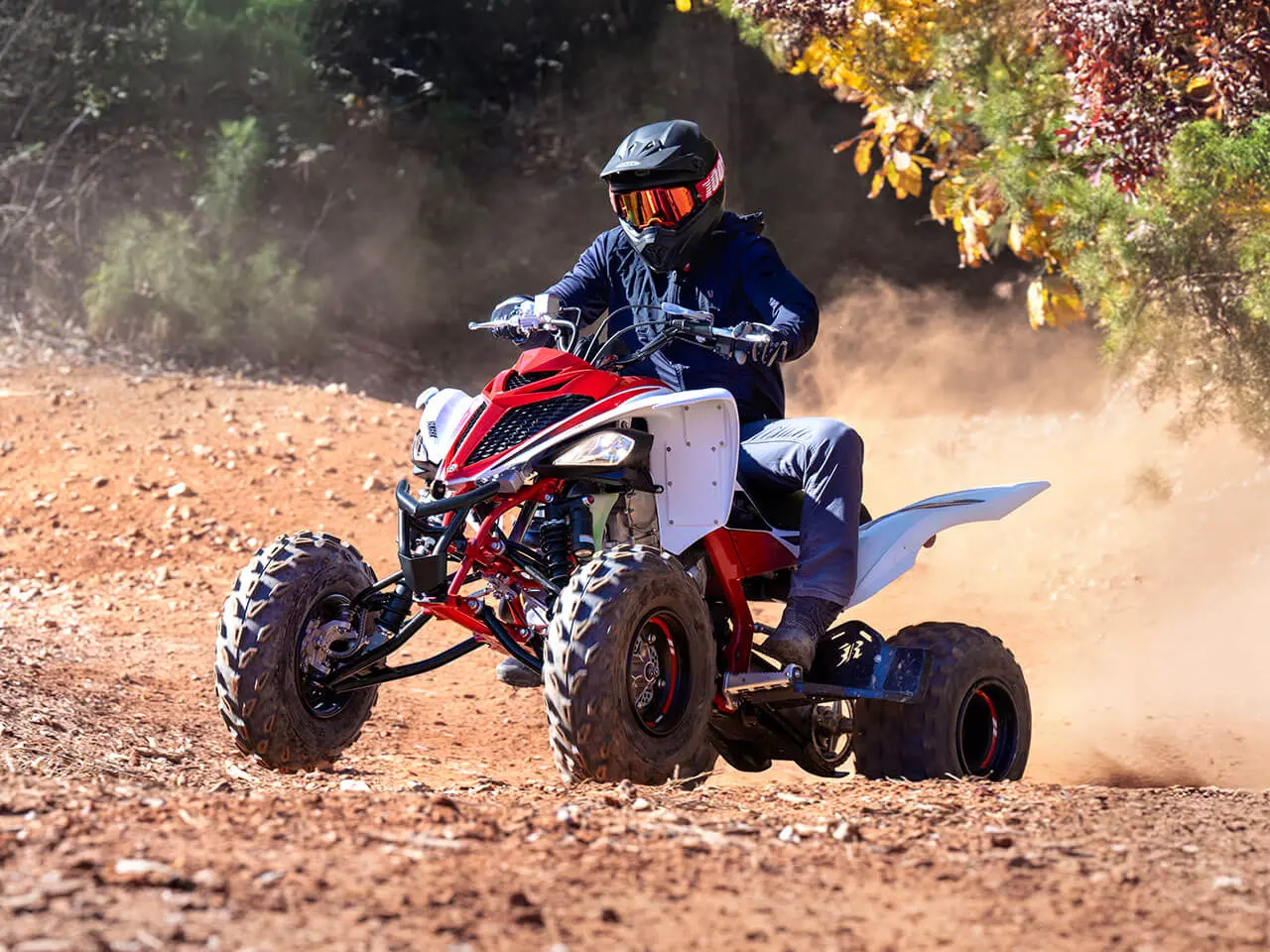

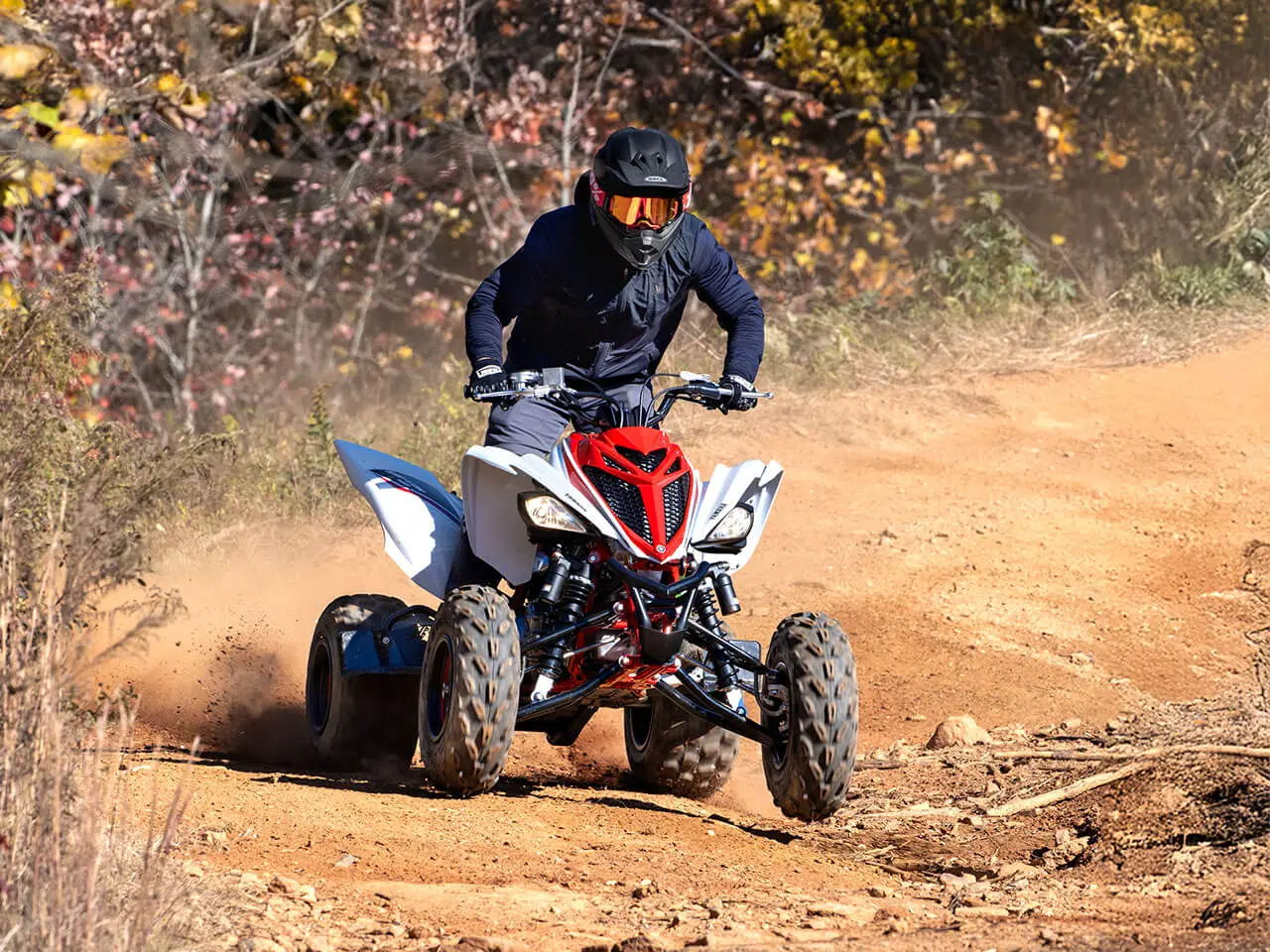

Once you've ridden the YFM700R there is no turning back. Its mind bending power and handling offer the ultimate buzz on all sorts of terrain. And once you're hooked, this mighty ATV will transform your leisure time forever.
The gutsy 686cc 4-stroke engine comes with a series of features that boost power for fast acceleration. And with its reduced fuel consumption, the latest model takes you further between refills – handy when you are dominating the Dakar Rally.
Riding comfort is enhanced with an optimised rear shock - and larger 22-inch front tyres give you precise steering and added control. Because when you take your fun seriously, you need the ultimate performer.

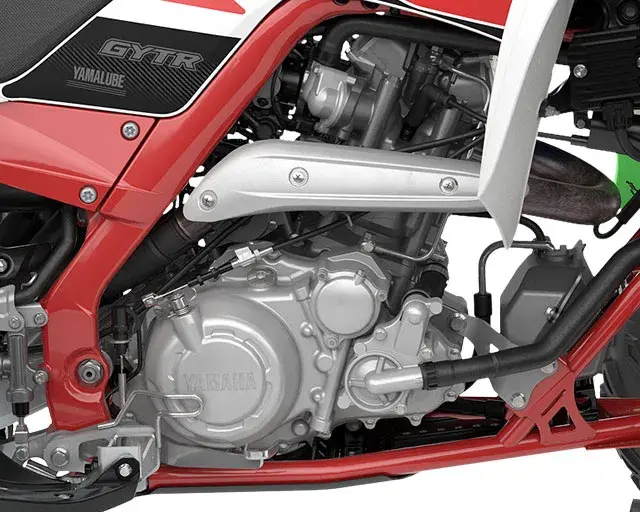

Powered by our most potent big-bore Raptor engine ever 686cc of liquid-cooled, fuel-injected power. The engine produces big torque right off idle, transitioning into a fat mid-range and monstrous top-end.

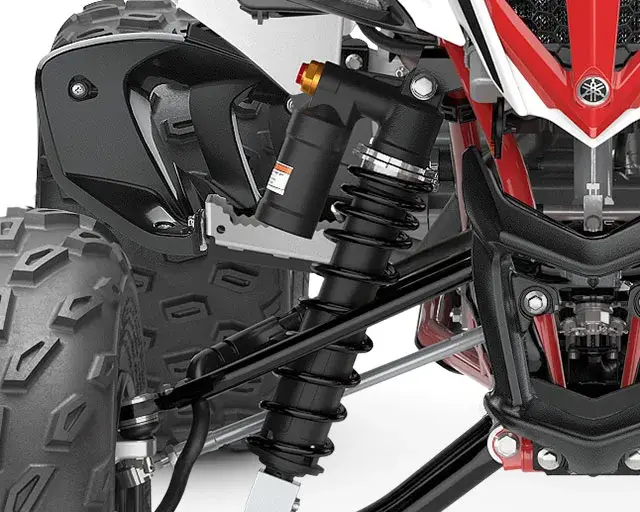

Advanced Suspension
The YFZ inspired handling of the Raptor 700R is incredible to experience blasting through the woods. Thanks to the 231mm of front travel and 256mm out back, the trail bumps smooth out while the rider keeps things under control. With the combination of power, solid handling, and a great suspension this machine has to be experienced to be fully appreciated.

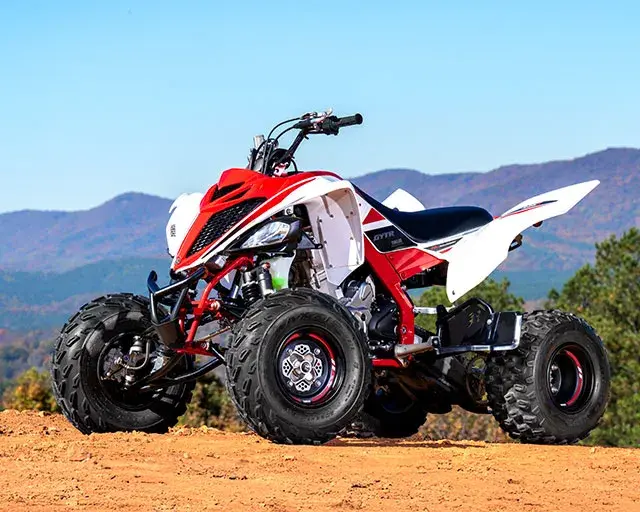

Aggressive Style
Aggressive styling makes the Raptor 700R look as menacing as it really is. The mighty Raptor 700R is ready to go whether the destination is the dunes, the trails or the track.
Advanced Chassis
Big power and lightweight, a combination that makes any ATV rider take notice, is standard on the Raptor 700R, with a hybrid steel aluminium frame and Controlled-Fill aluminium sub-frame and cast aluminium swingarm combining to produce a super-strong structure and the lightest ATV in its class.

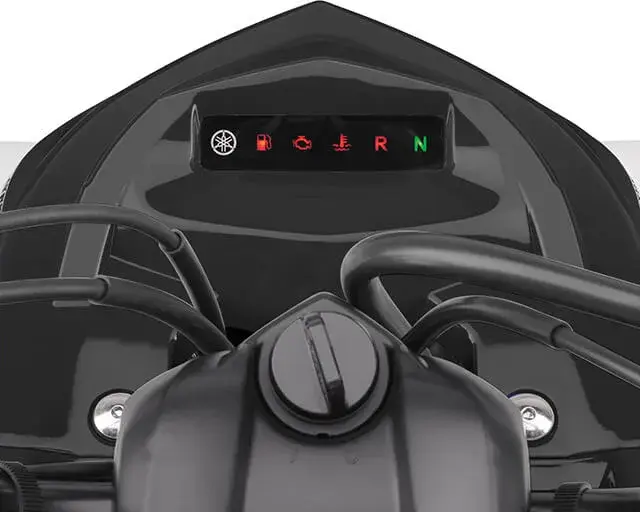

Ergonomic Controls
Thumb throttle lever has a smooth shape for a feel riders will appreciate, with less fatigue at the end of the day. Handlebar-mounted flip-type parking brake lever is simple to use.

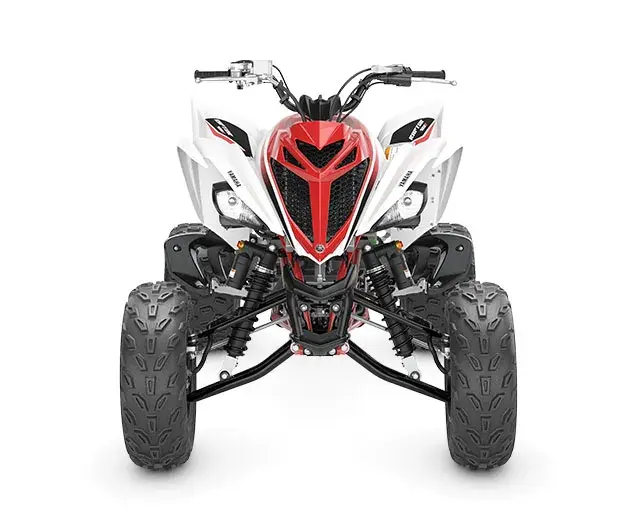

High Visibility Lighting
Multireflector 30-watt Krypton headlights set back in the front cowl add the perfect no-compromises sporting accent, and an LED taillight provides great visibility.

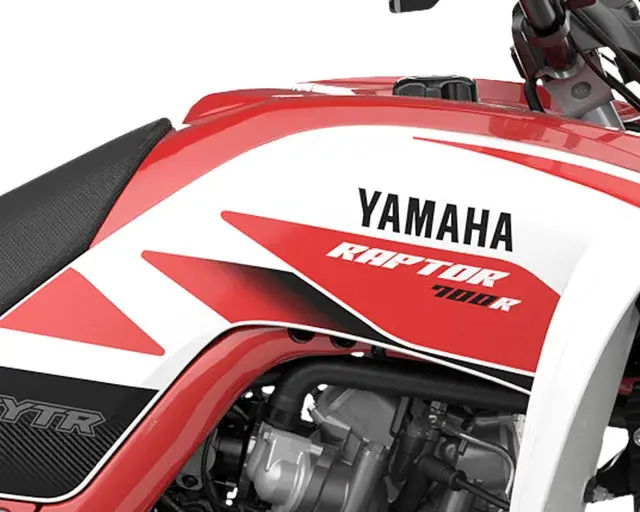

Large Fuel Tank
Large-capacity, 11 Litre fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.

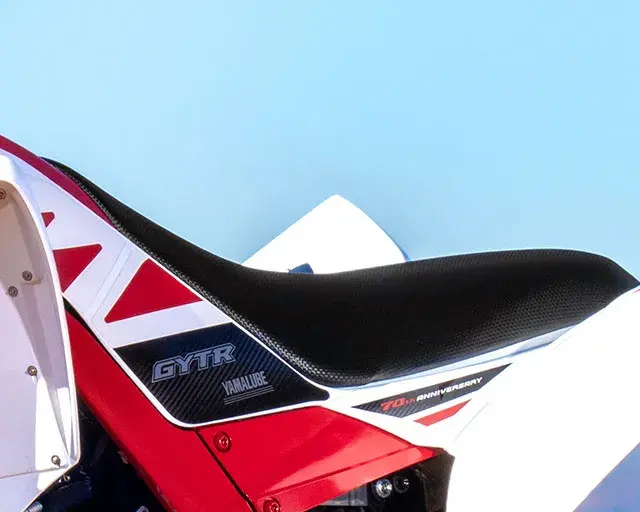

Rider-Friendly Features
A thick comfortable seat provides excellent comfort while the dual counterbalancers, electric starting, and reverse keep things nice and civilized when needed, but when it comes time to pull the trigger the big-bore Raptor 700R stands tall.
Technical Specifications
Engine Type
Liquid-cooled, 4-stroke, SOHC, 4-valve, single cylinder
Displacement (cc)
686
Bore x Stroke (mm)
102.0 x 84.0
Compression Ratio
10.0 : 1
Lubrication System
Dry sump
Fuel Management
Fuel injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
11
Final Transmission
Chain
Transmission
Constant mesh 5-speed with reverse
Length (mm)
1845
Width (mm)
1155
Height (mm)
1115
Seat Height (mm)
830
Wheelbase (mm)
1280
Ground Clearance (mm)
113
Wet Weight (kg)
192
Frame Type
Steel tube
Suspension Front
Independent double wishbone, 230mm travel
Suspension Rear
Swingarm (link suspension), 256mm travel
Brakes Front
Hydraulic dual discs
Brakes Rear
Hydraulic single disc
Tyres Front
AT22 x 7-10
Tyres Rear
AT20 x 10-9
