XSR700

Retro – meet modern. XSR700 matches future tech with retro style for an entertaining ride with attitude to burn. With deep torque and a super agile chassis, it’s for those who appreciate heritage without the hassle.

The cutting edge 655cc inline twin engine features our crossplane philosophy that delivers linear torque for outstanding acceleration. The retro styled XSR700 also benefits from a tight and lightweight chassis for agility and sharp handling.

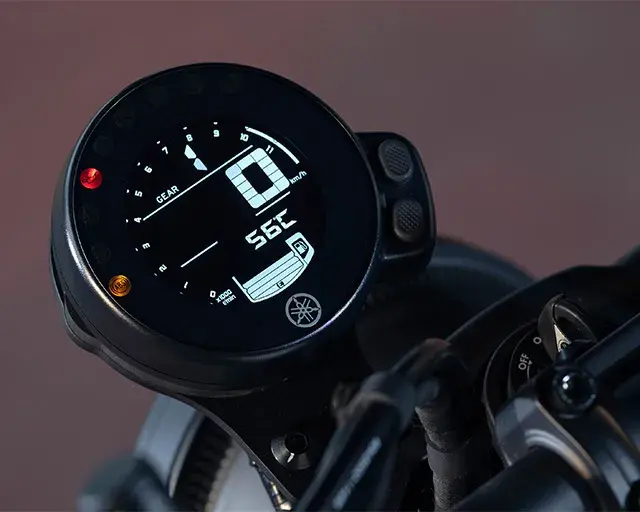

This 655cc model is unique to Australia with power delivery specially maximised for our LAMs market. The 270-degree crank gives a strong feeling of acceleration and great traction, and the deep linear torque ensures outstanding performance. Wave disc brakes with ABS as standard and a lightweight digital LCD dash are fully modern but styling is pure retro.

XSR700 - tomorrow's technology, yesterday.

MAKE AN ENQUIRY

Features

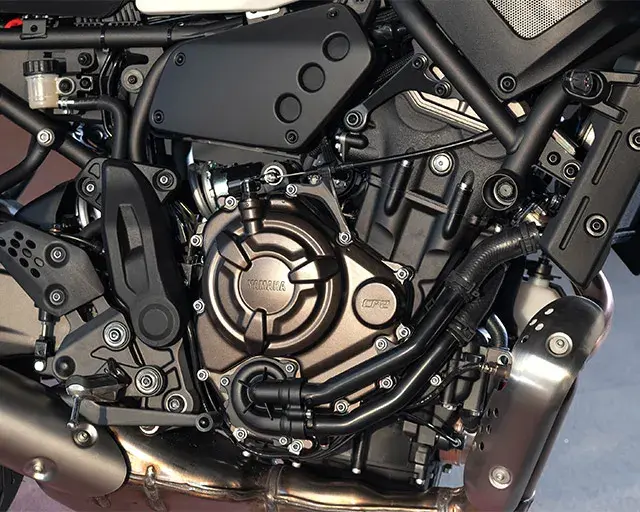

Outstanding 2-cylinder engine
Outstanding 2-cylinder engine

What gives the new XSR700 such a special character is its 655cc inline 2-cylinder engine, developed using Yamaha's 'crossplane philosophy'. With an uneven firing interval, the 270-degree crank gives a strong feeling of acceleration and great traction, and the deep linear torque ensures outstanding performance.

Retro coolness
Retro coolness

The XSR700 delivers a genuine retro coolness with hints of vintage styling without compromising on riding control. Chassis dimensions and weight distribution have been carefully set to maximise the enjoyment felt during acceleration and give the rider a connected feel with the motorcycle.

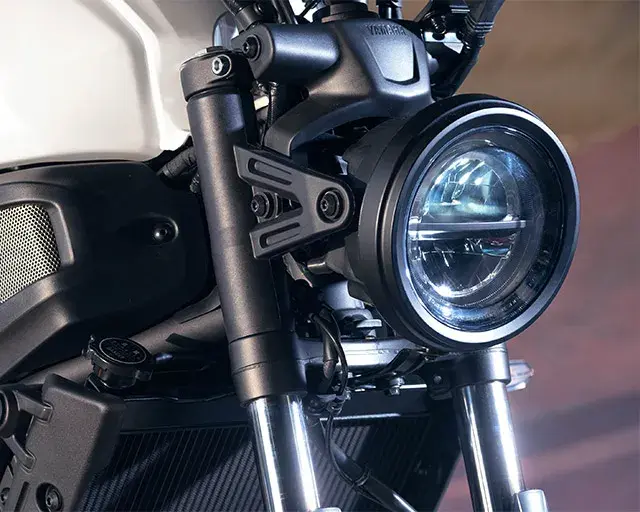

LED Lighting
LED Lighting

The XSR700 is fitted with a heritage inspired round LED headlight with a split projector and a semi-circular position lamp. The LED tail light features a classically shaped round form, and the compact LED indicators are more subtly shaped, whilst providing outstanding visibility.

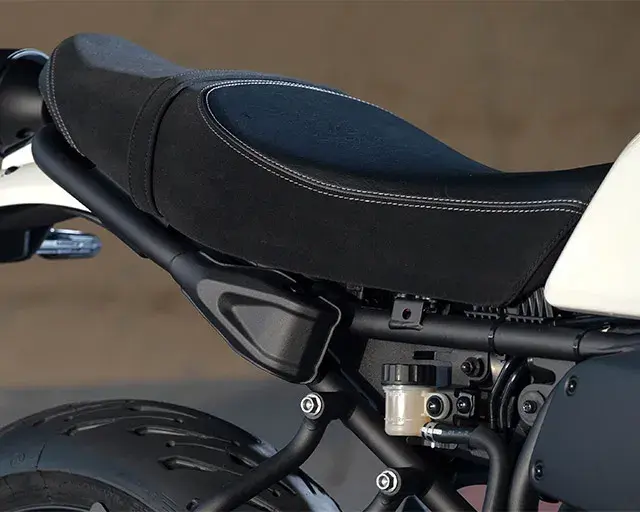

Slim backbone
Slim backbone

For easy maneuverability and sharp agility, the new XSR700 runs with a light, slim steel and easy customisable backbone-type frame under the retro body that utilises the 655cc engine as a stressed member. Combined with its compact wheelbase and plush suspension systems, this strong and light chassis gives a responsive and engaging ride.

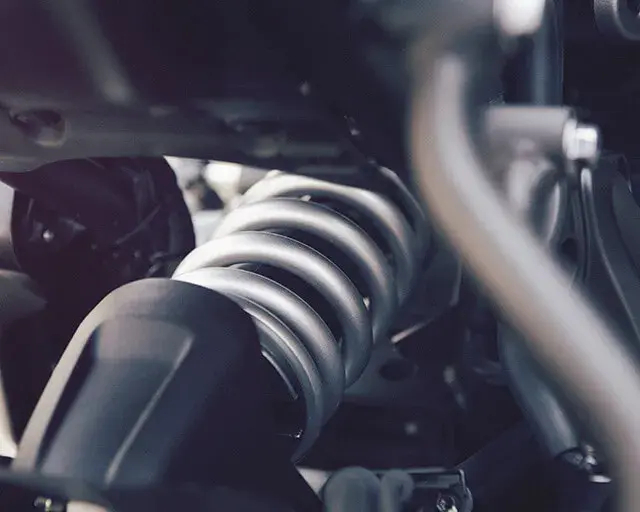

Link-type monocross
Link-type monocross

The link-type Monocross rear suspension system features a horizontal shock that is mounted directly to the engine’s crankcase to save space and enhance chassis performance. And for a more enjoyable feeling when accelerating, the XSR700 is fitted with a short 530mm swing arm that enhances the connected feeling between the rider and bike.

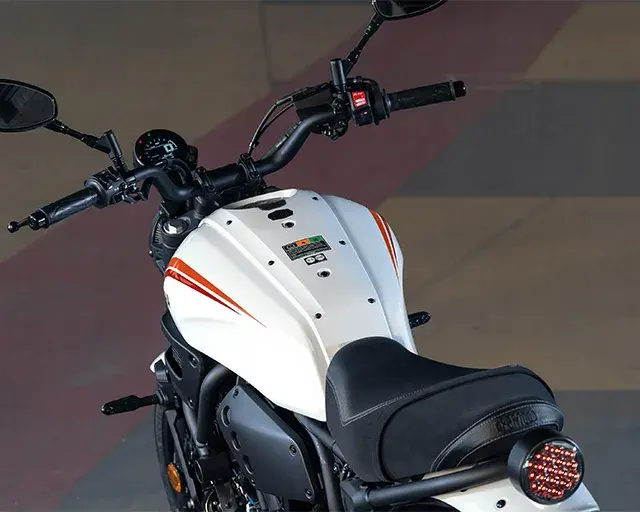

Iconic styling
Iconic styling

The colour schemes were influenced from iconic motorcycles of Yamaha’s rich history. The famous 2-stroke RD350LC from the early eighties provided the inspiration for the modern interpretation of the colour schemes, resulting in the a crisp Heritage White and a more elegant Heritage Black combination.

Technical Specifications

XSR700
Engine Type
Liquid-cooled, 4-stroke, DOHC, 4-valve, 2-cylinder
Displacement (cc)
655
Bore x Stroke (mm)
78.0 x 68.6
Compression Ratio
11.0 : 1
Lubrication System
Wet sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
14
Final Transmission
Chain
Transmission
Constant mesh 6-speed
Length (mm)
2075
Width (mm)
820
Height (mm)
1130
Seat Height (mm)
835
Wheelbase (mm)
1405
Ground Clearance (mm)
140
Wet Weight (kg)
186
Frame Type
Diamond
Suspension Front
Telescopic forks, 130mm travel
Suspension Rear
Swingarm (link suspension), 130mm travel
Brakes Front
Hydraulic dual discs, 282mm - ABS
Brakes Rear
Hydraulic single disc, 245mm - ABS
Tyres Front
120/70 ZR17 MC (58V) Tubeless
Tyres Rear
180/55 ZR17M/C (73V) Tubeless
