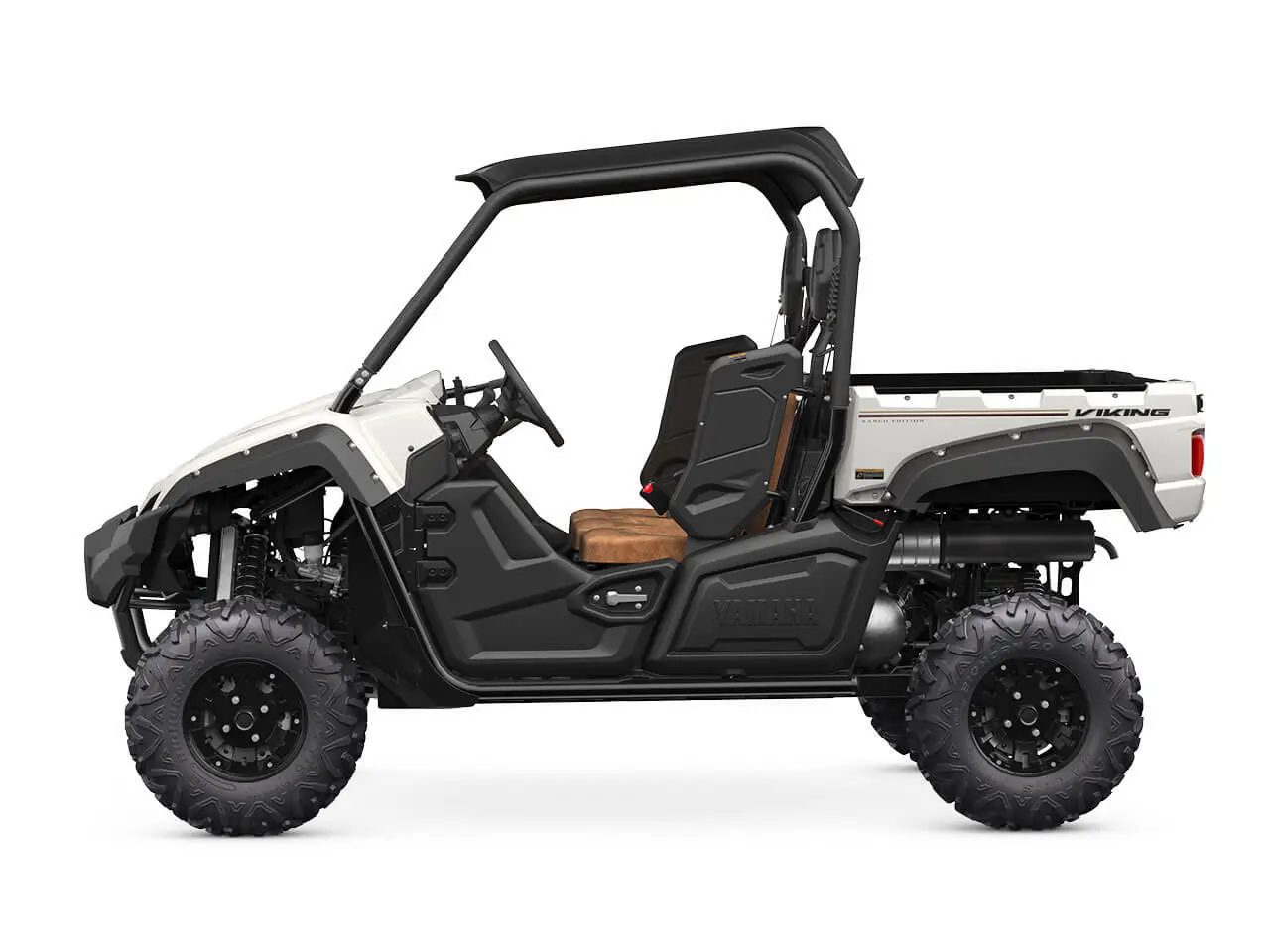

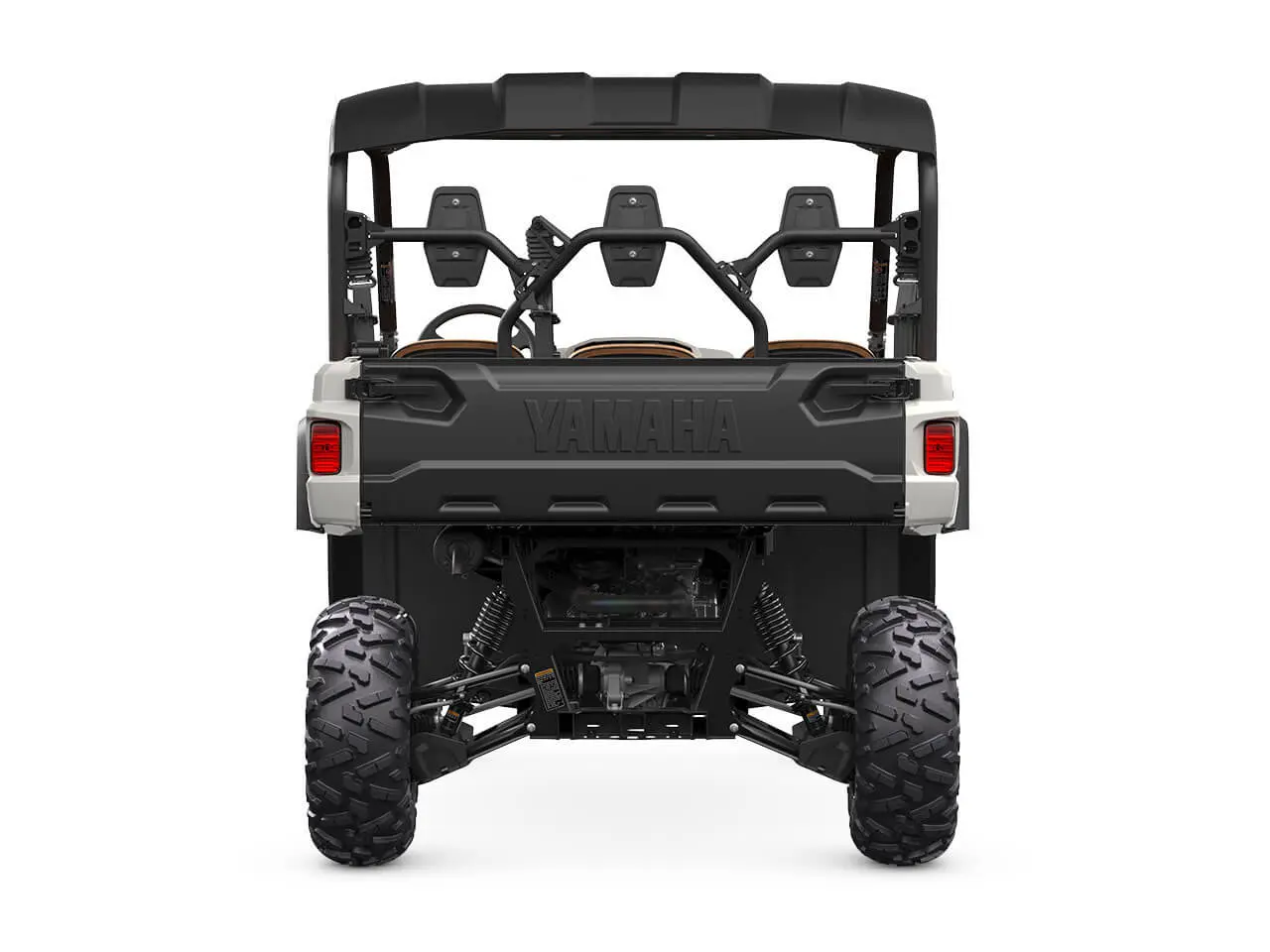

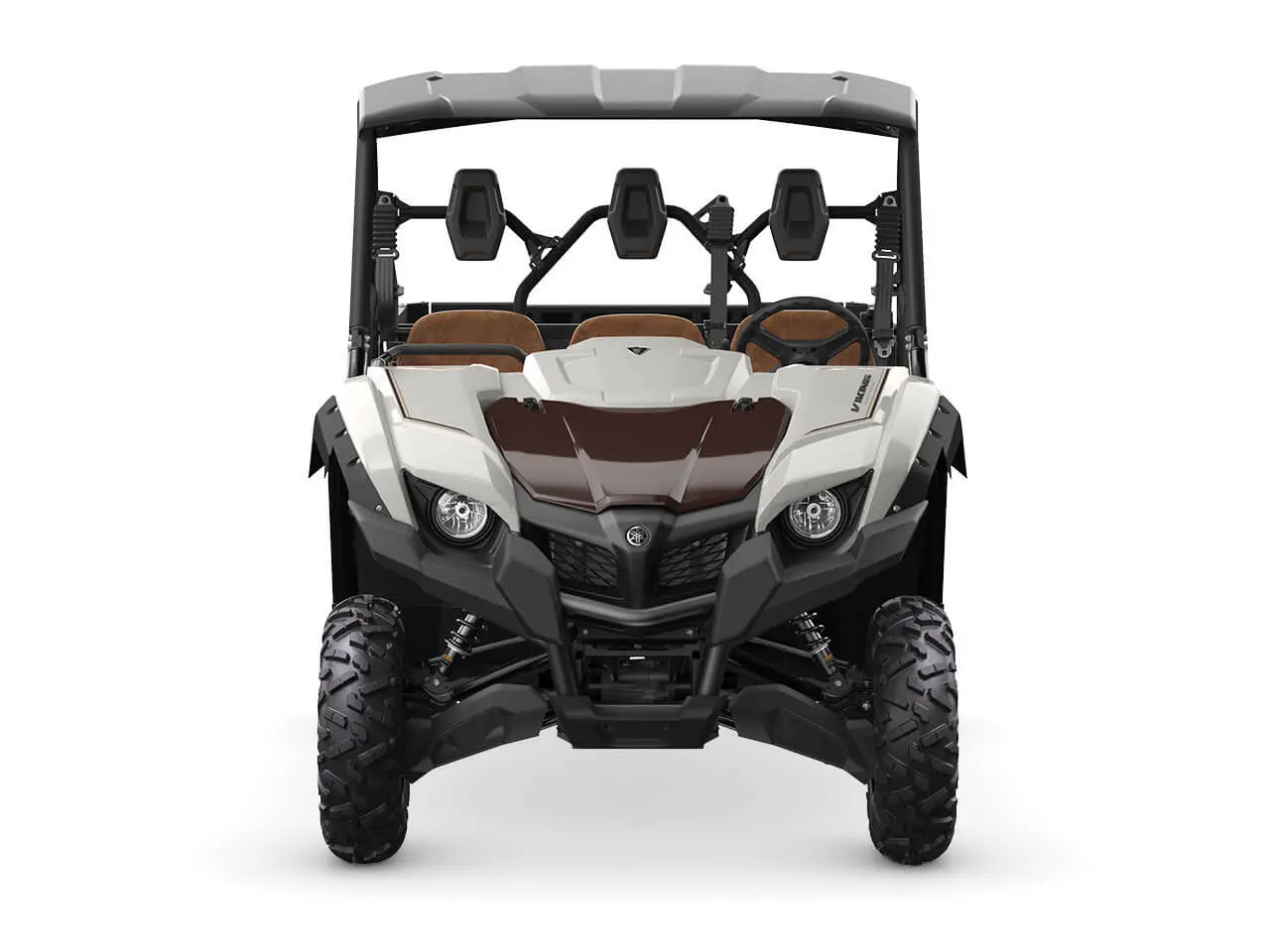

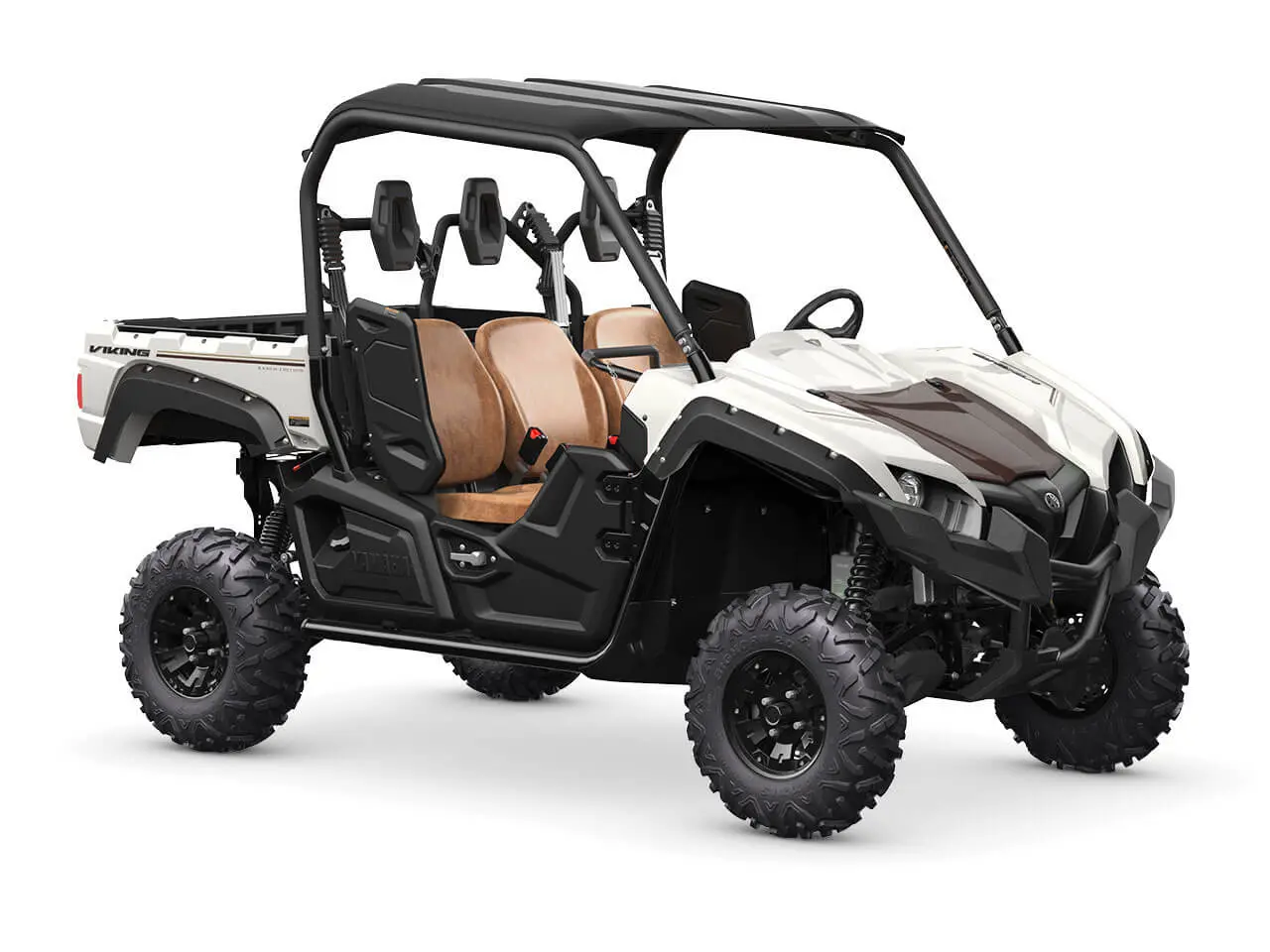

VIKING SE

The three seat Viking SE is ready to conquer whatever comes its way with a powerful 686cc, liquid-cooled, fuel injected, SOHC power plant. This engine produces strong low-end acceleration and pulls hard through the rpm range to deliver excellent power for getting the job done or when hitting the trails.

This true 3-passenger machine achieves driver and passenger comfort with a handhold, padded head rests, and 3-point seat belts for all riders. Extensive noise and vibration reduction measures provide a smooth and quiet ride. The superior seating position, adjustable driver’s seat, and an offset middle seat all provide unmatched comfort that riders will appreciate.

Additional accessories on the Viking SE include high-quality painted bodywork, aluminium wheels, overfenders, hard sun-top and underseat storage. As per all utility SSVs, Viking SE comes with a three year warranty.

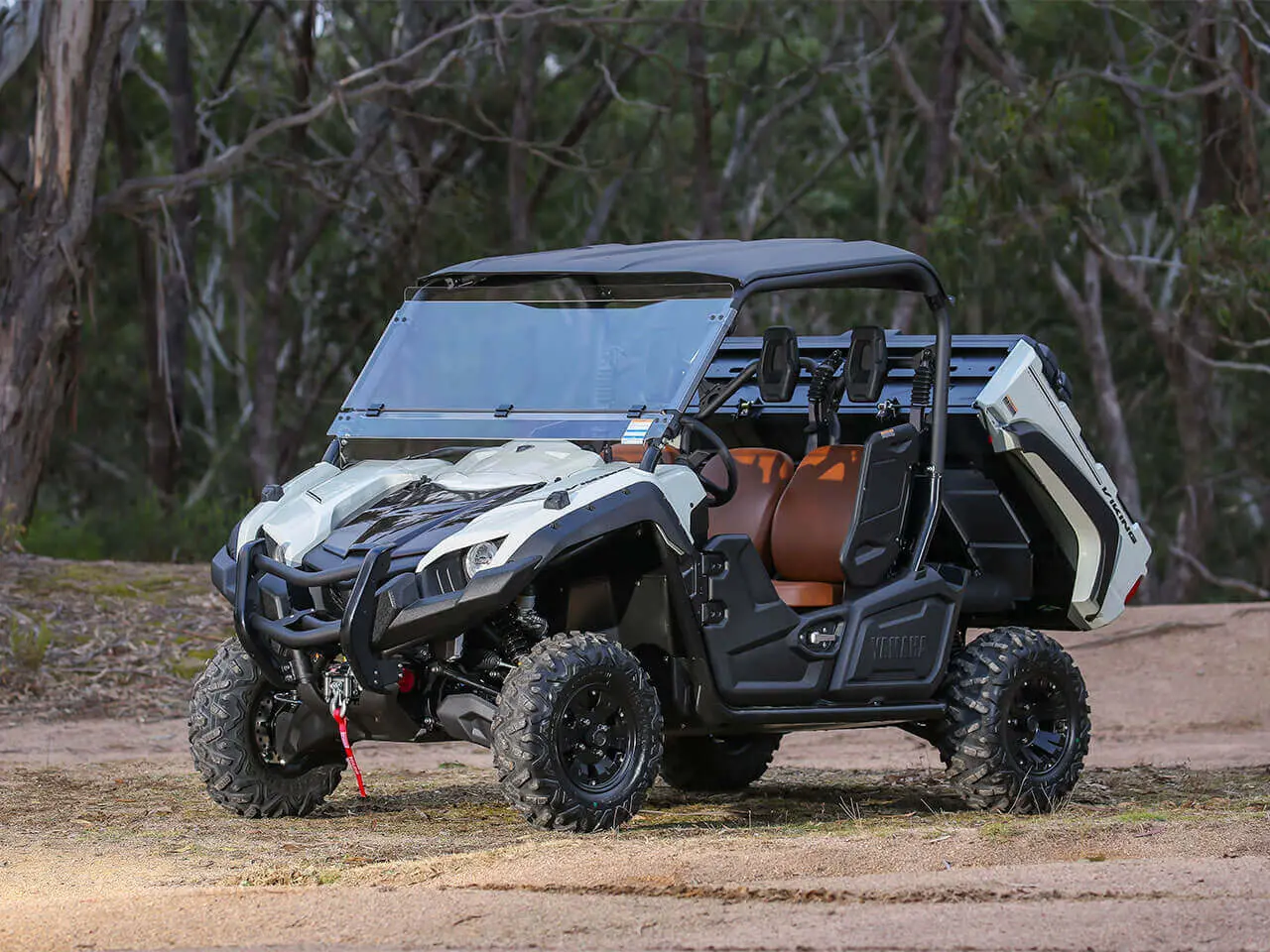

*Images show model with optional accessories fitted.

MAKE AN ENQUIRY

Features

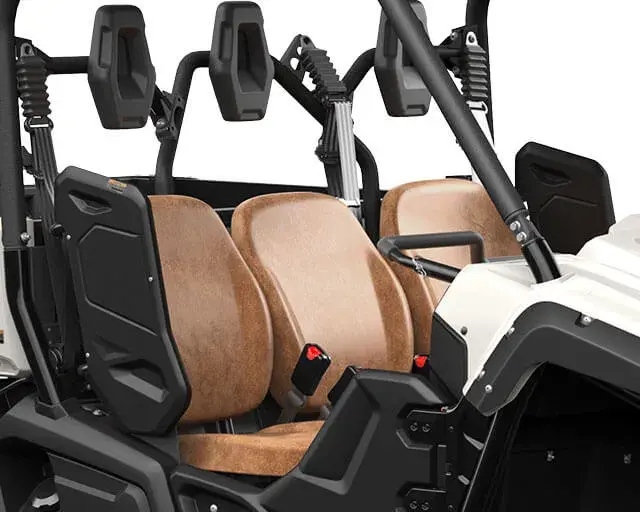

Spacious 3-seat layout
Spacious 3-seat layout

This true 3-passenger machine achieves driver and passenger comfort with a handhold, padded head rests, and 3-point seat belts for all riders. Extensive noise and vibration reduction measures provide a smooth and quiet ride. The superior seating position, adjustable driver’s seat, a standard sun top and an offset middle seat all provide unmatched comfort that riders will appreciate.

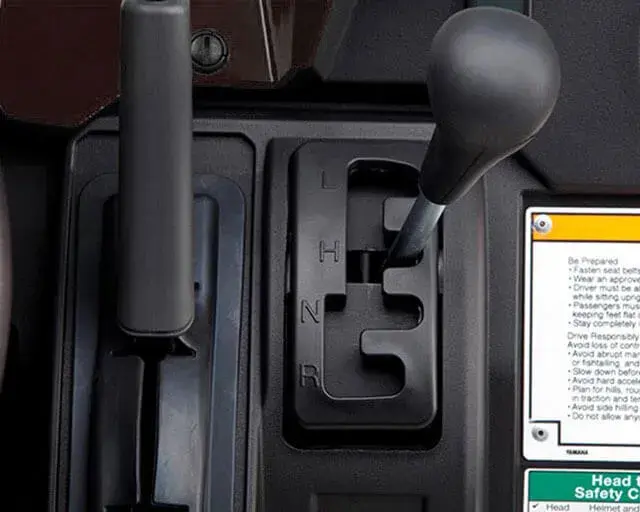

Ultramatic Transmission
Ultramatic Transmission

Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and the system features a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.

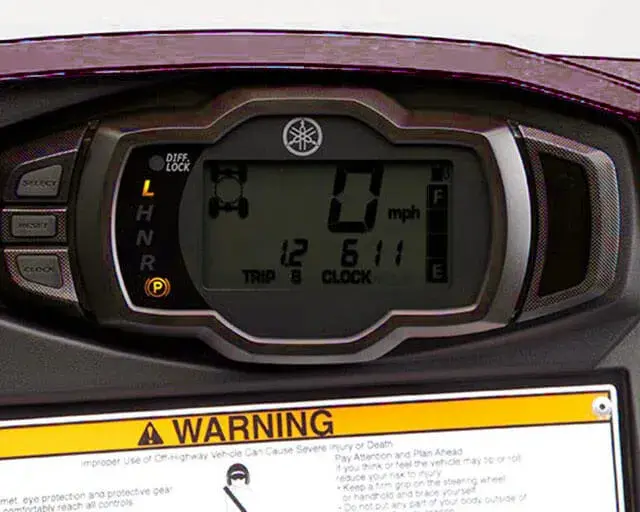

Digital Instrumentation
Digital Instrumentation

Digital instrument panel boasts multifunction LCD display with speedometer, odometer, dual trip meters, hour meter, 4WD status, transmission position, clock and a fuel gauge.

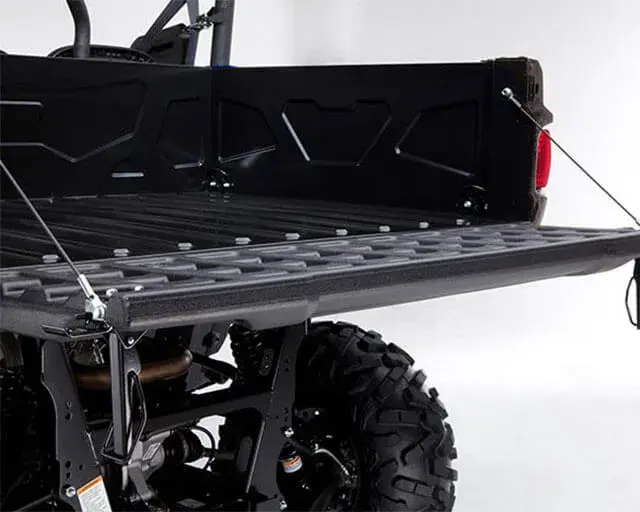

Pallet-sized rear cargo bed
Pallet-sized rear cargo bed

To underline its serious commercial, industrial and farming applications, the new Viking is equipped with a full-sized cargo bed which can accommodate a pallet. The tough steel-lined bed measures 1380mm wide x 925mm long x 315mm deep, and has a useful carrying capacity of 272kg – and to secure the load, the cargo bed is equipped with four tie-down hooks.

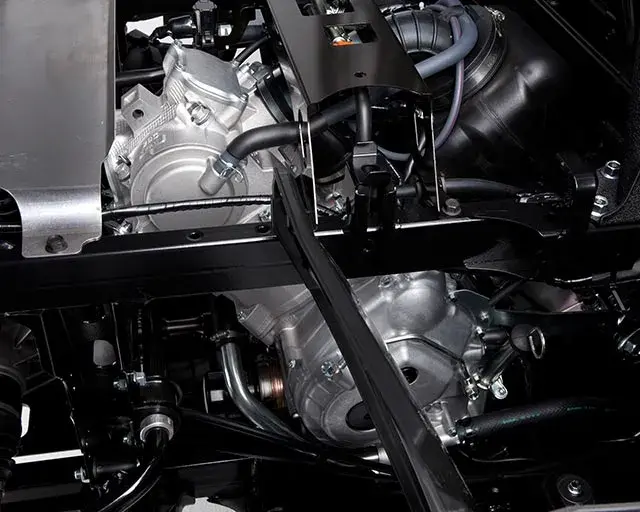

Service Accessibility
Service Accessibility

The engine is located under the cargo bed and can be easily accessed when the bed is lifted. Centre hood access for battery and other electrical components eases maintenance. Under-seat, tool-free air filter is a snap to service.

Technical Specifications

VIKING SE
Engine Type
Liquid-cooled, 4-stroke, SOHC, 4 valve, single cylinder
Displacement (cc)
686
Bore x Stroke (mm)
102.0 x 84.0
Compression Ratio
10.0 : 1
Lubrication System
Wet Sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
36.7
Final Transmission
Shaft
Transmission
Ultramatic® V-belt with all-wheel engine braking
H, L, N, R, P
Length (mm)
3100
Width (mm)
1625
Height (mm)
1925
Seat Height (mm)
793
Wheelbase (mm)
2135
Ground Clearance (mm)
300
Wet Weight (kg)
656
Frame Type
Steel tube
Suspension Front
Independent double wishbone, 205mm travel
Suspension Rear
Independent double wishbone, 205mm travel
Brakes Front
Hydraulic dual discs
Brakes Rear
Hydraulic dual discs
Tyres Front
25 × 8-12NHS
Tyres Rear
25 × 10-12NHS
