TMAX TECH MAX

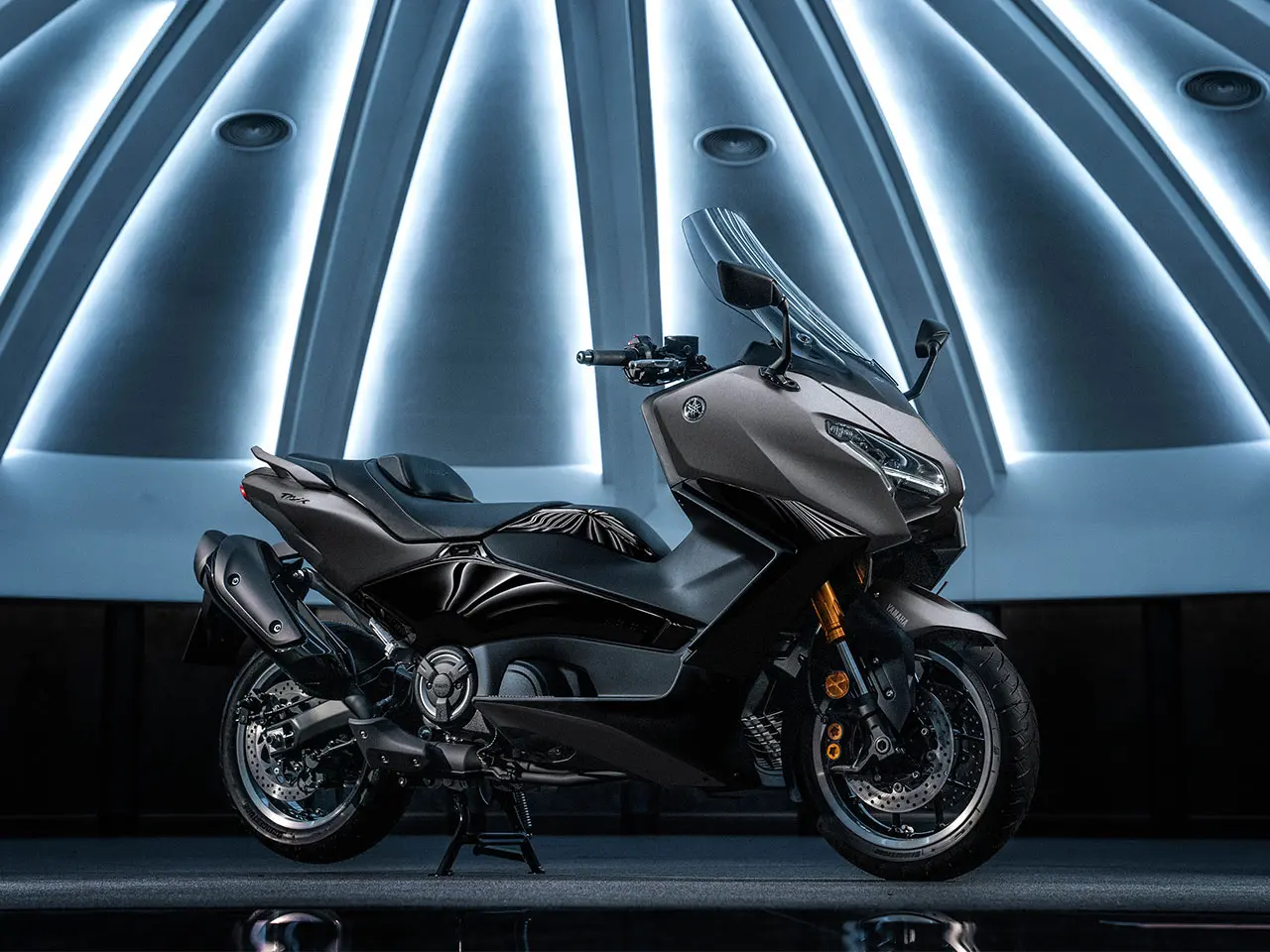

TMAX Tech MAX is Yamaha’s premium large capacity Sport Scooter with all the features of the TMAX plus more, making it an ideal choice for riders who are looking for the ultimate multi-role high-performance model. Equipped with dynamic dual-eye headlights and sleeker front bodywork, this iconic machine delivers a riding experience beyond compare.

Its powerful 560cc engine and refined automatic transmission make this Yamaha’s fastest and smoothest Sport Scooter. The motorcycle-type aluminium chassis and adjustable suspension provide precision handling. And for supreme comfort the TMAX Tech MAX comes with a luxury heated seat, heated grips and an electronically adjustable screen.

MAKE AN ENQUIRY

Features

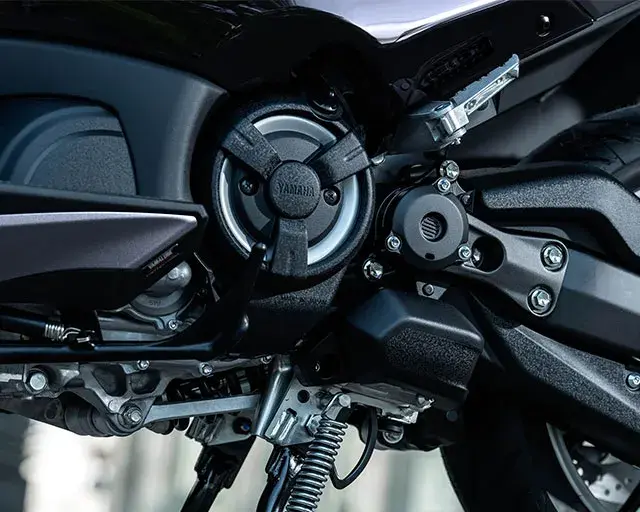

Powerful 560cc Engine
Powerful 560cc Engine

The TMAX Tech Max is driven by a compact and powerful engine giving spirited sports performance via an easy to use automatic transmission. The 560cc 2-cylinder engine features a special horizontally opposed reciprocating piston balancer mechanism that ensures a super smooth ride, making it ideal in a variety of riding situations – whether commuting into work through congested urban streets or heading home on the highway.

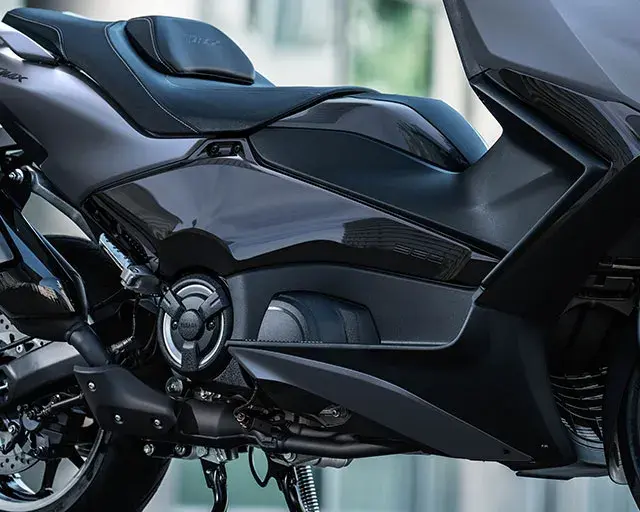

Lightweight chassis
Lightweight chassis

TMAX Tech MAX design moves one step closer to the supersport motorcycle world with its aerodynamic body. With its iconic boomerang side panels, electronic adjustable screen, upswept right side exhaust, sculpted dual seat and athletic sports bodywork, the new face and front bodywork retain this legendary model’s essential character and pure sports DNA that have made it one of the most popular powered two wheelers built by Yamaha – and lightweight SpinForged wheels and forged aluminium handlebars underline this sport scooter’s premium specification.

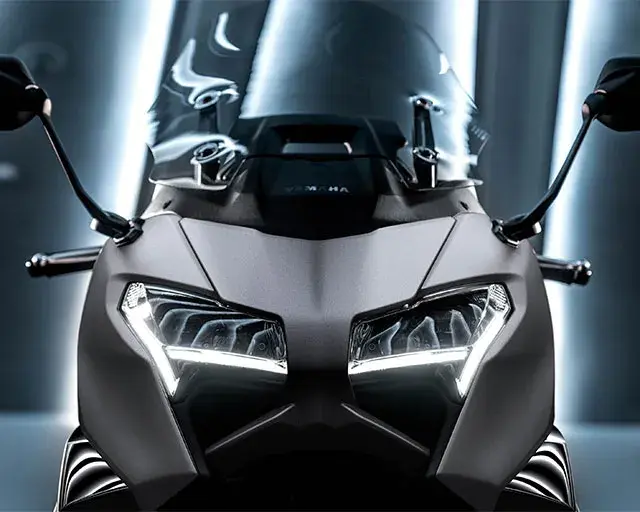

Dual Eye Headlights
Dual Eye Headlights

The TMAX Tech Max features a dynamic face with dual eye headlights and built in position lights that give a sportier and refined appearance that is instantly recognisable as being TMAX – while at the same time bringing a strong image to this outstanding Sport Scooter. The TMAX’s front bodywork is also is created to complement the dual eye headlights to give a modern look and feel, giving a simple and sharp silhouette with a compact mass centralised look.

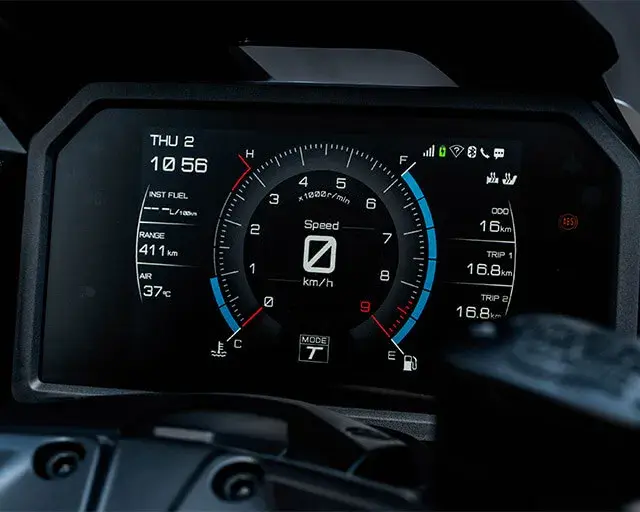

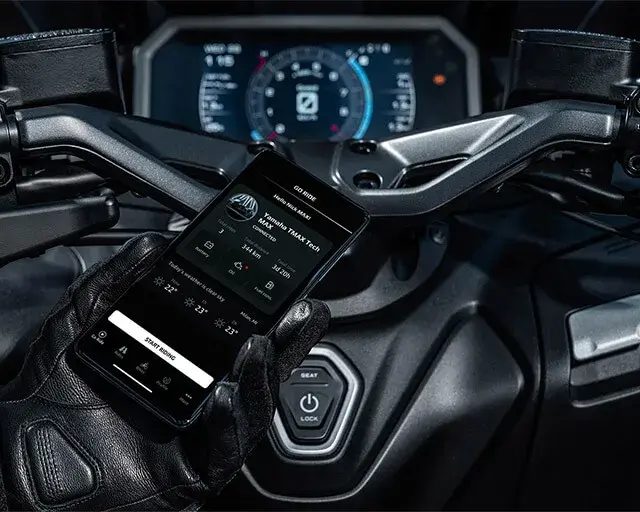

7-inch TFT with connectivity
7-inch TFT with connectivity

The 7-inch TFT dash offers a choice of three screen layouts, enabling the TMAX rider to select the option that focuses on the information that is most significant to them. Connectivity on the TMAX Tech Max via the MyRide app also enables riders to play music and view SMS, receive calls and email notifications, while riders can access full map Garmin Navigation* through the Garmin Motorize App.

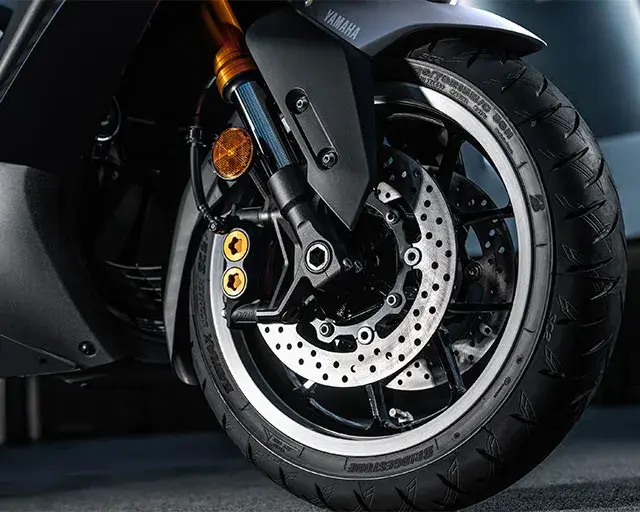

Brake Control System
Brake Control System

TMAX Tech Max is equipped with large diameter 267mm front disc brakes and a 282mm diameter rear disc brake with ABS and Brake Control system that give excellent controllability in varying conditions. Developed originally for Yamaha’s high performance Supersport motorcycles, Brake Control (BC) works with the TMAX’s Anti-lock Braking System to help minimise brake slip during hard braking or when riding on low-traction surfaces. Activated by an Inertial Measurement Unit (IMU), the BC system aims to deliver the most comfortable braking performance at varying speeds, lean angles and road conditions.

Sophisticated electronics
Sophisticated electronics

The TMAX Tech MAX is equipped with a state-of-the-art Yamaha Chip Controlled Throttle (YCC-T) for the finest level of engine controllability – and for greater feeling and reduced weight a fly-by-wire Accelerator Position Sensor Grip (APSG) is fitted. The traction control system helps prevent rear wheel slip when accelerating on wet or loose surfaces – and D-MODE allows you to select smooth or sporty engine performance. The addition of Brake Control complements this Sport Scooter’s existing package of electronic control technology to give the rider a higher level of confidence in a variety of weather and road surface conditions.

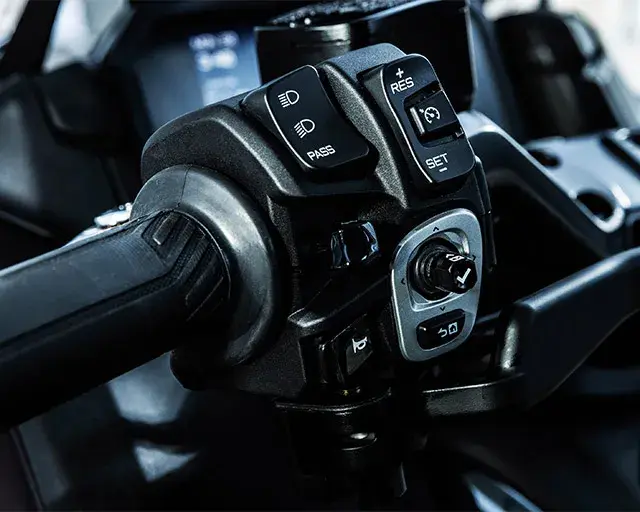

Cruise control
Cruise control

Cruise control is a standard feature on the TMAX Tech MAX, and enables you to relax on longer rides, and also serves as a useful way to stay under the speed limit. The system works in conjunction with the YCC-T Yamaha Chip Controlled Throttle and can be selected at speeds of 50 kph and above.

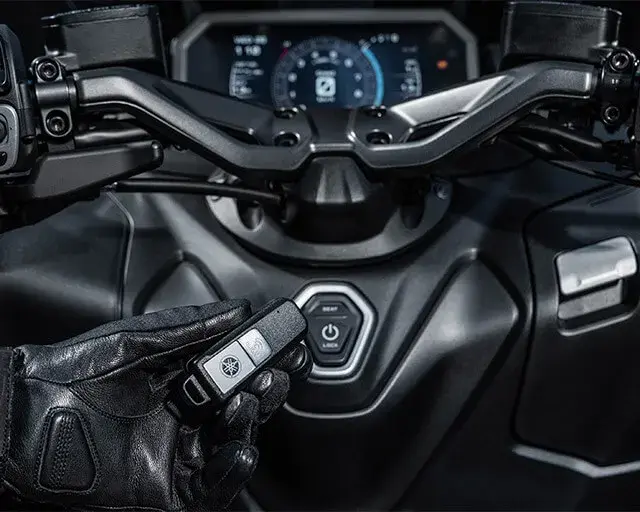

Smartkey Keyless Ignition
Smartkey Keyless Ignition

Using your TMAX Tech MAX is so convenient with the Smart Key in your pocket – and the 2-button backlit main switch is simple to use. This keyless technology enables you to start the engine, unlock the seat and release the centre stand easily and quickly – and you can even unlock the stylish flush fitting aero-style fuel cap.

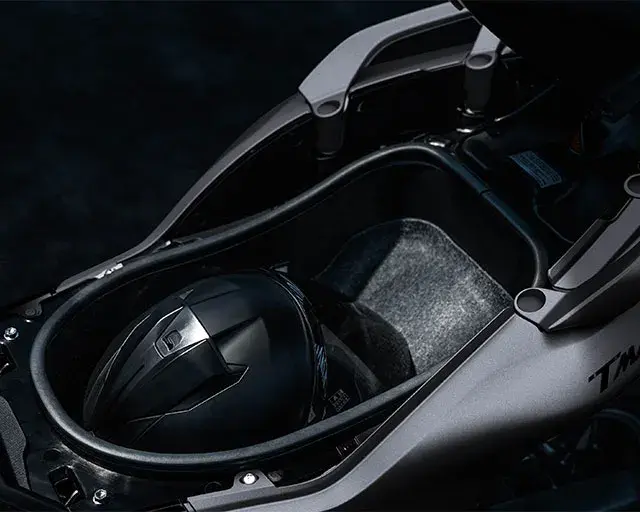

Large Storage Space
Large Storage Space

With easy keyless access, the large underseat storage space can accommodate one full-face helmet when you’re parked – and when you’re on the move it’s the ideal weatherproof space to safely carry a briefcase, laptop or your gym kit. Featuring automatic internal illumination for your convenience.

Technical Specifications

TMAX TECH MAX
Engine Type
Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement (cc)
562
Bore x Stroke (mm)
70.0 x 73.0
Compression Ratio
10.9 : 1
Lubrication System
Dry Sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
15
Final Transmission
Belt
Transmission
V-Belt Automatic
Length (mm)
2195
Width (mm)
780
Height (mm)
1415 / 1525
Seat Height (mm)
800
Wheelbase (mm)
1575
Ground Clearance (mm)
135
Wet Weight (kg)
221
Frame Type
Aluminium CF die-cast
Suspension Front
Telescopic forks, 120mm travel
Suspension Rear
Swingarm, 117mm travel
Brakes Front
Hydraulic dual discs, 267mm - ABS
Brakes Rear
Hydraulic single disc, 282mm - ABS
Tyres Front
120/70R15M/C 56H Tubeless
Tyres Rear
160/60R15M/C 67H Tubeless
