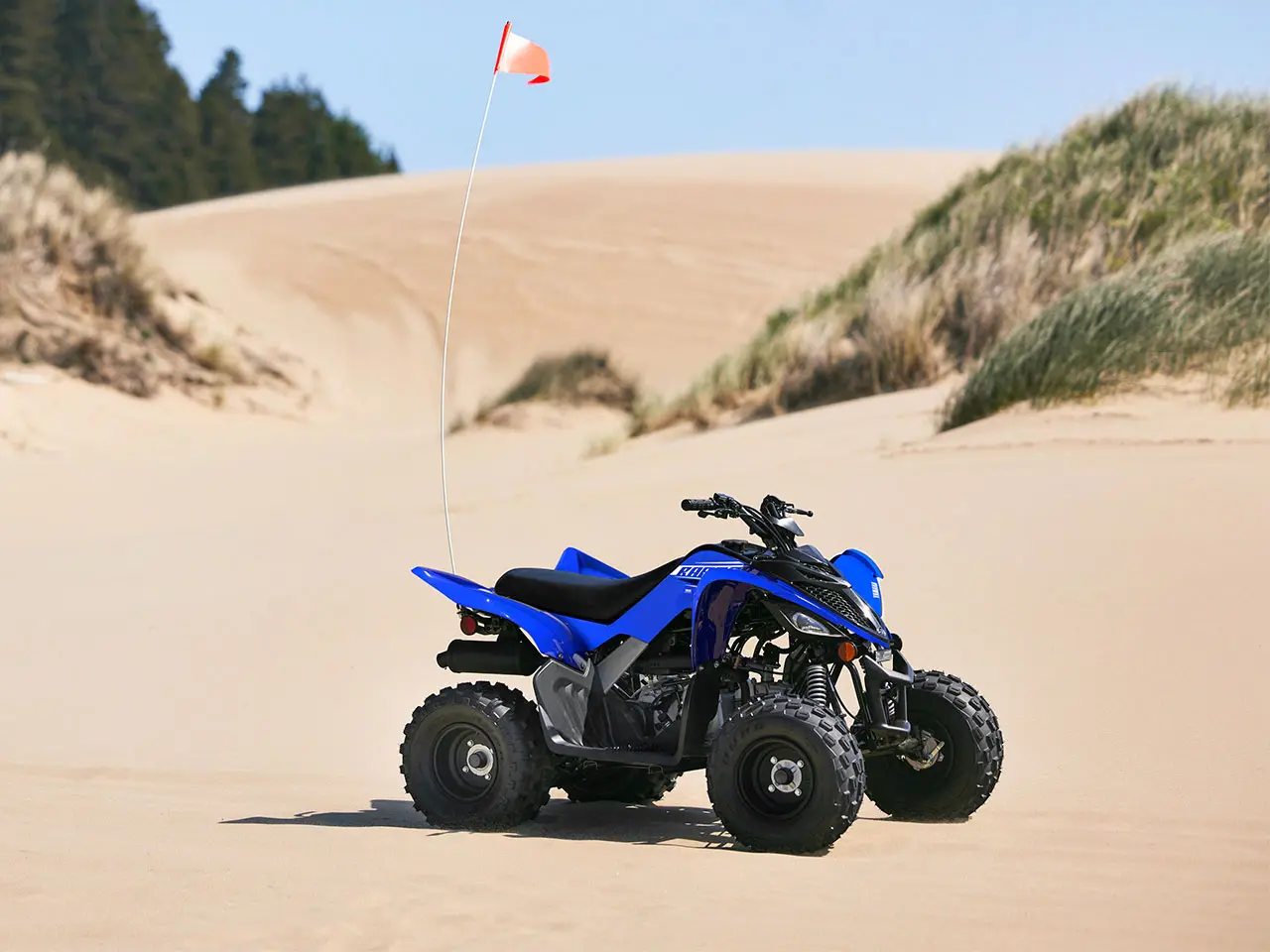

The Raptor 110 is built to bring maximum fun to ATV riders ages 10 and up. A fuel-injected 112cc air-cooled SOHC 4-stroke engine is tuned to develop excellent low- to mid-range performance. A fully automatic CVT transmission with reverse, a gated shifter, and electric start all come standard.
Designed based on the top-selling Raptor 700R, this entry-level ATV brings Yamaha's Proven Off-Road sport ATV performance, legacy, and quality to new riders as they develop their skills and embrace their passion for motorsports.

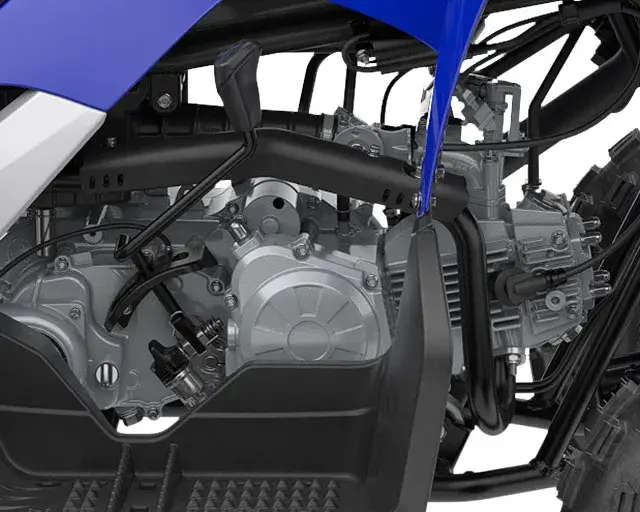

The fuel-injected 112cc four-stroke SOHC engine is tuned to develop excellent low- to mid-range performance, just where its needed. The engine is air-cooled for simplicity, performance and long life, and uses ultra-reliable wet-sump lubrication.

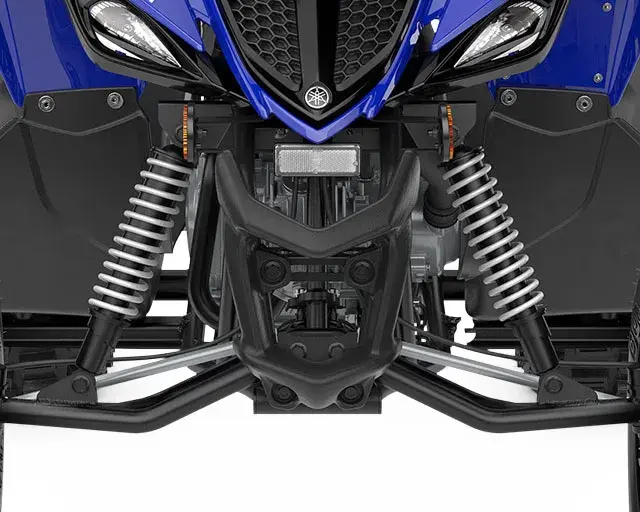

Scaled Down Not Scaled Back
Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality, with preload-adjustable shocks offering 127mm of wheel travel and adding to the Raptor 110s full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 145mm of wheel travel.

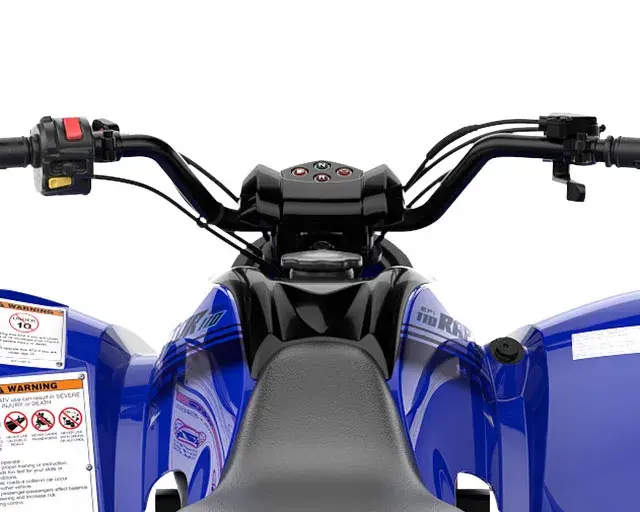

Modern Reliable Electronics
The EFI system with an ECU delivers strong, reliable performance. A sealed, maintenance-free battery provides worry-free operation. Convenient handlebar-mounted reverse and neutral indicators, along with engine warning and low-fuel warning lights keep the rider informed in all situations.

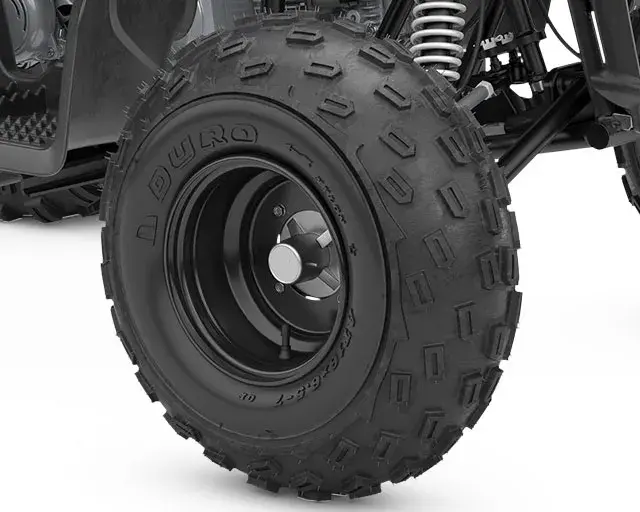

Optimised Tyres
Duro low-profile tyresAT18 x 7-8 front and AT18 x 9-8 reargive the Raptor 110 aggressive looks and sporty handling.

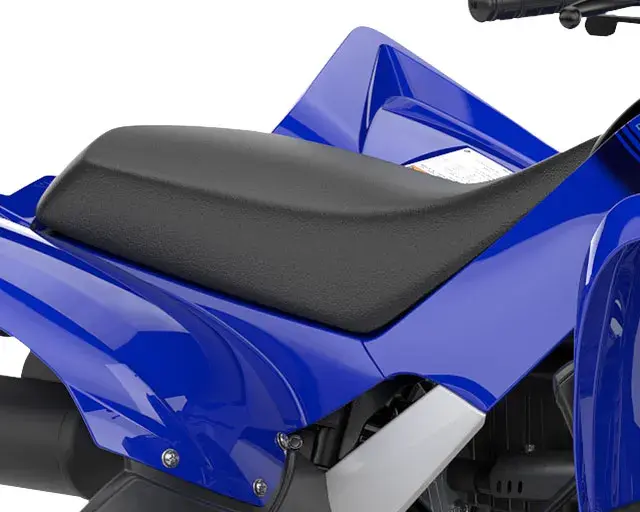

Comfortable Chassis
An advanced frame design incorporates a large 6.7 litre fuel tank, plush seat and roomy integrated floorboards on an optimised wheelbase.
Technical Specifications
Engine Type
Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
Displacement (cc)
112
Bore x Stroke (mm)
52.4 x 51.8
Compression Ratio
9.2 : 1
Lubrication System
Wet sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
6.8
Final Transmission
Chain
Transmission
V-belt automatic, F, N, R
Length (mm)
1485
Width (mm)
1020
Height (mm)
991
Seat Height (mm)
750
Wheelbase (mm)
1030
Ground Clearance (mm)
210
Wet Weight (kg)
130.4
Frame Type
Steel tube
Suspension Front
Single A-arm, 127mm travel
Suspension Rear
Swingarm, 145mm travel
Brakes Front
Dual drums
Brakes Rear
Drum
Tyres Front
AT18 x 7-8
Tyres Rear
AT18 x 9-8
