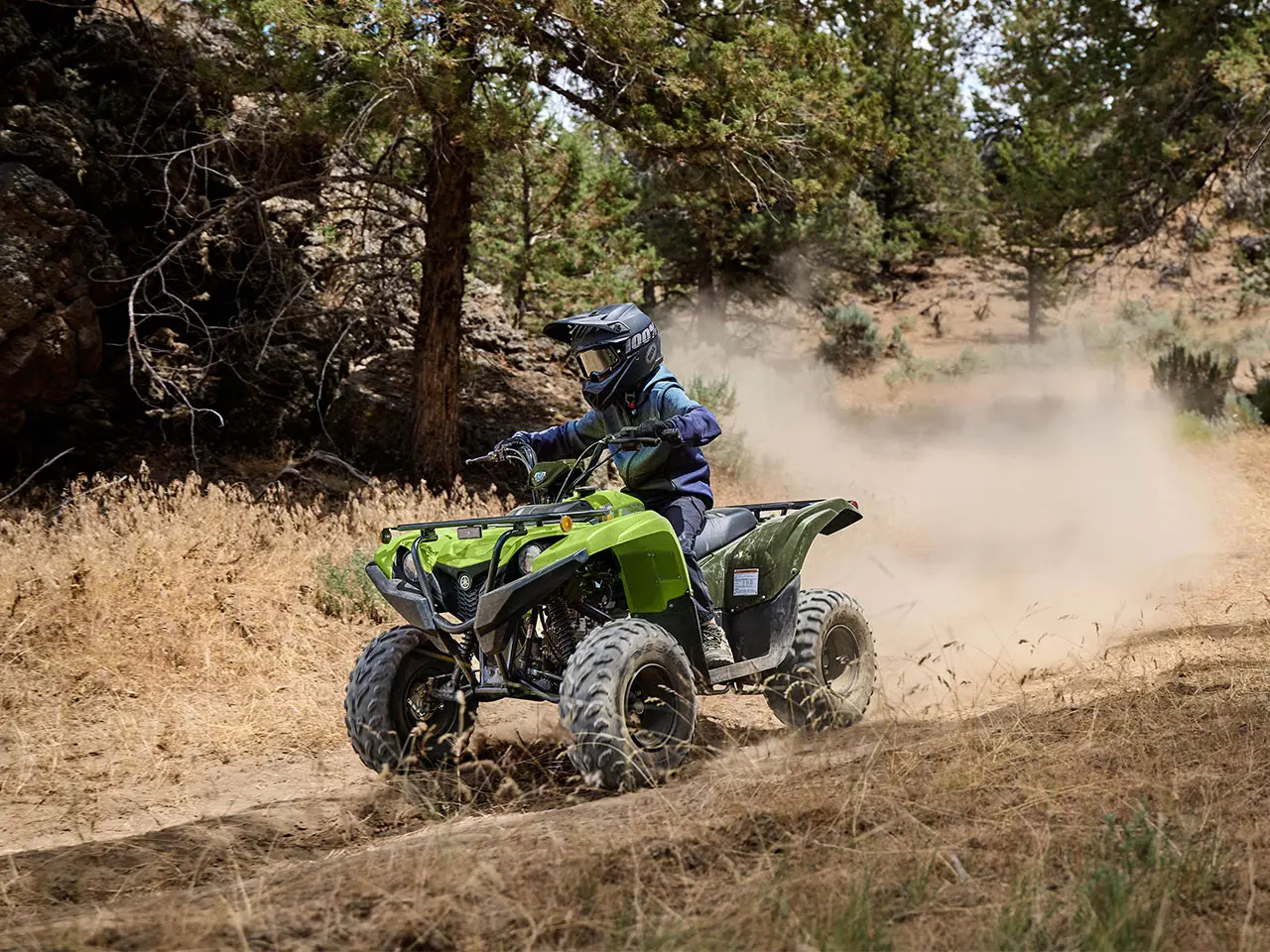

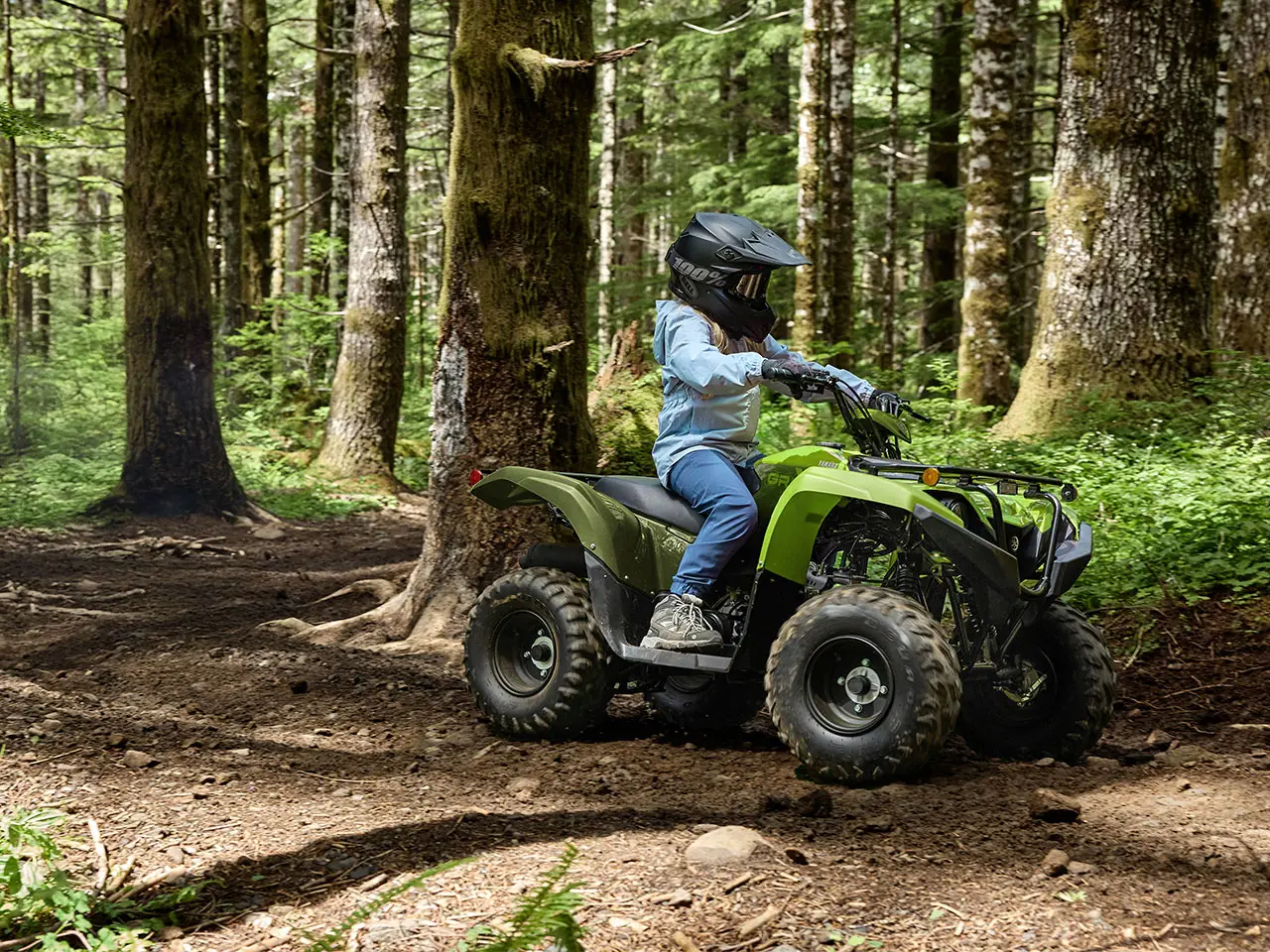

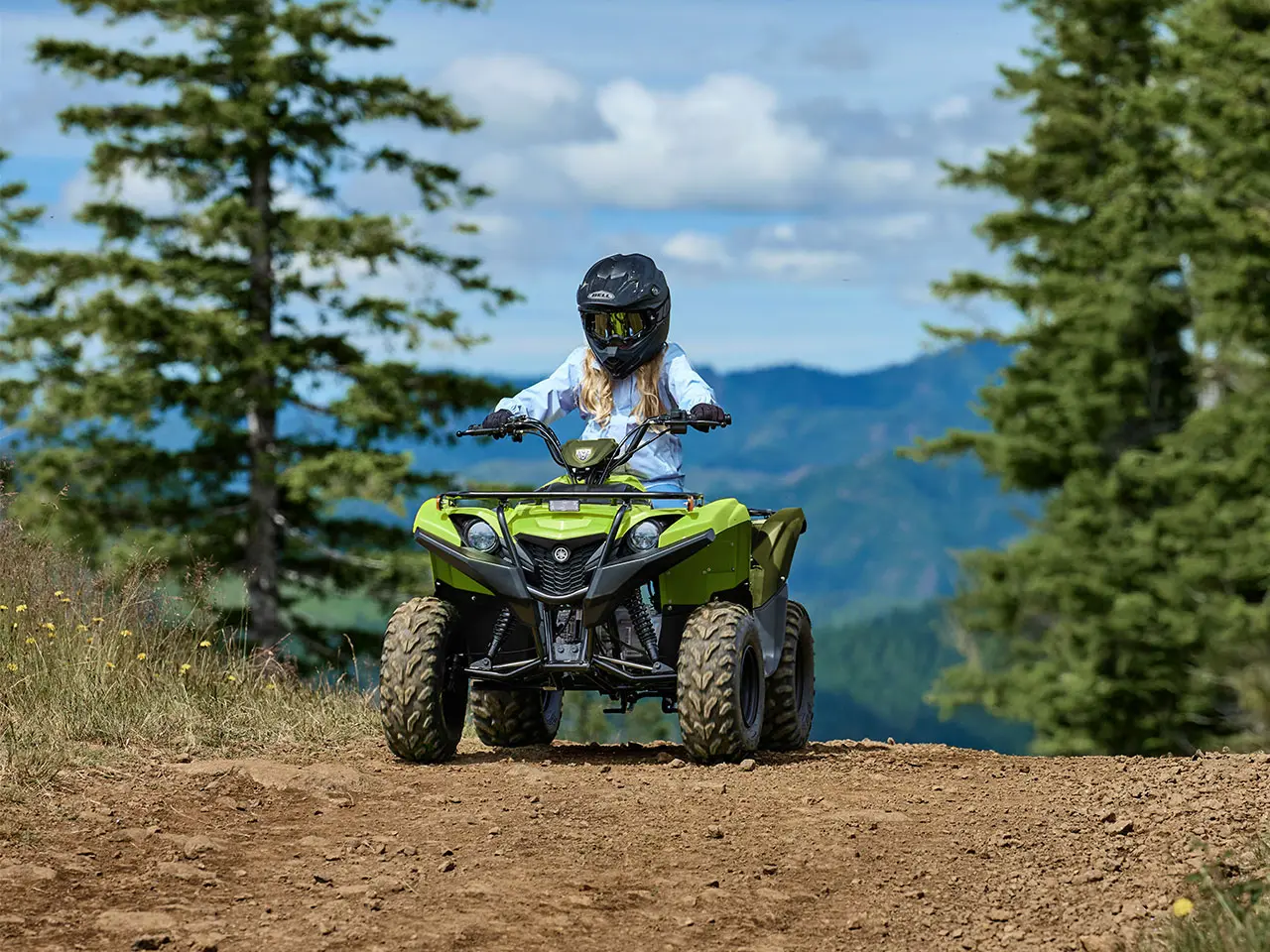

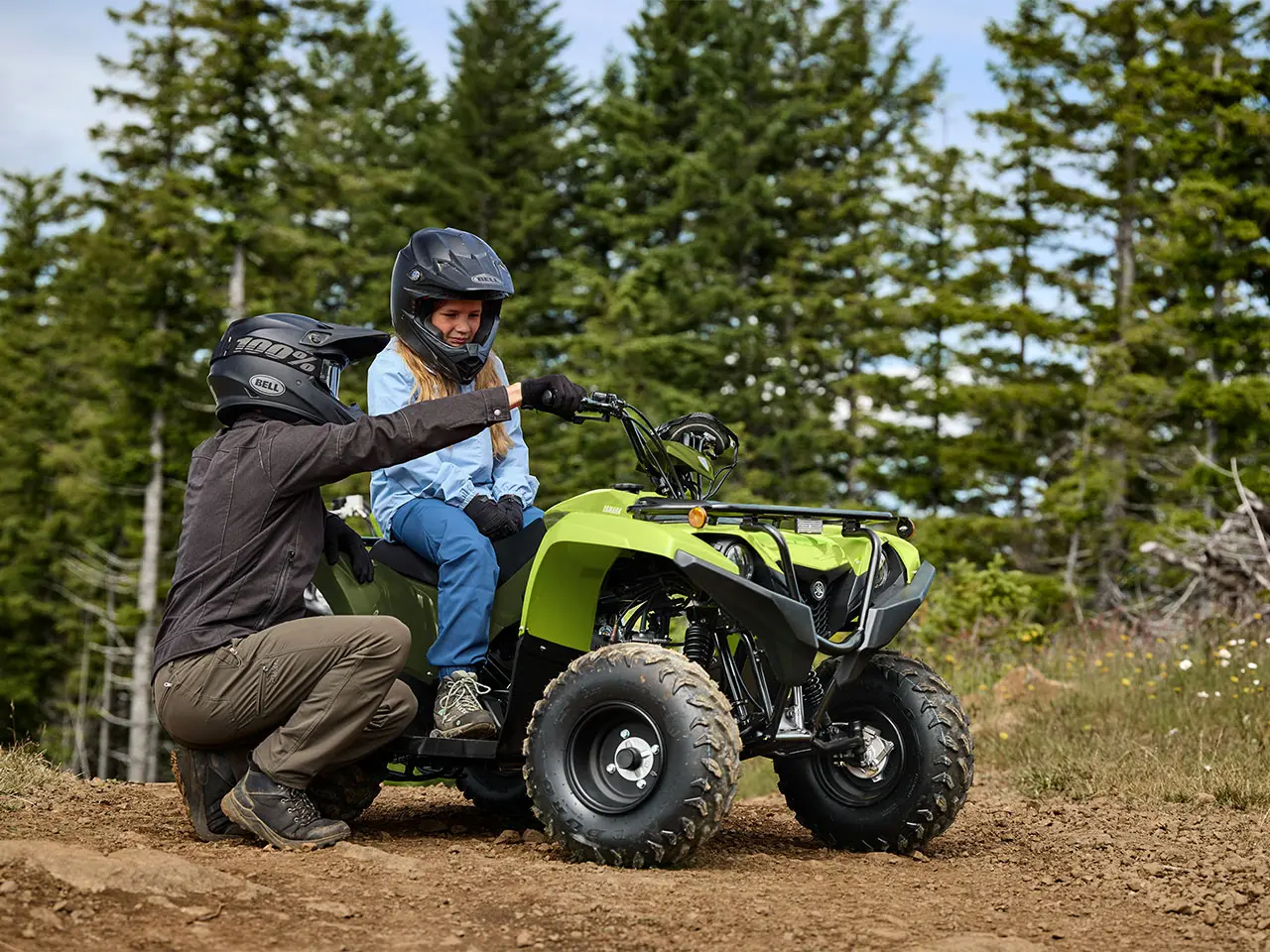

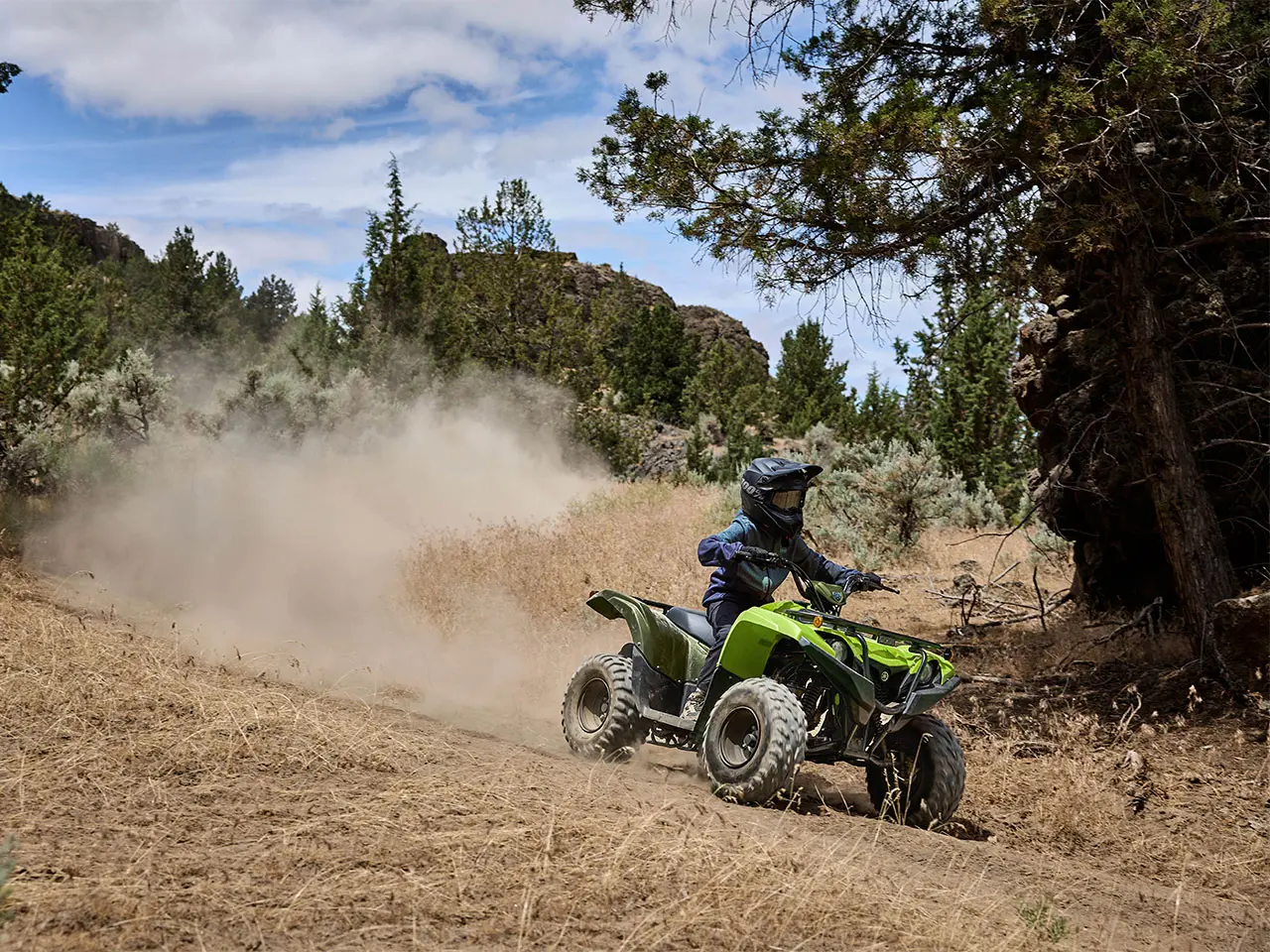

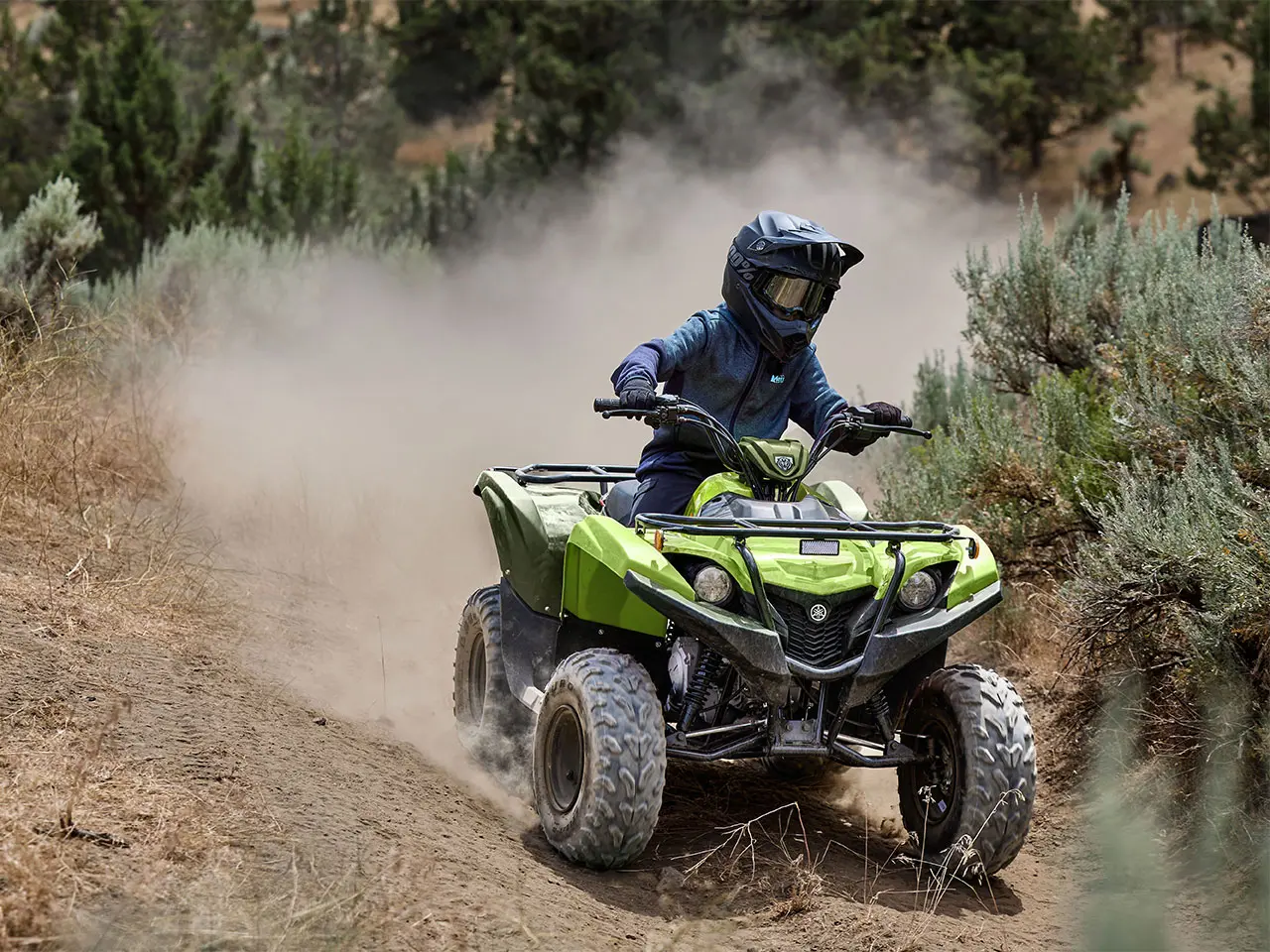

The Grizzly 110 is built to bring maximum fun for young ATV riders ages 10 and up. Featuring a large displacement 112cc engine with advanced fuel injection tuned to deliver excellent low- to mid-range performance, the Grizzly 110 is the perfect platform for allowing young riders to build skill and confidence.

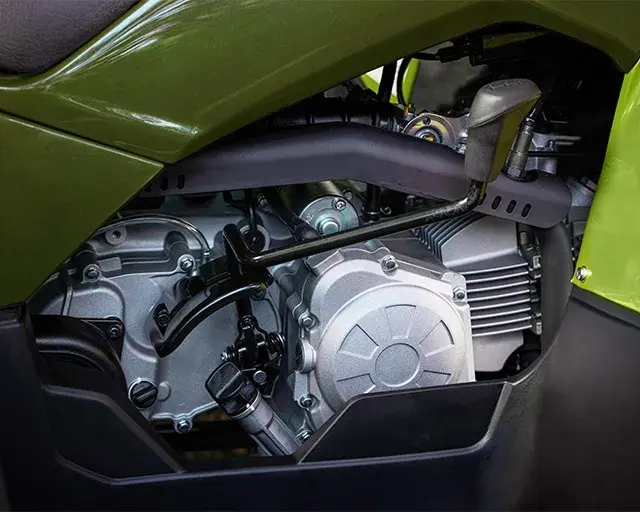

The Grizzly 110's four-stroke SOHC 110cc engine is tuned to develop excellent low- to mid-range performance. The engine utilises proven wet-sump lubrication and is air-cooled for simplicity, performance and long service life.

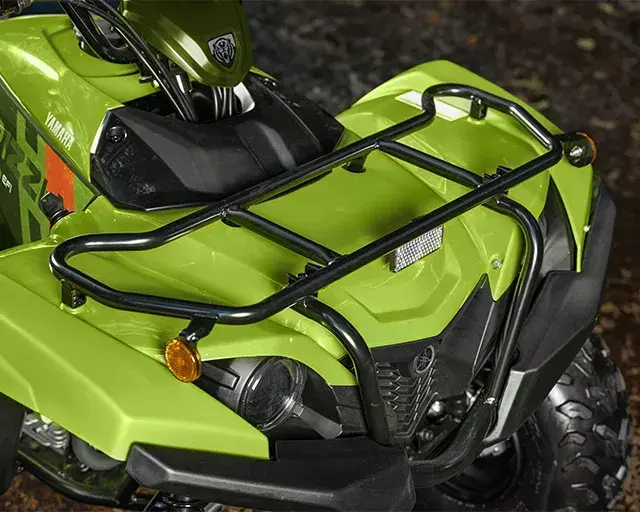

Integrated Cargo Racks
Robust steel cargo racks front and rear both boast 5kg carrying capacity and give younger riders the ability to pack their own gear as they join the family on their next adventure.

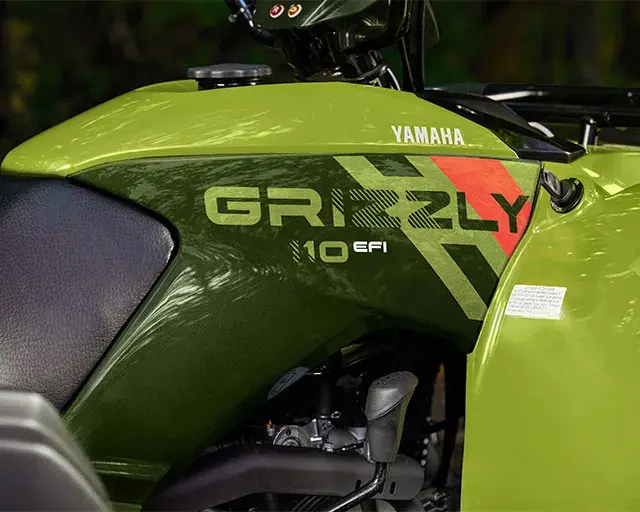

Full Comfort
The Grizzly 110 is designed to be comfortable for a wide variety of riders 10 and up. With its large, plush seat and wide floorboards, riders won't outgrow the machine as they build their off-road riding skills.
Automatic Transmission
Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders, it's a feature entry-level riders particularly appreciate. Standard reverse simplifies manoeuvring the Grizzly 110 in tight spots.

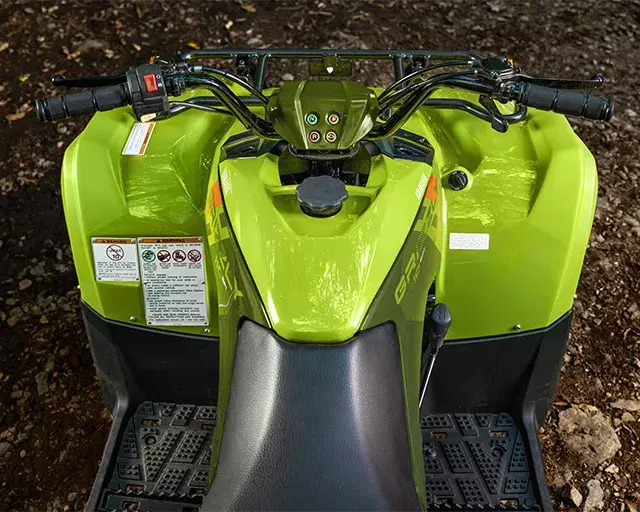

Upright Ergonomics
The Grizzly 110 features a tall handlebar and optimised seat-to-peg distance to give riders a comfortable, upright riding position for excellent control feel and great trail visibility.

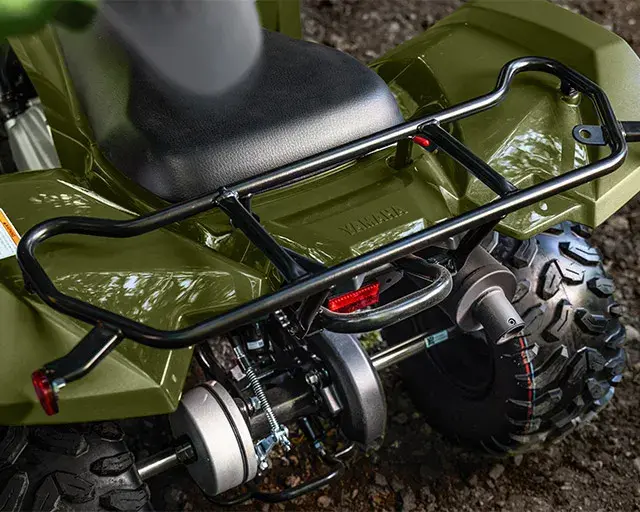

Engine Limiter
To help young beginners grow into accomplished ATV riders, the Grizzly 110 includes both an electronic limiter and throttle limiter to tailor the engine's performance to the rider's advancing skill level.

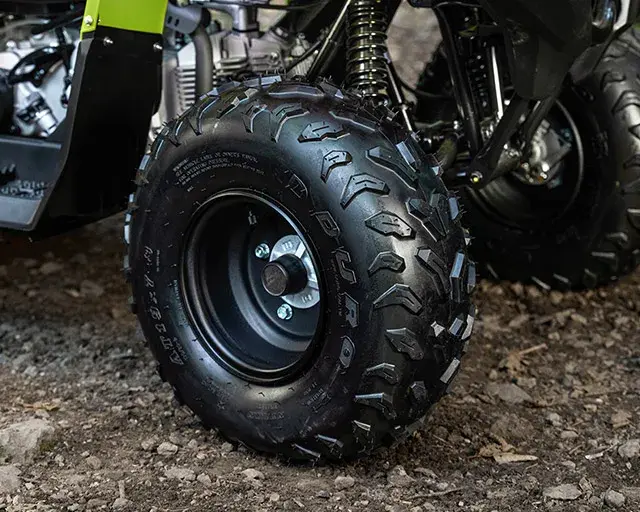

Grizzly Traction
Grizzly 110 features aggressive tyres to maximise traction on any trail. The oversized 19-inch front tyres and complementing 18-inch rear tyres lend the compact machine an purposeful stance.
Technical Specifications
Engine Type
Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
Displacement (cc)
112
Bore x Stroke (mm)
52.4 x 51.8
Compression Ratio
9.2 : 1
Lubrication System
Wet sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
6.8
Final Transmission
Chain
Transmission
V-belt automatic, F, N, R
Length (mm)
1562
Width (mm)
1030
Height (mm)
1005
Seat Height (mm)
730
Wheelbase (mm)
1030
Ground Clearance (mm)
210
Wet Weight (kg)
143
Frame Type
Steel tube
Suspension Front
Single A-arm, 127mm travel
Suspension Rear
Swingarm, 145mm travel
Brakes Front
Dual drums
Brakes Rear
Drum
Tyres Front
AT19 x 7-8
Tyres Rear
AT18 x 9-8
