FJR1300AE

It’s been well over 20 years since Yamaha defined the sports touring concept with the introduction of the FJR1300. Its glass smooth four cylinder engine and ability to devour huge distances in supreme comfort has built up a cult like status among owners.

With its silky smooth 1298cc inline four engine, a smooth and quiet helical cut six speed transmission, lightweight assist and slipper clutch, lean angle sensitive LED lighting system, long-range 25-litre fuel tank, aerodynamic fairing with electronically adjustable screen and adjustable riding position, the FJR1300AE gets you there in comfort and style.

MAKE AN ENQUIRY

Features

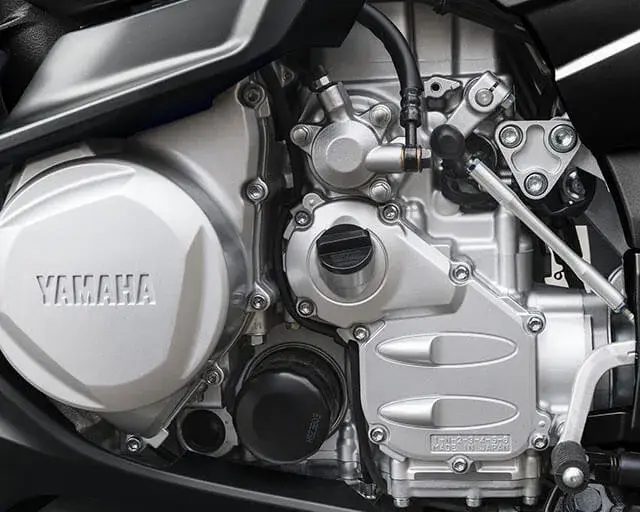

High performance
High performance

Featuring a Yamaha Chip Controlled Throttle (YCC-T) for smooth power delivery, the advanced inline 4-cylinder powerplant delivers outstanding sports performance. Its high torque output makes for strong acceleration in all 6 gears - and the impressive top end enables you to cover massive distances without trying too hard.

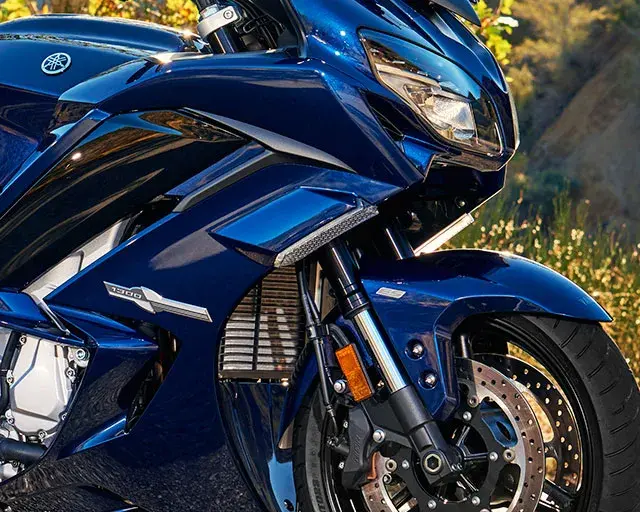

Electronically adjustable suspension
Electronically adjustable suspension

By simply selecting an option via the easily located handlebar-mounted switch, the rider can select ‘One-Up’, ‘One-Up with Luggage’, ‘Two-Up’ or ‘Two-Up with Luggage’ suspension settings. In addition to these four main settings, the system also offers the rider a choice of ‘Soft’, ‘Standard’ or ‘Hard’ damping for each setting, giving a total of 12 pre-defined suspension set-up options.

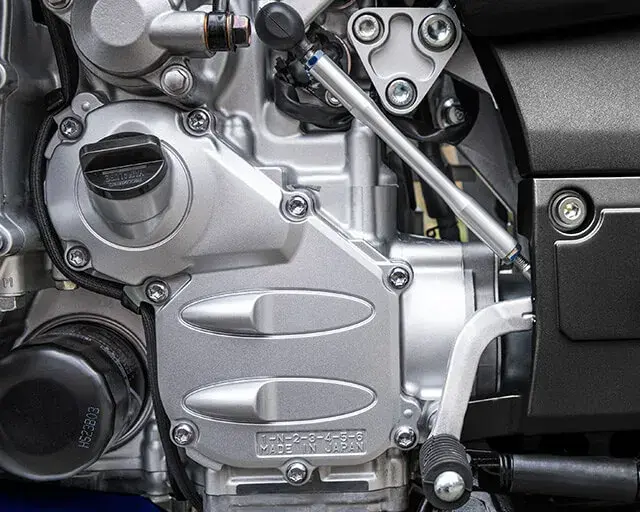

Assist and Slipper Clutch
Assist and Slipper Clutch

The FJR1300AE is equipped with a 6-speed transmission that enables the rider to make optimal use of the massive reserves of torque for rapid acceleration - while the high 6th gear gives lower rpm at high cruising speeds. And for smoother downshifting and enjoyable cornering, a standard Assist and Slipper (AS) clutch is fitted.

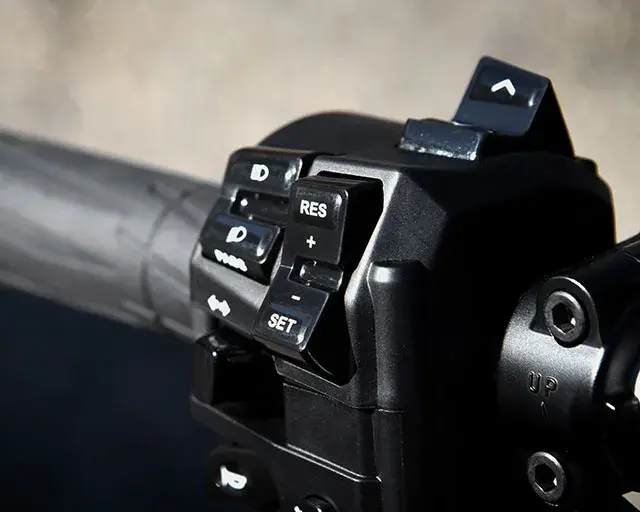

Cruise Control
Cruise Control

The FJR1300AE benefits from a new easy-to-operate cruise control system, which has been designed to make long-distance touring more relaxing and enjoyable. The system functions in between 50 km/h and 180 km/h, and is operated by two switches located on the left handlebar assembly.

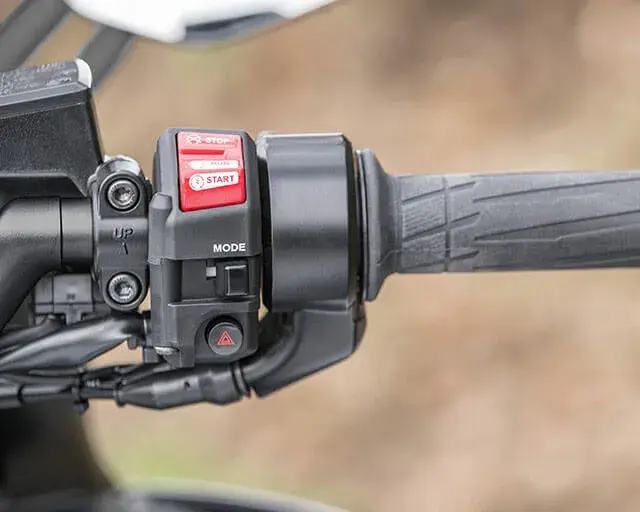

Yamaha D-Mode
Yamaha D-Mode

Yamaha D-MODE offers the rider a choice of two running modes, identified as 'T' mode and 'S' mode, which are operated by a push switch on the right handlebar. The system changes the character of the engine performance by adjusting the throttle valve in the Yamaha Chip Controlled Throttle (YCC-T).

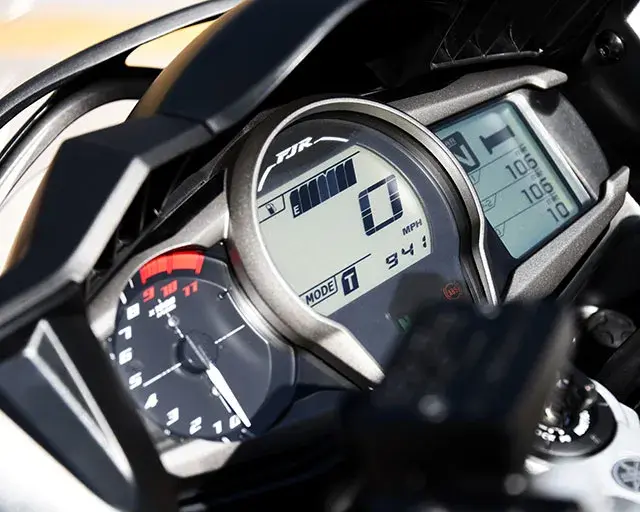

Traction Control System
Traction Control System

This electronic system uses sensors to detect any rear wheel spin, and as soon as the rear tyre loses traction the Traction Control System instantaneously adjusts the bike's ignition timing, as well as the fuel injection volume and throttle opening to momentarily cut drive, and ensure that traction is maintained.

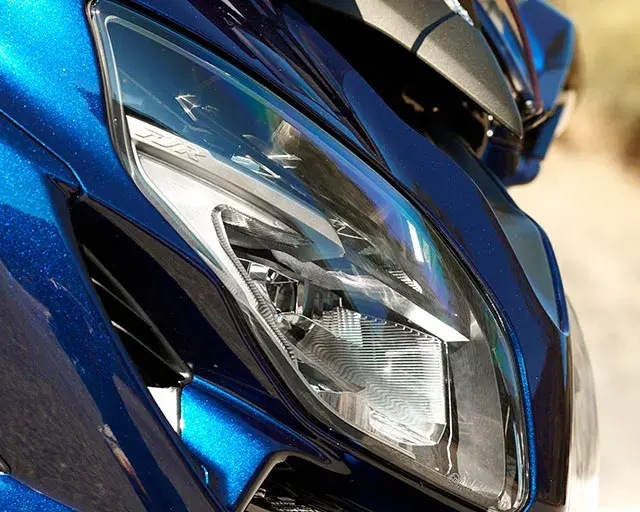

LED Headlights
LED Headlights

Twin-eye headlights are equipped with four compact and powerful LED lighting units - while the LED position lights and LED taillight assembly underline the FJR's high-tech specification. And with its front adaptive cornering lights that illuminate as the bike banks over, the FJR1300AE is one of the most capable bikes in its class.

Technical Specifications

FJR1300AE
Engine Type
Liquid-cooled, 4-stroke, DOHC, 4-valve, forward-inclined parallel 4-cylinder
Displacement (cc)
1298
Bore x Stroke (mm)
79.0 x 66.2
Compression Ratio
10.8 : 1
Lubrication System
Wet sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
25
Final Transmission
Shaft
Transmission
Constant mesh 6-speed
Length (mm)
2230
Width (mm)
750
Height (mm)
1325 / 1455
Seat Height (mm)
805 / 825
Wheelbase (mm)
1545
Ground Clearance (mm)
125
Wet Weight (kg)
292
Frame Type
Aluminium Diamond
Suspension Front
Telescopic forks, 135mm travel
Suspension Rear
Swingarm (link suspension), 125mm travel
Brakes Front
Hydraulic dual discs, 320 mm - ABS
Brakes Rear
Hydraulic single disc, 282 mm - ABS
Tyres Front
120/70ZR17M/C (58W) Tubeless
Tyres Rear
180/55ZR17M/C(73W) Tubeless
