TF 250-X (2026) FEATURES SPECS GALLERY

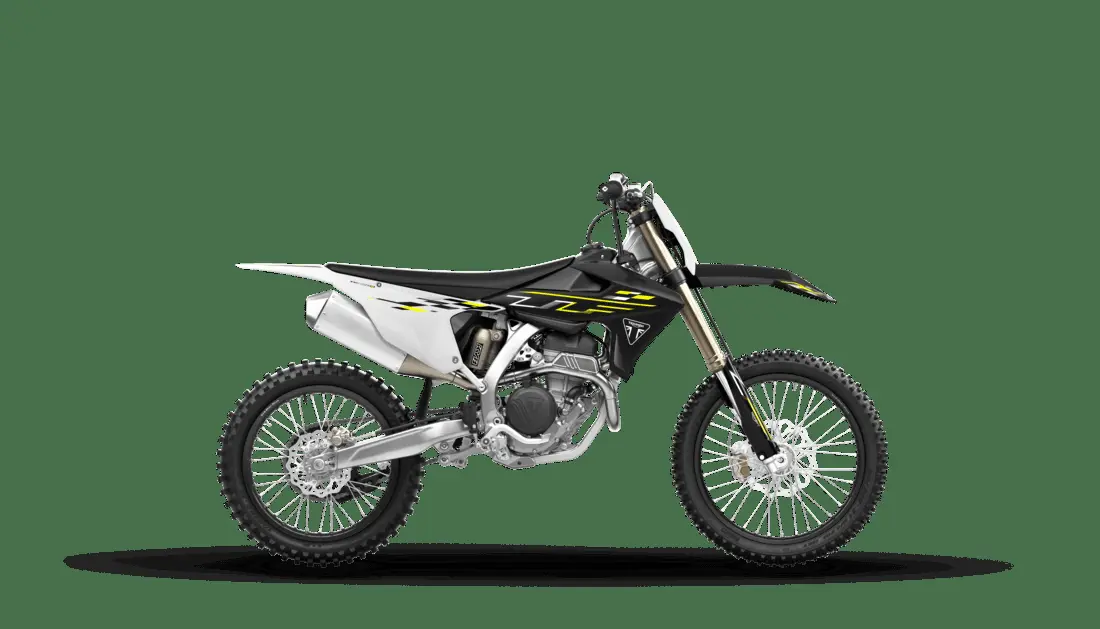

TF 250-X (2026)

Built to Win.
Sharper power, faster launches, and race-honed control - built to push harder and win bigger.
CLASS-LEADING POWER TO WEIGHT - 48 PS peak power at 13,500rpm
FACTORY-LEVEL KYB SUSPENSION - Factory-level damping out of the box
PERFORMANCE TECH - Launch control, traction control, quickshifter, dual engine maps
RACE-DEVELOPED CHASSIS - Lightweight aluminium frame and linkage tuned for control - giving you razor-sharp control and class-leading balance on track.
Race-developed Linkage System - Engineered in collaboration with factory riders to deliver precise suspension performance across all track conditions.
New Clutch Hub (EXEDY) - Smoother, tougher clutch action that stands up to race abuse - giving you consistent, confident launches and gear changes, moto after moto.
New MY26 Graphics Kit - Bold Triumph Performance Yellow design - making sure you stand out at the gate and on the podium.
Neken Yokes & Protaper Bars - Factory-level controls that combine durability with pro-spec rider feedback and comfort.
Revised Suspension Settings - Sharper handling and improved stability straight out of the box - ready to attack every track, every condition.
New Battery Tray - >Refined for quicker maintenance and improved reliability - because race days are no place for downtime.

MAKE AN ENQUIRY

Features

Engine

The MY26 TF 250-X's high-performance single delivers explosive power with championship-ready control.

- Forged Performance Internals
- Mass-Optimised Layout
- Dell'Orto Fuel System
- Advanced Engine Management
- Efficient Cooling
- Exedy Clutch + 5-Speed Gearbox
- Quickshifter

Chassis

Designed for balance, stiffness, and strength, the MY26 TF 250-X chassis is race-proven.

- Aluminium Spine Frame
- Fabricated Swingarm
- Optimised Linkage System
- D.I.D Final Drive

Suspension

Top-tier KYB suspension delivers adjustability and race-day precision.

- KYB AOS Forks
- KYB Piggyback Rear Shock
- Neken Yokes + ProTaper Bars
- ODI Grips

Electronics

Advanced systems help riders of every level push harder, ride smarter.

- Launch Control
- Traction Control
- Dual Engine Maps
- Sensor Dashboard
- Hour Meter

Brakes & Wheels

Lightweight, competition-grade hardware delivers total stopping control.

- Brembo Brakes + Galfer Discs
- D.I.D DirtStar Rims
- Pirelli MX32 Tyres
- Optional Disc Guard

High Tensile Steel Semi-Double Cradle Frame

The high-tensile steel frame is constructed from the same strong, lightweight, high-tech materials as the bigger KX Motocross bikes to offer exceptional torsional rigidity for great handling. Reinforced downtube adds strength and durability. The engine and chassis bolts feature a rust-resistant coating.

Technical Specifications

Type
Single Cylinder 4-Stroke SOHC
Capacity
449.5 cc
Bore
95 mm
Stroke
63.4 mm
Compression
13.1:1
Max Power EC
Dellorto Throttle Body, Athena EMS
Max Torque EC
221Nm @ 4,000rpm
System
Ride-by-Wire, fuel injected
Exhaust
Single Silencer
Final Drive
Chain, 13/48
Clutch
Steel Wet Multi-Plate Belleville Spring, Hydraulic Actuation
Gearbox
6-speed
Frame
Full aluminium frame
Swingarm
Aluminium Fabrication
Front Wheel
21" x 1.6"
Rear Wheel
19" x 2.15"
Front Tyre
80/100 - 21
Rear Tyre
110/90 - 19
Front Suspension
KYB 48mm Coil Spring Fork, Compression/Rebound Adjustment, 310mm Travel
Rear Suspension
KYB Coil, Compression Adjustment (H and L Speed), Rebound Adjustment, 305mm Travel
Front Brakes
Brembo Twin 24mm Piston, 260mm Disc
Rear Brakes
Brembo Single 26mm Piston, 220mm Disc
Instrument Display and Functions
Hour Meter, Multifunction Switch Cubes
Width Handlebars
836 mm
Height Without Mirror
1270 mm
Seat Height
960 mm
Wheelbase
1492 mm
Rake
27.4 °
Trail
116 mm
Wet Weight
108.6 kg
Tank Capacity
7L
