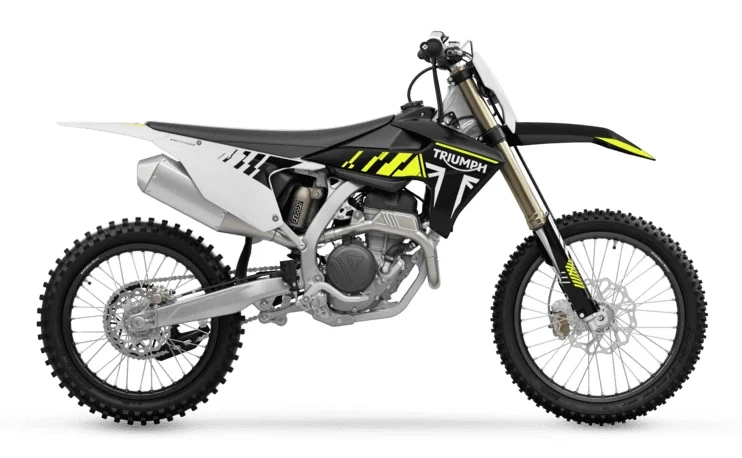

With an all new and all-Triumph design, a class-leading power-to-weight ratio, and all the spec you need to win, the TF 250-X is the most complete package ever to launch into the ultra-competitive 250 segment. It’s been designed and developed by Triumph in close collaboration with the best in the business, including the GOAT himself.
Get ready for a fully dialled-in riding experience. The TF 250-X generates smooth and controllable power that quickly builds up throughout the entire rev range. Its torque curve is strong yet linear, providing excellent traction and control, effortless speed, and no sharp peaks or exit-wrecking flat spots. Punching out of corners, feeling for grip and pulling big gears is no problem for the super-flexible TF 250-X. Hard-to-read conditions? - Let the TF 250-X do its thing with rider-selectable launch control for the perfect power delivery and maximum traction out of the gate.
PERFORMANCE MANAGEMENT
Advanced engine management from Athena, including a full race-spec Dell'Orto 44mm throttle body. A vented airbox cover allows for optimal airflow, and the air filter can be changed without tools in seconds. The TF 250-X features a brand new, optimized stainless-steel racing exhaust system with a performance-tuned header resonator, as well as a hydroformed and extruded silencer. This package provides exceptional performance and a deep, powerful signature exhaust note.
STRENGTH & FLEXIBILITY
The central spine with twin cradle design is unique to Triumph. The brushed aluminium frame has incredible strength and flexibility for the most punishing conditions. Internal frame machining details result in mass optimisation and stiffness tuning and race-optimised longitudinal, lateral and torsional stiffness. The satin-brushed hand-welded aluminium frame, in-mould graphics technology, hydroformed swing arm and the use of only the highest-quality fasteners and bearings are key details vital to low weight and tough off-road durability. ProTaper ACF bars with a carbon core allow a thinner aluminium wall for a 20% reduction in weight (vs all-aluminium) and unrivalled impact-absorbing flex. ODI Half Waffle lock-on grips complete this killer package.
AGILITY AND CONTROL
The TF 250-X is designed to achieve the perfect balance of mass, performance, and flexibility. The chassis combines world-class precision and agility to deliver a winning performance at the highest level. With an aggressive minimalist design, it boasts best-in-class agility, manageability, and power-to-weight ratio. Pirelli Scorpion MX32 Mid-Soft tyres deliver traction on a variety of surfaces with excellent braking characteristics and cornering side grip. Strength-sapping weather and worsening track conditions can be managed with rider-selectable traction control for enhanced control when the going gets even tougher.
PREMIUM SPECIFICATION
The TF 250-X boasts class-leading specification and includes the most wanted features in MX racing. Whether you're racing from the starting gate or to the finish line, the high-spec Brembo floating brake calipers and Galfer discs will provide consistent lever feel, along with the stopping power required for race-winning performance. To further enhance the bike's performance, best-in-class KYB 48mm upside-down AOS coil forks are braced by lightweight 7075-T6 forged and machined aluminium yokes. Additionally, a KYB rear shock with a unique hollow mount ensures that finding the perfect set-up is a breeze.
STRONG START
The perfect launch isnt always enough. Holeshot assist enables clutchless, throttle-pinned gear changes through second to fifth gear, to make sure you arrive at the first turn, first. Add the accessory fit Athena LC-GPA Launch Control Module for even more dialled starts.
SWITCH IT UP
Bespoke, intuitive switch cubes with multi-function racer technology allow easy on-the-fly activation of launch control, traction control, engine maps and holeshot assist. The latest in MX-specific technology, all at the press of a button. Nail every launch, grab every holeshot and alter the power delivery to suit riding style and track conditions.
HEAD-TURNER
Instantly identifiable on the podium, the striking and dynamic Triumph Racing Yellow, Black and White Launch design sets the TF 250-X apart from the pursuing pack.
STYLE & SUBSTANCE
Bold and impactful styling with durability for a fresh and distinctive look that wont fade, the slim, aggressive and lightweight TF 250-X is designed for maximum rider manoeuvrability.
TOP-TIER EXTRAS
Only the best brands in motocross have been selected for a place in the TF 250-X competition accessories range. From Akrapovi? to XTRig, its a formidable line-up of proven winners.
Technical Specifications
Type
Single Cylinder 4-Stroke DOHC
Capacity
249.95 cc
Bore
78 mm
Stroke
52.3 mm
Compression
14.4
System
Dellorto Throttle Body, Athena EMS
Exhaust
Single Silencer
Final Drive
13/48
Clutch
Wet Multi-Plate Belleville Spring
Gearbox
5 Speed
Frame
Aluminium, Spine & Double Cradle
Swingarm
Aluminium Fabrication
Front Wheel
21" x 1.6"
Rear Wheel
19" x 1.85"
Front Tyre
80/100 - 21
Rear Tyre
100/90 - 19
Front Suspension
KYB 48mm Coil Spring Fork, Compression/Rebound Adjustment, 310mm Travel
Rear Suspension
KYB Coil, Compression Adjustment (H and L Speed), Rebound Adjustment, 305mm Travel
