Street Triple 765 RX FEATURES SPECS GALLERY

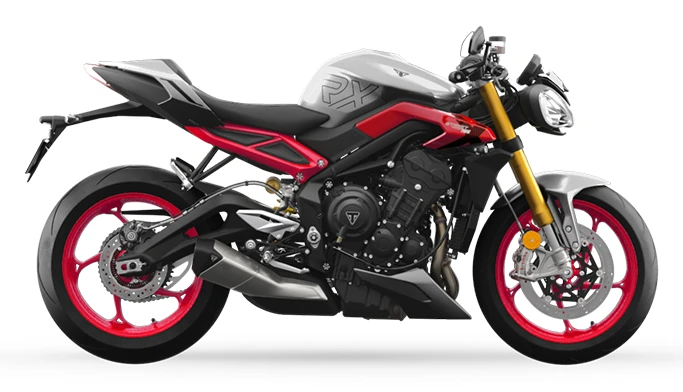

Street Triple 765 RX

Built for riders who live for the thrill of performance, Triumph Roadsters combine precision engineering with a bold, stripped-back style. With their muscular stance, sharp handling, and responsive triple engines, every ride is an instant connection between rider and machine. From the agile Trident to the powerful Speed Triple, each model delivers class-leading capability, intuitive control, and unmistakable Triumph character. The result is the purest expression of dynamic performance and attitude.

MAKE AN ENQUIRY

Features

Performance

ULTIMATE TRACK PERFORMANCE Category leading race powered performance.

Handling

PRECISION HANDLING Precision handling and focused ergonomics – for ultimate track capability.

Design

ICONIC STREET TRIPLE DESIGN The most focused Street Triple design ever.

Technology

THE ULTIMATE PACKAGE The ultimate package for naked sports performance.

Technical Specifications

Type
Liquid-cooled, inline 3-cylinder, 12 valve, DOHC
Capacity
765 cc
Bore
78 mm
Stroke
53.4 mm mm
Compression
13.25:1
Max power
130 PS / 128.2 bhp (95.6 kW) @ 12,000 rpm
Max Torque
80 Nm @ 9,500 rpm
System
Multipoint, sequential electronic fuel injection with electronic throttle control
Exhaust
Stainless steel 3 into 1 header system with low single sided stainless steel silencer
Final drive
X-ring chain
Clutch
Wet, multi-plate, slip and assist
Gearbox
6 speed
Frame
Aluminium beam twin-spar frame, 2 piece high pressure die cast rear subframe
Swingarm
Twin-sided, cast aluminium alloy
Front wheel
Cast aluminium alloy, 5 spoke, 17 x 3.5 in
Rear wheel
Cast aluminium alloy 5 spoke, 17 x 5.5 in
Front tyre
120/70 ZR 17
Rear tyre
180/55 ZR 17
Front suspension
Öhlins NIX30, adjustable compression and rebound damping, and preload adjustment. 115 mm wheel travel
Rear suspension
Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment. 131.2 mm wheel travel
Front brakes
Twin, 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OCABS, Brembo MCS radial master cylinder
Rear brakes
Single, 220 mm disc, Brembo single-piston caliper, OCABS
Instruments
5-inch, TFT, full colour
Width
765 mm
Height
1051 mm
Seat height
839 mm
Wheel base
1397 mm
Rake
23 °
Trail
95.3 mm
Wet weight
188 kg
Fuel capacity
15 l
Fuel consumption
5.2 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+
