Speed Triple 1200 RX FEATURES SPECS GALLERY

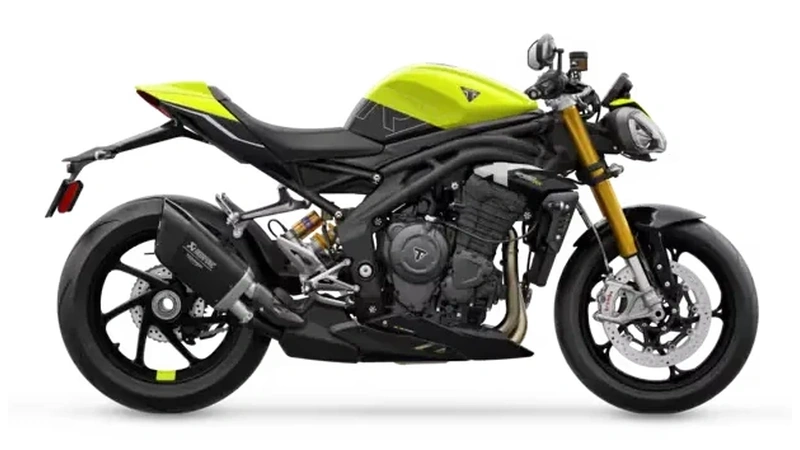

Speed Triple 1200 RX

The ultimate Speed Triple. Built to thrill. Engineered to dominate. Limited to just 1200 units worldwide, the RX features unique styling, ergonomics and components.

MAKE AN ENQUIRY

Features

Design

183PS TRIPLE ENGINE
High performance from the latest 1160cc triple.

Handling

ÖHLINS SMARTEC 3.0 SUSPENSION

Electronically controlled for perfect poise and comfort.

Technical Specifications

Type
Liquid-cooled, inline 3-cylinder, 12 valve, DOHC
Capacity
1160 cc
Bore
90 mm
Stroke
60.8 mm mm
Compression
13.2:1
Max power
183 PS / 180.5 bhp (134.6 kW) @ 10,750 rpm
Max Torque
128 Nm @ 8,750 rpm
System
Multipoint, sequential electronic fuel injection with electronic throttle control
Exhaust
Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer
Final drive
X-ring chain
Clutch
Wet, multi-plate, slip and assist
Gearbox
6 speed
Frame
Aluminium twin spar frame, bolt-on aluminium rear subframe
Swingarm
Single-sided, cast aluminium
Front wheel
Cast aluminium, 17 x 3.50 in
Rear wheel
Cast aluminium, 17 x 6.00 in
Front tyre
Pirelli Diablo Supercorsa SP V3 - 120/70ZR17 58W
Rear tyre
Pirelli Diablo Supercorsa SP V3 - 190/55ZR17 75W
Front suspension
Öhlins 43 mm upside-down forks, fully adjustable, SmartEC3 OBTi electronic compression and rebound damping, 120 mm wheel travel
Rear suspension
Öhlins monoshock (RSU) with linkage, SmartEC3 OBTi system electronic compression and rebound damping, 120 mm wheel travel
Front brakes
Twin, 320 mm floating discs, Brembo Stylema monobloc calipers, Brembo MCS radial master cylinder, OC-ABS
Rear brakes
Single, 220 mm disc, Brembo, twin-piston caliper (2 x 26mm), OCABS
Instruments
5-inch, TFT, full colour
Width
825 mm
Height
1059 mm
Seat height
830 mm
Wheel base
1445 mm
Rake
23.9 °
Trail
104.7 mm
Wet weight
199 kg
Fuel capacity
15.5 l
Fuel consumption
5.5 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+
Standard
Akrapovi? titanium silencer, Brembo Stylema calipers & MCS master cylinder, Clip-on handlebars, Front wheel lift control, ÖHLINS Mechatronic steering damper (RX exclusive), ÖHLINS Smart EC 3.0 semi-active suspension , Brake Slide Assist, Supercorsa SP V3 tyres, Traction control, Triumph Shift Assist, Optimised Cornering ABS (OCABS)
