17% More Storage - 2 Glove Boxes and 6 Cup Holders

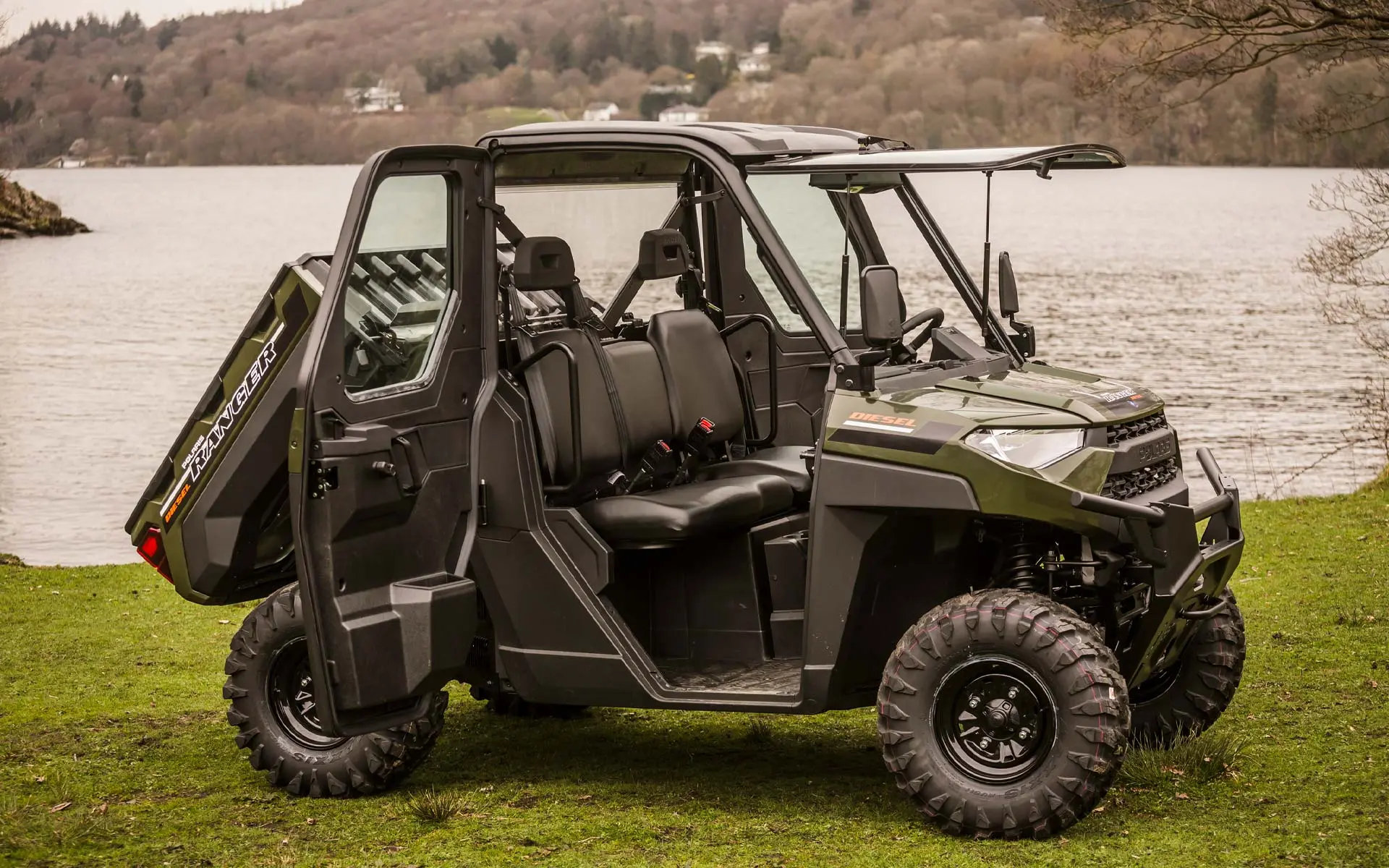

Flip-Up Passenger Seat
A WHOLE NEW KIND OF RANGER TOUGH
33 cm Ground Clearance. 27" Tyres. 27.9 cm Usable Travel. The RANGER Diesel is tougher and more reliable than ever.
PERFORMANCE
140 Amps Charging System
65 kmph Top Speed
1134 kg Towing Capacity
720 kg Payload Capacity

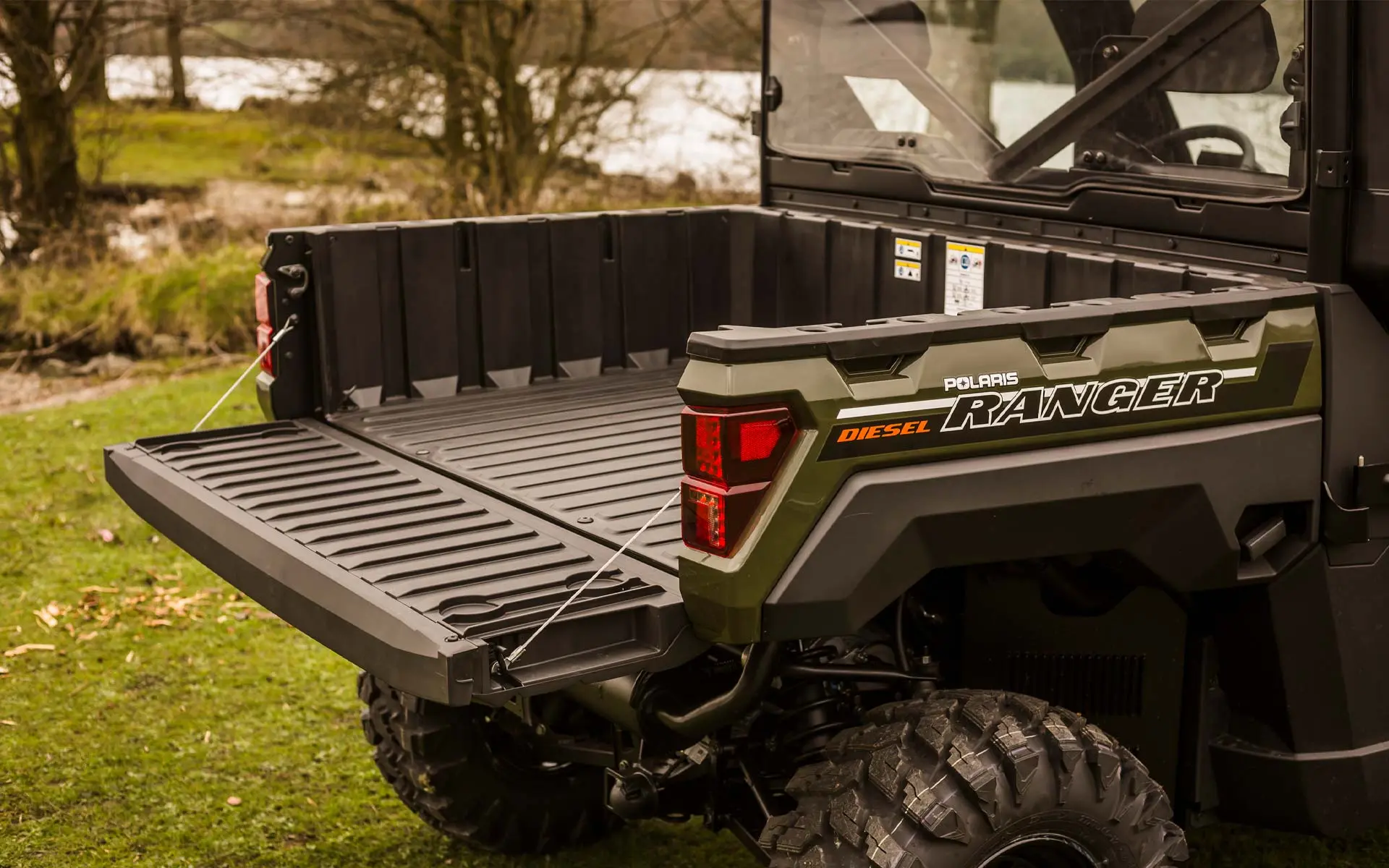

2.5 cm DEEPER BOX
43.5 L
True On-Demand AWD
EPS, EBS, ADC
PERFORMANCE∶ CAPABLE ONLY SCRATCHES THE SURFACE
Featuring an unrivaled amount of towing capacity (1134 kg), payload capacity (719 kg) and ground clearance (33 cm), it’s always in a position to make work happen.
REFINEMENT∶ NEW STYLING. MORE STORAGE. MORE COMFORT.
With over 200 engineered accessories, added seat cushioning, and 17% more storage, you're able to customize and elevate every ride with the new RANGER Diesel.
RELIABILITY & DURABILITY∶ BUILT FOR THE HEAVY-DUTY LONG HAUL
The new RANGER Diesel is made to perform to the highest standards for years to come.
Industry best Donaldson air filter
2-piece CV sealed system
New mud guards
Technical Specifications
Cooling
Liquid
Cylinders-Displacement (cc)
898cc
Drive System Type
On-Demand True AWD / 2WD / Versatrac Turf Mode. Active Descent Control (ADC) and HD features including upgraded rear driveshaft, grease nipples, HD sway bar, sealed suspensions bushings, sealed ball joints and driveshaft spline seals.
Motor
Kubota 3-Cylinder Diesel
Fuel System/Battery
Mechanical injection
Horsepower
24.8 HP
Transmission / Final Drive
Automatic PVT H / L / N / R / P, Shaft
Front Suspension
Dual A-Arm with Stabilizer Bar 27.9 cm Travel
Rear Suspension
Dual A-Arm IRS with Stabilizer Bar 27.9 cm Travel
Front/Rear Brakes
Hydraulic Disc
Parking Brake
Hand-Actuated
Front Tyres
27 x 9-14, Pro Armor X Terrain with Variable Tread Pattern
Rear Tyres
27 x 11-14, Pro Armor X Terrain with Variable Tread Pattern

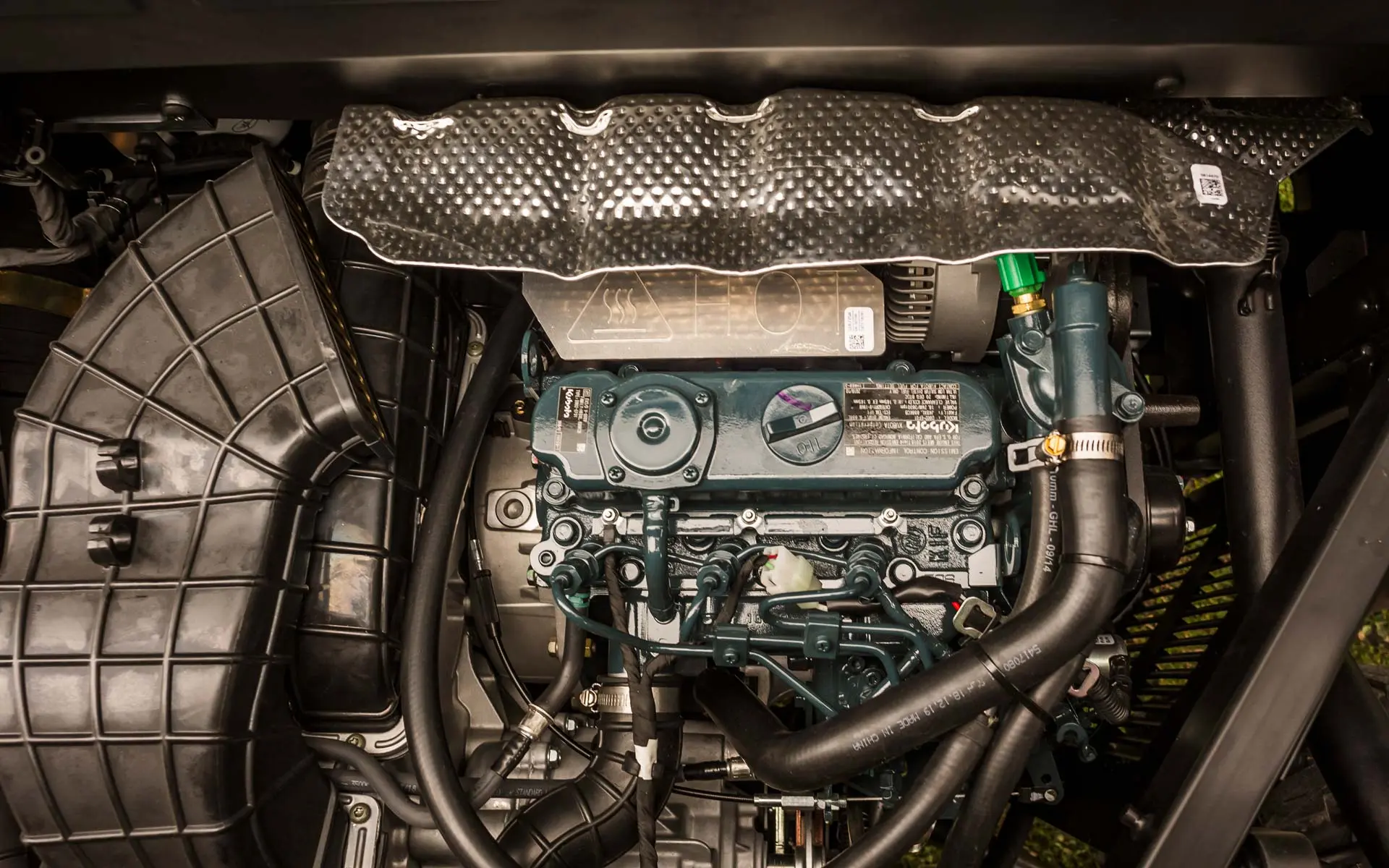

GREAT FOR WORK Get more done in a day with RANGER DIESEL. Its Kubota 3 cylinder engine delivers power and performance to help you get the job done.
content_description2 Engine & Drivetrain;Suspension, Brakes & Wheels;Dimensions & Weight;Features#####Cooling|Liquid;Cylinders-Displacement (cc)|898cc;Drive System Type|On-Demand True AWD / 2WD / Versatrac Turf Mode. Active Descent Control (ADC) and HD features including upgraded rear driveshaft, grease nipples, HD sway bar, sealed suspensions bushings, sealed ball joints and driveshaft spline seals.;Motor|Kubota 3-Cylinder Diesel;Fuel System/Battery|Mechanical injection;Horsepower|24.8 HP;Transmission / Final Drive|Automatic PVT H / L / N / R / P, Shaft#####Front Suspension|Dual A-Arm with Stabilizer Bar 27.9 cm Travel;Rear Suspension|Dual A-Arm IRS with Stabilizer Bar 27.9 cm Travel;Front/Rear Brakes|Hydraulic Disc;Parking Brake|Hand-Actuated;Front Tyres|27 x 9-14, Pro Armor X Terrain with Variable Tread Pattern;Rear Tyres|27 x 11-14, Pro Armor X Terrain with Variable Tread Pattern;Wheels|14" Alloy#####Bed Box Dimensions (L x W x H)|93.3 x 137.8 x 31.75 cm;Front / Rear Rack or Box Capacity|435 kg;Estimated Dry Weight|766 kg;Fuel Capacity|43.5 L;Ground Clearance|33 cm;Hitch Towing Rating|1134 kg;Hitch Type|Receiver w/ ECE R55 ball;Overall Vehicle Size (L x W x H)|305 x 158 x 196 cm;Payload capacity|720 kg;Person Capacity|3;Wheelbase|206 cm#####Driver Instrumentation|All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Trip Meters, Hour Meter, Gear Indicator, Fuel Gauge, Engine Temperature, Hi-Temp Light, Clock, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator, Parking Brake Engaged Alarm, Horn, Backup Alarm;Electronic Power Steering|Standard;Lighting|Headlights : halogen;Cargo System|Lock & Ride ®;Variant|Homologated Tractor
