In-Cab Convenience
Take advantage of easy-to-access, in-cab and underseat storage for your gear. Place essentials in the dual-integrated glove boxes and keep beverages secure with up to 8 cup holders. Plus, charge your phone with the USB charging port.
Seats Made for Overtime
Premium bench-style seating enhances efficiency, comfort and support. Its seamless design allows you to easily slide in and out of the vehicle as you transition through tasks. Adjustable positioning and angled seatbacks enable a more ergonomic fit, while added back bolsters deliver a more stable ride across rough terrain.
Sunup to Sundown Comfort
Enjoy coverage from the sun and elements thanks to a factory-installed roof, while a tilt steering wheel and contoured seats with back bolsters provide premium riding comfort. New cab nets offer one-handed operation for easier entry and exit.
Extend Your Day
Work doesn’t have a curfew. LED headlights provide a bold, refined look while delivering enhanced illumination for those early morning or late-night tasks.
Smoother Steering
Upgraded electronic power steering provides even smoother low speed turning and an assisted return to centre, making it easier to recover after a turn.
Unload Cargo with Ease
The gas-assist dump box makes unloading heavy loads from the cargo box quick and easy.
Performance With Precision
Stay smooth and controlled on the job or trail, thanks to 3-position throttle control with different drive modes. Choose Performance for more response, Standard for everyday driving, or Work for improved low-speed control.
Equipped to Adapt
Adapt to the terrain with three driveline modes: AWD, 2WD and VersaTrac Turf. For work around the house, use VersaTrac Turf Mode to unlock the rear differential for easier and tighter turns that won't tear up your lawn.
Prepped with Pulling Power
Complete the job or get back on the trail quicker, thanks to the pulling power of a factory-installed 2041 kg winch with synthetic rope, Auto Stop and wireless remote.
Increased Uptime
Class-leading service intervals (200 hours or 3218 km) keep you up and running so you can stay on the go.
Quieter Ride
Sealed suspension bushings prevent mud, dirt, and water from entering, ensuring your machine runs quietly without routine maintenance.
Effortless Shifting, Precise Control
Command the driver's seat with confidence, thanks to the upgraded Gen 2 transmission. It reduces shift effort by up to 50% to easily shift between drive, park and reverse--delivering a consistent, predictable feel.
Enhanced Protection
Boldly navigate obstacles with a rigid one-piece chassis, a redesigned front end featuring a larger front bumper, and a full-body skid plate.
Sure-Footed Traction
Relax and enjoy the ride with 29" Pro Armour X Terrain tyres. The new innovative variable tread design reduces perceived noise for a more pleasant cab experience, while the 8-ply rating provides superior puncture resistance in rugged terrain.
Technical Specifications
Cooling
Liquid
Cylinders-Displacement (cc)
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Motor
ProStar 4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injected
Horsepower
82 HP
Transmission / Final Drive
Gen 2 Automatic PVT H/L/N/R/P, Shaft
Front Suspension
Dual A-Arm 11 in (27.9 cm) Travel
Rear Suspension
Dual A-Arm, IRS 11 in (27.9 cm) Travel
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission
Front Tyres
29 x 9-14, Pro Armor X Terrain
Rear Tyres
29 x 11-14, Pro Armor X Terrain
Wheels
14 in Aluminum
Bed Box Dimensions (L x W x H)
93 x 138 x 32 cm
Front / Rear Rack or Box Capacity
454 kg
Curb Weight
972 kg
Estimated Dry Weight
915 kg
Fuel Capacity
43.5 L
Ground Clearance
36 cm
Hitch Towing Rating
1,134 kg
Hitch Type
Standard 5 cm receiver
Overall Vehicle Size (L x W x H)
386 x 158 x 201 cm
Payload capacity
726 kg
Person Capacity
6
Turning Radius
5.3 m
Wheelbase
287 cm
Audio System
Not Equipped
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information centre: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Seat Type
6-person, dual-row, bolstered bench seats with 3-point harness and adjustable driver seat
Steering
Standard
Electronic Power Steering
High Output EPS
Lighting
Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights
Other Standard Features
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port, 2,040 kg Winch with synthetic rope, Auto Stop and wireless remote, Large steel bumper, full-coverage skid plate, A-arm guards, Cab nets
Cargo System
Gas-assist dump box with Lock & Ride accessory integration

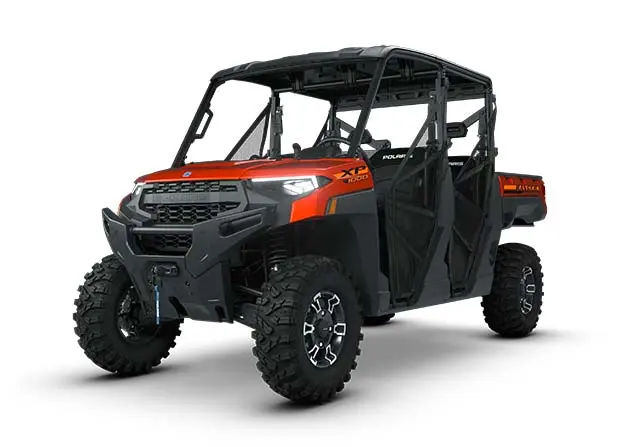

Power Through Tasks and Trails RANGER XP 1000 HD delivers more power for sportier performance on the trail and more productivity on the job.
