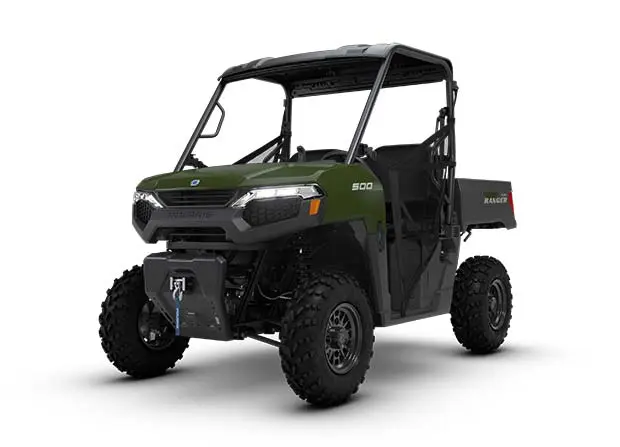

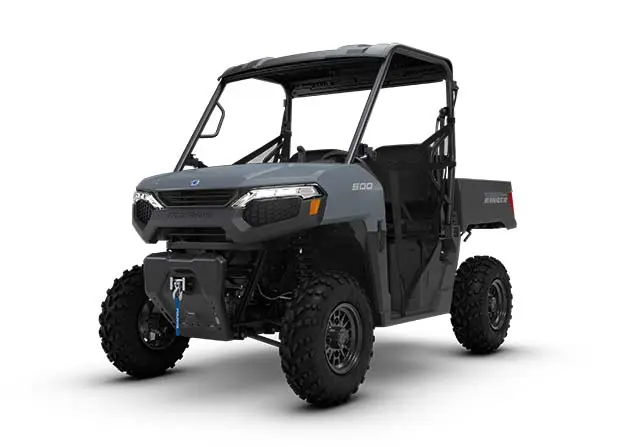

RIGHT TOOL. RIGHT PRICE. Get more done for less. With work-ready features like a dump box, factory-installed winch and more, RANGER 500 is the smart choice for those looking to take on to-dos without breaking the bank.
Extra Pulling Power
Clear fallen trees and remove stumps with the pulling power of a factory-installed 1,134 kg winch.
Cruise Around Your Property
Maximise fun and efficiency with a 28-hp engine that helps you navigate your property quickly.
Outworks a Wheelbarrow
Make fewer trips with the gas-assist dump box that can haul up to 227kg
Manage Larger Loads
A 680kg towing capacity with a standard 2" hitch receiver easily handles heavy loads—enabling you to efficiently transport heavy landscaping materials or large brush.
EASY ON THE LAWN
Selectable Turf Mode unlocks the rear differential—enabling easier and tighter turns that won't tear up the grass.
ROOM FOR THE ESSENTIALS
Grab what you need, when you need it. Convenient interior storage makes it easy to bring and access essentials—such as your phone, beverages and small tools.
CONVENIENTLY SIZED
Easily store and navigate small spaces with a narrow 148.6 cm width.
Technical Specifications
Cooling
Liquid
Cylinders-Displacement (cc)
567 cc
Drive System Type
All-wheel drive with auto-locking front drive and selectable VersaTrac Turf Mode
Motor
4-stroke single cylinder DOHC
Fuel System/Battery
Electronic Fuel Injected
Horsepower
28
Torque
40 Nm
Transmission / Final Drive
Automatic PVT H/L/N/R/P, shaft
Front Suspension
MacPherson strut 22.9 cm travel
Rear Suspension
Dual A-arm, IRS 25.4 cm travel
Front/Rear Brakes
4-wheel hydraulic disc
Parking Brake
Park In-Transmission
Front Tyres
25 x 8-12, Carlstar 489
Rear Tyres
25 x 10-12, Carlstar 489
Wheels
12" aluminum
Bed Box Dimensions (L x W x H)
82.7 x 117.3 x 28.6 cm
Front / Rear Rack or Box Capacity
227 kg
Curb Weight
549 kg
Estimated Dry Weight
524 kg
Fuel Capacity
35.9 L
Ground Clearance
25.4 cm
Hitch Towing Rating
680 kg
Hitch Type
Standard 5 cm receiver
Overall Vehicle Size (L x W x H)
279.4 x 148.6 x 190 cm
Payload capacity
453 kg
Person Capacity
2
Turning Radius
4.2 m
Wheelbase
186 cm
Driver Instrumentation
4" LCD rider information centre: user-selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Seat Type
2-person, flip-up bench seat with 3-point harness.
Steering
Tilt adjustment

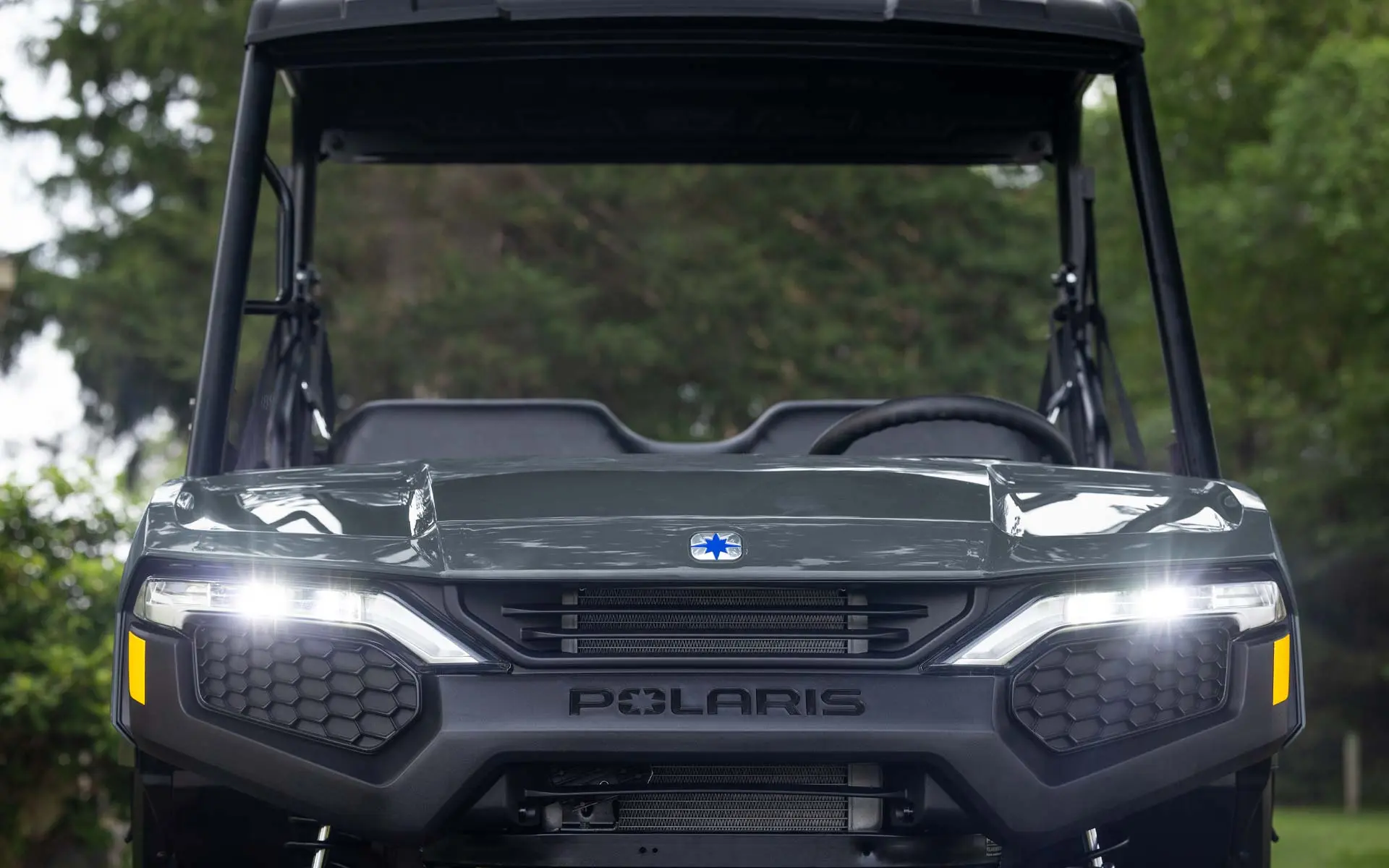

Lighting
LED headlights
Other Standard Features
DC outlet, standard in-dash SAE charge port, USB charging port, 660-W stator charging system, 1,133 kg winch with wired remote
Door Type
Cab nets
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
