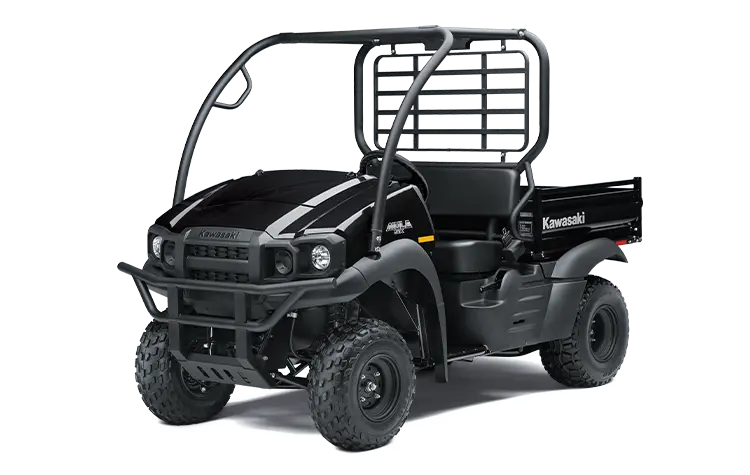

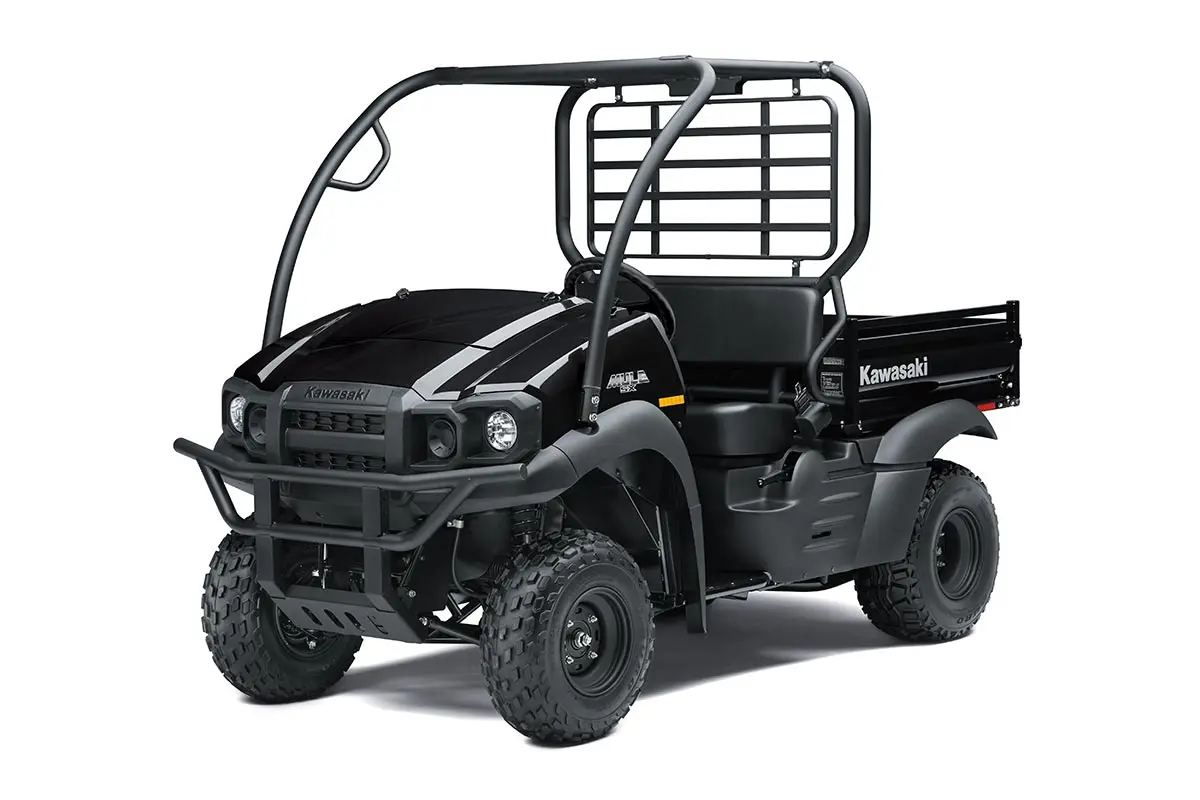

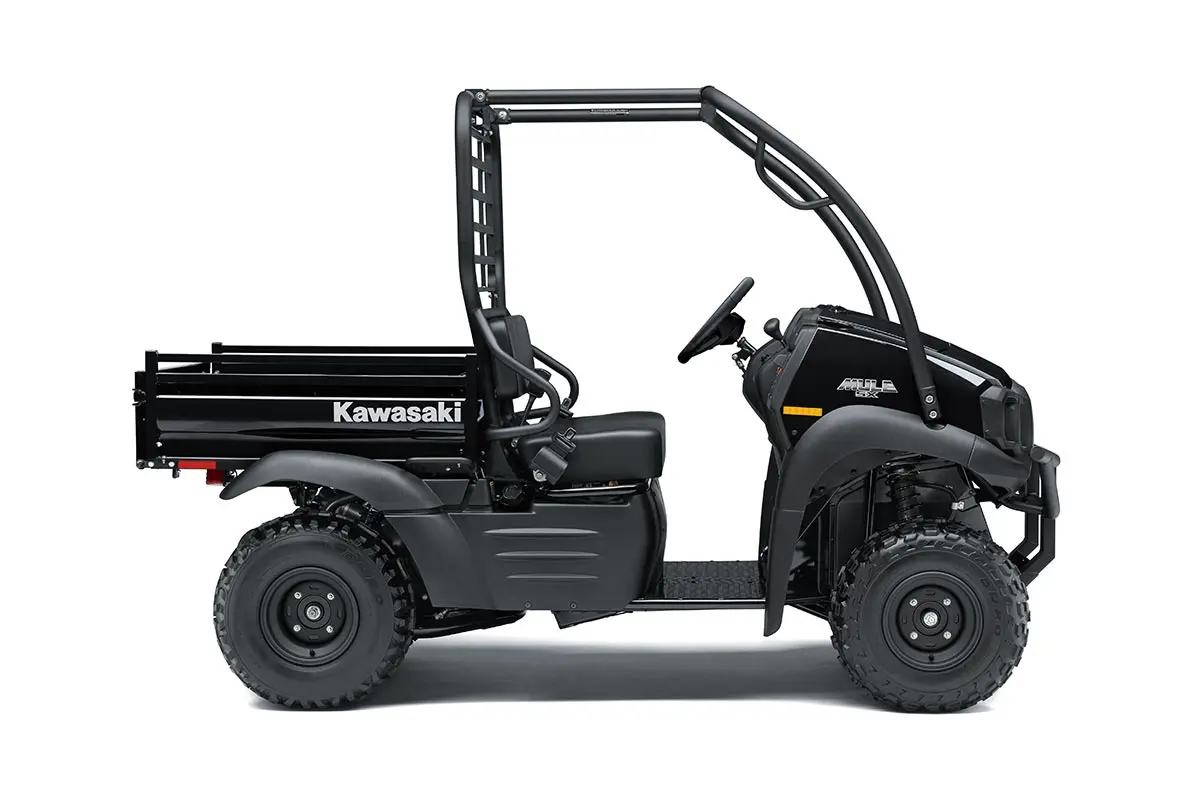

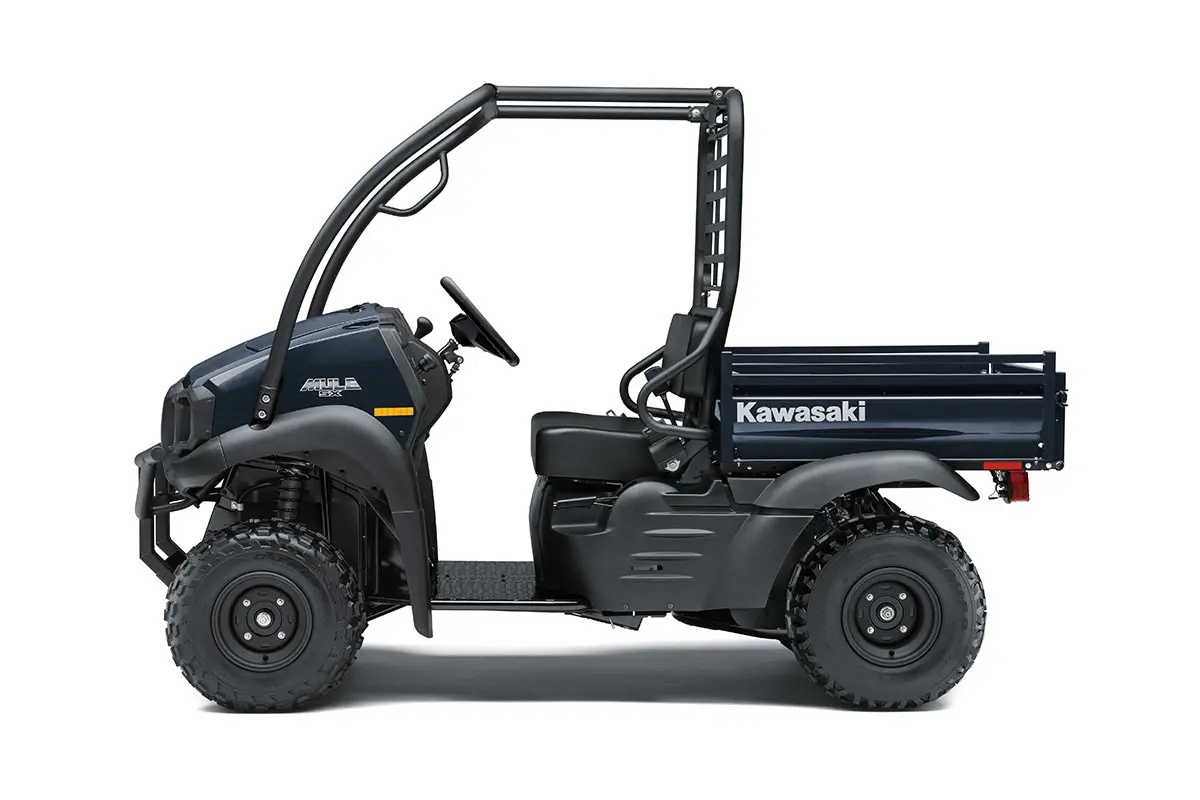

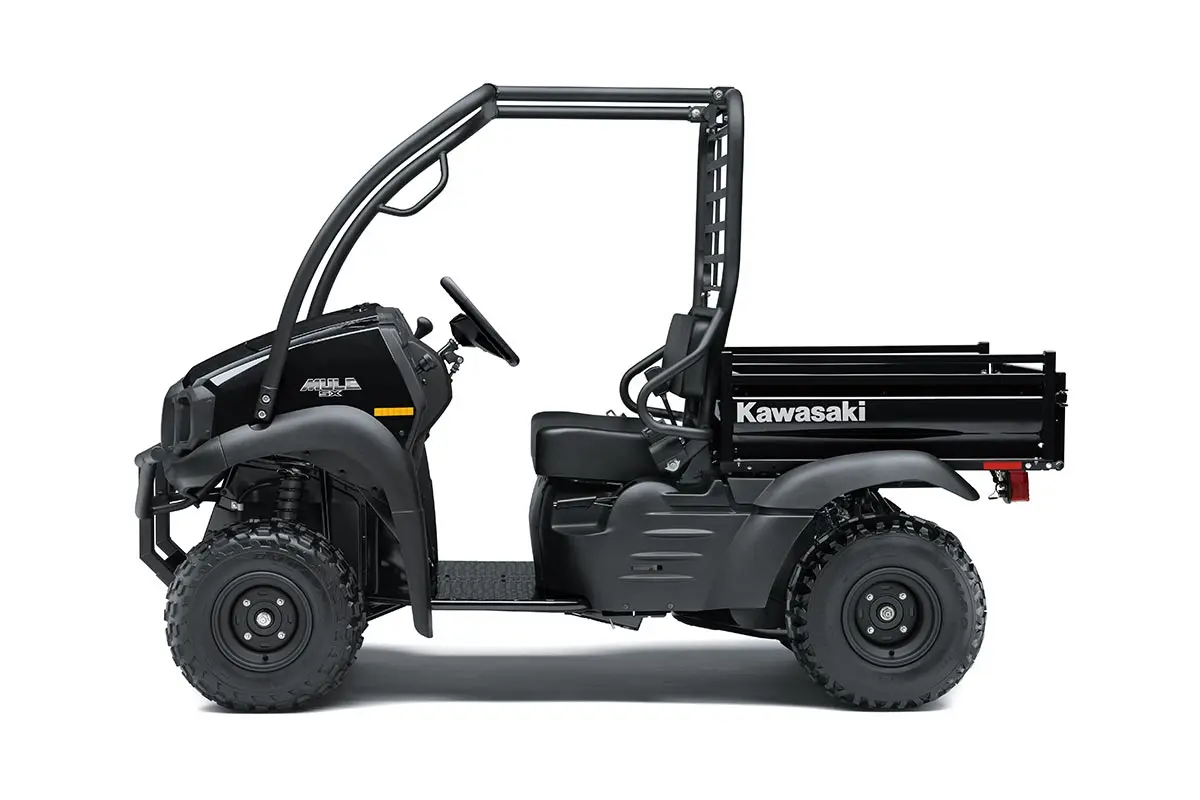

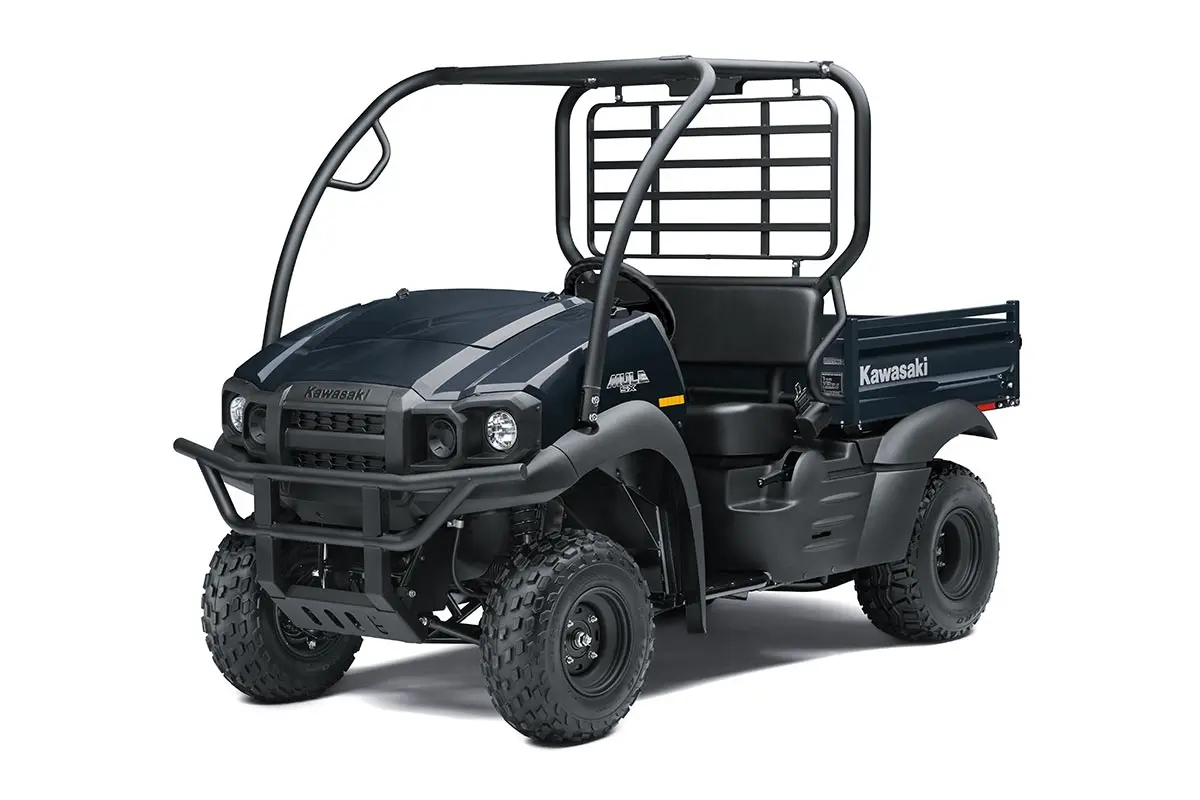

Kawasaki 2026 MULE SX

Styled in the image of its full-size MULE PRO siblings, the MULE SX side x side packs plenty of stout muscle into a compact and agile two-passenger vehicle. Handle a wide variety of tasks with the ability to tread lightly and manoeuvre in tight areas, or take a new path with the MULE SX 4x4 XC—a willing companion on the jobsite and on the weekends.

FEATURING:

Compact size and tight turning radius
401 cc 4-stroke single
500 kg towing capacity
Steel cargo bed with textured surface
Kawasaki strong 3-year limited warranty

ADDITIONAL VEHICLE FEATURES:

2WD, dual-mode rear differential with diff. lock
Continuously Variable Transmission (CVT)
22” Duro tyres
Halogen headlights

MAKE AN ENQUIRY

Features

ENGINE

Reliable Power

401 cc air-cooled, four-stroke single packs plenty of power while the Continuously Variable Transmission (CVT) contributes to smooth power delivery.

CAPABILITY

Get More Done

Handle almost any task with the MULE SX side by side’s generous 500 kg towing capacity* and 181 kg cargo bed capacity.

DURABILITY

STRONG & Dependable

Steel cargo bed with textured floor is durable and scratch resistant. Built to last, all MULE SX side x side vehicles are backed by the industry-leading Kawasaki STRONG 3-Year Limited Warranty.

Technical Specifications

Maximum Power

9.2 kW {13 PS} / 3,800 rpm

Maximum Torque

27.9 Nm {2.8 kgfm} / 2,200 rpm

Engine

4-stroke Single

Displacement

401 cc

Bore x Stroke

82.0 x 76.0 mm

Compression Ratio

8.3:1

Valve System

OVH

Fuel System

Carburettor

Ignition

Magneto & transistor

Starting

Electric

Cooling

Air-cooled

Lubrication

Forced lubrication, wet sump

Transmission

Automatic, forward/reverse

Primary Reduction Ratio

3.653 ~ 0.794 (belt converter)

Gear Ratio Forward (High)

2.916 (35/24 x 36/18)

Gear Ratio Reverse

3.750 (30/16 x 36/18)

Final Reduction Ratio Front

Final Reduction Ratio Rear

4.000 (64/16)

Final Drive

Gear, dual-mode differential

Frame

Ladder type, tubular steel

Front Suspension

Independent, MacPherson strut

Rear Suspension

Unit swing axle

Front Wheel Travel

78 mm

Rear Wheel Travel

79 mm

Steering

Rack and pinion

Rake

9°

Trail

40 mm

Steering Angle (L/R)

43° (IN) / 38° (OUT), 43° (IN) / 38° (OUT)

Front Tyres

22 x 9.00-10

Rear Tyres

22 x 11.00-10

Front Brakes

Dual hydraulic drums

Rear Brake/s

Dual hydraulic drums

Parking Brake

Mechanical, on rear wheels

Dimensions (LxWxH)

2,710 x 1,335 x 1,780 mm

Wheelbase

1,780 mm

Road Clearance

155 mm

Seat Height

765 mm

Curb Weight*

439 kg

Estimated Dry Weight**

421 kg

Fuel Capacity

16 litres

Tread Front / Rear

1,055 mm / 1,000 mm

Turning Radius

3.3 m

Cargo Bed Dimensions (LxWxH)

905 x 1,040 x 245 mm

Cargo Bed Capacity

181 kg

Seating Capacity

Vehicle Load Capacity

415 kg

Towing Capacity

500 kg

Lighting

2x halogen headlights

Model Code

KAF400JTFNN
