2026 MULE SX 4x4 XC FEATURES SPECS GALLERY

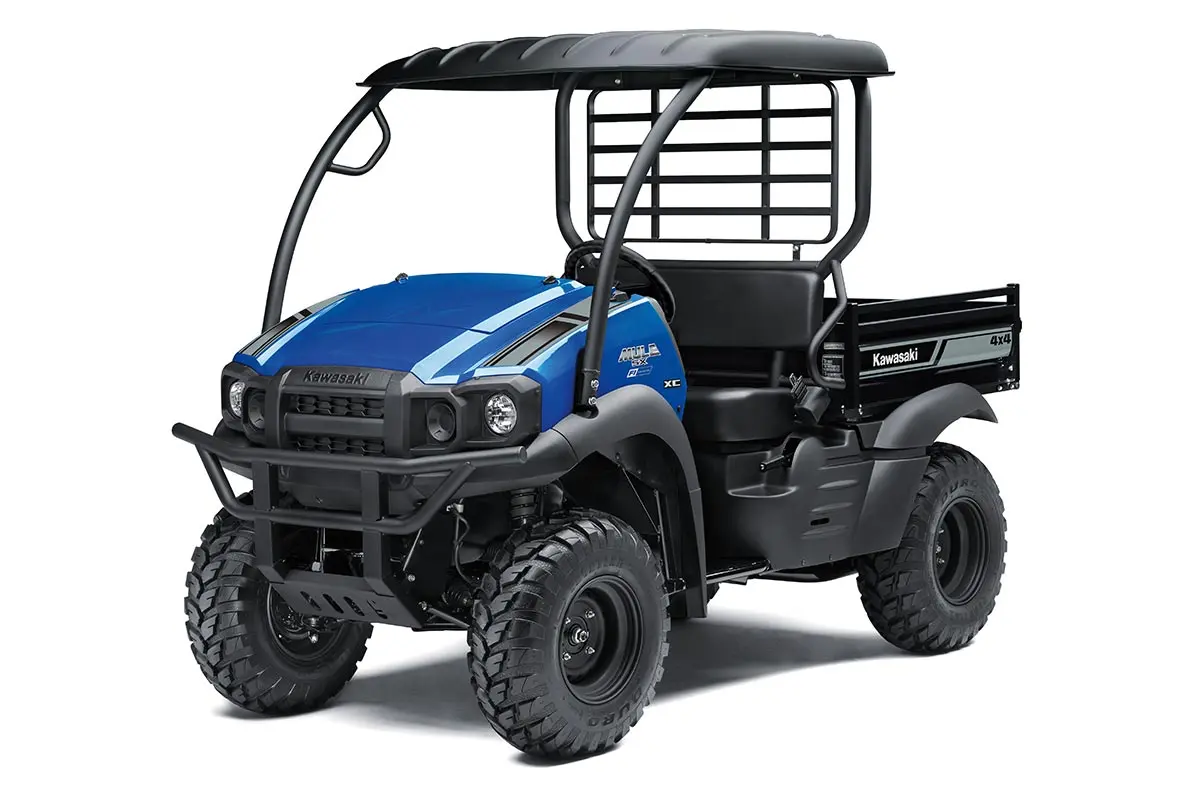

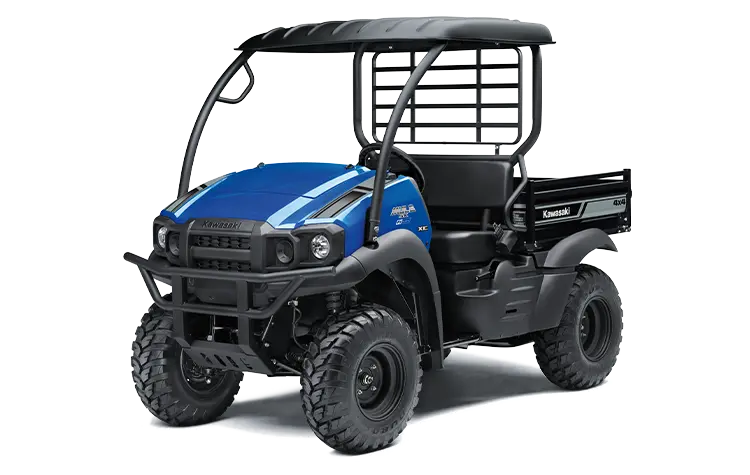

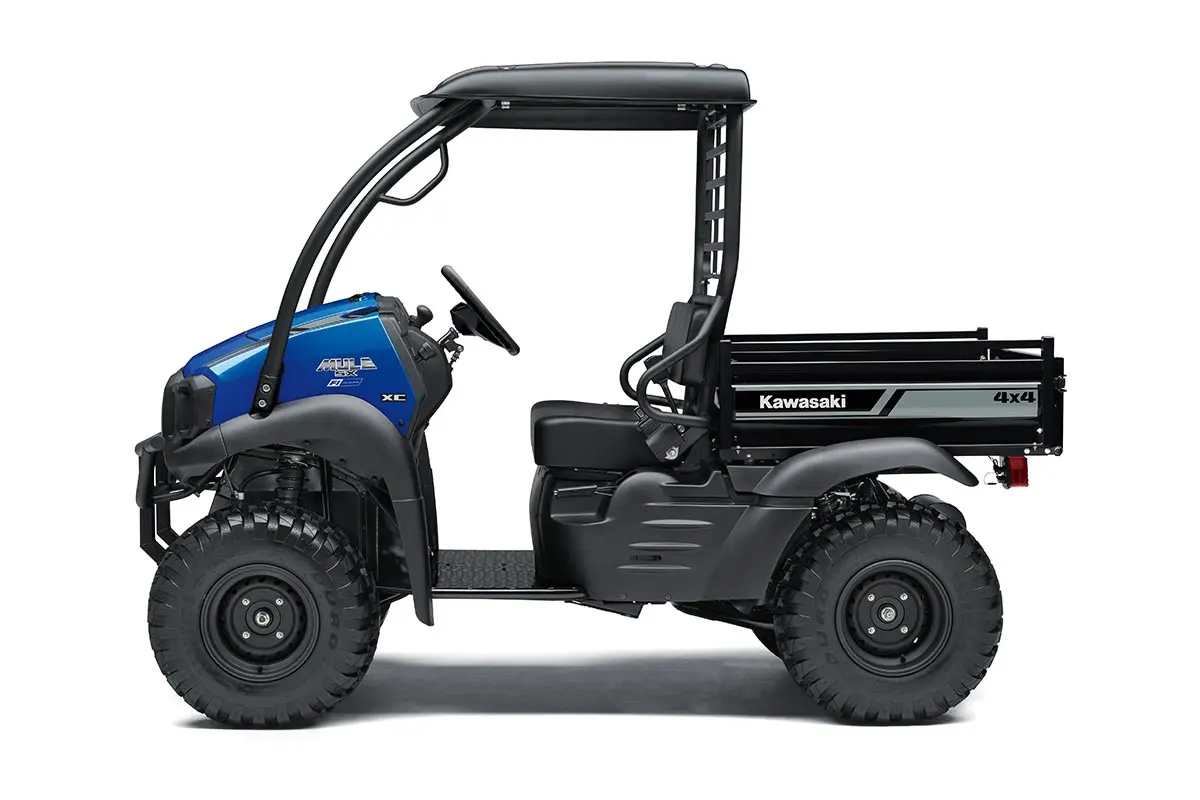

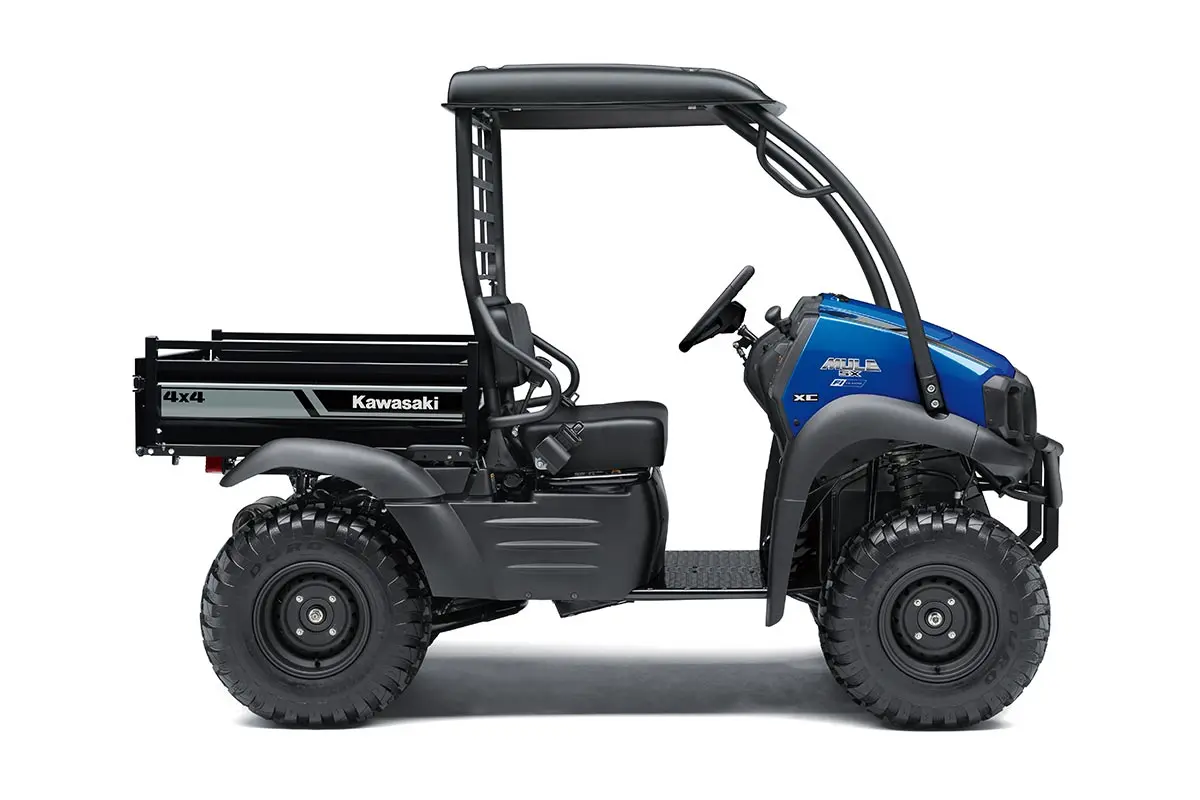

Styled in the image of its full-size MULE PRO siblings, the MULE SX side x side packs plenty of stout muscle into a compact and agile two-passenger vehicle. Handle a wide variety of tasks with the ability to tread lightly and manoeuvre in tight areas, or take a new path with the MULE SX 4x4 XC—a willing companion on the jobsite and on the weekends.

FEATURING:

• Compact size and tight turning radius
• 401 cc 4-stroke single
• 500 kg towing capacity
• Steel cargo bed with textured surface
• Kawasaki strong 3-year limited warranty

ADDITIONAL VEHICLE FEATURES:

• Fuel injection
• Selectable 2WD/4WD, dual-mode rear differential with diff. lock
• Continuously Variable Transmission (CVT) with (H,L,N,R)
• 12” wheels with 26” Duro tyres
• Halogen headlights
• Roof

MAKE AN ENQUIRY

Features

ENGINE

Reliable Power

401 cc air-cooled, four-stroke single packs plenty of power while the Continuously Variable Transmission (CVT) contributes to smooth power delivery.

CAPABILITY

Get More Done

Handle almost any task with the MULE SX side by side’s generous 500 kg towing capacity* and 181 kg cargo bed capacity.

DURABILITY

STRONG & Dependable

Steel cargo bed with textured floor is durable and scratch resistant. Built to last, all MULE SX side x side vehicles are backed by the industry-leading Kawasaki STRONG 3-Year Limited Warranty.

Technical Specifications

PowerPerformanceDetails

Maximum Power

9.9 kW {13.5 PS} / 4,000 rpm

Maximum Torque

29.0 Nm {3.0 kgƒm} / 2,400 rpm

Engine

4-stroke Single

Displacement

401 cc

Bore x Stroke

82.0 x 76.0 mm

Compression Ratio

8.6:1

Valve System

OVH

Fuel System

Fuel injection: ø23 mm x 1

Ignition

Battery & coil

Starting

Electric

Cooling

Air-cooled

Lubrication

Forced lubrication, wet sump

Transmission

2-speed automatic, forward/reverse

Primary Reduction Ratio

3.653 ~ 0.794 (belt converter)

Gear Ratio Forward (High)

3.464 (35/24 x 38/16)

Gear Ratio Forward (Low)

5.125 (41/19 x 38/16)

Gear Ratio Reverse

4.453 (30/16 x 38/16)

Final Reduction Ratio Front

3.852 (16/18 x 39/9)

Final Reduction Ratio Rear

4.000 (64/16)

Final Drive

Gear, selectable 2WD/4WD, dual-mode differential

Frame

Ladder type, tubular steel

Front Suspension

Independent, MacPherson strut

Rear Suspension

Unit swing axle

Front Wheel Travel

78 mm

Rear Wheel Travel

79 mm

Steering

Rack and pinion

Rake

9°

Trail

50 mm

Steering Angle (L/R)

41° (IN) / 35° (OUT), 41° (IN) / 35° (OUT)

Front Tyres

26 x 9.00-12

Rear Tyres

26 x 9.00-12

Front Brakes

Dual hydraulic drums

Rear Brake/s

Dual hydraulic drums

Parking Brake

Mechanical, on rear wheels

Dimensions (LxWxH)

2,710 x 1,335 x 1,905 mm

Wheelbase

1,780 mm

Road Clearance

190 mm

Seat Height

840 mm

Curb Weight*

502 kg

Estimated Dry Weight**

484 kg

Fuel Capacity

16 litres

Tread Front / Rear

1,080 mm / 1,050 mm

Turning Radius

3.6 m

Cargo Bed Dimensions (LxWxH)

905 x 1,040 x 245 mm

Cargo Bed Capacity

181 kg

Seating Capacity

2

Vehicle Load Capacity

397 kg

Towing Capacity

500 kg

Lighting

2x halogen headlights

Model Code

KAF400RTFNN
