2026 MULE PRO-MX FEATURES SPECS GALLERY

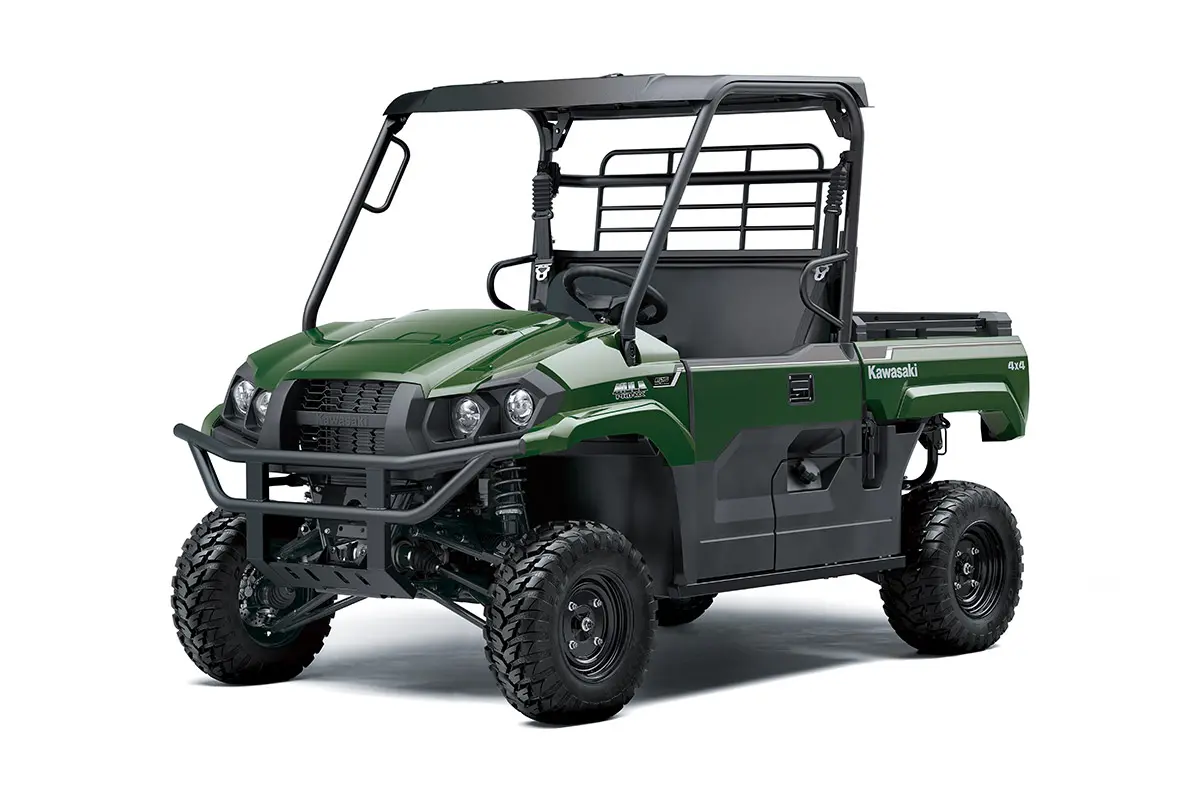

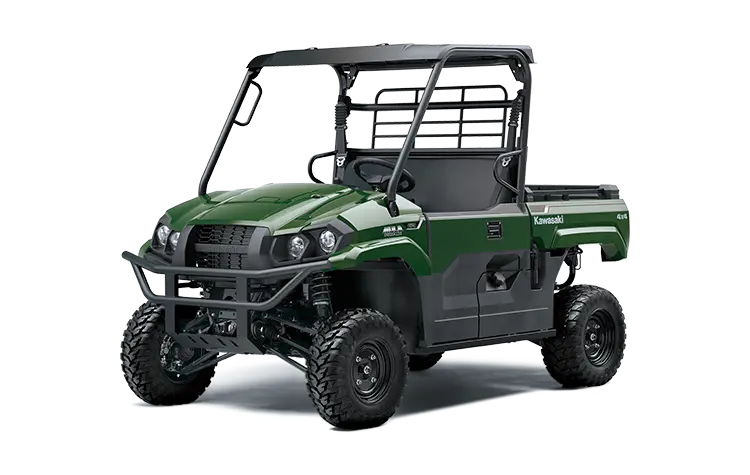

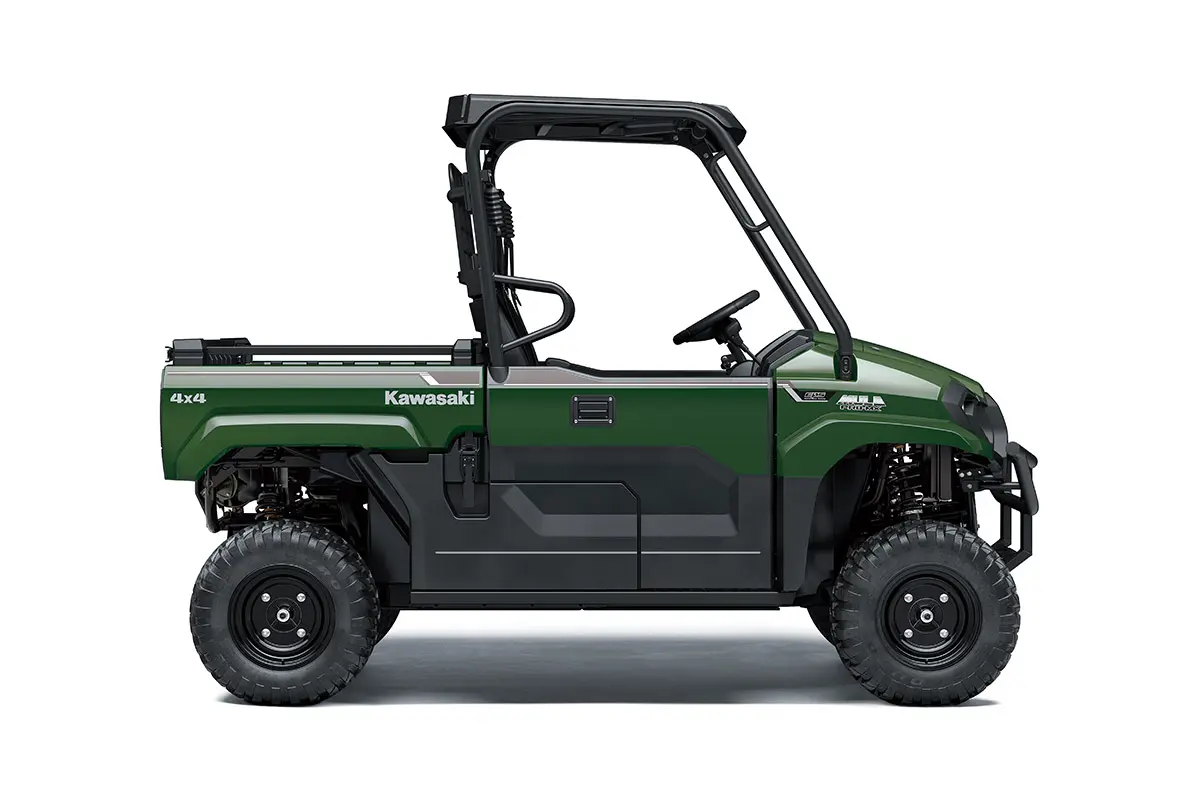

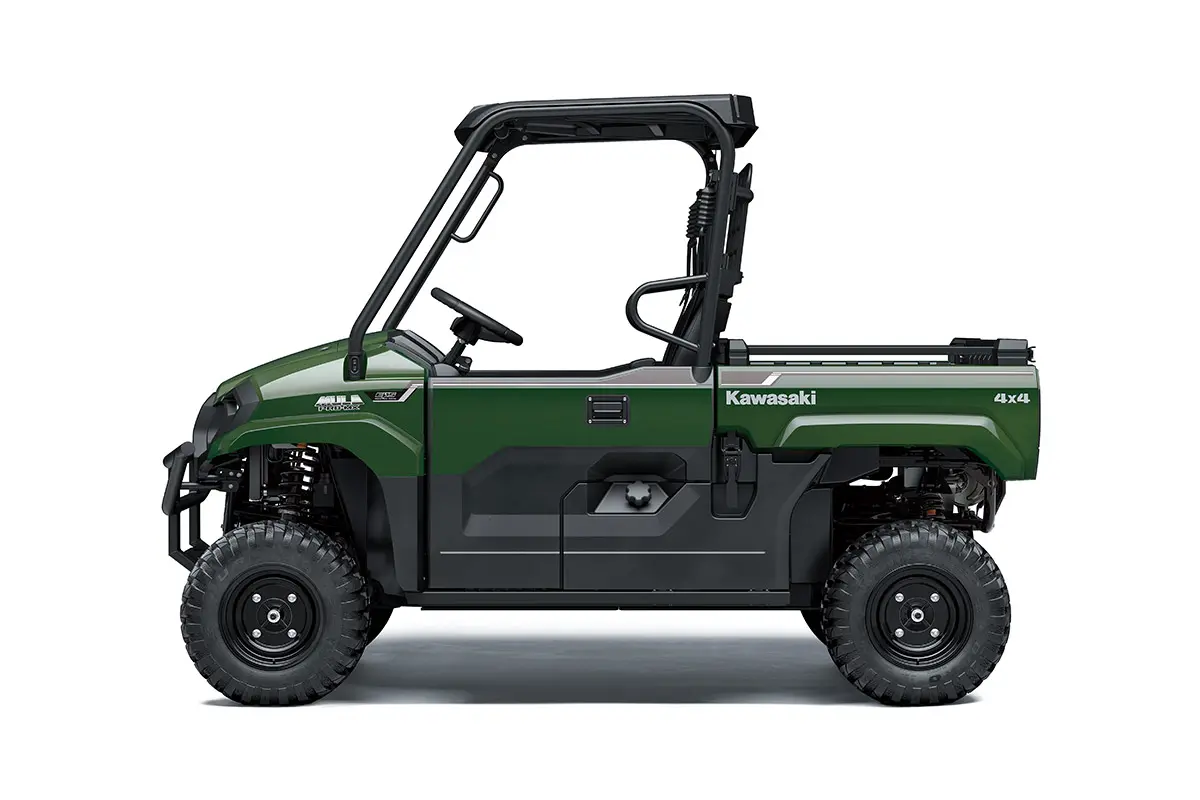

2026 MULE PRO-MX

Mid-size Kawasaki MULE PRO-MX side x sides offer a comfortable fit for two passengers with the muscle to cover more ground in less time, and the versatility and capability to have some fun when the work is done.

FEATURING:

  • Roomy cabin with 2-passenger seating
  • Fuel-injected 695 cc 4-stroke single
  • 680 kg towing capacity
  • Independent front and rear suspension

ADDITIONAL VEHICLE FEATURES:

  • Speed-sensitive Electric Power Steering (EPS)
  • Durable steel-based cargo bed
  • Continuously Variable Transmission (CVT)
  • Electrically selectable 2WD/4WD, dual-mode rear differential
  • Halogen and LED headlights
  • Four-wheel disc brakes & independent parking brake
  • Sun top

MAKE AN ENQUIRY

Features

POWER THAT FITS

Strong & Durable

Power through your workday with the 695 cc fuel-injected engine of the MULE PRO-MX side x side. Relish the challenge of rugged and hilly terrain with class-leading torque and responsive power.

Responsive Power

A powerful engine delivers class-leading torque, making the MULE PRO-MX side x side fun to drive with strong low- to mid-range acceleration and higher speed efficiency.

Smooth Delivery

Continuously Variable Transmission (CVT) with a centrifugal clutch delivers smooth acceleration, instant throttle response and dependable engine braking.

Fast & Easy

Convenient dash-mounted final drive switches let you easily change from 2WD, 4WD, or 4WD with rear differential lock to easily select the right traction mode to match terrain conditions.

Light weight, nimble handling

Benefitting from a chassis comprised of lightweight components, the Ninja 650 weighs in at 192 kg. Designed using Kawasaki’s new in-house analysis technology, the lightweight trellis frame and swingarm were the key to the Ninja 650’s ultra-light handling.

Balanced & Responsive

Horizontal Back-link rear suspension offers a progressive character and delivers a balance of sporty performance and ride comfort. The telescopic front fork is a part of a balanced suspension package, tuned to provide progressive damping with a high level of feedback to the rider.

Sporty Tyres

Dunlop Sportmax Roadsport 2 tyres contribute to the sportiest and most enticing ride yet.

Assist & Slipper Clutch

An Assist & Slipper Clutch helps to put the power to the ground while providing an extremely light pull at the lever and reducing rear-wheel chatter during downshifts.

ALL-DAY DRIVING COMFORT

Spacious & Refined

Drive comfortably in a roomy cabin that offers generous leg, shoulder, and head clearance, along with refined ergonomics.

Ample Room

Plush contoured bench seat with anti-cinch, three-point seatbelts keep riders comfortably and securely fastened even in rough terrain.

Protection from Elements

Integrated doors help you keep clean and dry from outside elements.

Tilt-adjustable Steering

Tilt-adjustable steering wheel allows you to set its position to suit your preference.

High Visibility

Bright, compact 35 W outer halogen headlights are complemented by auxiliary LED inner headlights (19.2/9.6 W). The quadruple headlights cut a wide, bright path through the dark to let you see and be seen when driving at night.

LOADED WITH CONVENIENCE

Useful Amenities

MULE PRO-MX side x sides come standard with convenience features that allow you to work easier and accomplish more in less time.

Plenty of Storeroom

9.1-litre under-hood storage, 5.3-litre under-seat storage, a lockable glovebox, pockets, trays and drink holders provide convenient item storage.

Effortless Shifting

Inline transmission shifter makes shifting easy and effortless.

Tilting bed

Gas-assisted tilting cargo bed is equipped with integrated features like divider slots, six tie-down hooks and bed rails for quick and easy installation of KQR accessory mounts.

Stay Prepared

Keep accessories and personal items powered with the dash mounted 12-volt DC power outlet.

Quick & Helpful

Digital multi-function LCD dash display is easy to read and provides useful vehicle information when you need it.

HANDLING & CAPABILITY

Full-size Strength

Optimised mid-size chassis offers sure-footed and agile handling performance along with rugged capability.

Independent Suspension

Double wishbone independent suspension with twin-tube shocks absorb bumps to deliver a comfortable ride and allows each wheel to confidently maintain traction over rugged terrain.

Agile & Manoeuvrable

Plush independent suspension and a tight turning radius enable enhanced manoeuvrability.

Drive with Confidence

Wide, sure-footed stance keeps you planted while taking tight turns. The strong frame—designed to flex—helps maintain traction and ride comfort in rough technical terrain.

Strong & Capable

A towing capability of up to 680 kg and hauling capability of up to 317 kg means work gets done much faster, while large 25” radial tyres give MULE PRO-MX side x sides the ground clearance to go almost anywhere.

Stopping Power

Dependable engine braking enhances driver confidence when descending hills, and four-wheel disc brakes ensure strong braking performance. The independent parking brake is easy to apply and disengage.

DURABILITY

Grit & Muscle

MULE PRO-MX side x sides will answer the task with grit and muscle, all backed by the industry-leading Kawasaki STRONG 3-Year Limited Warranty.

Smooth & Efficient

Continuously Variable Transmission (CVT) with centrifugal clutch delivers quick belt engagement, contributing to prolonged life of the N7-grade belt.

Solid Construction

Steel front bumper, steel cargo screen, and diamond-plate steel floorboards and cargo bed help to deliver front-to-back durability.

Intelligent Design

Air intakes are positioned high under the hood to help keep the engine and CVT internals free from moisture and dust.

Technical Specifications

Maximum Power
31.1 kW {42 PS} / 6,000 rpm
Maximum Torque
57.3 Nm {5.8 kgfm} / 5,000 rpm
Engine
4-stroke Single
Displacement
695 cc
Bore x Stroke
102.0 x 85.0 mm
Compression Ratio
10.3:1
Valve System
SOHC, 4 valves per cylinder
Fuel System
Fuel injection: ø44 mm x 1
Ignition
Battery & coil
Starting
Electric
Cooling
Liquid-cooled
Lubrication
Forced lubrication, wet sump
Transmission
Dual-range (high/low) CVT with centrifugal clutch and reverse
Primary Reduction Ratio
0.791 ~ 2.451
Gear Ratio Forward (High)
3.486 (27/25 x 46/19 x 24/18)
Gear Ratio Forward (Low)
6.646 (35/17 x 46/19 x 24/18)
Gear Ratio Reverse
5.311 (39/26 x 34/31 x 46/19 x 24/18)
Final Reduction Ratio Front
4.375 (35/8)
Final Reduction Ratio Rear
4.375 (35/8)
Final Drive
2WD/4WD, shaft, dual-mode differential
Frame
Ladder type, tubular steel
Front Suspension
Double wishbone
Rear Suspension
Double wishbone
Front Wheel Travel
218 mm
Rear Wheel Travel
232 mm
Steering
Rack and pinion with Electric Power Steering
Rake
5.0°
Trail
23 mm
Steering Angle (L/R)
40° (IN) / 30° (OUT), 40° (IN) / 30° (OUT)
Front Tyres
25 x 8.00R12
Rear Tyres
25 x 10.00R12
Front Brakes
Dual ø212 mm discs
Front Calipers
Two-piston
Rear Brake/s
Dual ø212 mm discs
Rear Caliper/s
Single-piston
Parking Brake
Dual discs (mechanical)
Dimensions (LxWxH)
2,795 x 1,525 x 1,925 mm
Wheelbase
2,005 mm
Road Clearance
270 mm
Seat Height
850 mm
Curb Weight*
728 kg
Estimated Dry Weight**
694 kg
Fuel Capacity
36 litres
Tread Front / Rear
1,322 mm / 1,285 mm
Turning Radius
4.2 m
Cargo Bed Dimensions (LxWxH)
847 x 1,119 x 232 mm
Cargo Bed Capacity
317 kg
Seating Capacity
2
Vehicle Load Capacity
544 kg
Towing Capacity
680 kg
Lighting
2x halogen, 2x LED headlights
Model Code
KAF700ETFNN
