2026 MULE PRO-FXT 820 FEATURES SPECS GALLERY

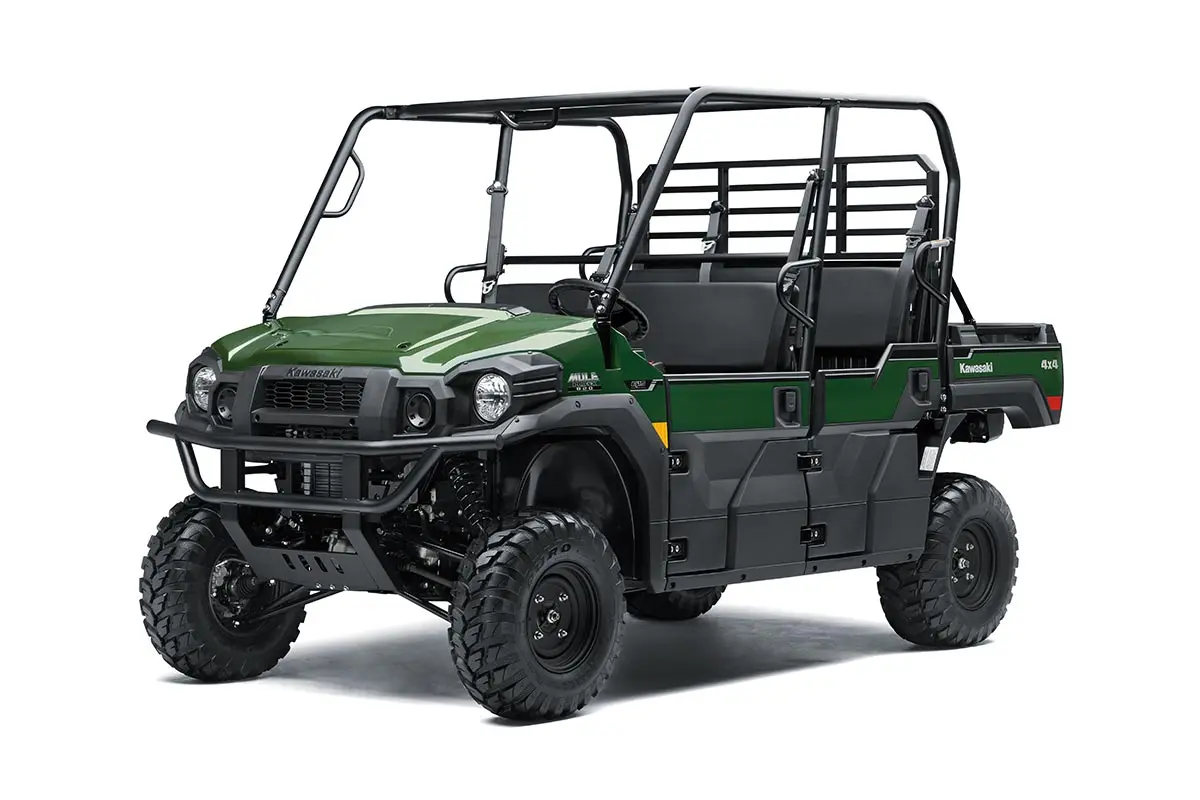

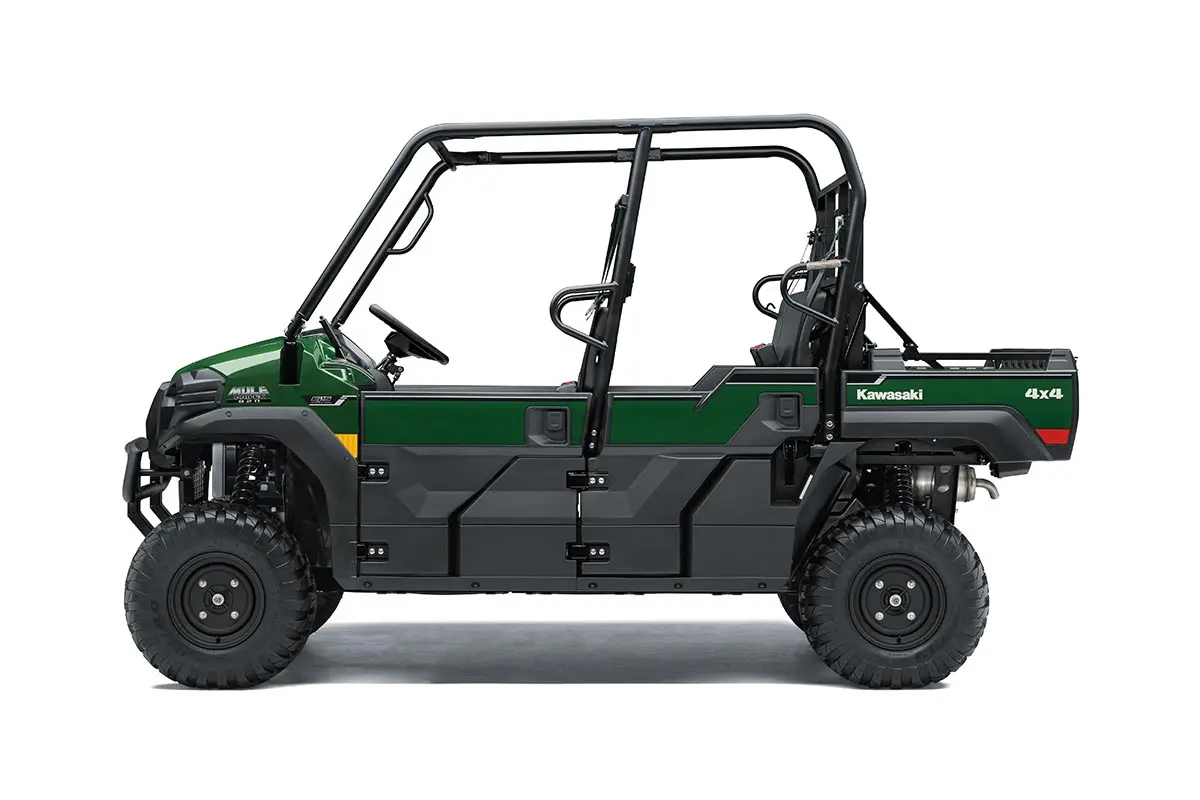

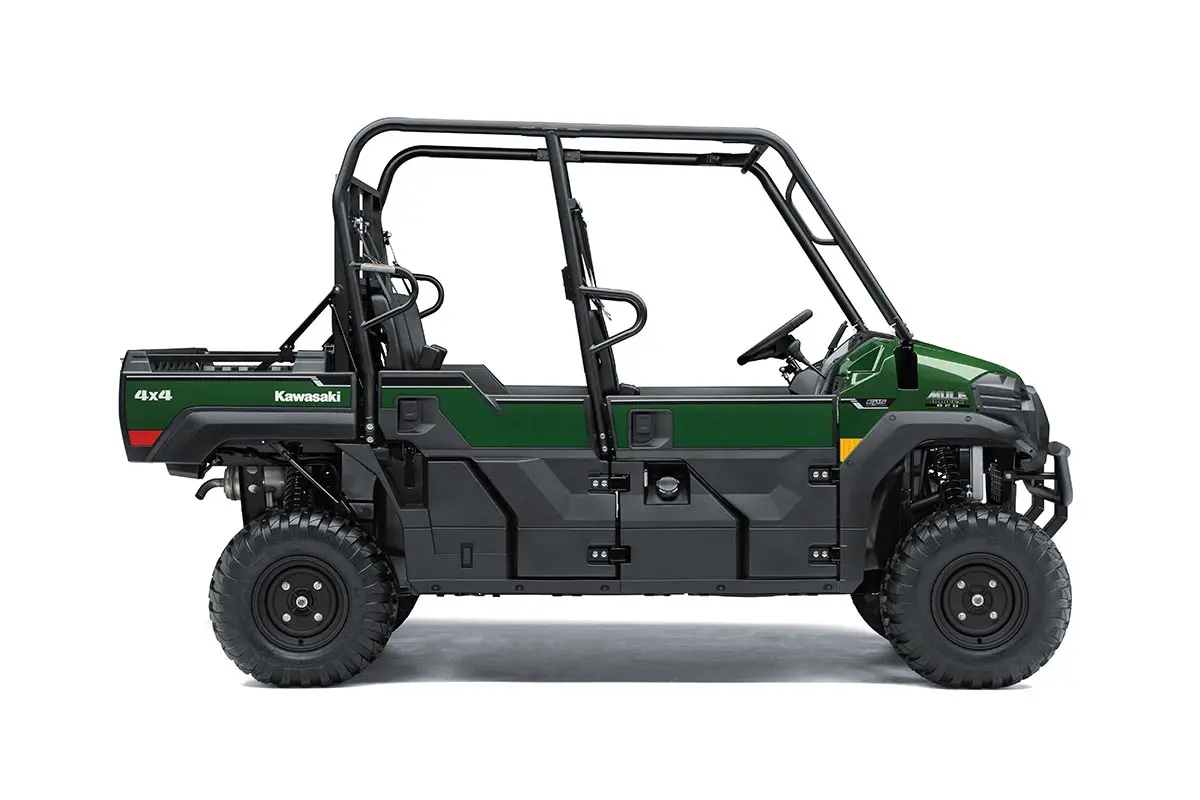

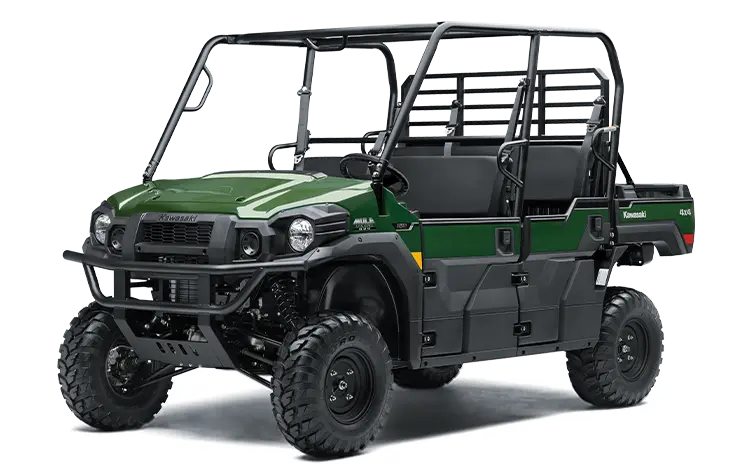

2026 MULE PRO-FXT 820

The MULE PRO-FXT 820 side x side is a full-size, high-capacity vehicle featuring a 3- to 6-passenger Trans Cab system. Strong enough for work and play, this side x side has an impressive hauling and towing capability, even in six-passenger mode. With the ability to move people and payloads, the MULE PRO-FXT 820 can do it all.

FEATURING:

  • 3- to 6-passenger Trans Cab System
  • 812 cc, 3-cylinder, 4-stroke engine
  • 1-ton (907 kg) towing capacity
  • Independent front and rear suspension

ADDITIONAL VEHICLE FEATURES:

  • Durable steel-based cargo bed
  • Continuously Variable Transmission (CVT)
  • Electrically selectable 2WD/4WD, dual-mode rear differential with diff. lock
  • Speed-sensitive Electric Power Steering (EPS)

MAKE AN ENQUIRY

Features

3- TO 6-PASSENGER TRANS CAB

1 Person. 1 Trip. 1 Minute.

With the class-exclusive three- to six-passenger Trans Cab system, all it takes is one person to take one trip around the vehicle to convert the MULE PRO-FXT 820 side x side from three passengers to six. All in about one minute.

Simple as 1, 2, 3

  1. Unclip seats and pull cargo bars up.
  2. Push rack back and pull seat into place.
  3. Click in cargo bed bars and clip in seats.
POWER

Most Powerful & Capable

812 cc, DOHC, three-cylinder petrol engine with massive torque packs impressive pulling power for hauling and towing heavy loads across challenging terrain.

Excels Under Pressure

Engine torque and power are matched to the Continuously Variable Transmission (CVT) to offer usable power delivery throughout the rpm range to get you through those tough spots even when loaded to capacity.

Descend with Confidence

Continuously Variable Transmission (CVT) also contributes to smooth, consistent engine braking that helps to maintain reduced vehicle speed during descents.

Built Strong

A massive 907 kg towing capacity allows you to transport supplies, tools, and materials with ease.

PERFORMANCE

Convenience on the go

MULE PRO-FXT 820 side x sides come with convenient features to assist you on the job.

Excellent Generator Capacity

Stay productive in the field with multiple 12-volt DC power outlets, all of which are supported by a high-output 75-amp generator.

Easily Accessible

Dash-mounted 2WD/4WD and rear differential lock final drive selection switches allow you to easily and instantly optimise traction to match terrain conditions.

Protection from Debris

Drive through rugged terrain in confidence as integrated inner wheel wells help protect the engine compartment from outside debris.

COMFORT

Room to Ride

Drive comfortably in a roomy cabin that offers generous leg, shoulder, and head clearance, along with refined ergonomics.

Smooth Ride

Independent front and rear suspension contribute to a smooth, comfortable ride while twin-tube shock absorbers provide superior bump absorption in rough low-speed situations as well as dampening higher-speed chatter.

Technical Specifications

Maximum Power
35 kW {48 PS} / 5,500 rpm
Maximum Torque
65 Nm {6.6 kgfm} / 3,500 rpm
Engine
4-stroke In-Line 3-cylinder
Displacement
812 cc
Bore x Stroke
72.0 x 66.5 mm
Compression Ratio
9.5:1
Valve System
DOHC, 4 valves per cylinder
Fuel System
Fuel injection: ø34 mm x 1
Ignition
Battery & coil
Starting
Electric
Cooling
Liquid-cooled
Lubrication
Forced lubrication, wet sump
Transmission
Dual range (high/low) CVT with reverse
Primary Reduction Ratio
3.33 ~ 0.70 (belt converter)
Gear Ratio Forward (High)
1.803 (34/33 x 35/20)
Gear Ratio Forward (Low)
3.580 (45/22 x 35/20)
Gear Ratio Reverse
2.779 (27/17 x 35/20)
Final Reduction Ratio Front
6.382 (31/17 x 35/10)
Final Reduction Ratio Rear
6.245 (31/21 x 55/13)
Final Drive
2WD/4WD, shaft, dual-mode differential
Frame
Ladder type, tubular steel
Front Suspension
Double wishbone
Rear Suspension
Double wishbone
Front Wheel Travel
222 mm
Rear Wheel Travel
217 mm (left), 220 mm (right)
Steering
Rack and pinion with Electric Power Steering
Rake
4.4°
Steering Angle (L/R)
40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
Front Tyres
26 x 9.00R12 4PR
Rear Tyres
26 x 11.00R12 4PR
Front Brakes
Dual ø212 mm discs
Front Calipers
Two-piston
Rear Brake/s
Dual ø212 mm discs
Rear Caliper/s
Single-piston
Parking Brake
Dual discs (mechanical)
Dimensions (LxWxH)
3,385 x 1,625 x 1,970 mm
Wheelbase
2,345 mm
Road Clearance
260 mm
Seat Height
880 mm (front), 965 mm (rear)
Curb Weight*
884 kg
Estimated Dry Weight**
844 kg
Fuel Capacity
30 litres
Tread Front / Rear
1,389 mm / 1,321 mm
Turning Radius
4.8 m
Cargo Bed Dimensions (LxWxH) 6-Person Mode
560 x 1,363 x 279 mm
Cargo Bed Dimensions (LxWxH) 3-Person Mode
1,085 x 1,363 x 279 mm
Cargo Bed Capacity 6-Person Mode
158 kg
Cargo Bed Capacity 3-Person Mode
453 kg
Seating Capacity
3 or 6
Vehicle Load Capacity
717 kg
Towing Capacity
907 kg
Lighting
2x halogen headlights
Model Code
KAT820BTFNN
