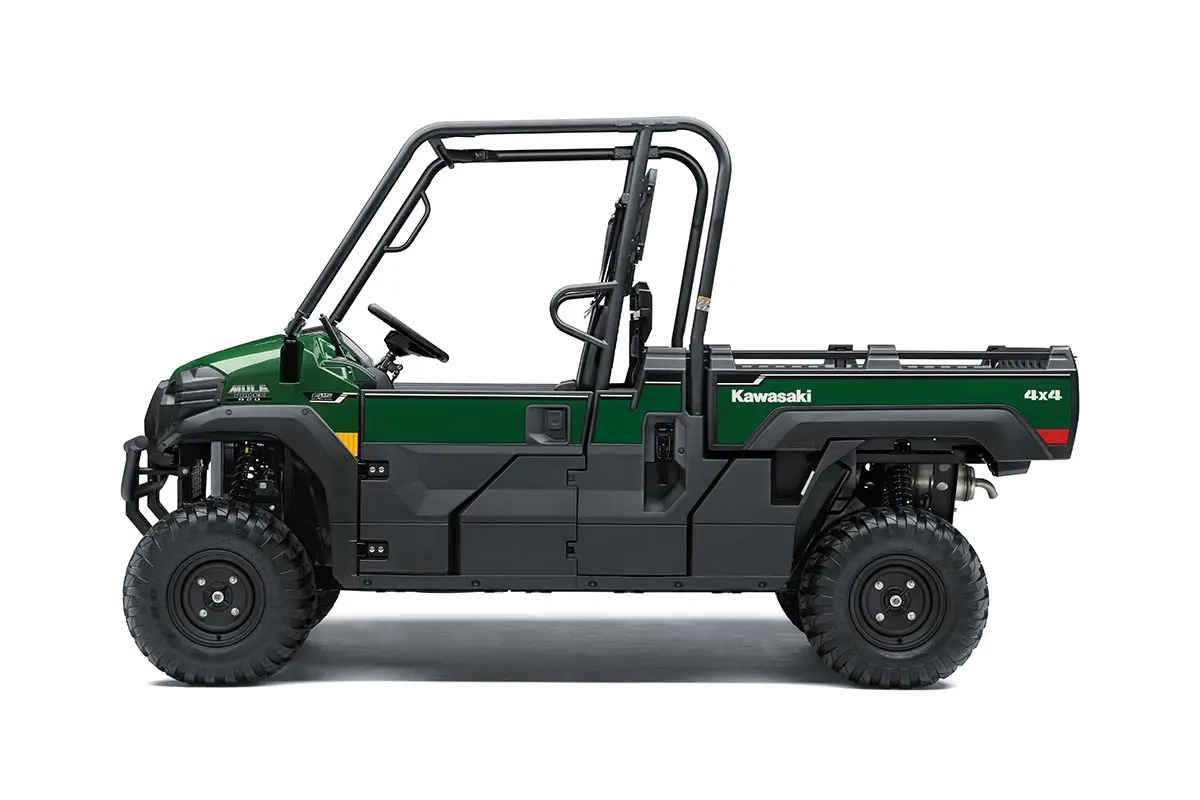

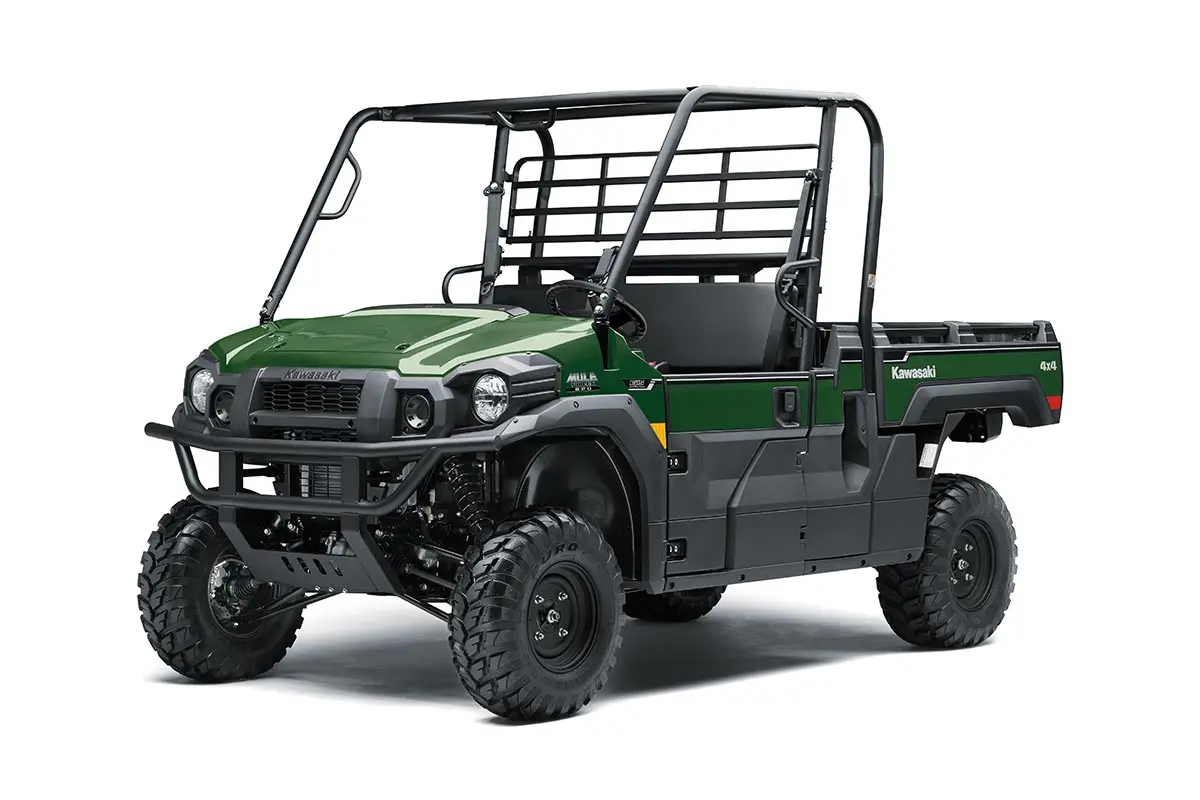

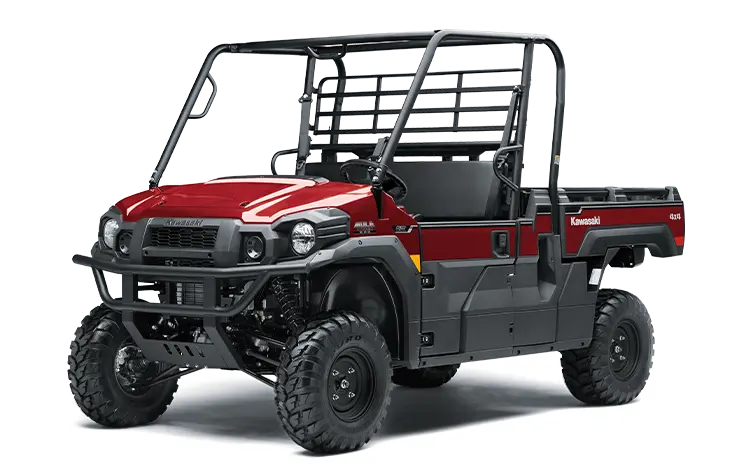

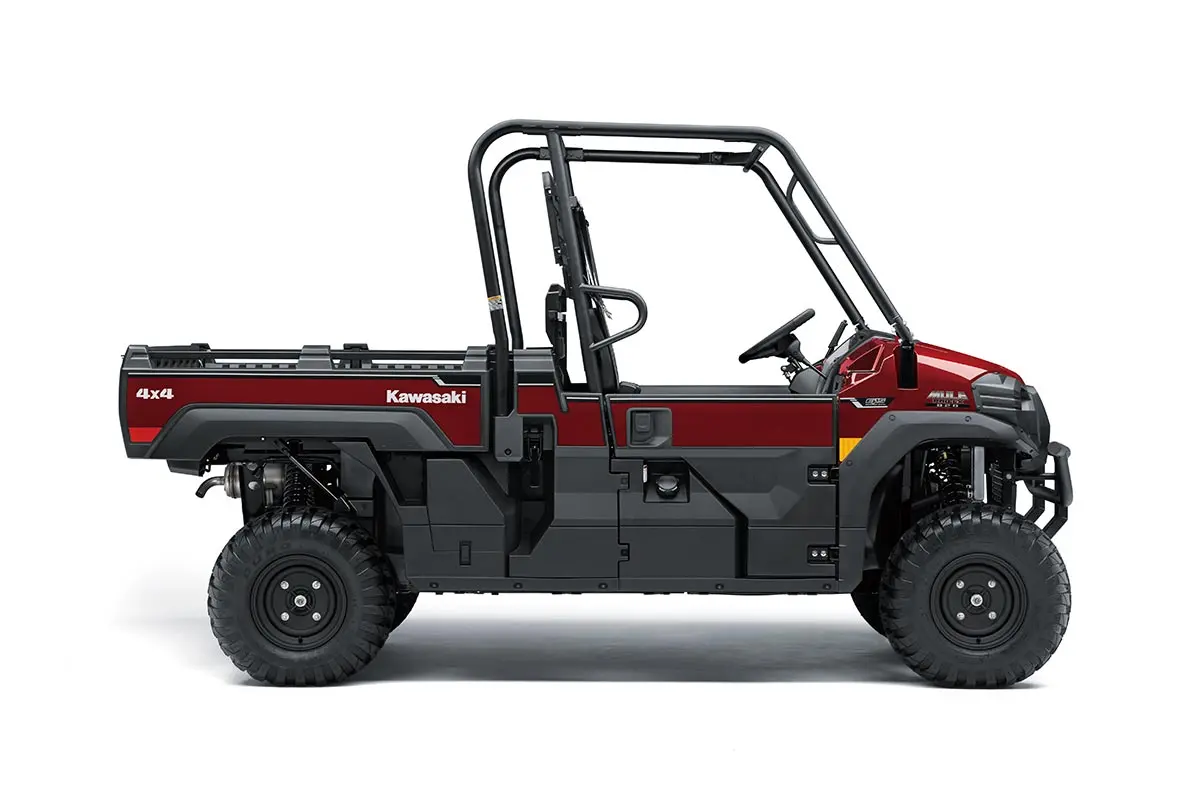

Kawasaki 2026 MULE PRO-FX 820

The MULE PRO-FX 820 side x side is a powerful, high-capacity, three-passenger vehicle that's as durable as your days are long. With excellent performance for both work and play, it's the perfect work companion with all-day comfort and strong, dependable performance.

FEATURING:

Roomy cabin with 3-passenger seating
812 cc, 3-cylinder, 4-stroke engine
1-ton (907 kg) towing capacity
Independent front and rear suspension

ADDITIONAL VEHICLE FEATURES:

Massive 1.9 m² cargo bed
Continuously Variable Transmission (CVT)
Electrically selectable 2WD/4WD, dual-mode rear differential with diff. lock
Speed-sensitive Electric Power Steering (EPS)

MAKE AN ENQUIRY

Technical Specifications

Maximum Power

35 kW {48 PS} / 5,500 rpm

Maximum Torque

65 Nm {6.6 kgfm} / 3,500 rpm

Engine

4-stroke In-Line 3-cylinder

Displacement

812 cc

Bore x Stroke

72.0 x 66.5 mm

Compression Ratio

9.5:1

Valve System

DOHC, 4 valves per cylinder

Fuel System

Fuel injection: ø34 mm x 1

Ignition

Battery & coil

Starting

Electric

Cooling

Liquid-cooled

Lubrication

Forced lubrication, wet sump

Transmission

Dual range (high/low) CVT with reverse

Primary Reduction Ratio

3.33 ~ 0.70 (belt converter)

Gear Ratio Forward (High)

1.803 (34/33 x 35/20)

Gear Ratio Forward (Low)

3.580 (45/22 x 35/20)

Gear Ratio Reverse

2.779 (27/17 x 35/20)

Final Reduction Ratio Front

6.382 (31/17 x 35/10)

Final Reduction Ratio Rear

6.245 (31/21 x 55/13)

Final Drive

2WD/4WD, shaft, dual-mode differential

Frame

Ladder type, tubular steel

Front Suspension

Double wishbone

Rear Suspension

Double wishbone

Front Wheel Travel

222 mm

Rear Wheel Travel

217 mm (left), 220 mm (right)

Steering

Rack and pinion with Electric Power Steering

Rake

4.4°

Trail

Steering Angle (L/R)

40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)

Front Tyres

26 x 9.00R12 4PR

Rear Tyres

26 x 11.00R12 4PR

Front Brakes

Dual ø212 mm discs

Front Calipers

Two-piston

Rear Brake/s

Dual ø212 mm discs

Rear Caliper/s

Single-piston

Parking Brake

Dual discs (mechanical)

Dimensions (LxWxH)

3,385 x 1,625 x 1,965 mm

Wheelbase

2,345 mm

Road Clearance

265 mm

Seat Height

885 mm

Curb Weight*

840 kg

Estimated Dry Weight**

803 kg

Fuel Capacity

30 litres

Tread Front / Rear

1,385 mm / 1,315 mm

Turning Radius

4.8 m

Cargo Bed Dimensions (LxWxH)

1,375 x 1,355 x 280 mm

Cargo Bed Capacity

453 kg

Seating Capacity

Vehicle Load Capacity

717 kg

Towing Capacity

907 kg

Lighting

2x halogen headlights

Model Code

KAF820FTFNN
