2026 KX250X FEATURES SPECS GALLERY

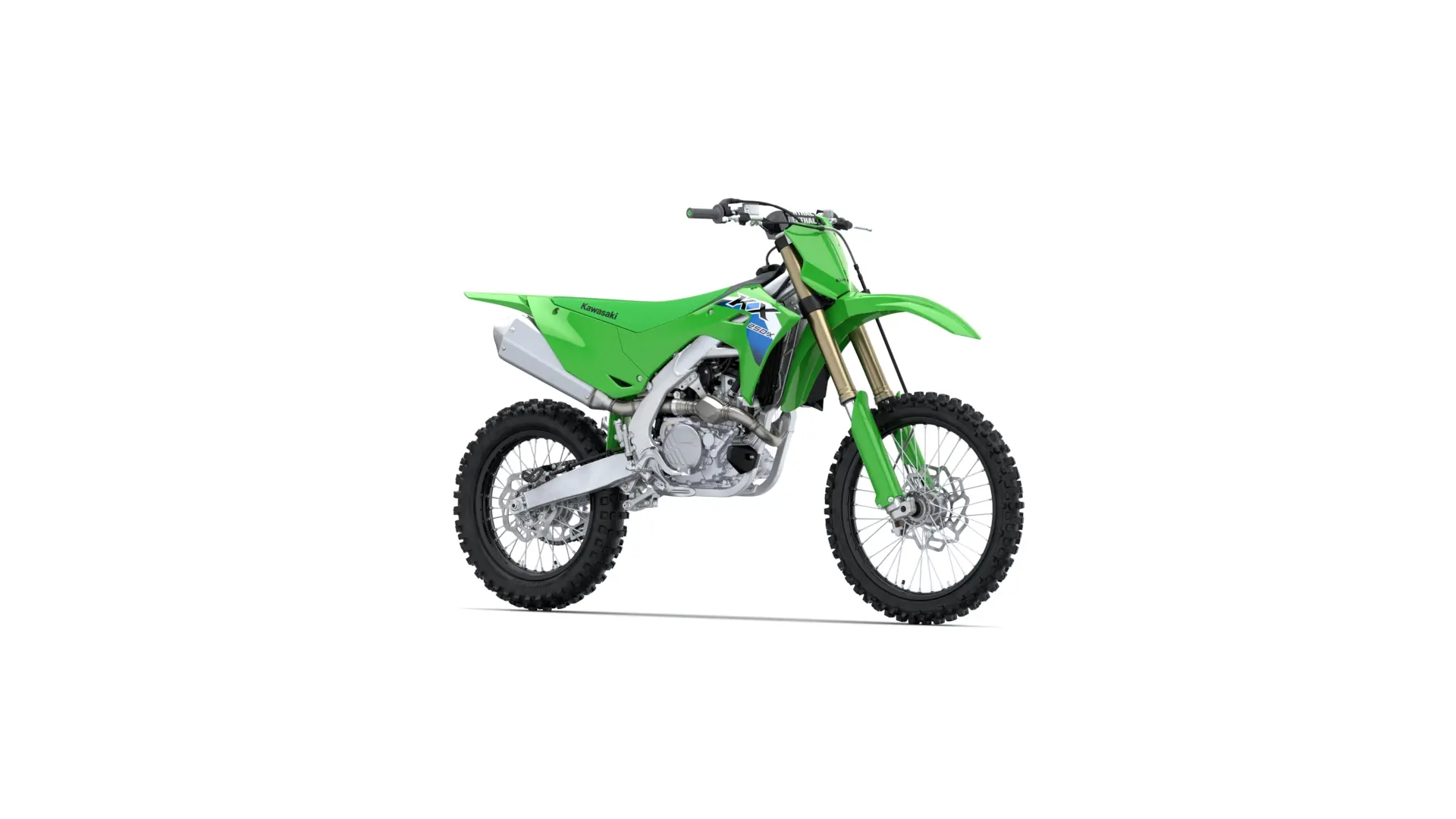

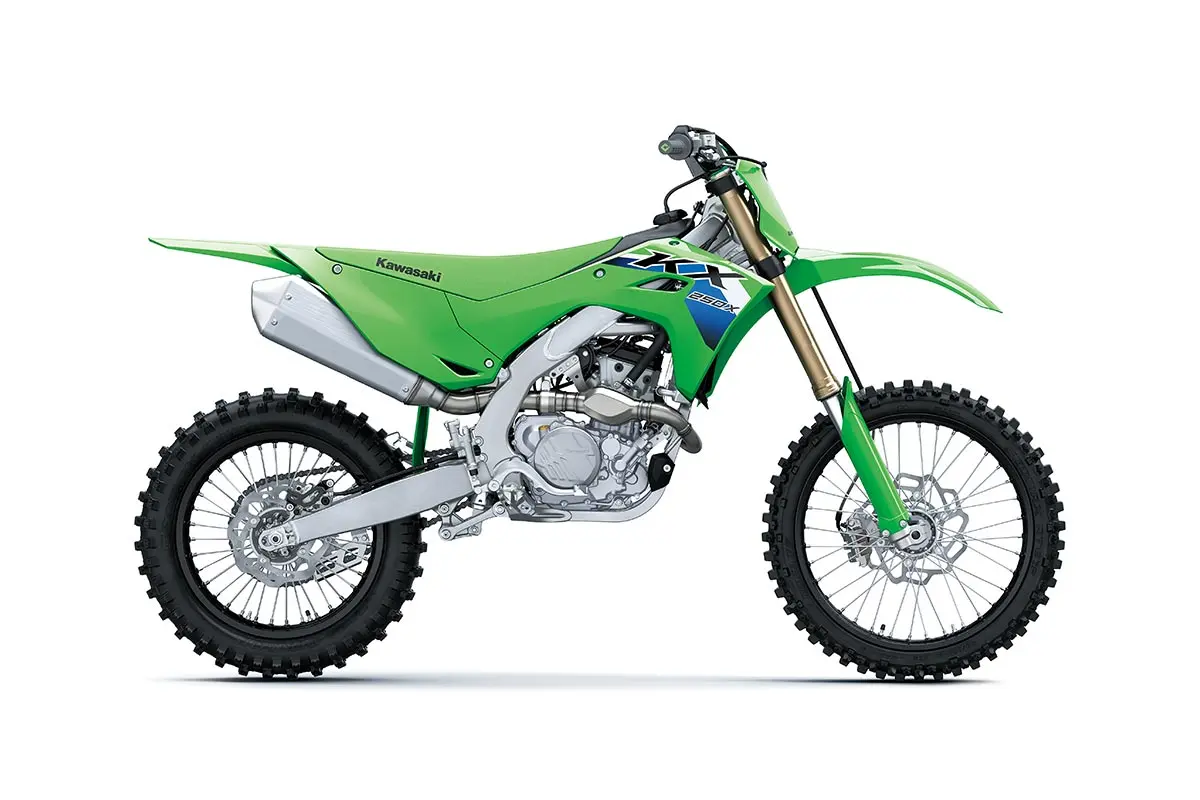

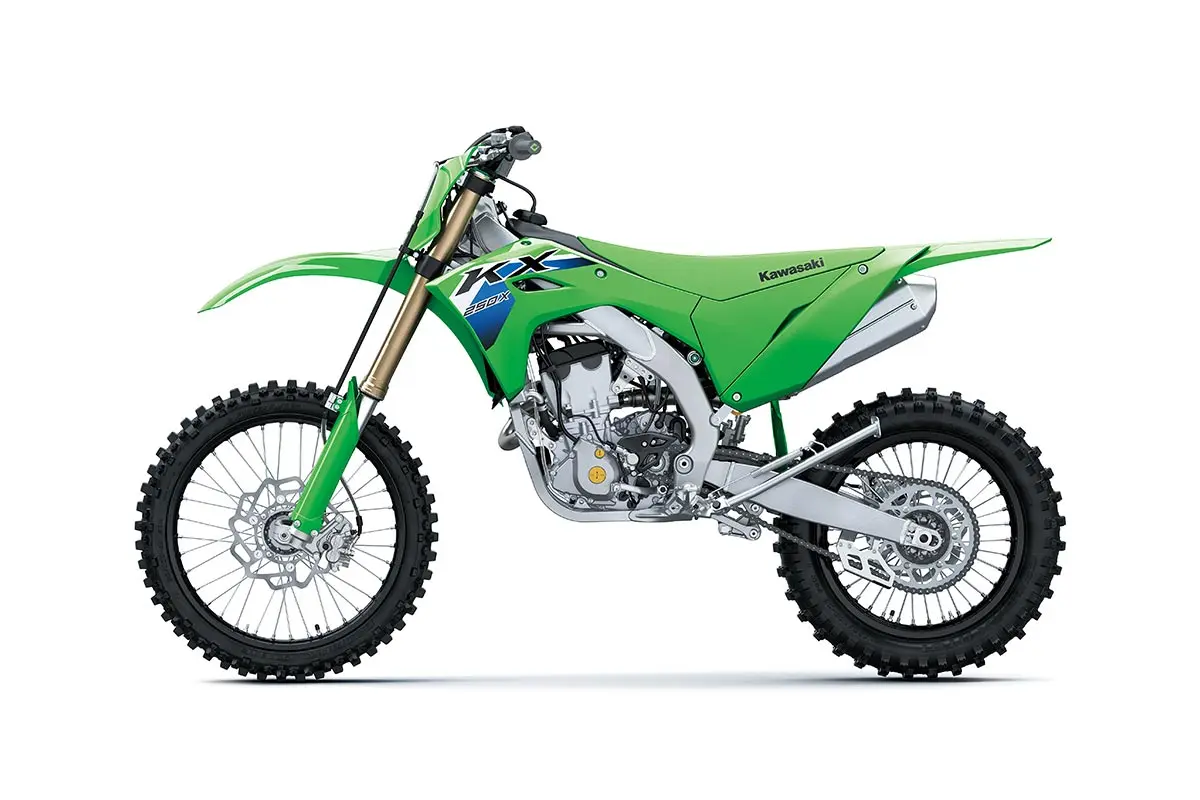

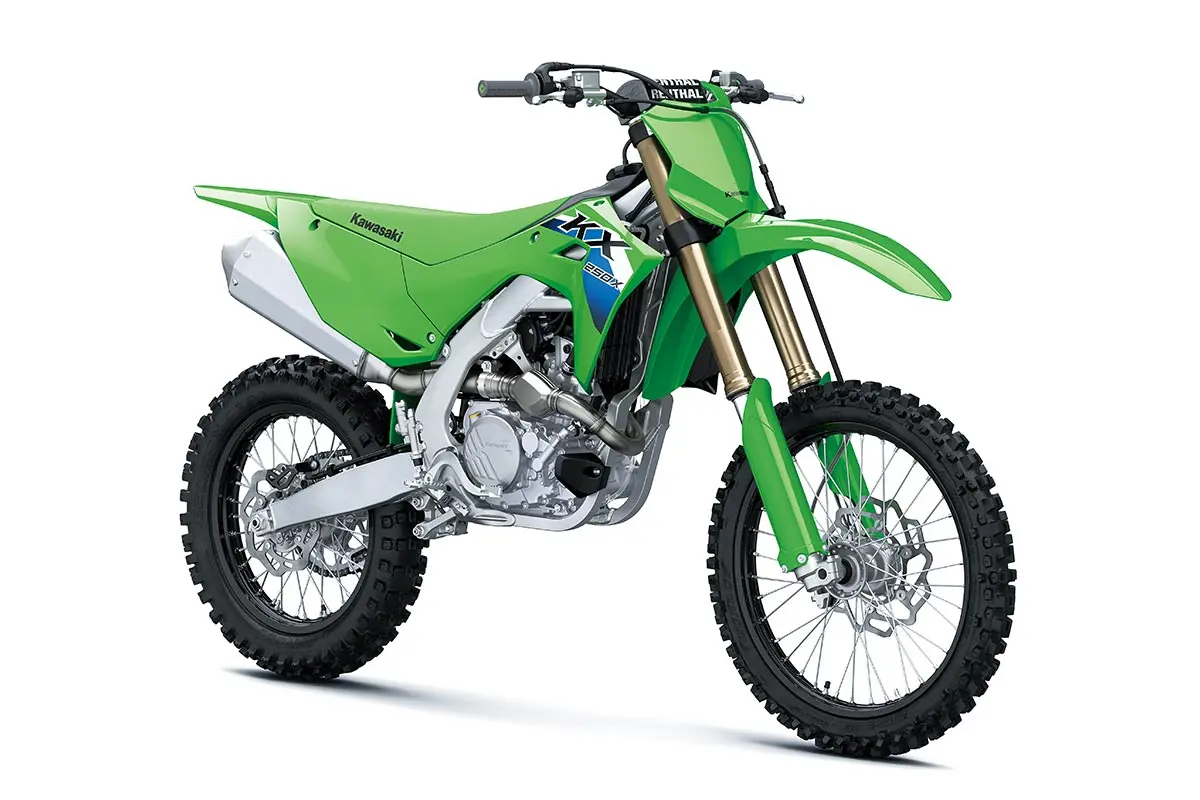

2026 KX250X

The KX250X motorcycle takes cross-country racing to the next level. Tuned for off-road racing, advanced tech like Power Mode selection and Kawasaki TRaction Control (KTRC) combine with a high-performance chassis, a more powerful engine, and off-road ready suspension to equip this championship-proven race machine for the most technical terrain. Climb the ranks quickly and confidently with the bike built for victory. Be Next on the KX250X.

FEATURING:

  • 249 cc 4-stroke engine with electric start
  • Cylinder head with straight exhaust port and centre exhaust
  • Aluminium perimeter frame
  • Power Mode selection with handlebar-mounted switch
  • Smartphone connectivity—change engine mapping with RIDEOLOGY THE APP KX
  • Kawasaki TRaction Control (KTRC) with handlebar-mounted switch
  • Dual injectors (upstream and downstream)
  • ERGO-FIT adjustable ergonomics for ride position optimization
  • Off-road ready suspension, F21"/R18" wheels and off-road tyres, sealed chain, side stand

ADDITIONAL VEHICLE FEATURES:

  • Single -shaft primary crankshaft balancer
  • Coned-disc-spring hydraulic clutch
  • SHOWA ø49 mm coil-spring fork and single shock with revised settings
  • ODI Lock-On grips
  • Ergonomic shrouds design
  • Quick-release side cover
  • 12 V bullet terminal for aftermarket accessories

MAKE AN ENQUIRY

Features

FACTORY-STYLE ENGINE COMPONENTS AND TUNING

Championship-proven Performance

The base factors that have made the KX250X engine a standout performer in its class—finger-follower valve actuation, a downdraft-style intake, and dual injectors—are complemented by revised intake and exhaust layout and a single-shaft primary balancer, for an all-around stronger package with enhanced control better capable of challenging for race results.

FACTORY-STYLE CHASSIS COMPONENTS AND TUNING

Light & Agile

The KX250X’s new frame is based on that of the 2024 KX450, and updates for 2025 to suit the new intake and exhaust layout help to deliver improved handling. Smooth bodywork is designed to facilitate rider movement and control, and fine-tuned suspension and brake components further contribute to the KX250X’s light, agile handling. ODI Lock-On grips and a quick-release side cover add to convenience.

CROSS-COUNTRY COMPONENTS AND TUNING

Optimised Performance

Cross-country-specific tuning for the suspension, complemented by a 21”/18” wheel combination fitted with enduro-type tyres, and convenient standard features like a side stand make the new KX250X even more attractive for cross-country competitors.

ADVANCED TECH AT YOUR FINGERTIPS

Power Modes, Kawasaki Traction Control, and Launch Control Mode Accessed from the Left Handle Switches

Complementing an updated Launch Control Mode, the new KX250X offers Power Mode selection and Kawasaki Traction Control at the push of a button. And with smartphone connectivity, riders can adjust engine maps right from their smartphones.

Technical Specifications

Engine
4-stroke Single
Displacement
249 cc
Bore x Stroke
78.0 x 52.2 mm
Compression Ratio
14.0:1
Valve System
DOHC, 4 valves
Fuel System
Fuel injection: ø44 mm x 1, with dual injectors
Ignition
Digital DC-CDI
Starting
Electric
Cooling
Liquid-cooled
Lubrication
Forced lubrication, semi-dry sump
Transmission
5-speed, return
Primary Reduction Ratio
3.350 (67/20)
Gear Ratio 1st
2.077 (27/13)
Gear Ratio 2nd
1.688 (27/16)
Gear Ratio 3rd
1.438 (23/16)
Gear Ratio 4th
1.235 (21/17)
Gear Ratio 5th
1.045 (23/22)
Final Reduction Ratio
3.846 (50/13)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, aluminium
Front Suspension
ø49 mm inverted fork with adjustable compression and rebound damping
Rear Suspension
New Uni Trak with adjustable dual-range (high/low-speed) compression damping, adjustable rebound damping and adjustable spring preload
Front Wheel Travel
305 mm
Rear Wheel Travel
307 mm
Rake
27.5º
Trail
121 mm
Steering Angle (L/R)
42º / 42º
Front Tyre
80/100-21 51M
Rear Tyre
110/100-18 64M
Front Brake/s
Semi-floating ø270 mm petal disc
Front Caliper/s
Dual-piston
Rear Brake
ø240 mm petal disc
Rear Caliper
Single-piston
Dual Injectors
Yes
KTRC (Kawasaki Traction Control)
Yes
Launch Control Mode
Yes
Power Modes
Yes
Smartphone Connectivity
Yes
ERGO-FIT
Yes
Dimensions (LxWxH)
2,180 x 820 x 1,260 mm
Wheelbase
1,485 mm
Road Clearance
330 mm
Seat Height
945 mm
Curb Weight*
110.6 kg
Weight without Fuel
106.1 kg
Fuel Capacity
6.2 litres
Model Code
KX252FTFNN
