2026 KLX300R FEATURES SPECS GALLERY

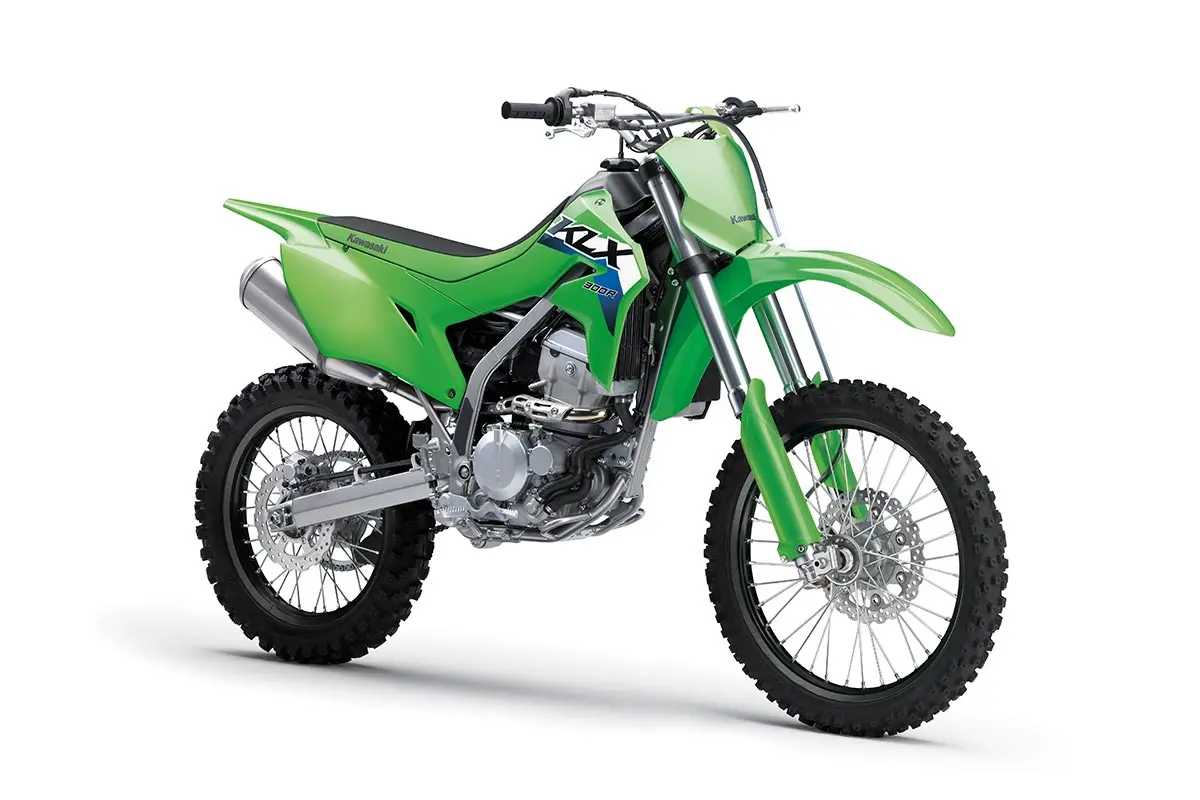

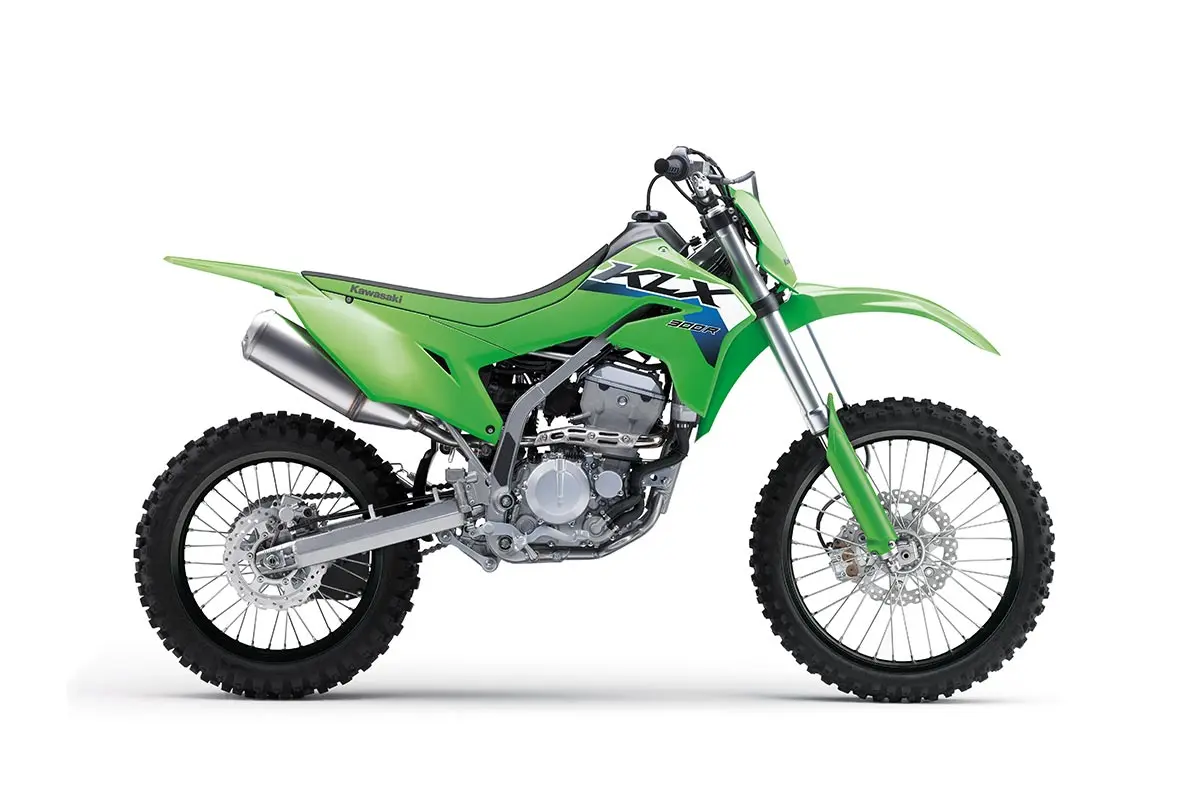

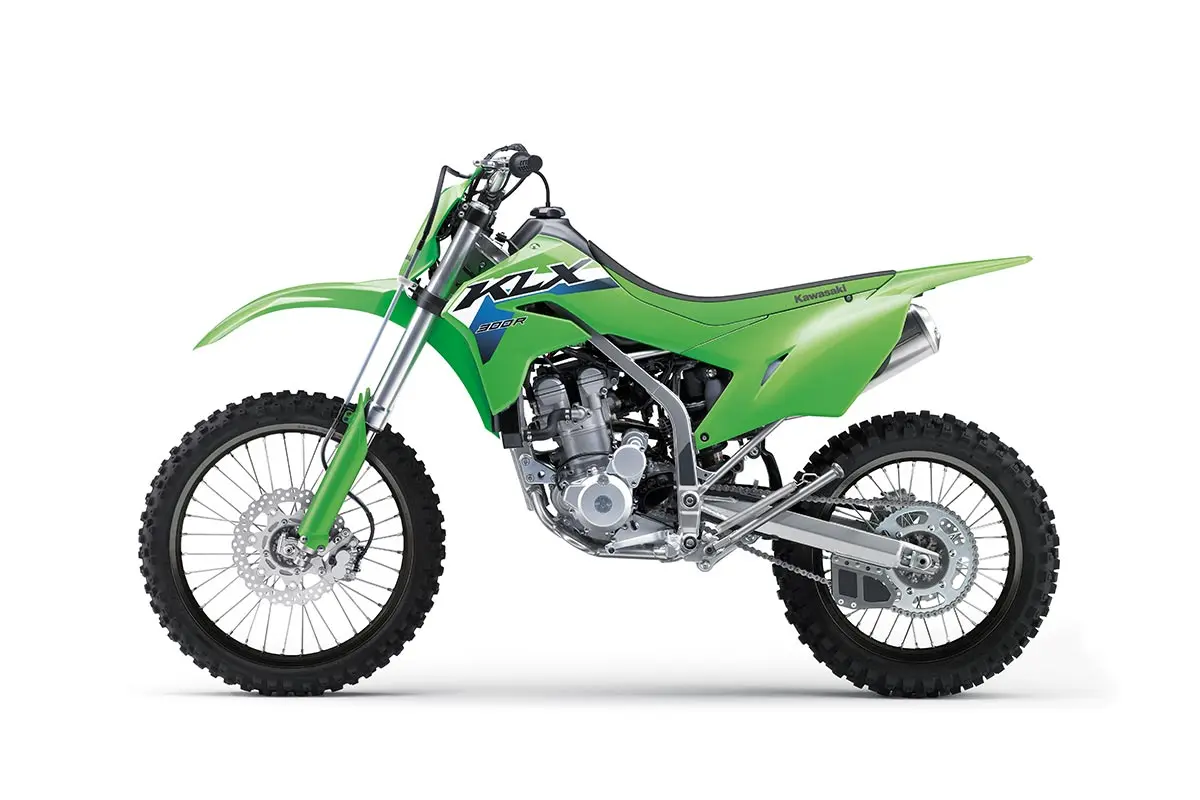

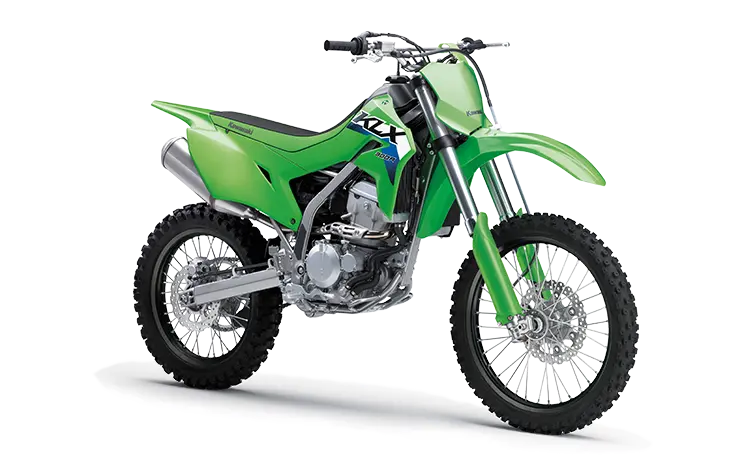

2026 KLX300R

The KLX300R is the ultimate high-performance trail bike for off-road thrills, bridging the world between a weekend play bike and a full race bike. As the leader of the KLX lineup, the KLX300R combines the best of both engine and chassis performance to create the ultimate lightweight, fun off-road machine.

FEATURING:

  • 292 cc liquid-cooled, fuel-injected, four-stroke DOHC Single
  • Lightweight perimeter frame
  • Trail-tuned long-travel suspension

ADDITIONAL VEHICLE FEATURES:

  • Recreational trail bike with high level of capability
  • Powerful petal-disc brakes front and rear
  • ERGO-FIT adjustability with 4-way handlebar positions
  • Full-size wheels
  • Hassle-free electric start
  • KX-inspired styling and ergonomics
  • 128 kg curb weight* (120 kg estimated dry weight**)

MAKE AN ENQUIRY

Features

POWERFUL ENGINE

Ultimate Trail Bike

Serious off-road fun starts with the fuel-injected 292 cc liquid-cooled four-stroke Single, delivering crisp response, quick-revving power and strong low-end torque. The KLX300R is built tough with an engine designed to withstand the rigours of hard trail riding.

NIMBLE CHASSIS

Lightweight Platform

A lightweight perimeter frame offers optimised rigidity for stability at speed while the short wheelbase facilitates agile handling. High ground clearance allows riders to more easily clear technical terrain features, resulting in confident trail riding.

TRAIL-TUNED SUSPENSION

Ride Any Trail

The KLX300R is built for serious play and is equipped with long-travel suspension to confidently handle the rigors of aggressive off-road riding.

WHEELS & BRAKES

Confident Control

Full-size wheels and powerful disc brakes make the KLX300R ready for tough off-road terrain.

Technical Specifications

Maximum Power
21.4 kW {29 PS} / 8,000 rpm
Maximum Torque
26.3 Nm {2.7 kgfm} / 7,000 rpm
Engine
4-stroke Single
Displacement
292 cc
Bore x Stroke
78.0 x 61.2 mm
Compression Ratio
11.1:1
Valve System
DOHC, 4 valves
Fuel System
Fuel injection: ø34 mm x 1
Ignition
Digital
Starting
Electric
Cooling
Liquid-cooled
Lubrication
Forced lubrication, wet sump
Transmission
6-speed, return
Primary Reduction Ratio
2.800 (84/30)
Gear Ratio 1st
3.000 (30/10)
Gear Ratio 2nd
2.000 (30/15)
Gear Ratio 3rd
1.500 (27/18)
Gear Ratio 4th
1.250 (25/20)
Gear Ratio 5th
1.050 (21/20)
Gear Ratio 6th
0.952 (20/21)
Final Reduction Ratio
3.571 (50/14)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, high tensile steel
Front Suspension
ø43 mm inverted fork with adjustable compression damping
Rear Suspension
Uni Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload
Front Wheel Travel
285 mm
Rear Wheel Travel
285 mm
Rake
26.9°
Trail
109 mm
Steering Angle (L/R)
45° / 45°
Front Tyre
80/100-21 51M
Rear Tyre
100/100-18 59M
Front Brake/s
Semi-floating ø270 mm petal disc
Front Caliper/s
Dual-piston
Rear Brake
ø240 mm petal disc
Rear Caliper
Single-piston
ERGO-FIT
Yes
Dimensions (LxWxH)
2,120 x 825 x1,245 mm
Wheelbase
1,435 mm
Road Clearance
300 mm
Seat Height
900 mm
Curb Weight*
128 kg
Estimated Dry Weight**
120 kg
Fuel Capacity
7.9 litres
Model Code
KLX300CTFNN
