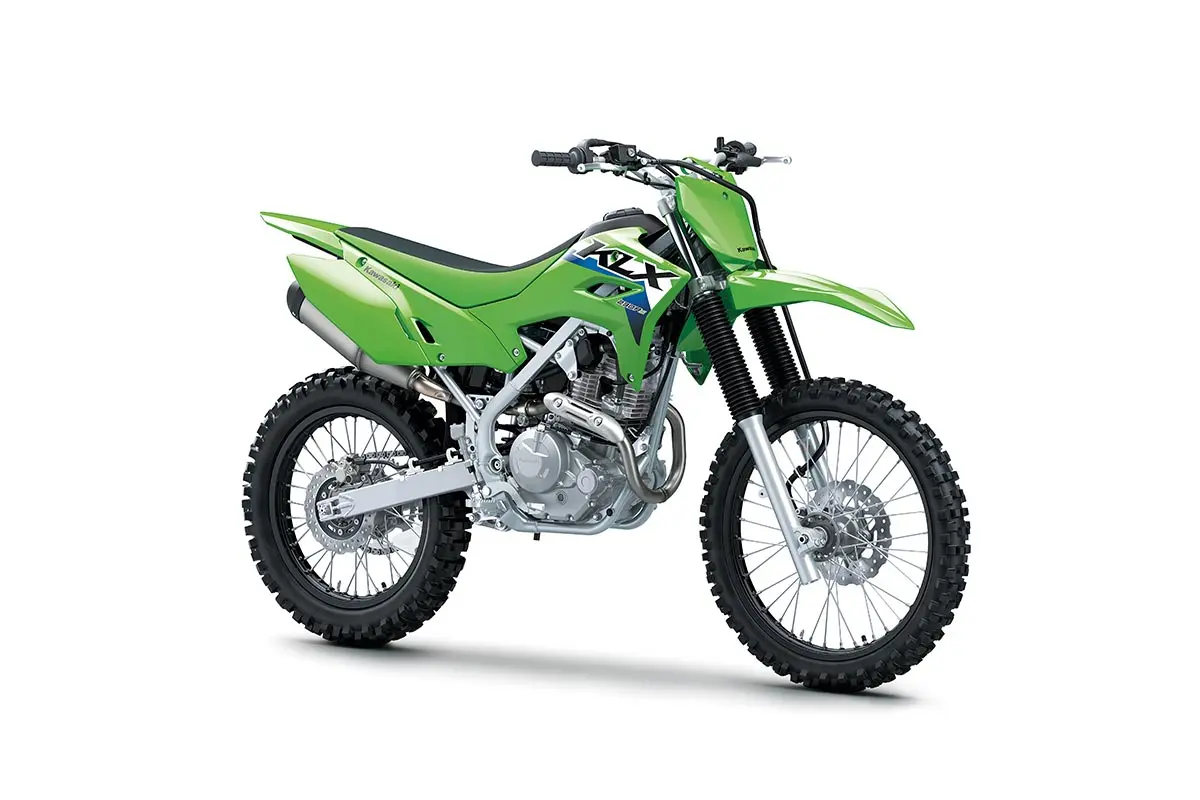

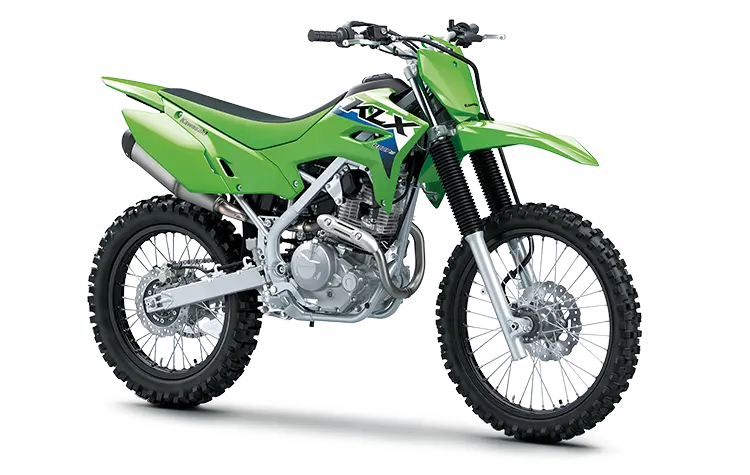

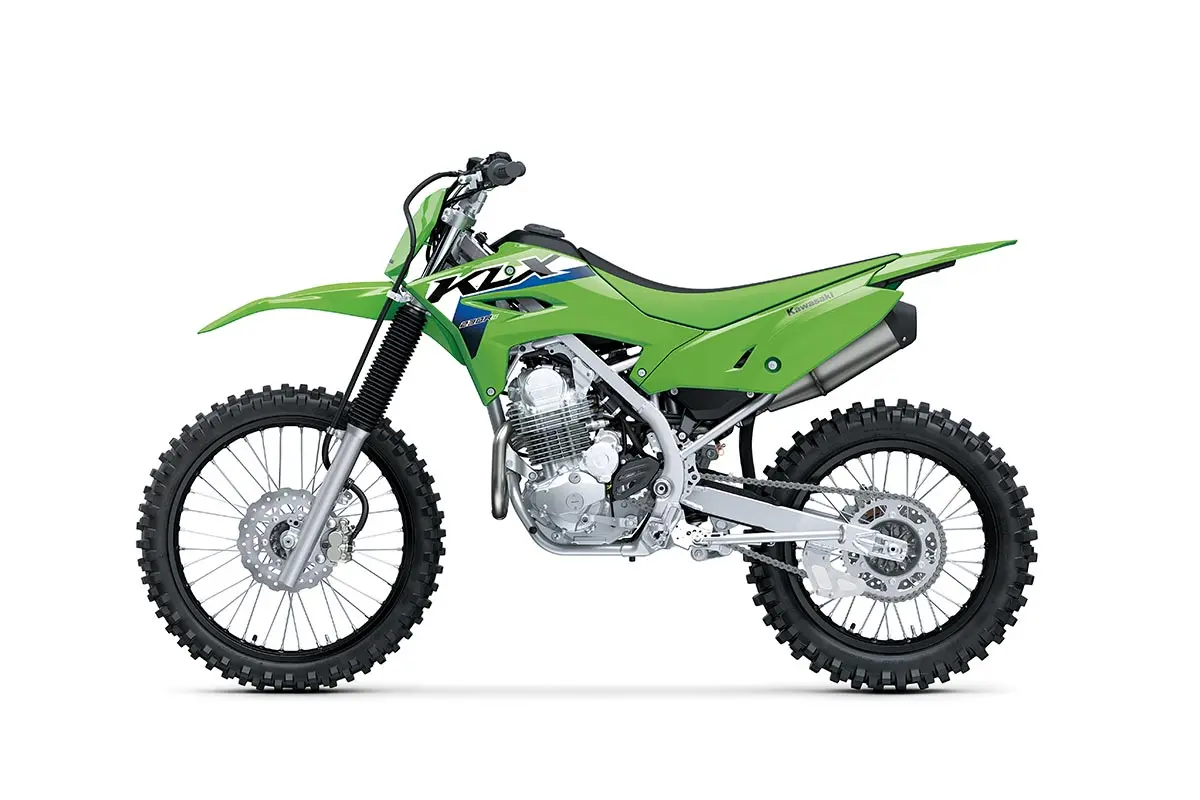

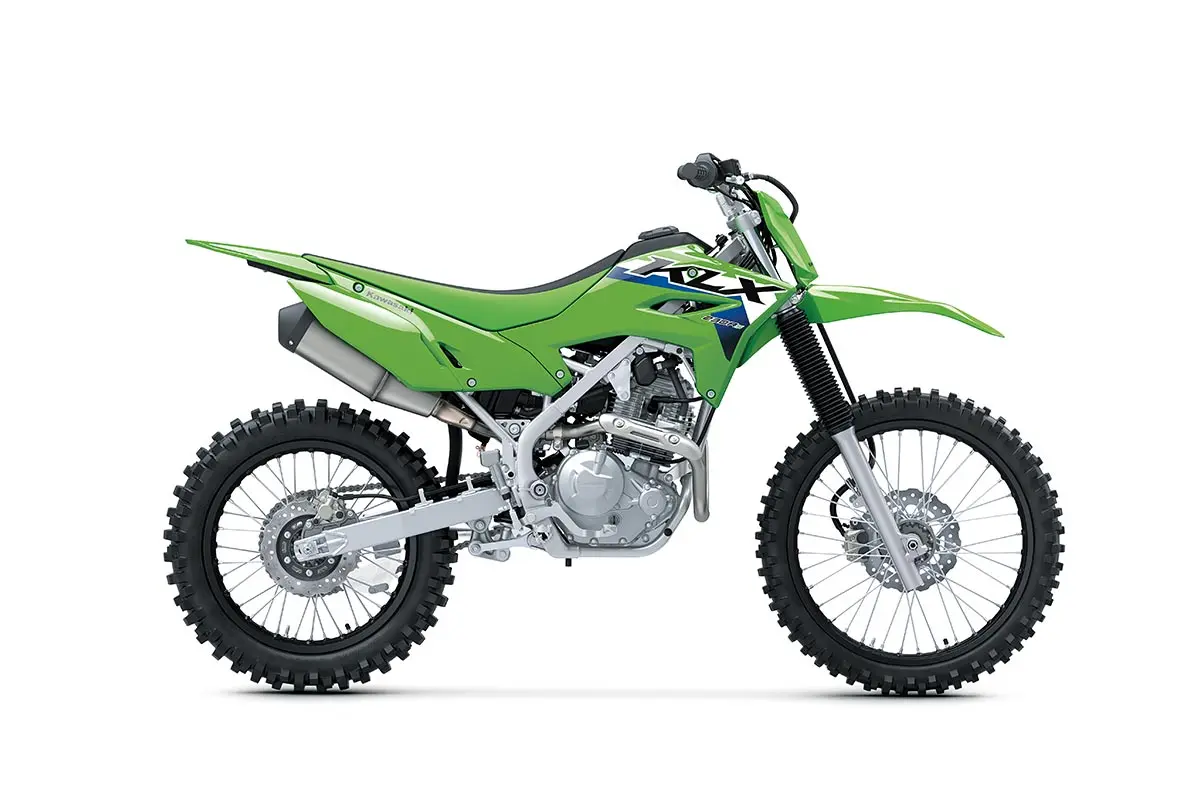

2026 KLX230R S

The full-size fun of the KLX230R trail bike means it’s time to Get Out and Play. Take on terrain with nimble handling and plenty of power, while kicking up some serious dirt along the way. Long-travel suspension paired with improved low-speed control gives this bike a sporty feel that stands out among the rest. Finished with styling inspired by the KX lineup, the highly capable, lightweight package of the KLX230R brings a heavy dose of fun to every off-road ride.

FEATURING:

  • 233 cc fuel-injected, air-cooled four-stroke Single
  • primary balancer for smoother engine character
  • compact perimeter frame with lower seat height
  • larger capacity fuel tank
  • Trail-tuned long-travel suspension

ADDITIONAL VEHICLE FEATURES:

  • Convenient electric start
  • Keyed ignition and fuel tank cap
  • KX-inspired styling with smooth-design bodywork
  • Lower seat height than KLX230R (875 mm vs 905 mm)
  • Rear shock with stepless preload adjustability
  • Full-size wheels with rim locks
  • Instrumentation featuring low-fuel and FI warning lamps
  • 119 kg curb weight* (112 kg estimated dry weight**)

MAKE AN ENQUIRY

Features

CAPABLE OFF-ROAD PERFORMANCE

Take on the Trails

When the road is challenging, the new KLX230R S is ready with long wheel travel and ample ground clearance. The great performance of the tried-and-true engine has been augmented with a balancer for an even more enjoyable and useful off-road machine, and a larger fuel tank means more time on the trail between fill-ups.

COMPACT, LIGHTWEIGHT, MANOEUVRABLE

Off-Road Enjoyment for a Wide Range of Riders

Providing a light, manoeuvrable package has been a key consideration since the KLX230R was originally designed. Its simple air-cooled engine and easy handling perimeter frame contribute to a compact package, while the balance between the engine and frame results in performance that can be enjoyed by a wide range of riders.

Technical Specifications

Maximum Power
13.8 kW {19 PS} / 8,000 rpm
Maximum Torque
19.6 Nm {2.0 kgfm} / 6,400 rpm
Engine
4-stroke Single
Displacement
233 cc
Bore x Stroke
67.0 x 66.0 mm
Compression Ratio
9.4:1
Valve System
SOHC, 2 valves
Fuel System
Fuel injection: ø32 mm x 1
Ignition
Digital
Starting
Electric
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
6-speed, return
Primary Reduction Ratio
2.871 (89/31)
Gear Ratio 1st
3.000 (39/13)
Gear Ratio 2nd
2.067 (31/15)
Gear Ratio 3rd
1.556 (28/18)
Gear Ratio 4th
1.261 (29/23)
Gear Ratio 5th
1.040 (26/25)
Gear Ratio 6th
0.852 (23/27)
Final Reduction Ratio
3.538 (46/13)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, high-tensile steel
Front Suspension
ø37 mm telescopic fork
Rear Suspension
New Uni Trak with adjustable spring preload
Front Wheel Travel
220 mm
Rear Wheel Travel
217 mm
Rake
24.6°
Trail
100 mm
Steering Angle (L/R)
45° / 45°
Front Tyre
80/100-21 51M
Rear Tyre
100/100-18 59M
Front Brake/s
ø240 mm petal disc
Front Caliper/s
Dual-piston
Rear Brake
ø220 mm petal disc
Rear Caliper
Single-piston
ERGO-FIT
Yes
Dimensions (LxWxH)
2,035 x 845 x 1,185 mm
Wheelbase
1,355 mm
Road Clearance
270 mm
Seat Height
875 mm
Curb Weight*
119 kg
Estimated Dry Weight**
112 kg
Fuel Capacity
7.6 litres
Model Code
KLX232PTFNN
