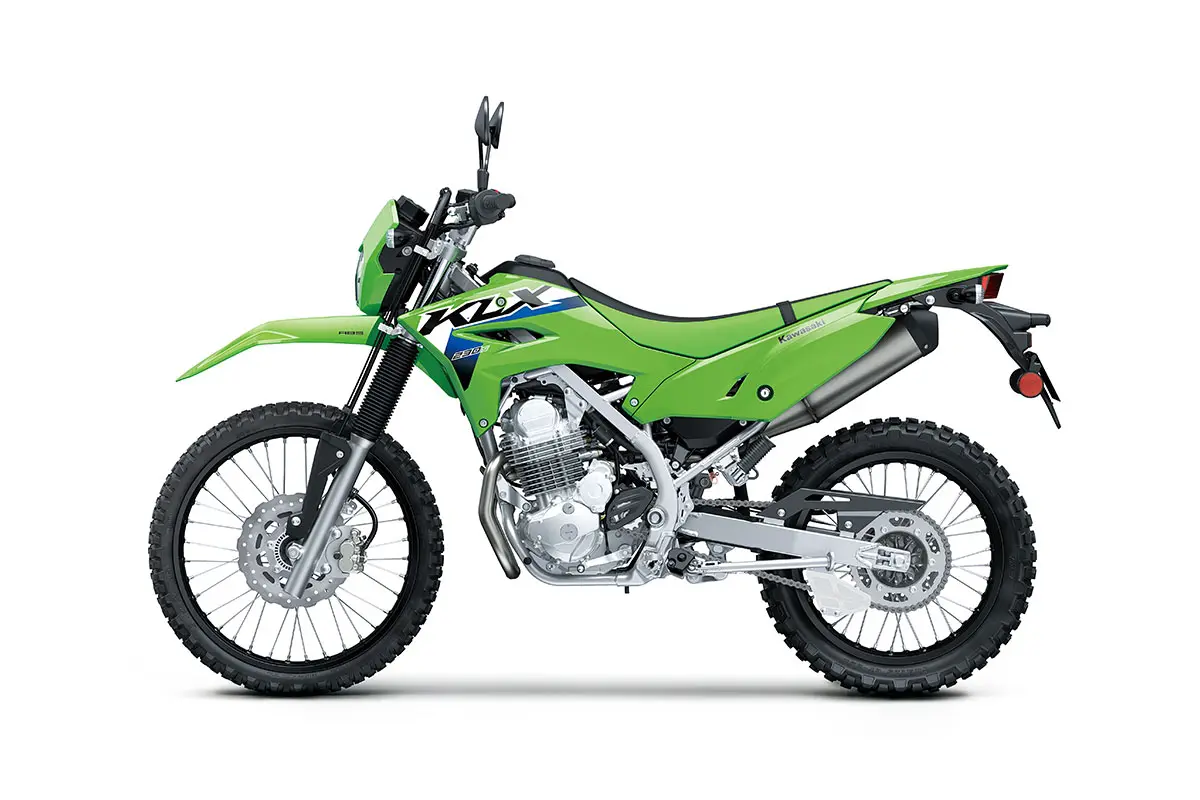

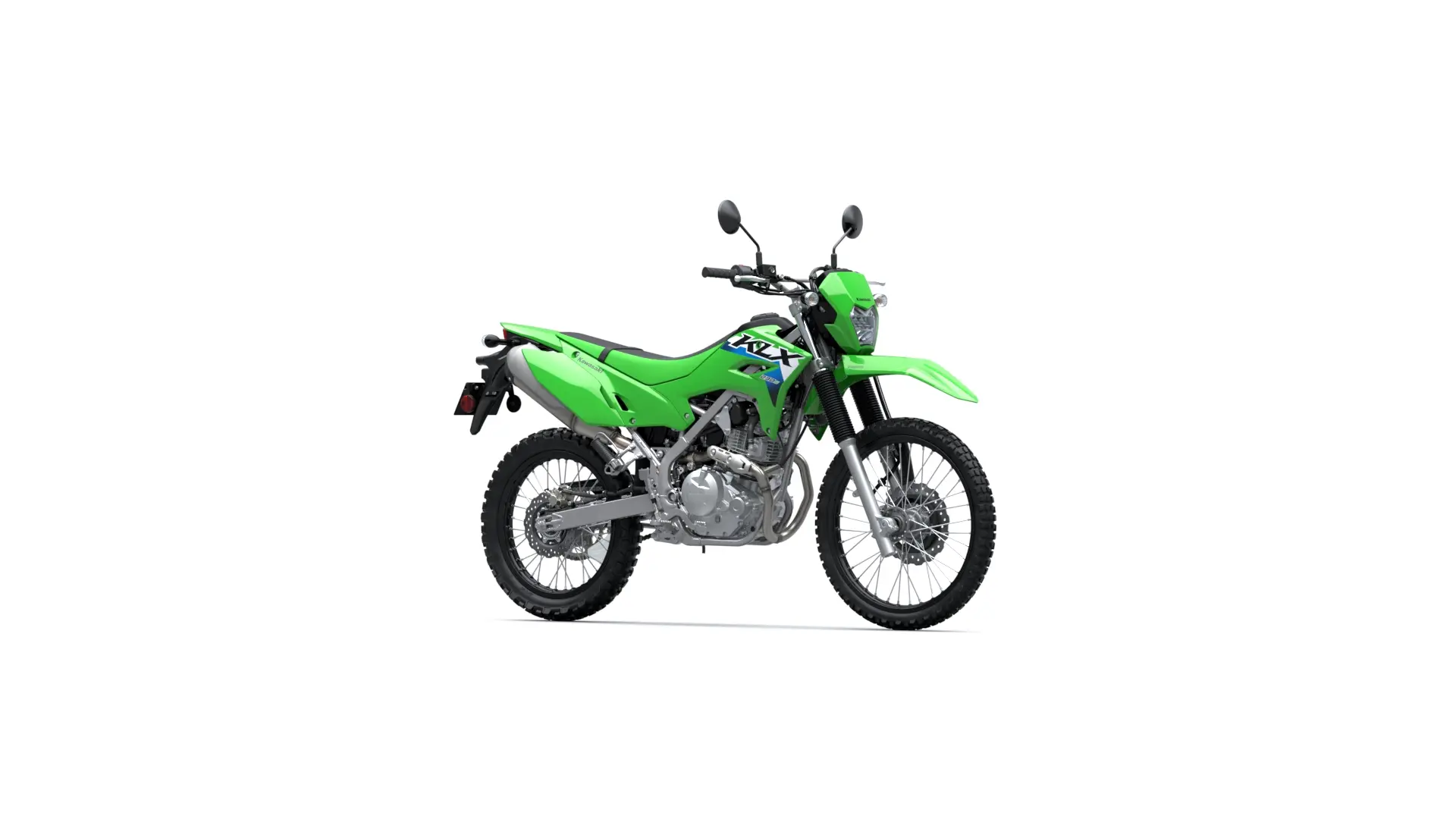

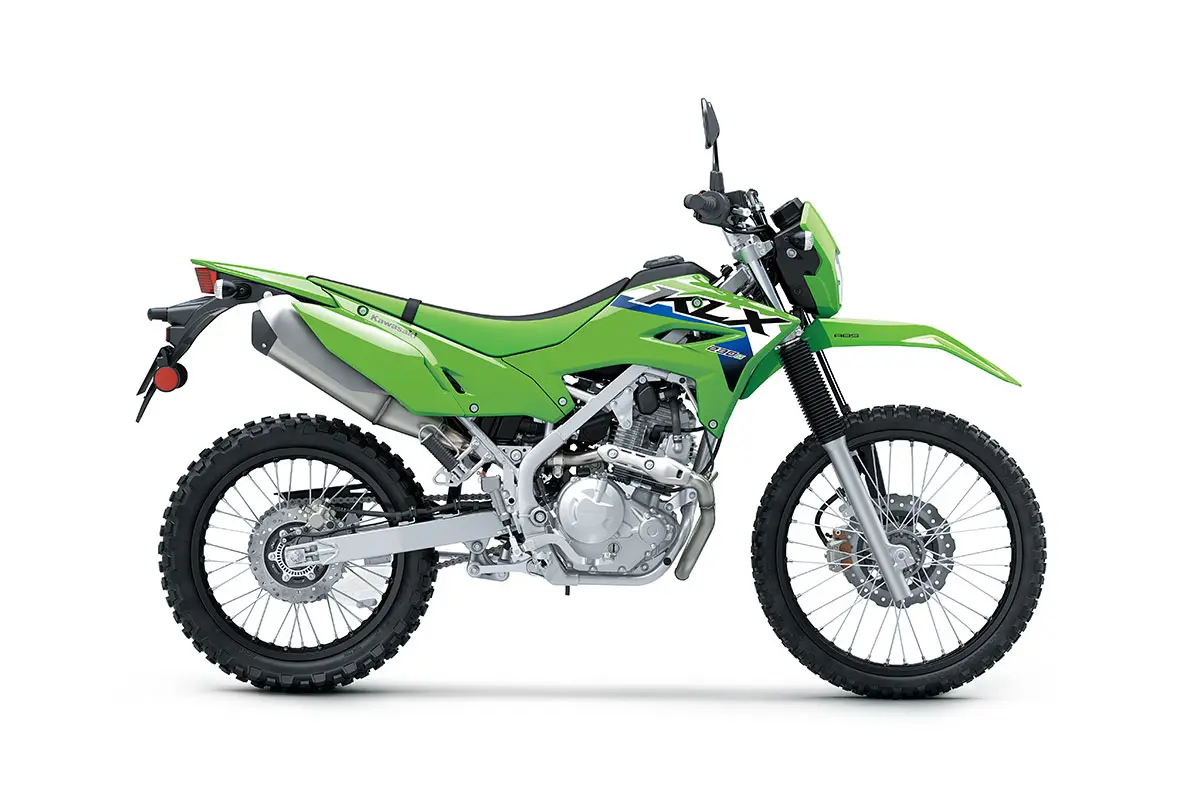

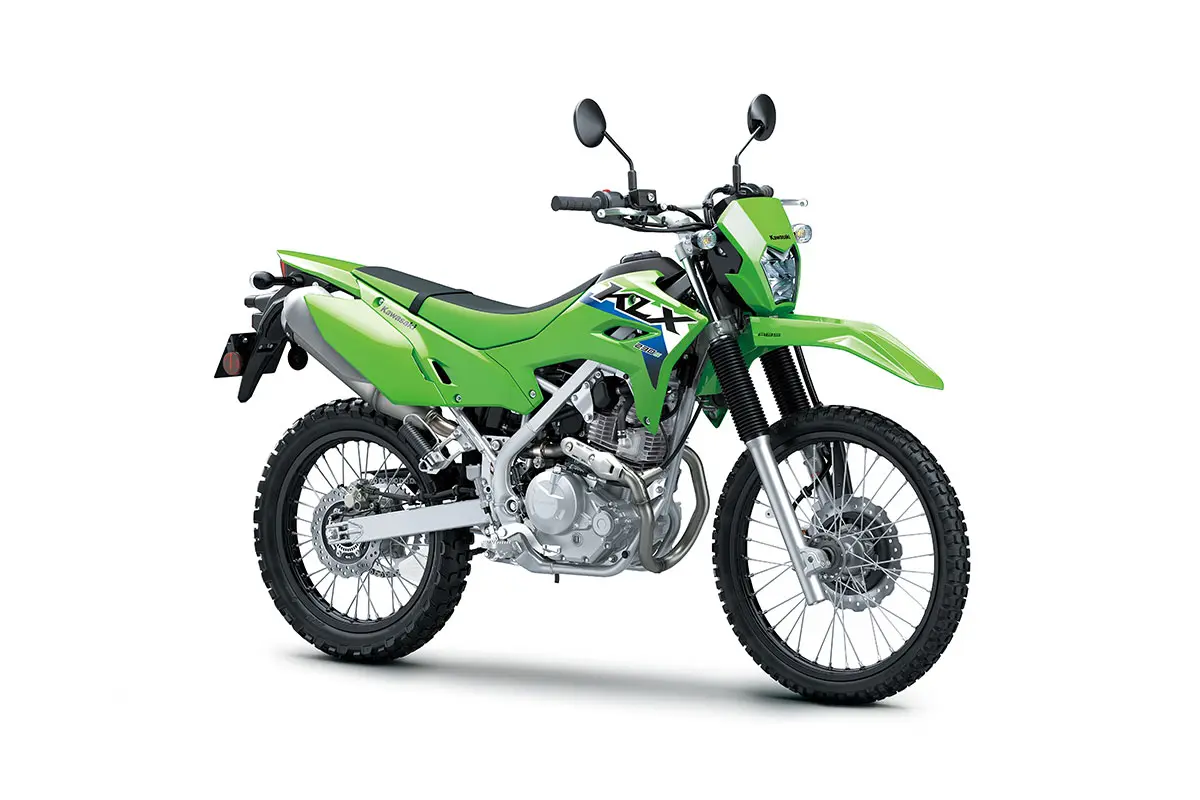

2026 KLX230 S

The KLX230 extends the playing field with the thrill of dual-sport performance that's ready to conquer both on- and off-road. This agile bike features a quick-revving 233 cc engine, lightweight chassis, long-travel suspension, and ample ground clearance for enhanced capability on the roads or trails. Turn wherever you go into the ultimate playground with the bike that delivers a thrilling ride on paved streets, dirt trails, and beyond.

FEATURING:

  • 233 cc fuel-injected air-cooled four-stroke single with Electric Start
  • Long-travel suspension and ample ground clearance
  • ABS system with ON/OFF function
  • Smartphone connectivity via RIDEOLOGY the App

ADDITIONAL VEHICLE FEATURES:

  • Learner approved model (LAMS)
  • KX-inspired styling and ergonomics
  • Low Seat with two-tone colouring
  • Long wheel travel: 220/223 mm (front/rear)
  • 845 mm seat height
  • Full-size wheels
  • Light chassis: 132 kg (125 kg estimated dry weight**)

MAKE AN ENQUIRY

Features

MORE CAPABLE, MORE COMFORTABLE OFF-ROAD PERFORMANCE

Even more ready to play

When the road is challenging, the KLX230 S is ready with longer wheel travel, and ample ground clearance. Cancellable front/rear ABS offers the option to cater to rider preference when riding off-road. The great all-around performance of the tried-and-true engine has been augmented for an even more enjoyable and useful dual-purpose machine.

COMPACT, LIGHTWEIGHT, MANOEUVRABLE

Confidence-inspiring for a wide range of riders

Providing a light, manoeuvrable package has been a key consideration since the KLX230 was originally designed. Its simple air-cooled engine and easy handling perimeter frame contribute to a compact package, while the balance between the engine and frame results in performance that can be enjoyed by a wide range of riders.

KX-INSPIRED STYLING

Aggressive and Agile

Kawasaki’s new KX450 and KX250 models were the inspiration for the KLX230 S’s all-new smooth-surface bodywork and black wheel rims, all contributing to an offroad-racing inspired look aligned with Kawasaki’s famous KX race machines. A more compact LED headlight cover lends a sleek, modern look to the front end, while a two-tone seat adds a sophisticated image.

PRACTICAL FEATURES

Versatility for road and trail

All-digital instrumentation is complemented by smartphone connectivity, adding a modern touch. 7.6 litre fuel tank helps riders enjoy hours of trail riding between fill-ups. Standard passenger footpegs allow you to share the fun. And a convenient toolbox is located behind the left side cover.

Technical Specifications

Maximum Power
13.2 kW {18 PS} / 8,000 rpm
Maximum Torque
18.0 Nm {1.8 kgfm} / 6,400 rpm
Engine
4-stroke Single
Displacement
233 cc
Bore x Stroke
67.0 x 66.0 mm
Compression Ratio
9.4:1
Valve System
SOHC, 2 valves
Fuel System
Fuel injection: ø32 mm x 1
Ignition
Digital
Starting
Electric
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
6-speed, return
Primary Reduction Ratio
2.871 (89/31)
Gear Ratio 1st
3.000 (39/13)
Gear Ratio 2nd
2.067 (31/15)
Gear Ratio 3rd
1.556 (28/18)
Gear Ratio 4th
1.261 (29/23)
Gear Ratio 5th
1.040 (26/25)
Gear Ratio 6th
0.852 (23/27)
Final Reduction Ratio
3.214 (45/14)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, high-tensile steel
Front Suspension
ø37 mm telescopic fork
Rear Suspension
New Uni Trak with adjustable spring preload
Front Wheel Travel
200 mm
Rear Wheel Travel
223 mm
Rake
24.6°
Trail
96 mm
Steering Angle (L/R)
45° / 45°
Front Tyre
2.75-21 45P
Rear Tyre
4.10-18 59P
Front Brake/s
ø265 mm petal disc
Front Caliper/s
Dual-piston
Rear Brake
ø220 mm petal disc
Rear Caliper
Single-piston
Smartphone Connectivity
Yes
ABS (Anti-lock Brake System)
Yes
ERGO-FIT
Yes
Dimensions (LxWxH)
2,080 x 845 x 1,140 mm
Wheelbase
1,365 mm
Road Clearance
240 mm
Seat Height
845 mm
Curb Weight*
132 kg
Estimated Dry Weight**
125 kg
Fuel Capacity
7.6 litres
Model Code
KLX232CTFNN
