2026 KLX150 FEATURES SPECS GALLERY

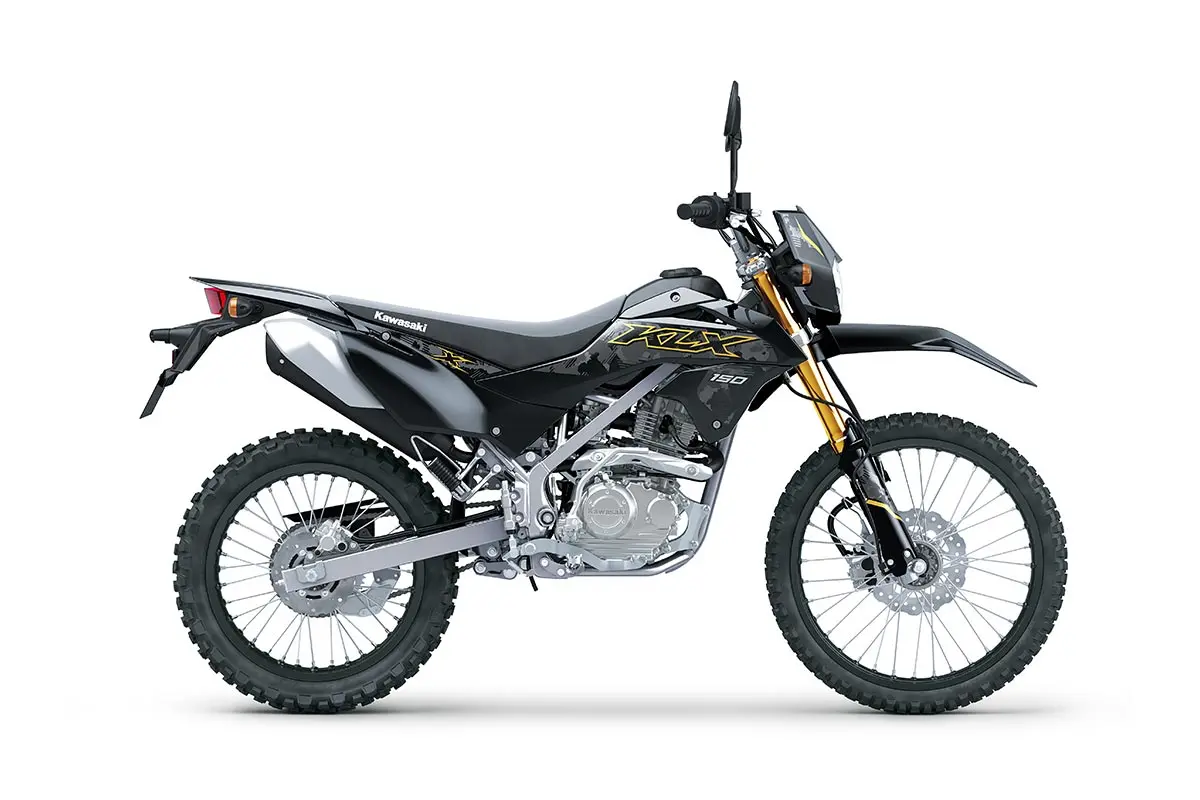

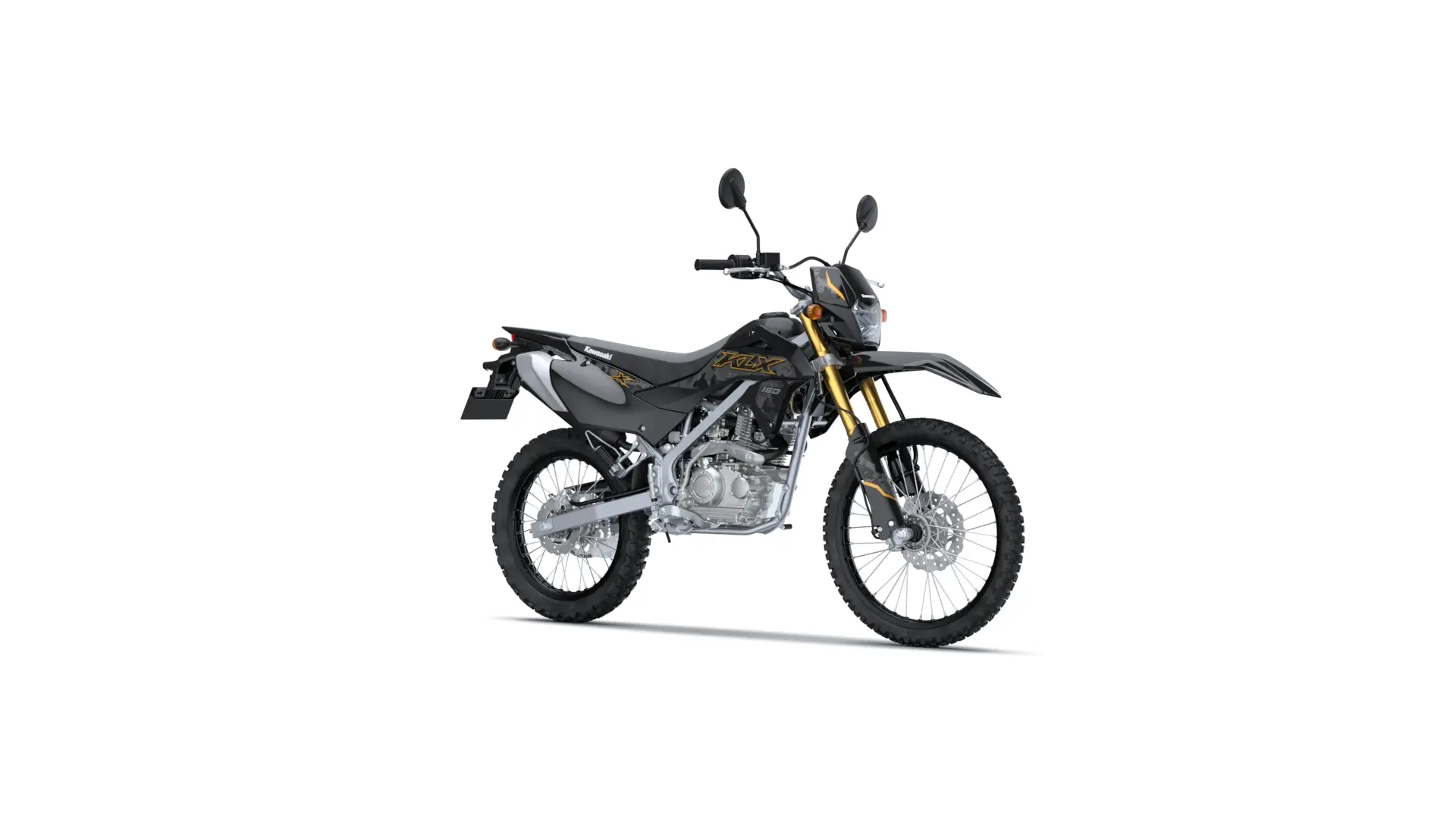

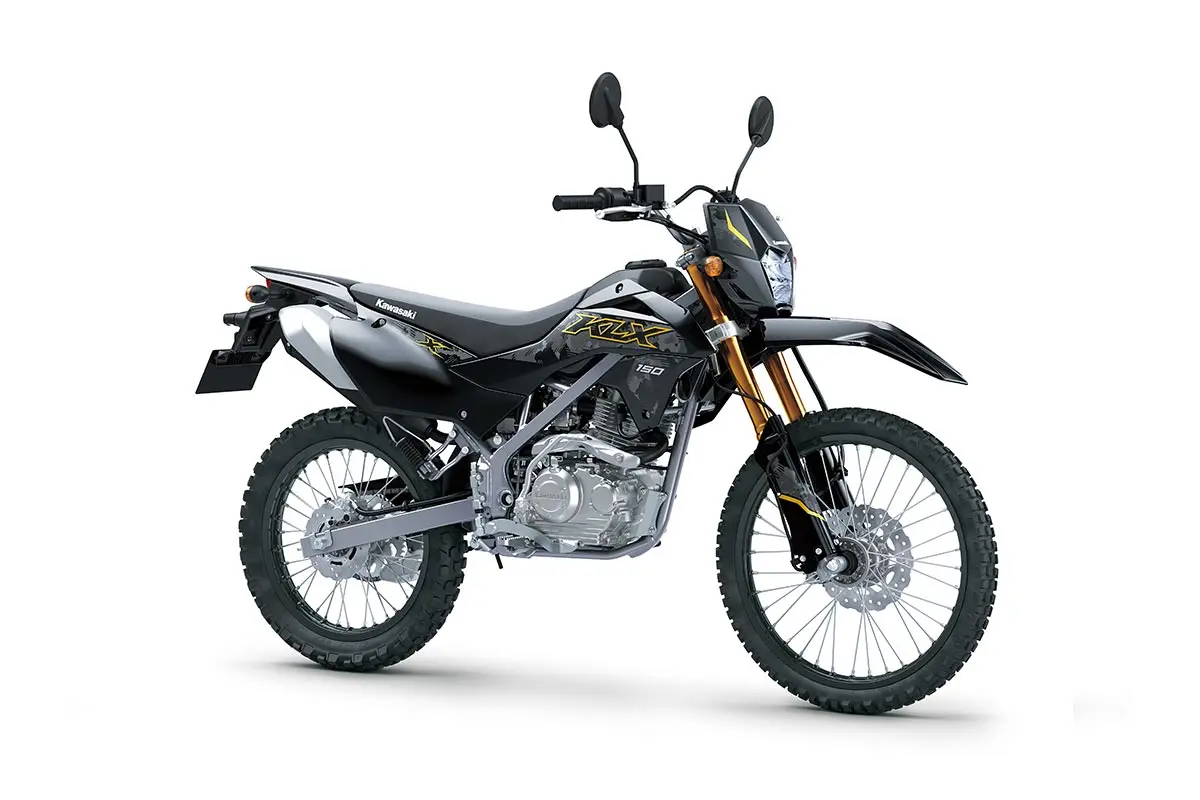

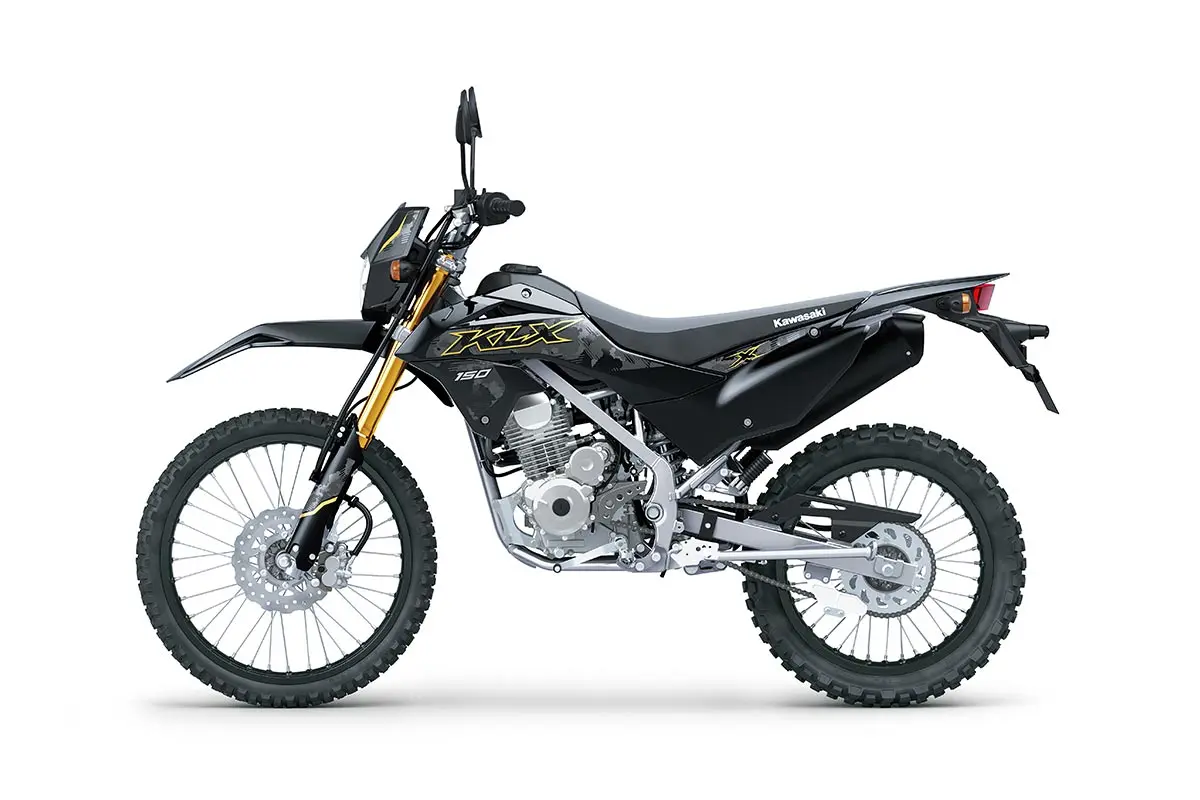

2026 KLX150

The new KLX150 series offers riding fun in a variety of situations, from urban usage like city riding and commuting to off-road trail rides that excite the adventurous spirit. Its slim, lightweight chassis and reliable air-cooled engine are complemented by a powerful, stylish MX-inspired design reminiscent of a full-fledged enduro motorcycle, making it casually enjoyable for a wide range of riders.

FEATURING:

  • Strong, reliable air-cooled 144 cc single-cylinder engine
  • Slim, lightweight chassis: 118 kg (112 kg estimated dry weight**)
  • High level of off-road performance
  • Racy MX styling with class-first LED headlight
  • All-digital instrumentation

ADDITIONAL VEHICLE FEATURES:

  • Learner approved model (LAMS)
  • Full-size wheels (F21”, R18”)
  • ø35 mm inverted fork with 185 mm of travel
  • Black rims and gold-coloured fork outer tubes
  • Special colour and graphics

MAKE AN ENQUIRY

Features

STRONG, RELIABLE ENGINE TUNED FOR OFF-ROAD RIDING

Power Fuels Fun

The simple, air-cooled single-cylinder engine offers an easy-to-use and highly reliable power plant. Short gearing results in engine performance focused on the low-mid range, ensuring the strong low-end torque ideal for tackling tough off-road situations. And with electric start, starting is as easy as a quick push of the button.

SLIM, LIGHTWEIGHT CHASSIS FOR ALL-DAY BUSH EXPLORATION

Highly Rigid Perimeter Frame

The high rigidity, compact size and light weight of the steel perimeter frame offer excellent handling qualities and contribute to easy manoeuvrability.

RACY MX STYLING

Aggressive Bodywork Inspired by Kawasaki Motocross Racers

Racy styling inspired by KX motocross machines gives the bike aggressive, sporty looks that reflect its off-road potential. Sharper and more stylish with enhanced equipment, the KLX150 looks like a full-fledged enduro bike.

Technical Specifications

Maximum Power
8.6 kW {12 PS} / 8,000 rpm
Maximum Torque
11.3 Nm {1.2 kgfm} / 6,500 rpm
Engine
4-stroke Single
Displacement
144 cc
Bore x Stroke
58.0 x 54.4 mm
Compression Ratio
9.5:1
Valve System
SOHC, 2 valves
Fuel System
Carburettor: NCV24
Ignition
DC-CDI
Starting
Electric & Kick
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
5-speed, return
Primary Reduction Ratio
2.880 (72/25)
Gear Ratio 1st
2.917 (35/12)
Gear Ratio 2nd
2.000 (32/16)
Gear Ratio 3rd
1.474 (28/19)
Gear Ratio 4th
1.182 (26/22)
Gear Ratio 5th
1.000 (24/24)
Final Reduction Ratio
3.714 (52/14)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, steel
Front Suspension
ø35 mm inverted fork
Rear Suspension
Uni Trak, single shock with adjustable spring preload
Front Wheel Travel
185 mm
Rear Wheel Travel
192 mm
Rake
26.9°
Trail
110 mm
Steering Angle (L/R)
43° / 43°
Front Tyre
2.75-21 45P
Rear Tyre
4.10-18 59P
Front Brake/s
ø240 mm petal disc
Front Caliper/s
Dual-piston
Rear Brake
ø190 mm petal disc
Rear Caliper
Single-piston
Dimensions (LxWxH)
2,050 x 830 x 1,155 mm
Wheelbase
1,345 mm
Road Clearance
300 mm
Seat Height
865 mm
Curb Weight*
118 kg
Estimated Dry Weight**
112 kg
Fuel Capacity
6.9 litres
Model Code
KLX150KTFAN
