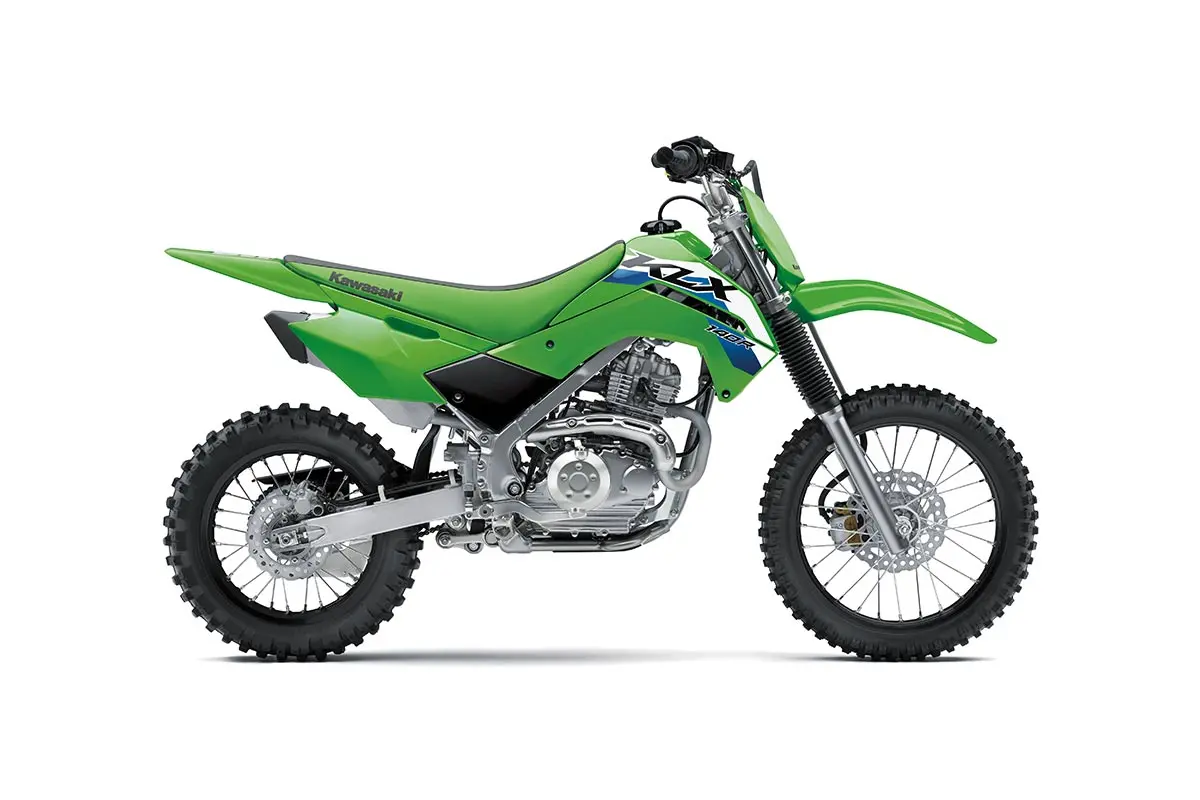

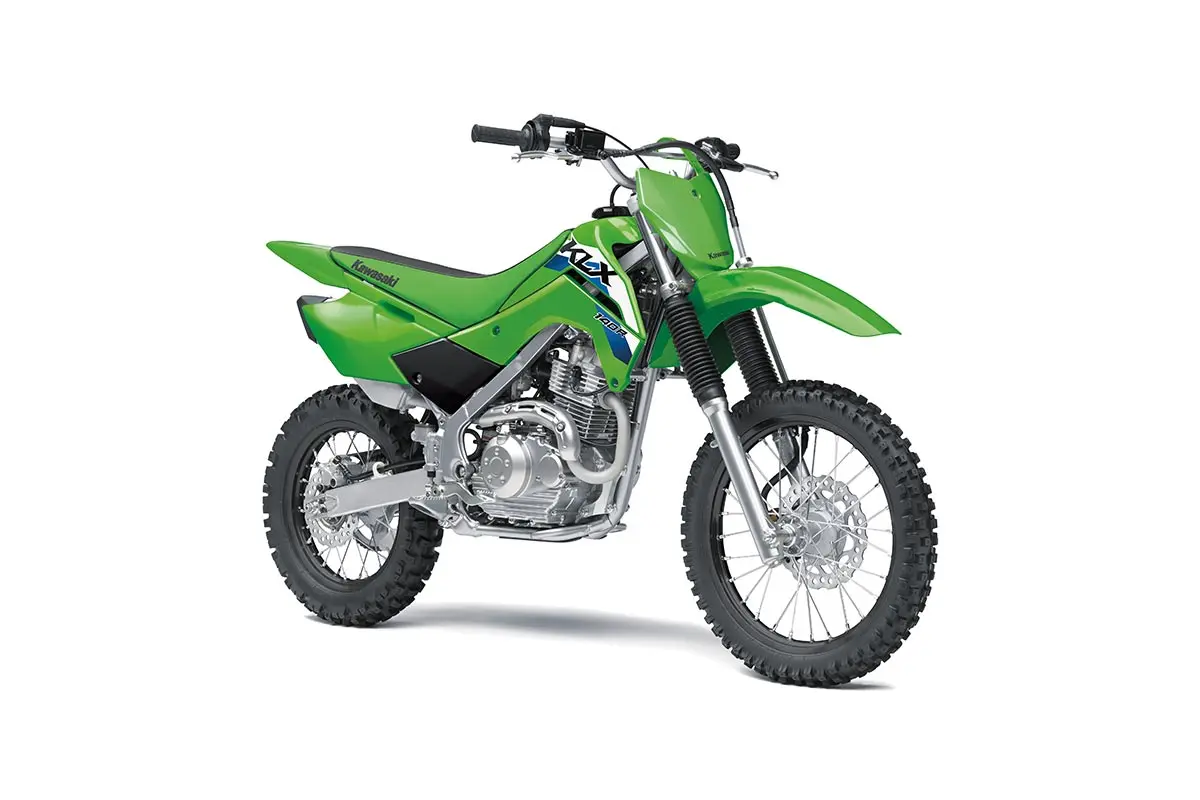

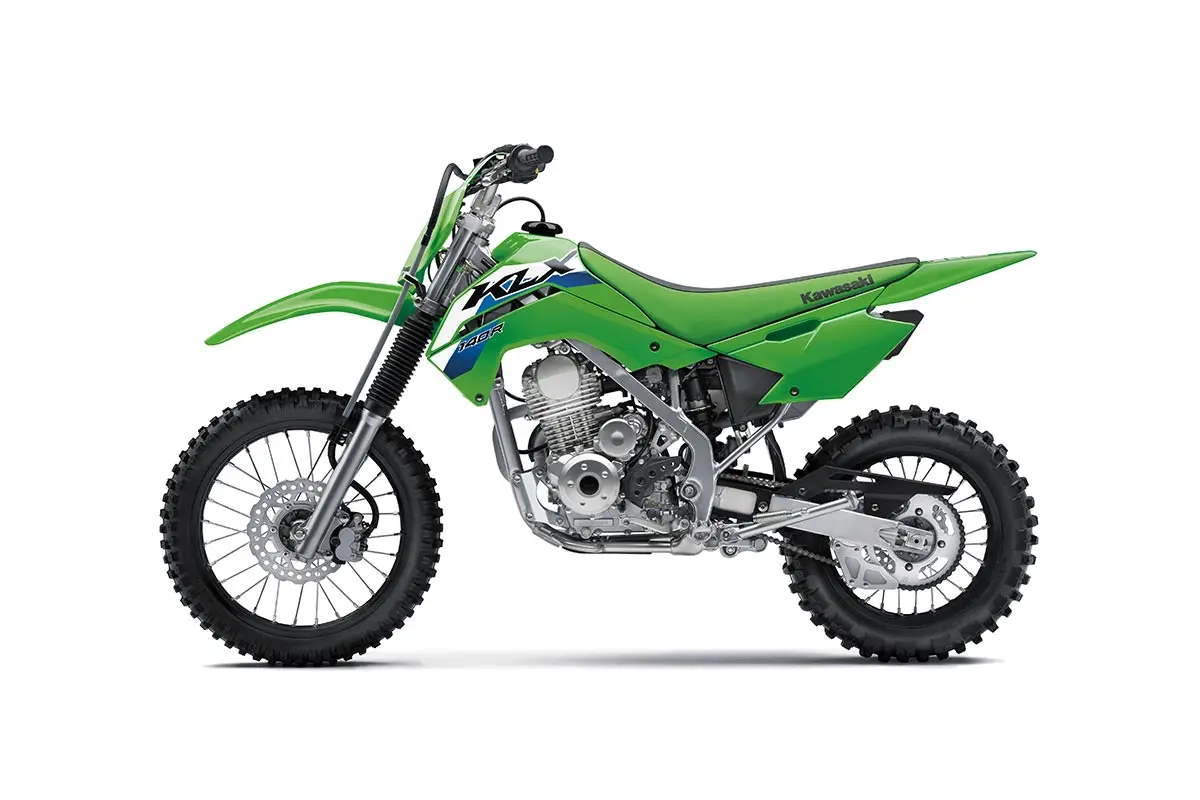

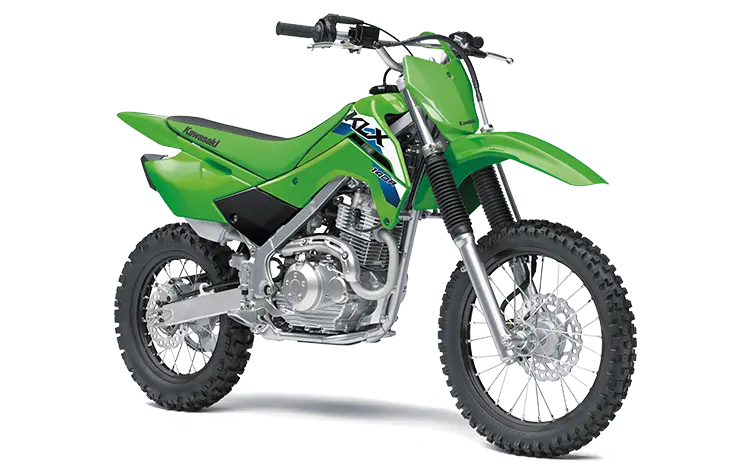

2026 KLX140R

With confident handling, the KLX140R and KLX140R L motorcycles are the ideal entry into off-road riding. The easy-to-ride KLX140R series models offer a 144 cc engine, plush suspension and a push button electric start, making them great trailblazers.

FEATURING:

  • Push-button electric start
  • High-revving 144 cc air-cooled, SOHC, four-stroke single
  • 5-speed transmission with manual clutch

ADDITIONAL VEHICLE FEATURES:

  • Low 780 mm seat height
  • 180 mm of front and rear suspension travel
  • Disc brakes front and rear
  • 93 kg curb weight* (87 kg estimated dry weight**)

MAKE AN ENQUIRY

Features

CONFIDENT HANDLING

Lightweight Rigid Frame

The lightweight box-section perimeter frame is made from high-tensile steel for exceptional rigidity and strength. The narrow profile contributes to an easier rider grip and smoother movement on the bike. Working together, the highly capable suspension and lightweight chassis deliver handling that exudes confidence.

The KLX140R L features larger wheels (F19”, R16”), taller seat height (800 mm) and higher 255 mm ground clearance.

SMOOTH POWER

Electric Start

The high-revving, 144 cc, air-cooled SOHC 4-stroke Single easily starts with the push of a button. The air-cooled engine eliminates the need for radiators while keeping the chassis slim and lightweight. The 5-speed transmission with manual clutch delivers smooth shifting and acceleration.

RELIABLE BRAKING

Front and Rear Disc Brakes

Front and rear disc brakes provide strong progressive stopping power. The ø220 mm front petal disc with a dual-piston caliper is complemented by a ø186 mm rear petal disc with single-piston caliper, inspiring confidence on the trails.

Technical Specifications

Maximum Power
8.3 kW {11 PS} / 8,000 rpm
Maximum Torque
12.0 Nm {1.2 kgfm} / 6,000 rpm
Engine
4-stroke Single
Displacement
144 cc
Bore x Stroke
58.0 x 54.4 mm
Compression Ratio
9.5:1
Valve System
SOHC, 2 valves
Fuel System
Carburettor: Keihin PB20
Ignition
Digital DC-CDI
Starting
Electric
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
5-speed, return
Primary Reduction Ratio
2.880 (72/25)
Gear Ratio 1st
2.667 (40/15)
Gear Ratio 2nd
1.895 (36/19)
Gear Ratio 3rd
1.474 (28/19)
Gear Ratio 4th
1.182 (26/22)
Gear Ratio 5th
1.000 (24/24)
Final Reduction Ratio
3.571 (50/14)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Perimeter, box-section, high-tensile steel
Front Suspension
ø33 mm telescopic fork
Rear Suspension
Uni Trak, single shock with adjustable spring preload
Front Wheel Travel
180 mm
Rear Wheel Travel
180 mm
Rake
27.0°
Trail
85 mm
Steering Angle (L/R)
41° / 41°
Front Tyre
70/100-17 40M
Rear Tyre
90/100-14 49M
Front Brake/s
ø220 mm petal disc
Front Caliper/s
Dual-piston
Rear Brake
ø186 mm petal disc
Rear Caliper
Single-piston
Dimensions (LxWxH)
1,820 x 790 x 1,050 mm
Wheelbase
1,260 mm
Road Clearance
235 mm
Seat Height
780 mm
Curb Weight*
93 kg
Estimated Dry Weight**
87 kg
Fuel Capacity
5.8 litres
Model Code
KLX140ATFNN
