2026 KLX110R L FEATURES SPECS GALLERY

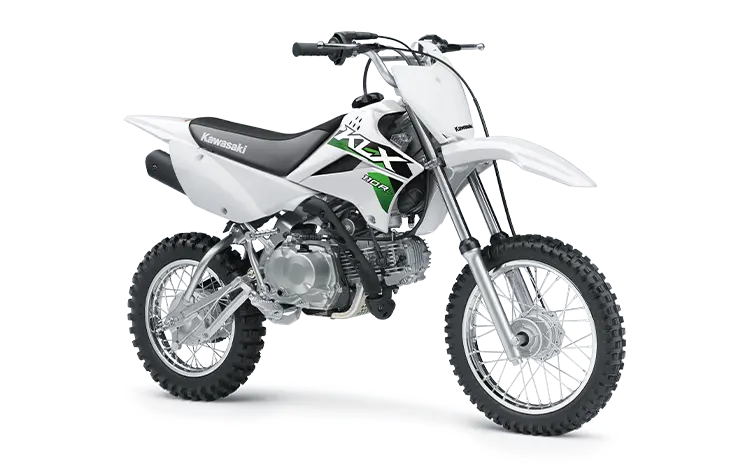

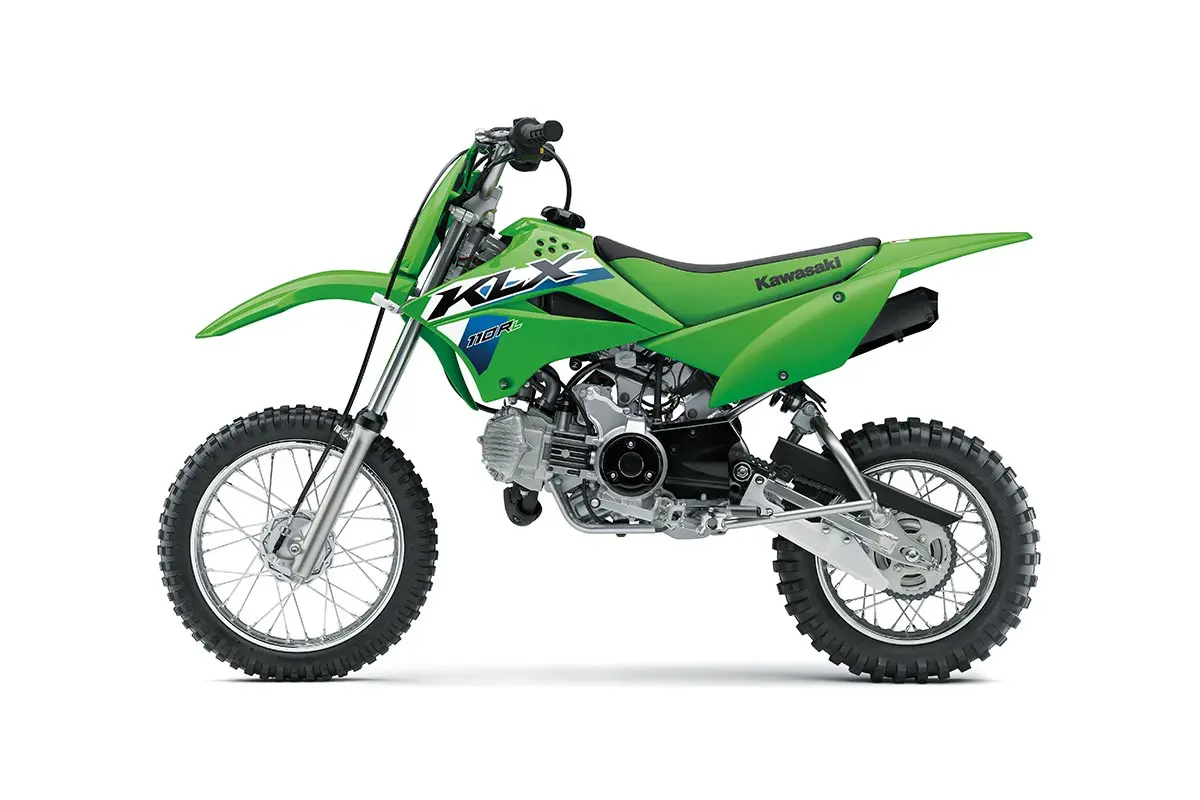

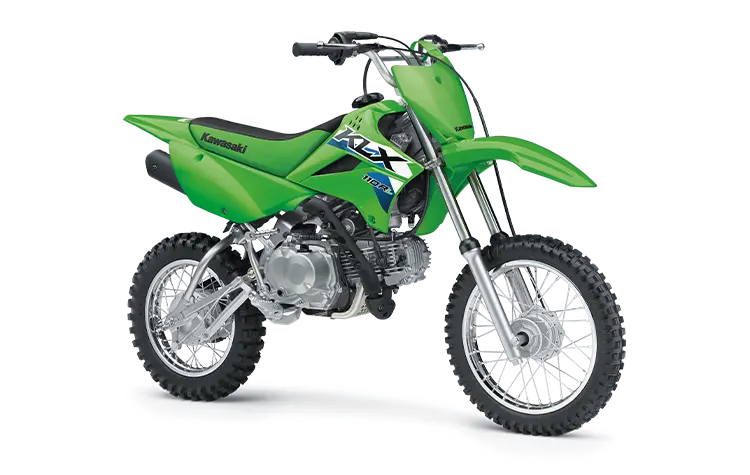

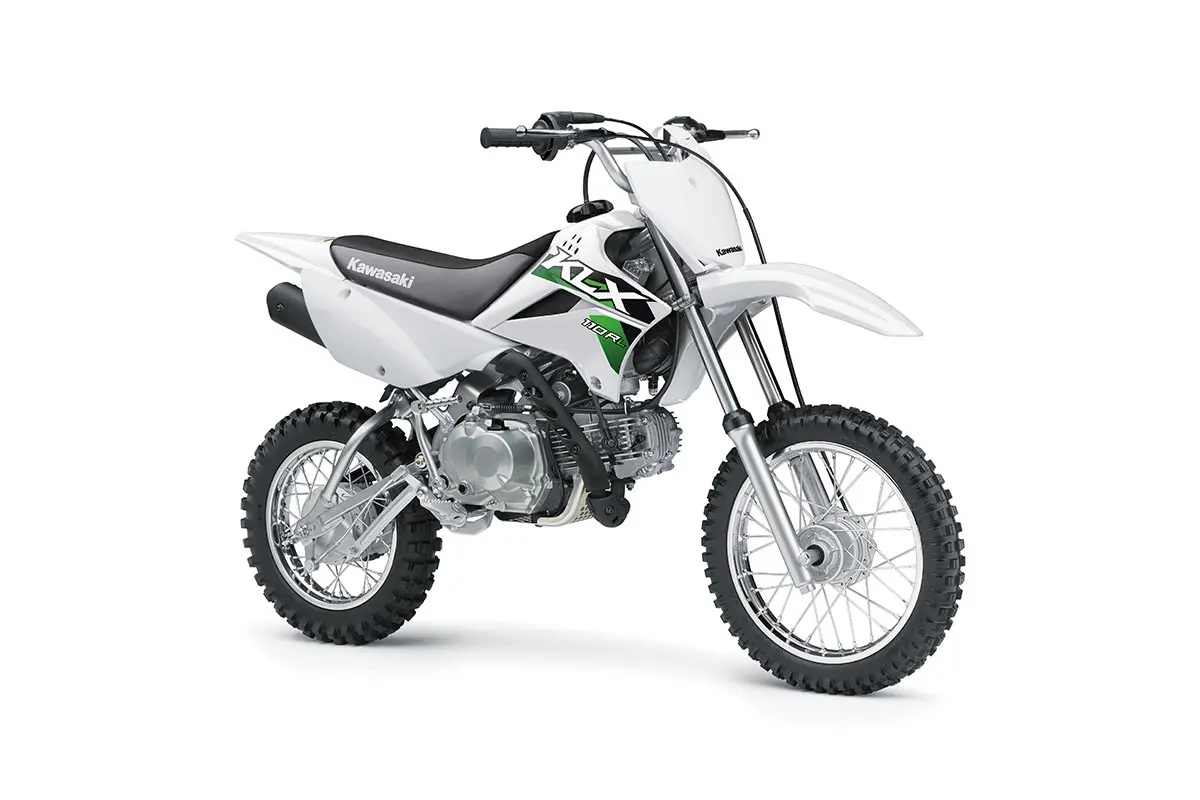

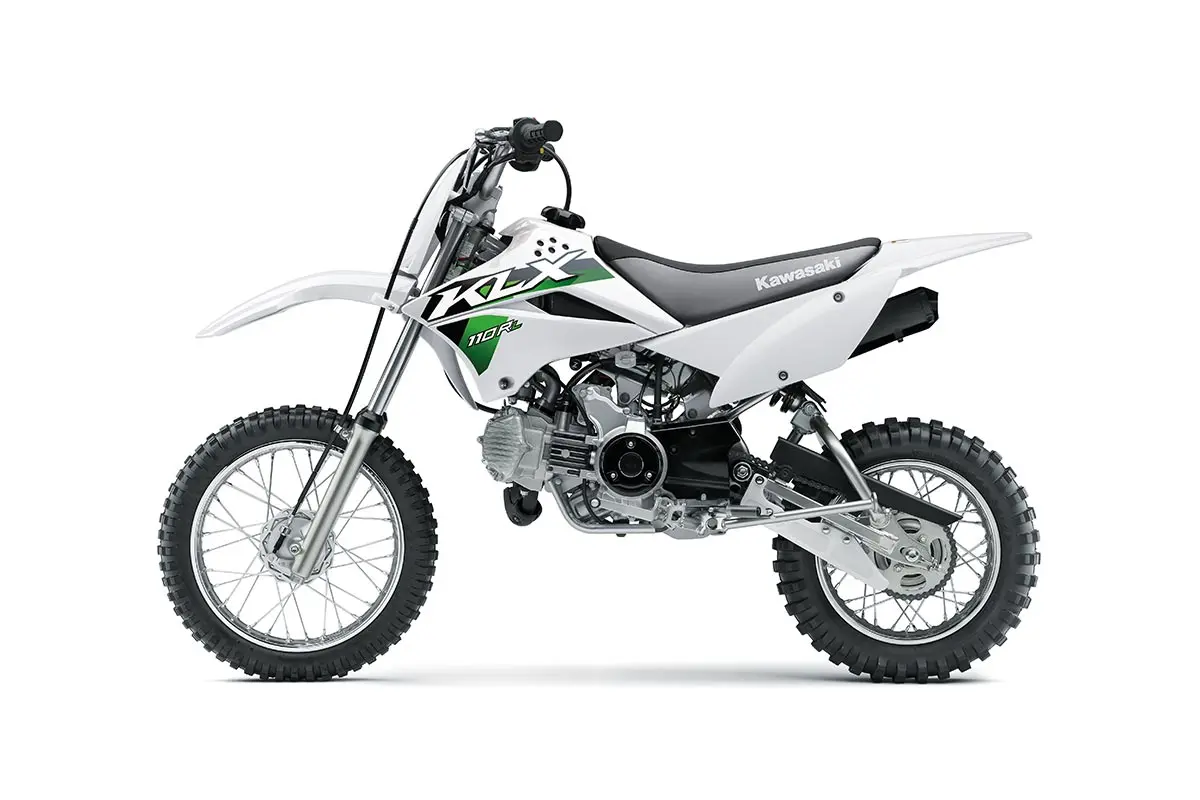

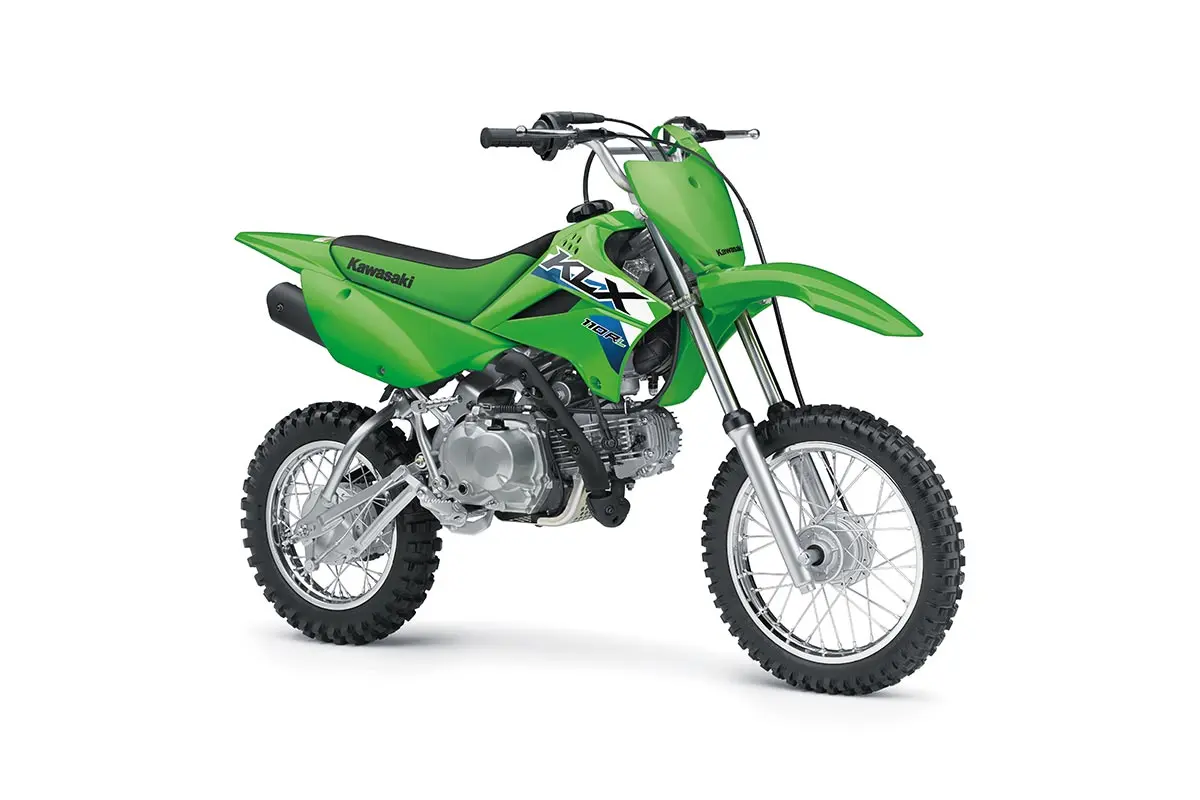

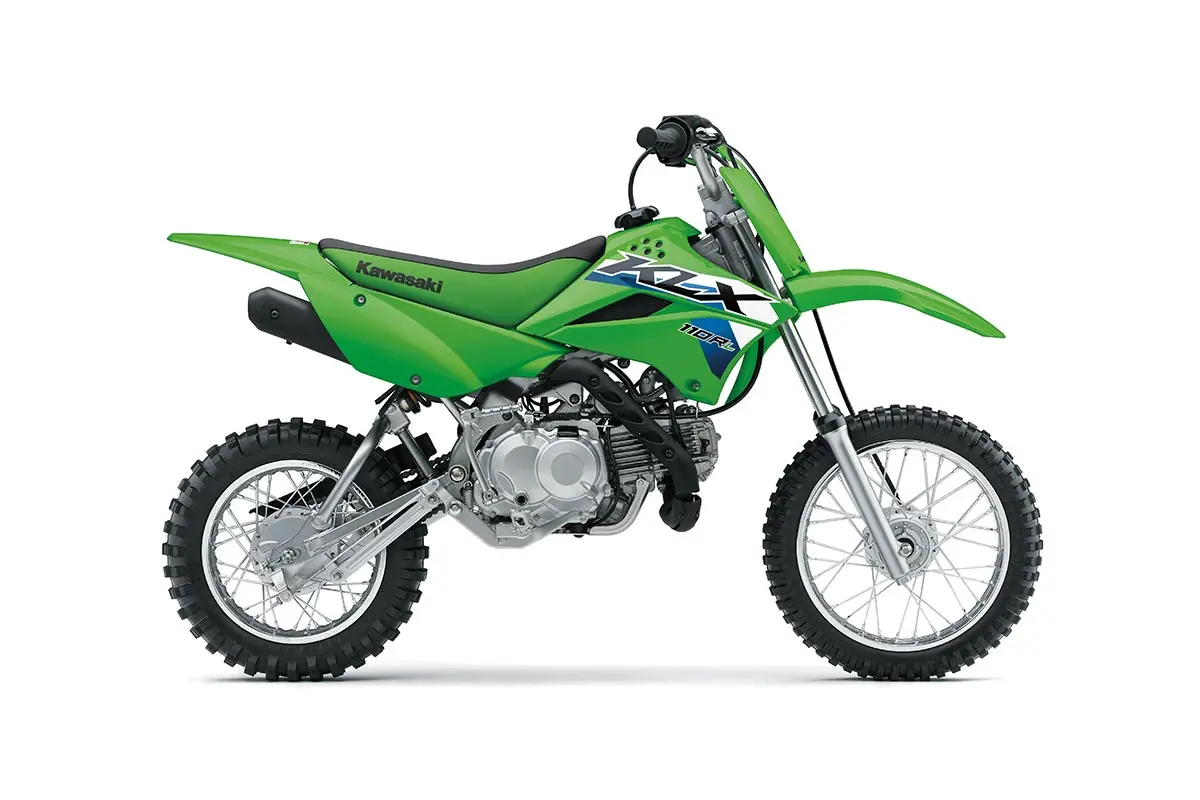

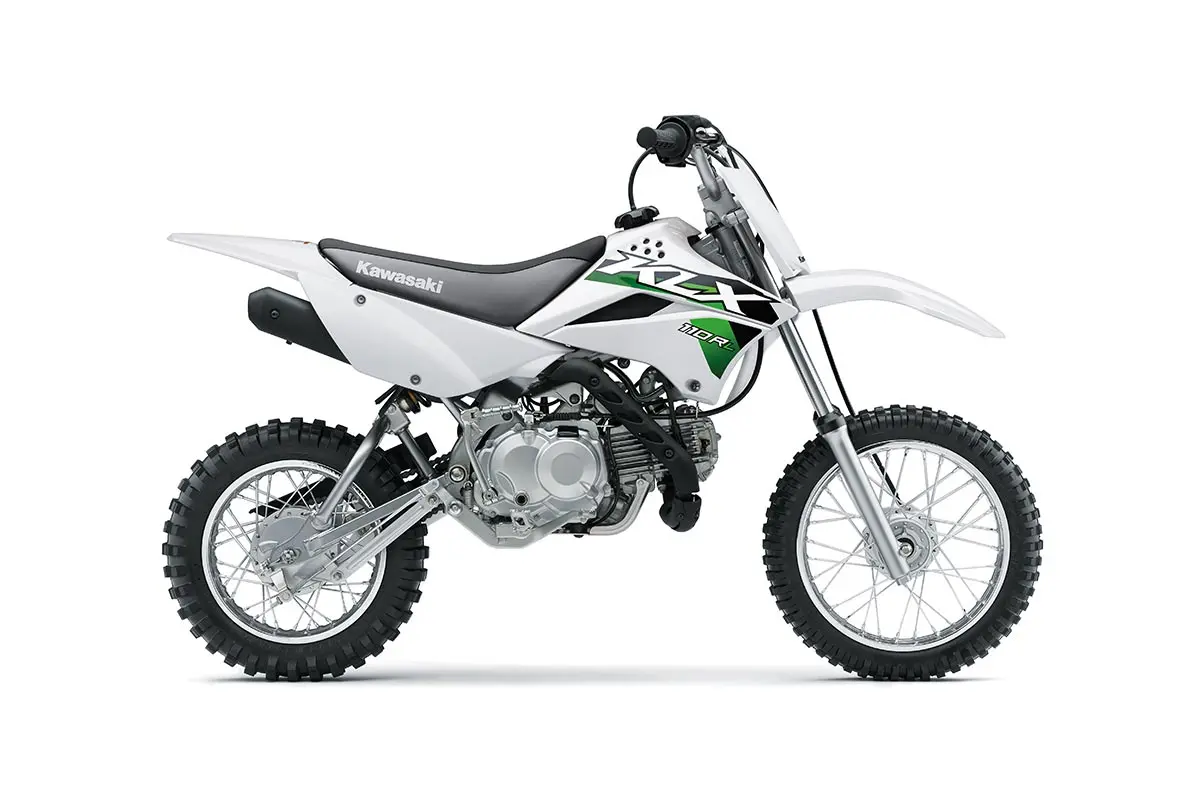

2026 KLX110R L

Whether it’s a friendly bike for beginners or an instrument of amusement, the KLX110R and the slightly larger KLX110R L are up for the task. The playful 112 cc engine and compact chassis are versatile enough to handle and fun for any young rider.

FEATURING:

  • 112 cc air-cooled, 4-stroke single
  • Sporty race-inspired styling

ADDITIONAL VEHICLE FEATURES:

  • Taller seat height (730 mm) and higher ground clearance (265 mm)
  • Sporty styling
  • Four-speed transmission with manual clutch
  • 76 kg curb weight* (72 kg estimated dry weight**)

MAKE AN ENQUIRY

Features

ENGINE

Power Fuels Fun

KLX110R motorcycles are powered by a 112 cc air-cooled four-stroke engine. The KLX110R features a 4-speed transmission with automatic clutch while the KLX110R L offers a manual clutch to learn big-bike shifting techniques.

PERFECT FIT

Take A Seat

Lightweight KLX110R off-road motorcycles are fun for the whole family to enjoy. The KLX110R features a 680 mm seat height and low center of gravity, well-suited for young riders. For taller riders, the KLX110R L boasts a 730 mm seat height.

ELECTRIC START

Start the Fun with A Push

KLX110R motorcycles feature easy, reliable starting thanks to an electric start.

OFF-ROAD CAPABILITY

Built for Fun In the Dirt

Whether it’s a friendly bike for beginners or mini-moto machine for more experienced riders, the KLX110R and the slightly larger KLX110R L off-road motorcycles are up for the task. Experience off-road riding like never before with the KLX110R line.

Technical Specifications

Maximum Power
5.4 kW {7.3 PS} / 7,500 rpm
Maximum Torque
8.0 Nm {0.82 kgfm} / 4,000 rpm
Engine
4-stroke Single
Displacement
112 cc
Bore x Stroke
53.0 x 50.6 mm
Compression Ratio
9.5:1
Valve System
SOHC, 2 valves
Fuel System
Carburettor: Keihin PB18
Ignition
Digital DC-CDI
Starting
Electric & kick
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
4-speed, return
Primary Reduction Ratio
3.409 (75/22)
Gear Ratio 1st
3.000 (36/12)
Gear Ratio 2nd
1.938 (31/16)
Gear Ratio 3rd
1.350 (27/20)
Gear Ratio 4th
1.087 (25/23)
Final Reduction Ratio
2.923 (38/13)
Clutch
Wet multi-disc, manual
Final Drive
Chain
Frame
Backbone, steel
Front Suspension
ø30 mm telescopic fork
Rear Suspension
Single shock
Front Wheel Travel
140 mm
Rear Wheel Travel
132 mm
Rake
24.2°
Trail
47 mm
Steering Angle (L/R)
45° / 45°
Front Tyre
2.50-14 4PR
Rear Tyre
3.00-12 4PR
Front Brake/s
Drum (ø90 mm)
Rear Brake
Drum (ø110 mm)
Dimensions (LxWxH)
1,560 x 650 x 990 mm
Wheelbase
1,075 mm
Road Clearance
265 mm
Seat Height
730 mm
Curb Weight*
76 kg
Estimated Dry Weight**
72 kg
Fuel Capacity
3.6 litres
Model Code
KLX110DTFNN
