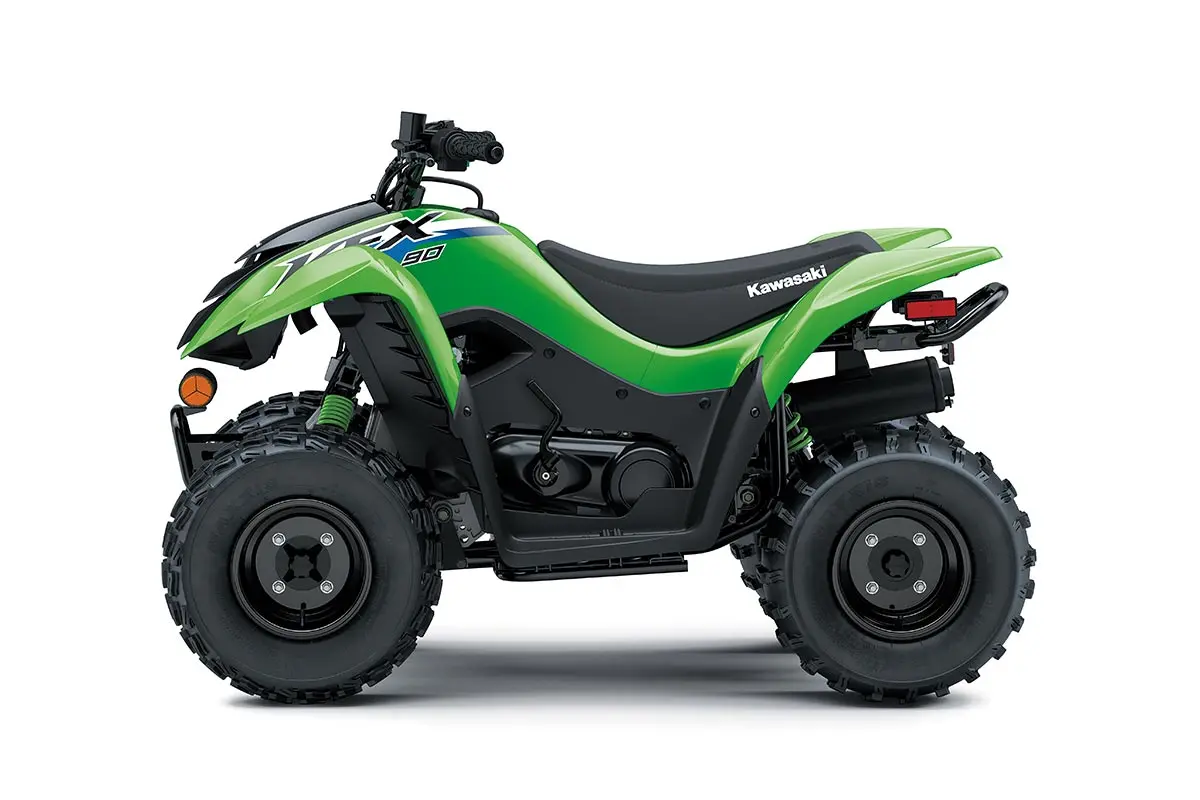

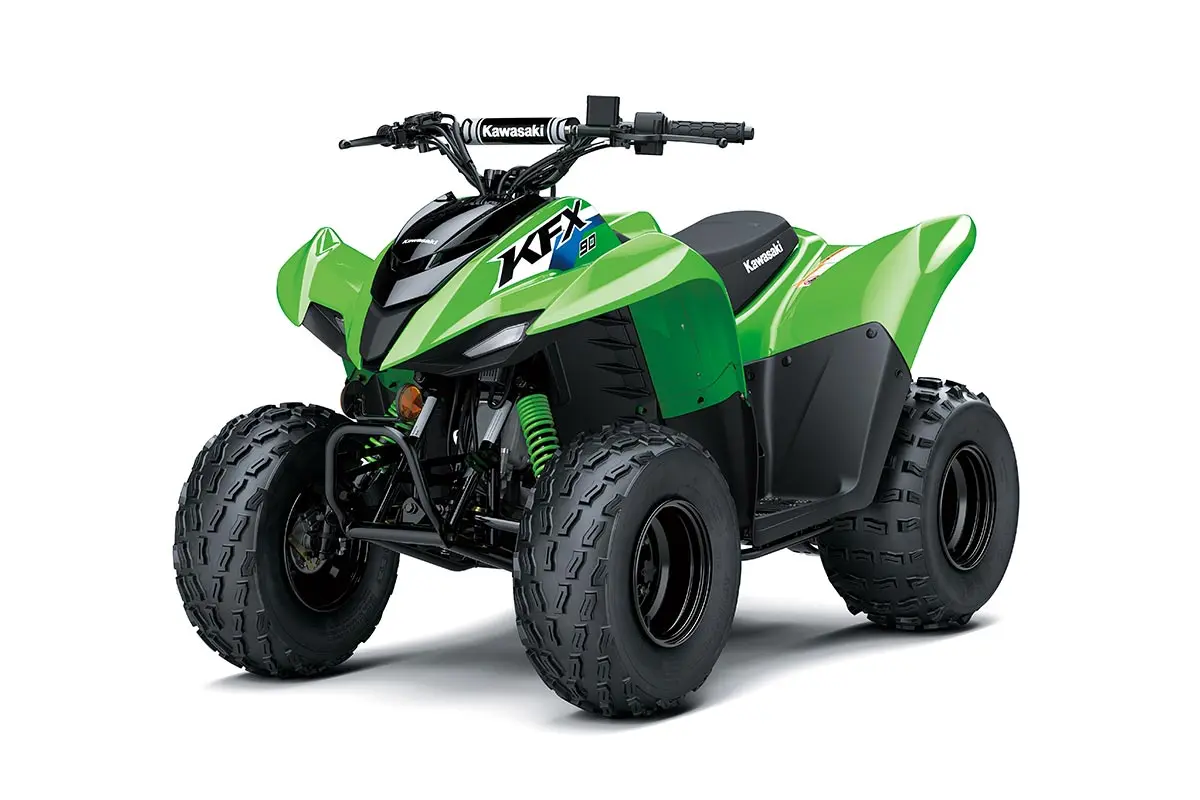

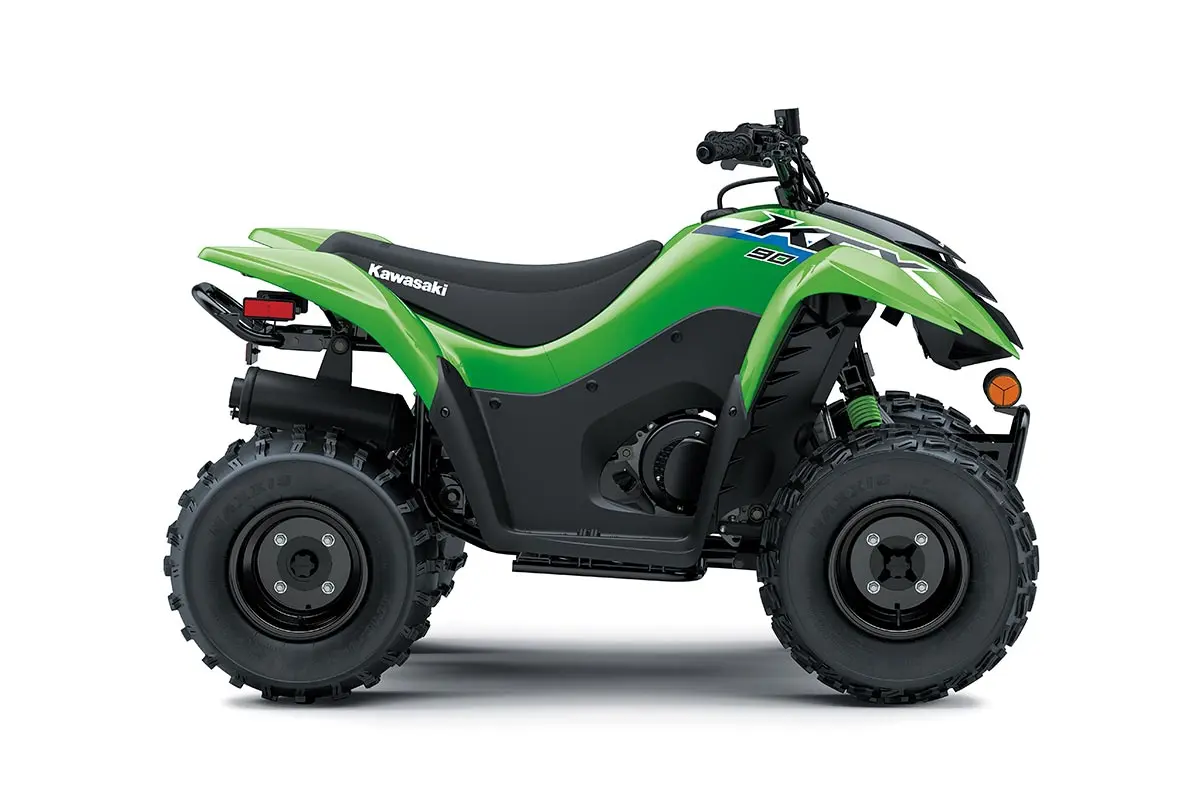

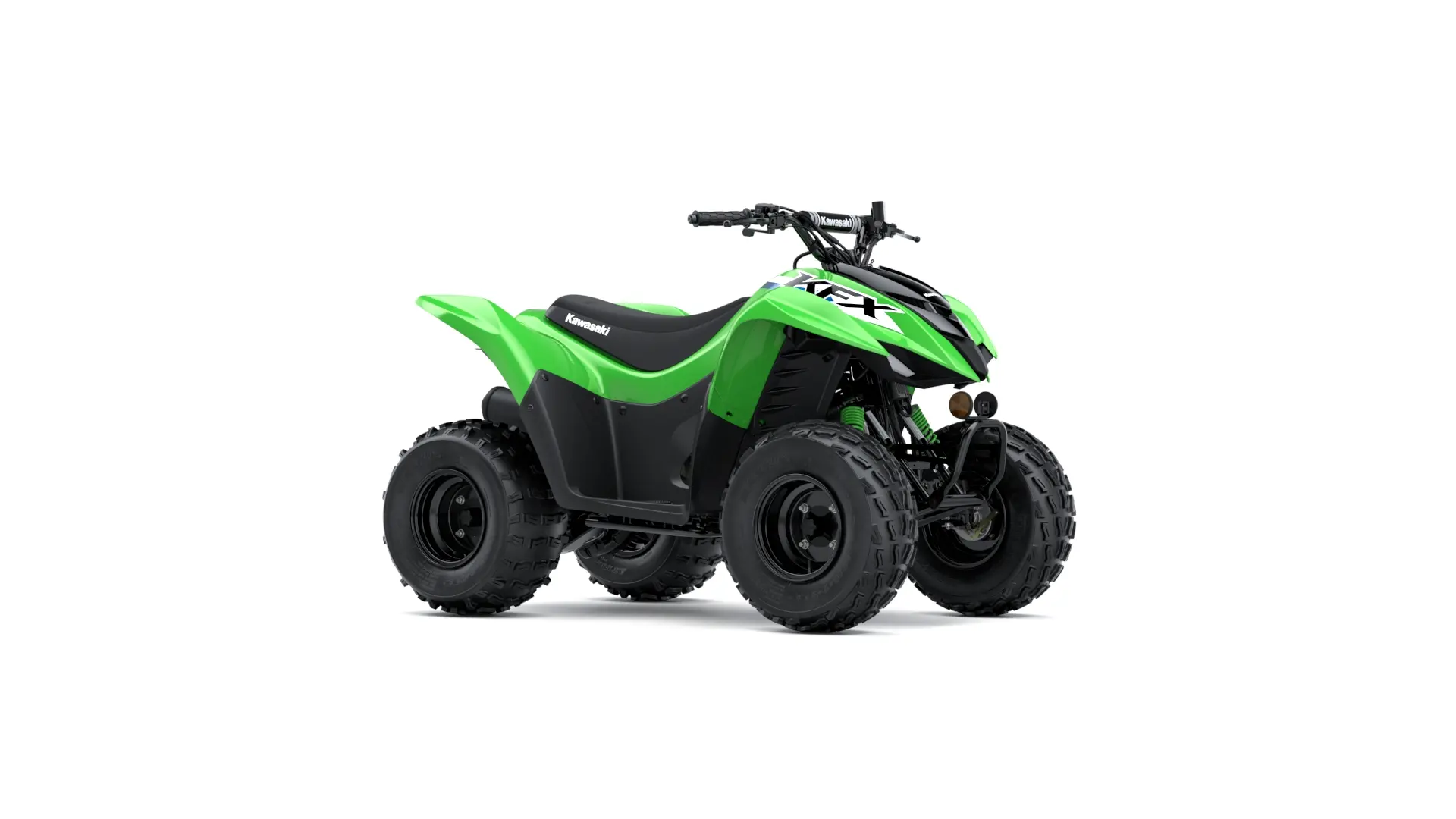

2026 KFX90

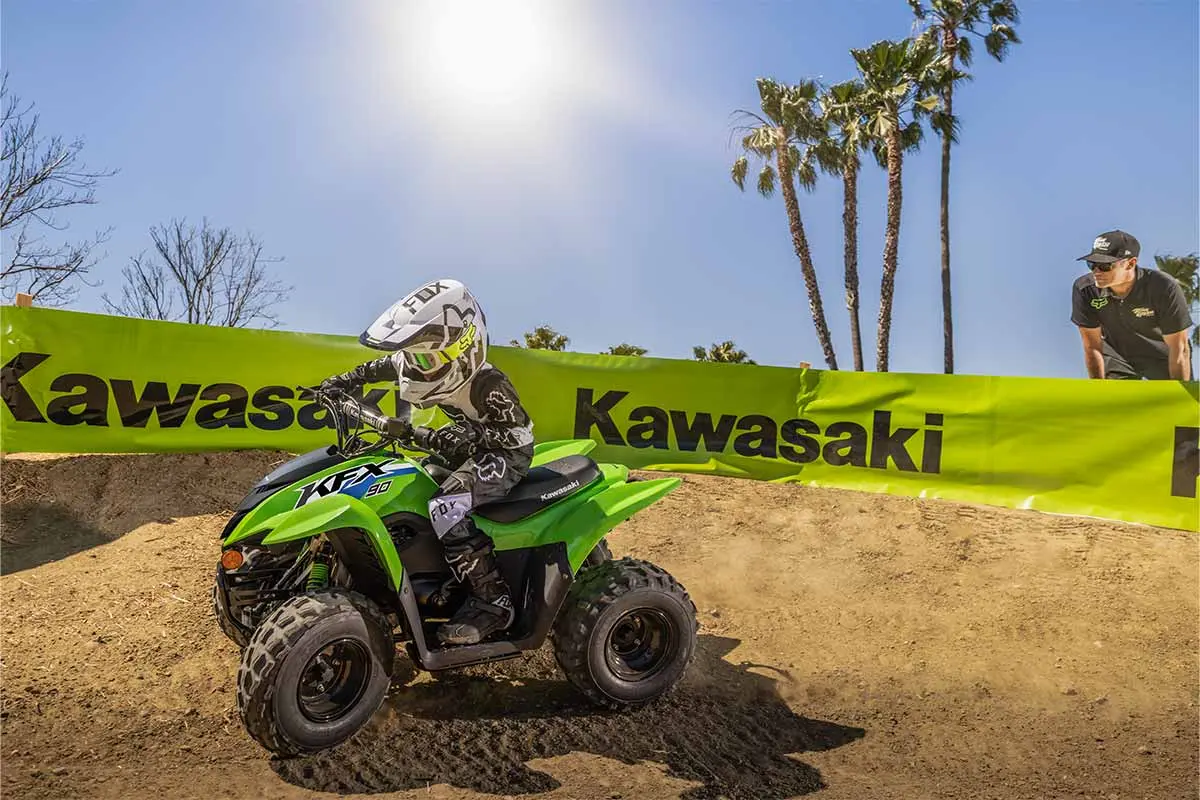

Four-wheel fun starts with KFX. Get the kids outdoors and ready to ride on the KFX90 ATV line with proportionate power and size for riders ages 10 and older. KFX90 ATVs let kids take on more challenging tracks and bigger adventures with a 90 cc engine and sporty suspension.

FEATURING:

  • 90 cc FOUR-STROKE ENGINE AND AUTOMATIC TRANSMISSION
  • Electric start with keyed ignition
  • ADJUSTABLE THROTTLE LIMITER AND CONTINUOUSLY VARIABLE TRANSMISSION (CVT) COLLAR

ADDITIONAL VEHICLE FEATURES:

  • Sporty front-end styling
  • Front LED accent lights and LED taillight
  • Full-coverage floorboards with slip-resistant design
  • Independent A-arm front suspension and single-shock rear suspension

MAKE AN ENQUIRY

Features

ENGINE

Reliable & Accessible

The KFX90 ATV lets riders ages 10 and older take on tougher tracks. A 90 cc four-stroke engine equipped with an electric start for simple and reliable starting produces smooth and predictable power.

Parental controls include a keyed ignition to help address unsupervised use, as well as speed controls with a throttle-limiting screw to restrict throttle movement, and a collar in the automatic Continuously Variable Transmission (CVT) that can be removed to increase speed as the rider gains experience, allowing the KFX90 to grow with the rider.

PROTECTION

Get A Grip

Full coverage floorboards with slip-resistant footing contribute to increased grip and helps young riders control their ATV when riding while in a standing position. Increased mud protection keeps the engine running at a cooler temperature and keeps dirt and debris from building up near the engine.

SUSPENSION

Smooth Out Your Ride

Independent A-arms in the front and swingarm rear suspension soak up bumps for a smooth ride and contribute to sporty handling.

STYLING

Ride With Swagger

Front LED accents lights and LED taillight add to the already race-inspired bodywork. The grill shape contributes to the sharp design of the front, while tall front fenders convey a strong sporty off-road performance look.

Technical Specifications

Maximum Power
4.8 kW {6.5 PS} / 7,500 rpm
Maximum Torque
6.6 Nm {0.67 kgfm} / 5,500 rpm
Engine
4-stroke Single
Displacement
90 cc
Bore x Stroke
47.0 x 51.8 mm
Compression Ratio
10.0:1
Valve System
SOHC, 2-valves per cylinder
Fuel System
Carburettor: Keihin PTE16
Ignition
CDI
Starting
Electric with kick backup
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
Automatic, CVT with centrifugal clutch
Primary Reduction Ratio
0.800 ~ 2.500 (belt converter)
Gear Ratio
8.507 (49/18 x 50/16)
Final Reduction Ratio
2.000 (32/16)
Final Drive
Chain
Frame
Double cradle, steel
Front Suspension
Single A-arm with twin shocks
Rear Suspension
Swingarm with single shock
Front Wheel Travel
71 mm
Rear Wheel Travel
74 mm
Rake
3.8°
Trail
15 mm
Steering Angle (L/R)
30° / 30°
Front Tire
AT 18 x 7-8
Rear Tire
AT 18 x 9-8
Front Brakes
Dual mechanical drums
Rear Brake
Hydraulic disc
Parking Brake
Mechanical (drum)
Dimensions (LxWxH)
1,425 x 900 x 925 mm
Wheelbase
965 mm
Road Clearance
100 mm
Seat Height
650 mm
Curb Weight*
122 kg
Fuel Capacity
5.3 litres
Tread (L/R)
675 mm / 665 mm
Turning Radius
2.7 m
Model Code
KSF90BTFNN
