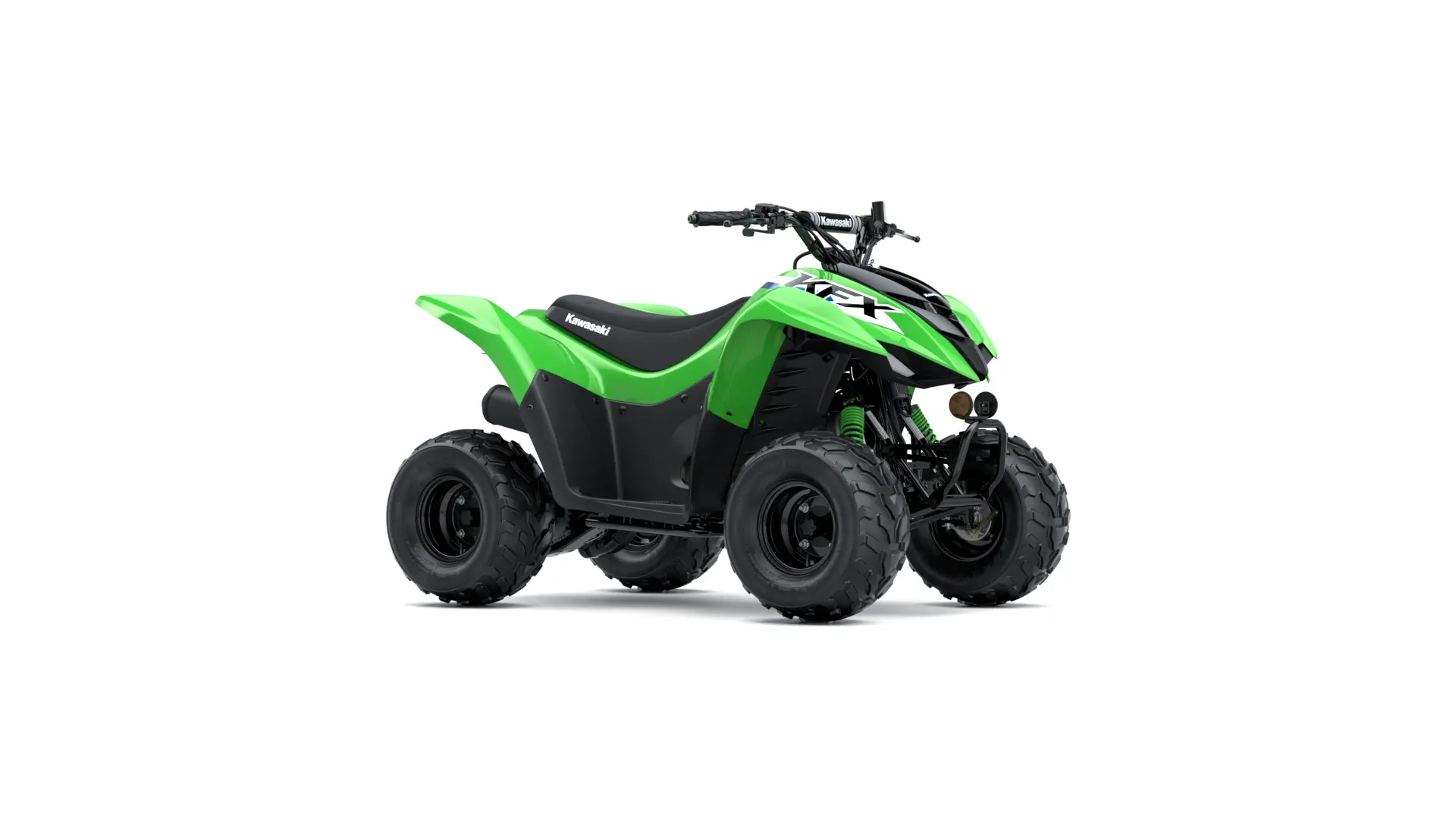

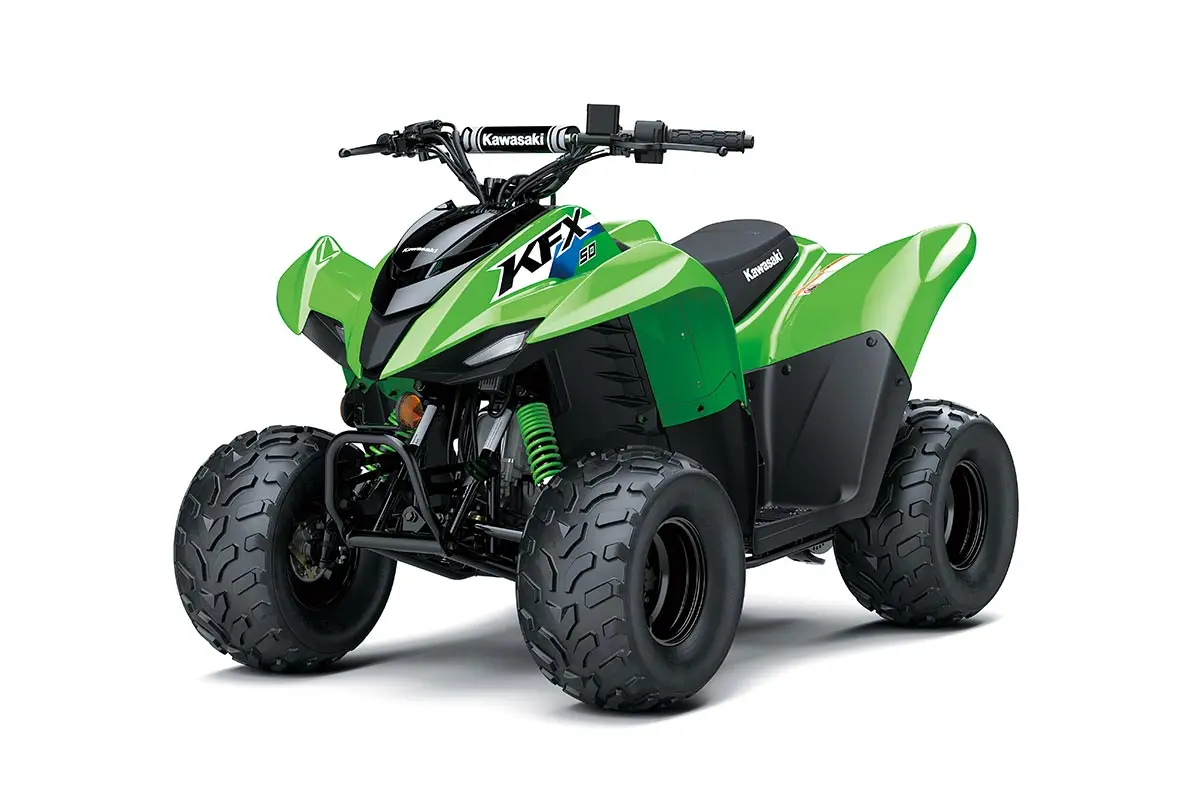

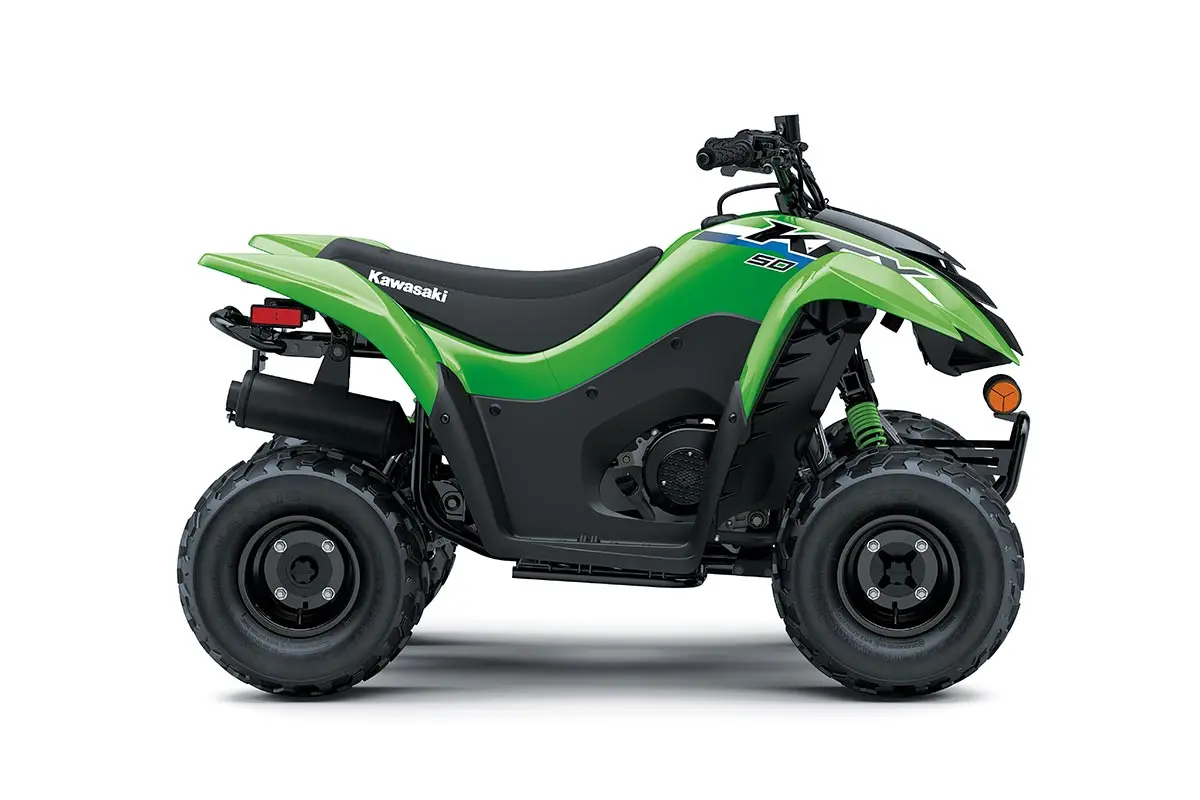

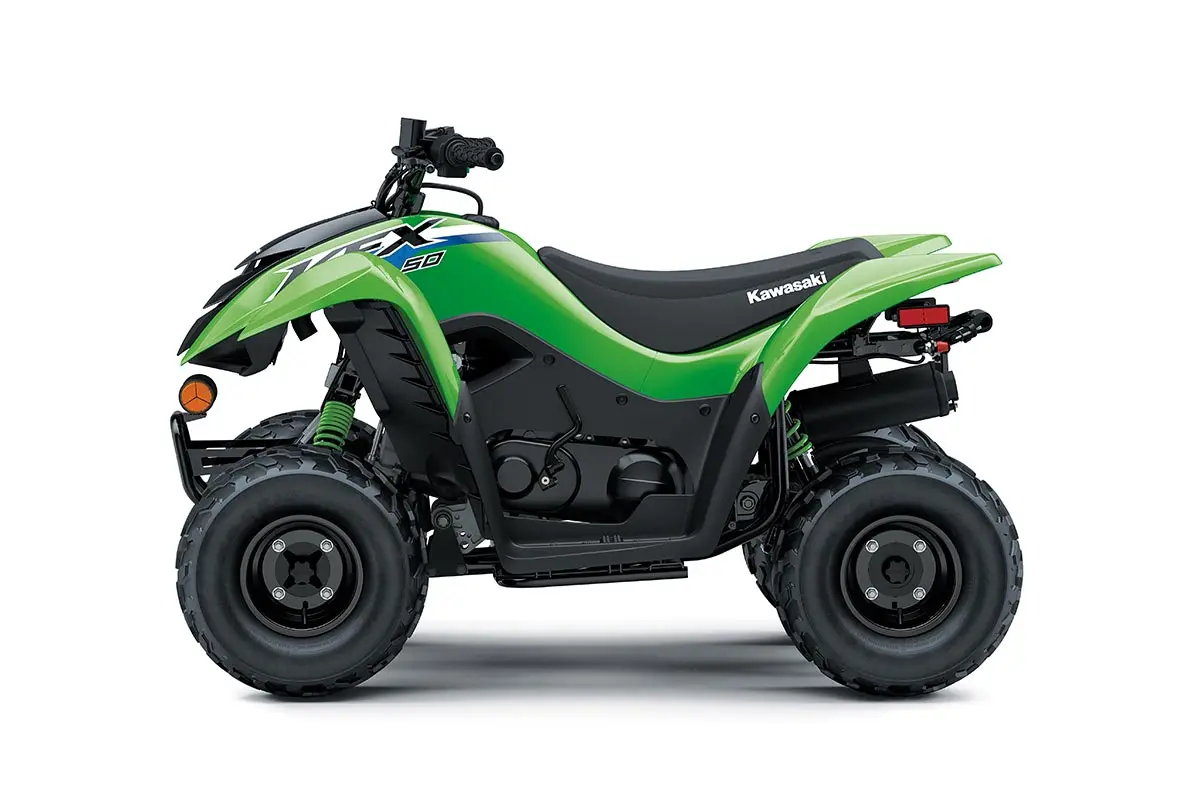

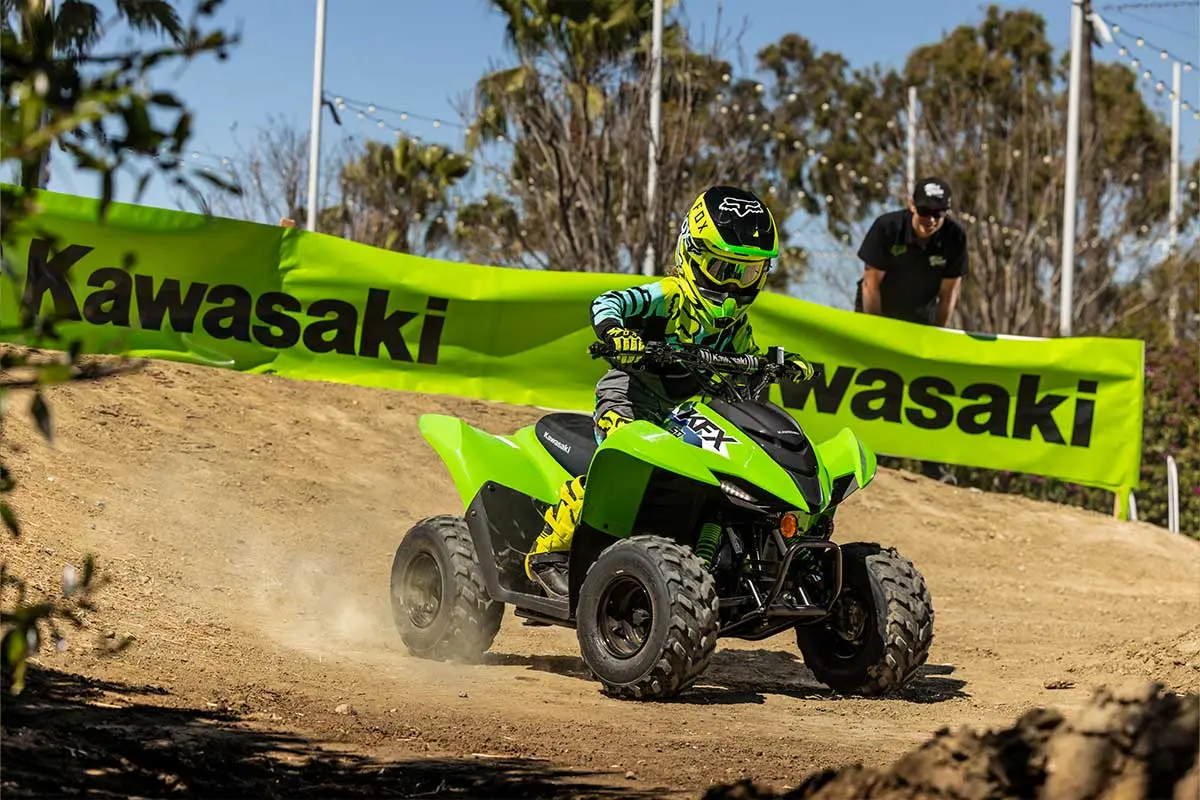

2026 KFX50

Four-wheel fun starts with KFX. Give kids ages six and older the ability to confidently tackle the dirt. KFX50 ATVs are ideal for young riders to start their adventure, featuring 50 cc of power and smooth performance that can help give riders experience in a controlled manner.

FEATURING:

  • 50 cc four-stroke engine and automatic transmission
  • Electric start with keyed ignition
  • Adjustable throttle limiter and Continuously Variable Transmission (CVT) collar

ADDITIONAL VEHICLE FEATURES:

  • Sporty front-end styling
  • Front LED accent lights and LED taillight
  • Full-coverage floorboards with slip-resistant design
  • Independent A-arm front suspension and single-shock rear suspension

MAKE AN ENQUIRY

Features

A STRONG START

Perfect For Young Riders (ages 6+)

The KFX50 ATV for ages six and older is the starting place for many first-time ATV riders.

The 50 cc four-stroke engine starts with the push of a button and features an engine stop lanyard, while the automatic transmission helps deliver smooth power, beginner-friendly performance and rock-solid reliability.

STAY IN CONTROL

Safety First

Parental controls include a keyed ignition to help address unsupervised use as well as speed controls with an adjustable throttle limiter and automatic Continuously Variable Transmission (CVT) collar that allow the speed and performance to be adjusted to match rider experience.

Full coverage floorboards with slip-resistant footing contribute to increased grip and help young riders control their ATV when riding while in a standing position. Increased mud protection keeps the engine running at a cooler temperature and keeps dirt and debris from building up near the engine.

WELCOME TO FOUR WHEELS

Easy To Handle

Independent A-arm front suspension and swingarm rear suspension soak up bumps for a smooth ride and sporty handling, packing a lot of fun into a small package.

RIDE IN STYLE

Sporty Design

Front LED accents lights and LED taillight add to the already race-inspired bodywork. The grill shape contributes to the sharp design of the front, while tall front fenders convey a strong sporty off-road performance look.

Technical Specifications

Maximum Power
3.5 kW {4.8 PS} / 7,500 rpm
Maximum Torque
3.3 Nm {0.34 kgfm} / 6,500 rpm
Engine
4-stroke Single
Displacement
50 cc
Bore x Stroke
39.0 x 41.4 mm
Compression Ratio
10.8:1
Valve System
SOHC, 2-valves per cylinder
Fuel System
Carburettor: Keihin PTE16
Ignition
CDI
Starting
Electric with kick backup
Cooling
Air-cooled
Lubrication
Forced lubrication, wet sump
Transmission
Automatic, CVT with centrifugal clutch
Primary Reduction Ratio
0.910 ~ 3.030 (belt converter)
Gear Ratio
13.629 (53/15 x 54/14)
Final Reduction Ratio
2.000 (32/16)
Final Drive
Chain
Frame
Double cradle, steel
Front Suspension
Single A-arm with twin shocks
Rear Suspension
Swingarm with single shock
Front Wheel Travel
71 mm
Rear Wheel Travel
74 mm
Rake
3.8°
Trail
13 mm
Steering Angle (L/R)
30° / 30°
Front Tire
AT 16 x 8-7
Rear Tire
AT 16 x 8-7
Front Brakes
Dual mechanical drums
Rear Brake
Hydraulic disc
Parking Brake
Mechanical (drum)
Dimensions (LxWxH)
1,400 x 880 x 885 mm
Wheelbase
965 mm
Road Clearance
75 mm
Seat Height
635 mm
Curb Weight*
113 kg
Fuel Capacity
5.3 litres
Tread (L/R)
680 mm / 700 mm
Turning Radius
2.7 m
Model Code
KSF50CTFNN
