Honda
NSC110 Dio FEATURES SPECS GALLERY
NSC110 Dio

With a sleek, attractive body design and comfortable seating for two, Honda's Dio is the ideal scooter for your daily commute to work, trips to the shops or days out to the beach. Light as a feather, it has seamless acceleration that goes at the ease of a twist. Powered by a fuel efficient and reliable 109cc four-stroke engine, with PGM-FI. Idle stop also reduces the Dio’s fuel consumption and noise while waiting at a stop, such as an intersection.

MAKE AN ENQUIRY

Features

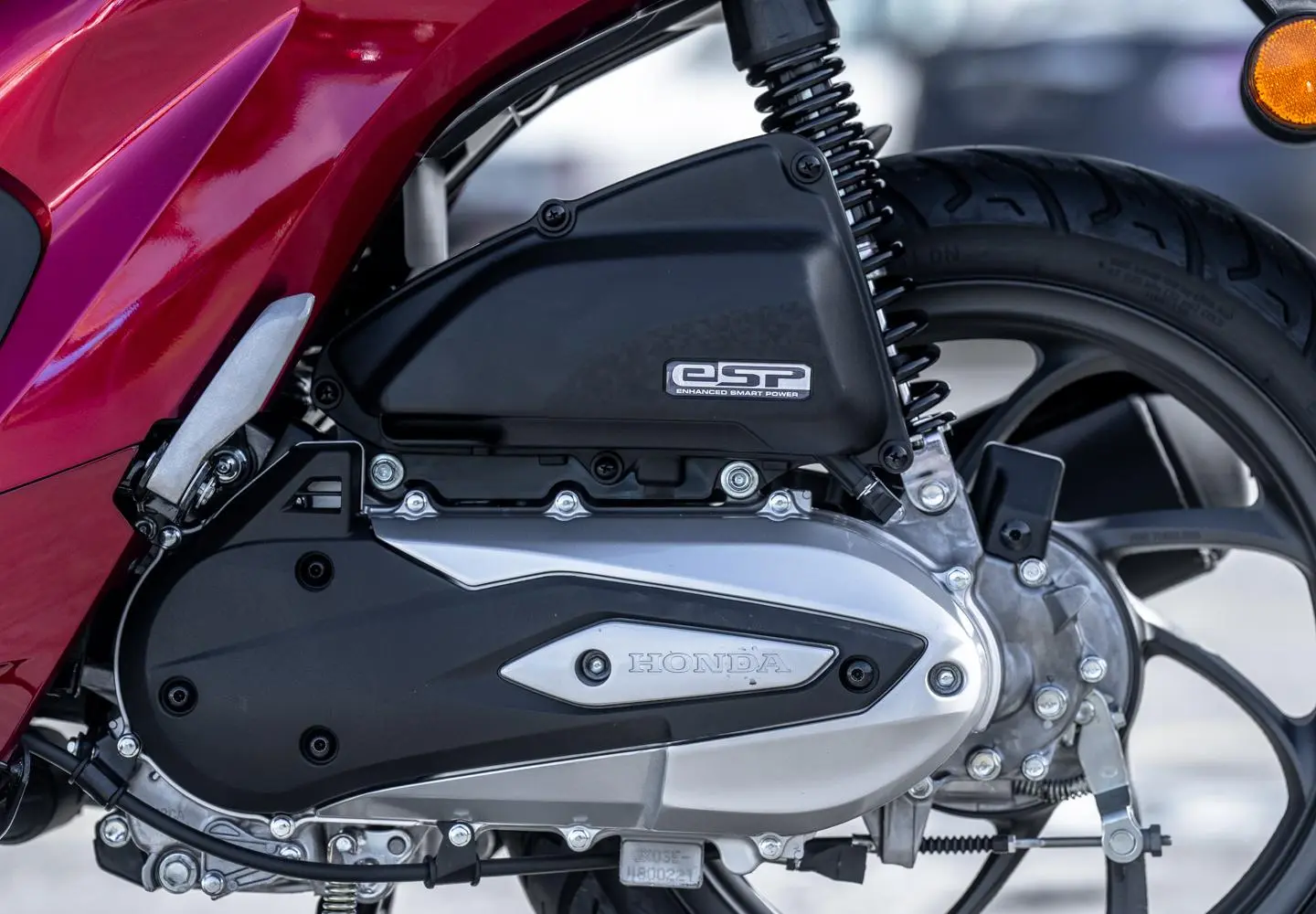

Economical
Economical Powered by a fuel efficient and reliable 109cc four-stroke engine with PGM-FI fuel injection and electric start. The Dio also features Idle start stop which can be switched off.

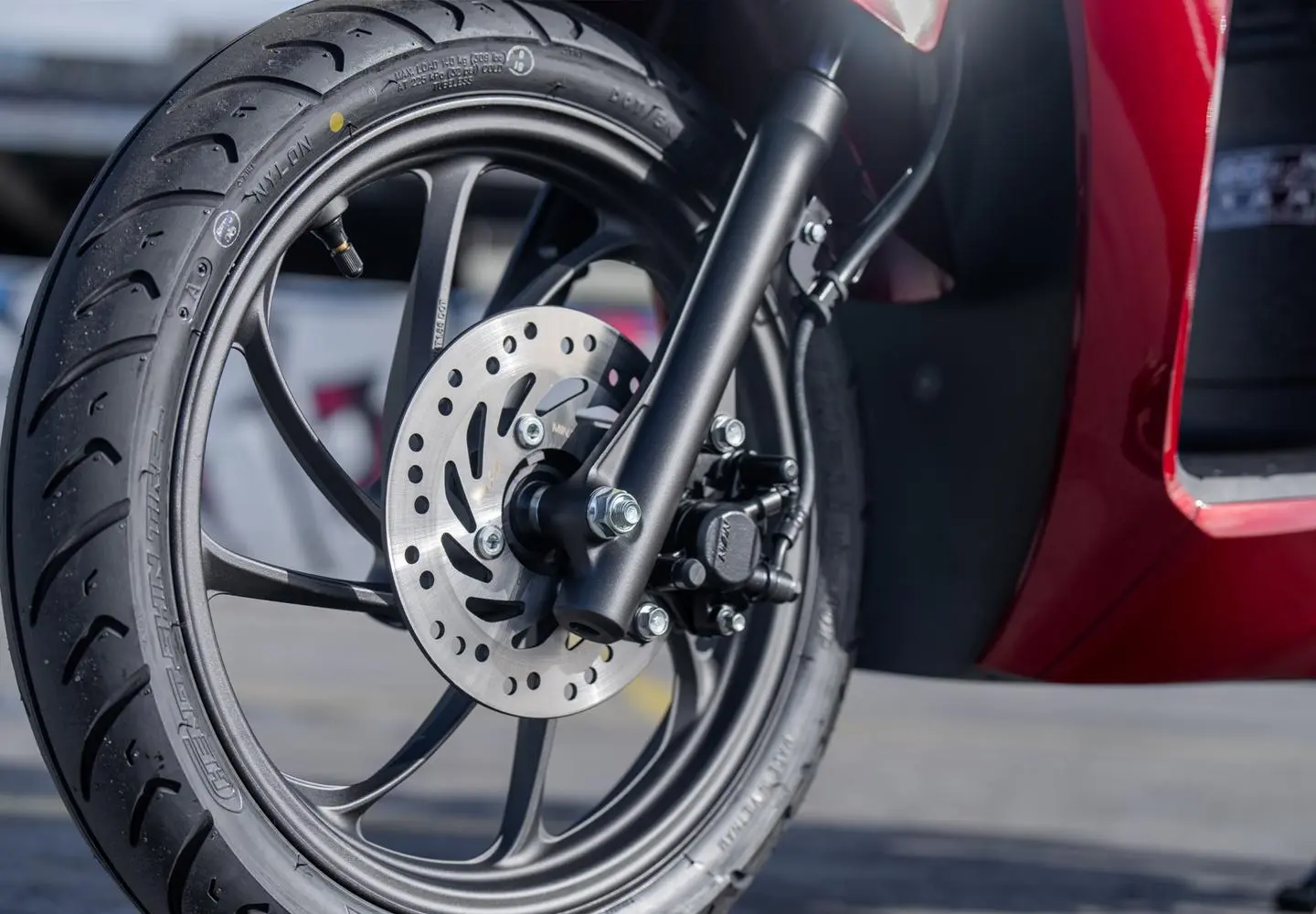

Confidence
Confidence Honda’s Combined Braking System (CBS), which links the front and rear brakes to provide swift, stable braking regardless of rider experience or road conditions.
Comfort

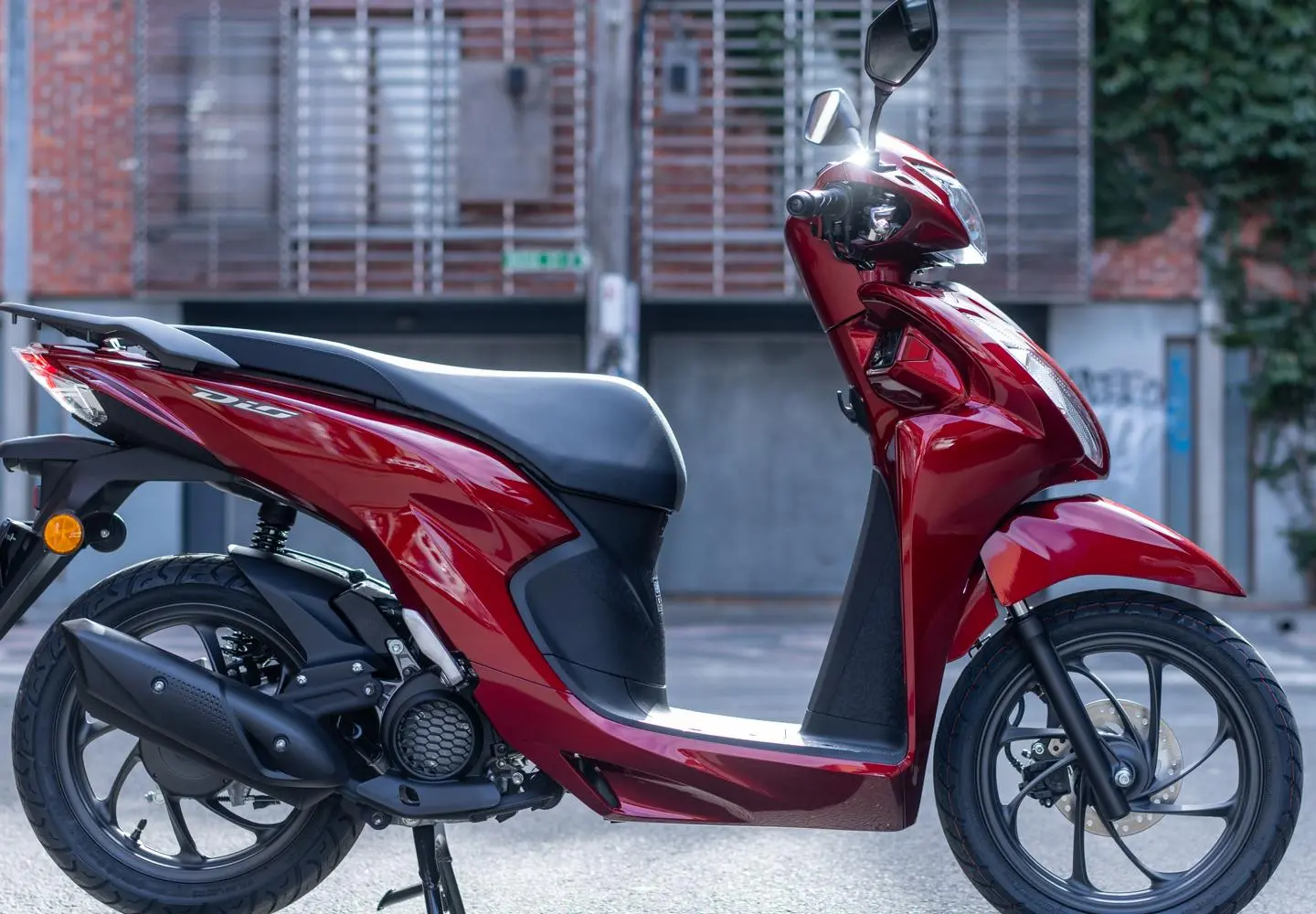

Comfort Designed to be comfortable for both the rider and passenger, the ergonomically sculpted one-piece seat is set at a height of 760mm, giving plenty of legroom while also making the scooter easy to handle. Allied to the stable, highly manoeuvrable chassis, the position of the handlebars has been carefully designed to give the rider confident control.

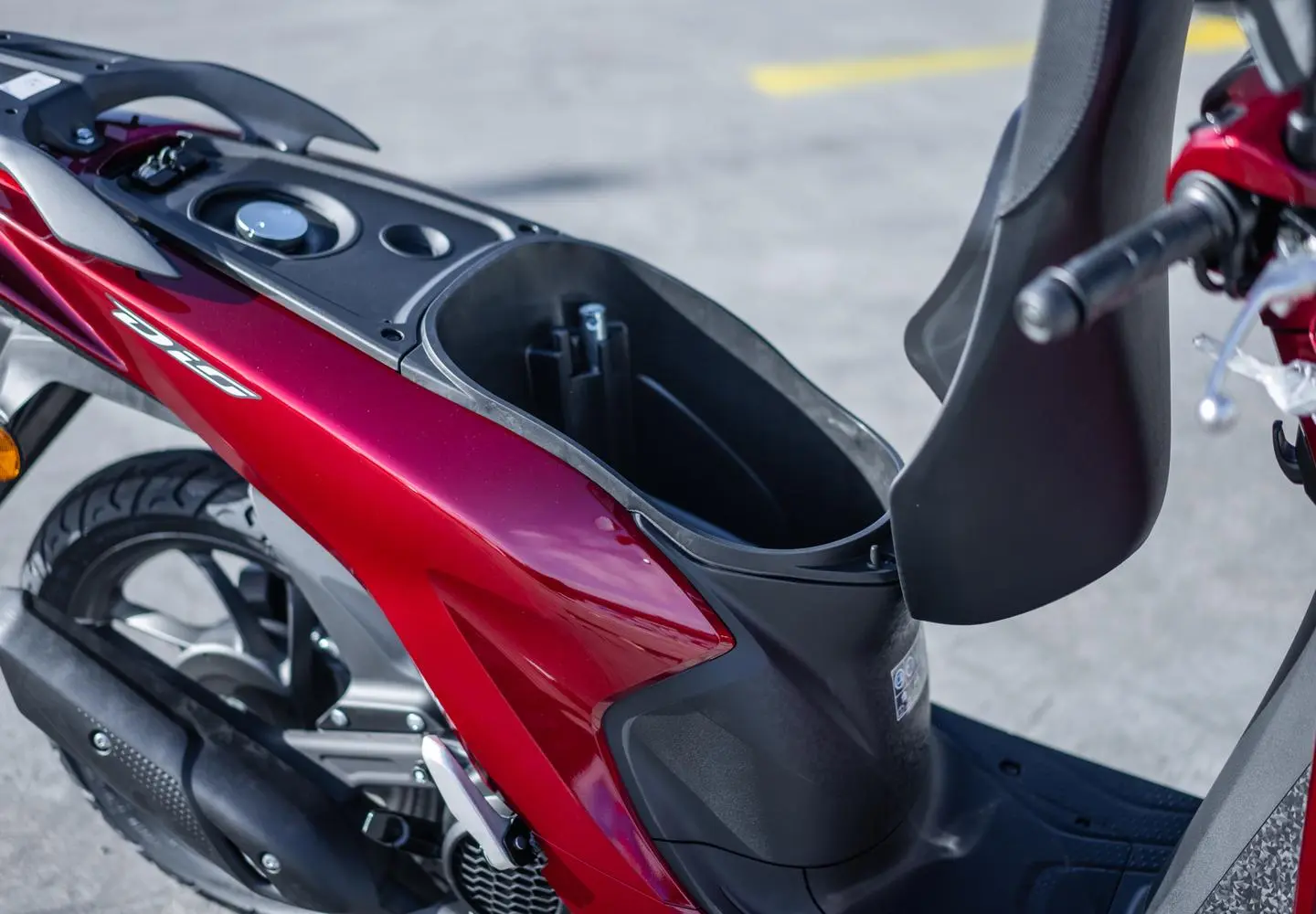

Convenience
Convenience Spacious 18L under-seat storage to carry all your work or study needs. With space enough for shopping, a waterproof over suit, security locks or a full-face crash helmet, careful packaging design has yielded a large and convenient storage space under the seat of the Dio.

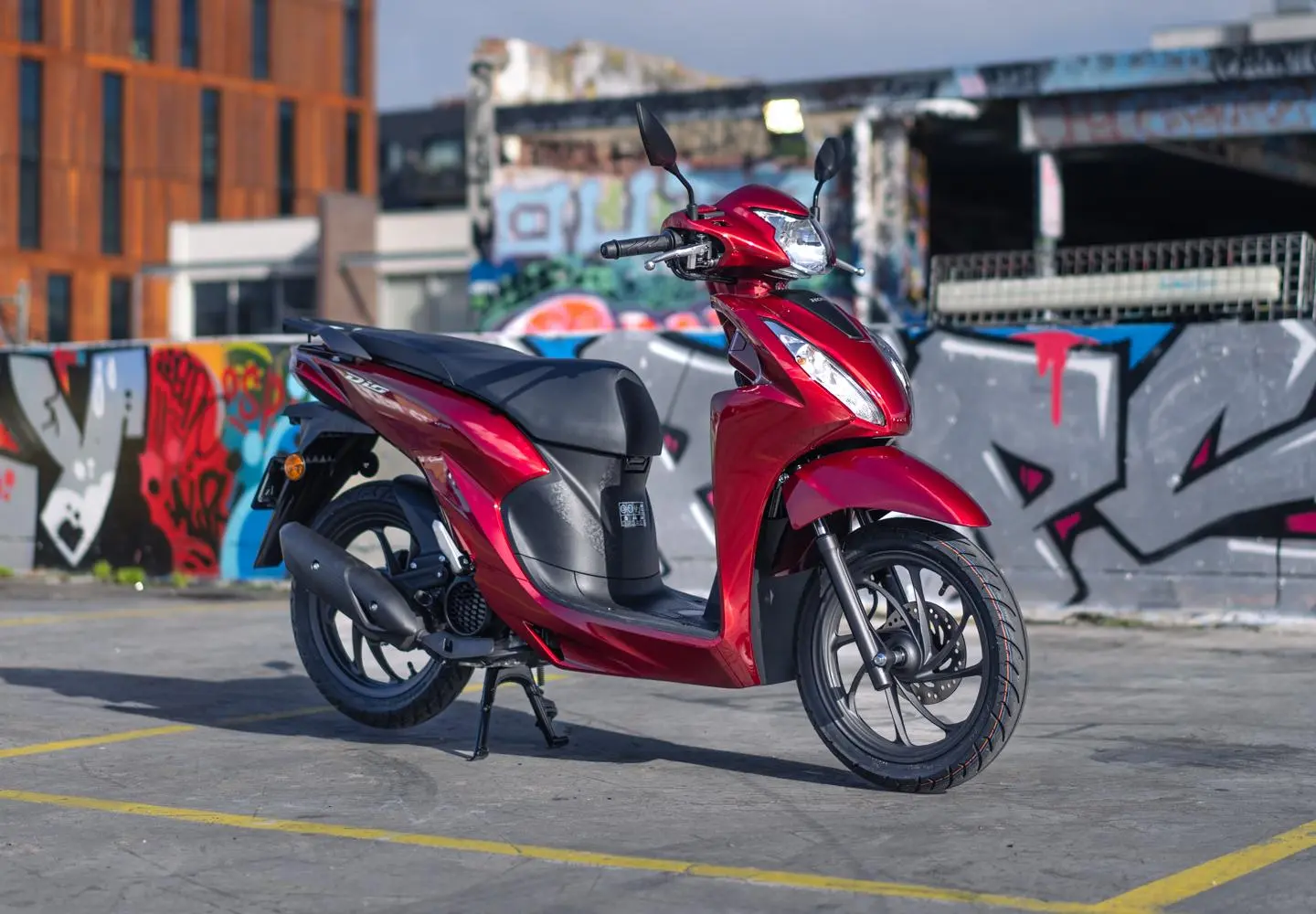

Stylish
Stylish With its taut surfaces, sharp lines and aggressively-styled headlight, the Dio is a striking, contemporary-looking machine.

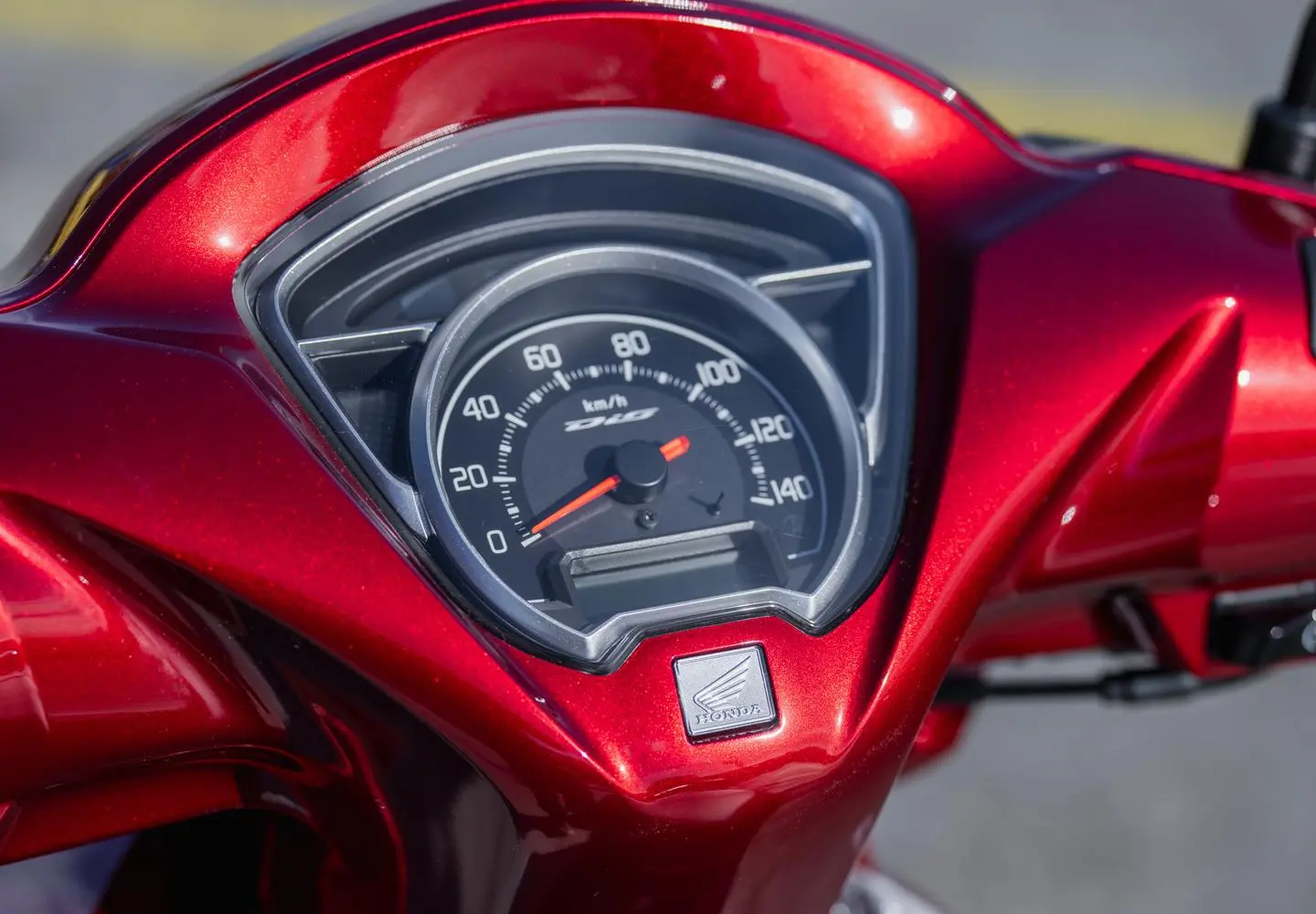

User friendly
User friendly The seamless dash is integrated into the smooth surfaces of the DIO and offers analogue read out. A parking lever (brake lock) can be easily operated on the front and rear brake levers for safe parking on slopes and further maximizes convenience and safety.

Technical Specifications

Bore & Stroke (mm)
47 x 63.1
Compression Ratio
10:1
Cylinders
1
Displacement (cc)
109
Engine Type
Air-Cooled 4-stroke
Fuel System
Fuel Injection
Starter
Electric
Valves
2
Transmission
CVT
Drive
Belt
Front Adjustability
-
Front Suspension Type
Telescopic fork
Front Wheel Travel (mm)
81
Rear Adjustability
-
Rear Suspension Type
Single shock
Rear Wheel Travel (mm)
76
Tyres (F)
80/90-14
Tyres (R)
90/90-14
Brakes (F)
1x 190mm disc
Brakes (R)
Drum
Fuel Capacity (L)
4.9
Wheelbase (mm)
1255
Ground Clearance (mm)
150
Overall Height (mm)
1100
Overall Length (mm)
1870
Overall Width (mm)
686
Seat Height (mm)
760
Kerb Weight (kg)
96

Gallery & Videos
