Racing is just the beginning

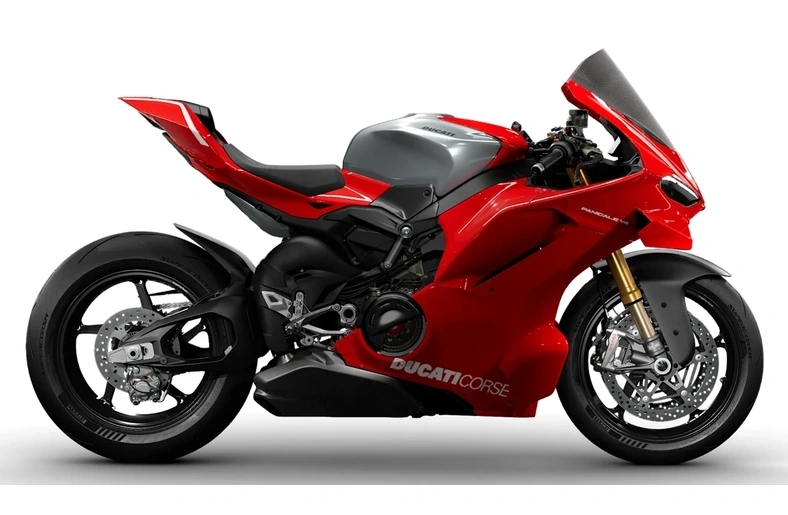

The latest evolution of a legendary saga that epitomises Ducati sports attitude. Developed to respect the WorldSBK championship regulation, the new Panigale V4 R embodies the success achieved by Ducati in MotoGP and Superbike. Powered by the 998 cc Desmosedici Stradale, it is the first bike homologated for road use to feature Corner Sidepods and the Ducati Racing Gearbox with Ducati Neutral Lock (DNL).
Designed to respect WorldSBK specifications, the 998 cc Desmosedici Stradale R delivers 218 hp at 15,750 rpm, becoming 239 hp thanks to the racing exhaust and Shell Performance Oil by Ducati Corse. The closest Ducati road-going engine to that of the DesmosediciGP, it is Euro 5+ approved, reducing emissions without losing performance, and boasts torque and power curves that are higher across the entire delivery range. This, in addition to greater efficiency that translates into an additional 4 hp at 16,000 rpm.
The only road bike with Racing Gearbox and Neutral Lock
The new Panigale V4 R is the first homologated sports bike to feature a race-style gear pattern. The Ducati Racing Gearbox (DRG) sees neutral positioned beneath first gear, rather than between first and second, to ensure sufficient engine brake in the final and most delicate phase of braking when entering a first gear corner. The absence of neutral between first and second also ensures quicker, smoother and more repeatable shifting between these two gears with respect to a gearbox with road configuration.
To prevent accidental downshifting from first to neutral, the gearbox features the patented Ducati Neutral Lock (DNL), which can be deactivated using the dedicated lever on the right semi-handlebar. To engage neutral, the rider must carry out the same actions as official riders in MotoGP and Superbike.
The first homologated bike with Corner Sidepods
Developed by Ducati Corse, the aerodynamics of the Panigale V4 R introduce Corner Sidepods for the first time on a sports bike homologated for road use. Corner Sidepods allow the rider to corner at higher speeds and trace a tighter, more precise line. Designed to intervene at extreme lean angles, Corner Sidepods generate an aerodynamic-like system of forces that makes for higher cornering speeds and lower lap times. In addition, the design of new winglets, with a larger surface area, increases the vertical load by 25% with respect to the previous generation.
Completely redesigned chassis
The new Panigale V4 R inherits frame and swingarm from the Panigale V4. The Front Frame sees a 40% reduction in lateral stiffness with respect to that of the previous Panigale V4 R. The Hollow Symmetrical Swingarm, strongly supported by Ducati Corse, ensures greater stability in acceleration. A complex, sophisticated and elegant structure that provides the same sense of connection between front and rear.
New Ohlins mechanical suspension
The Panigale V4 R adopts professional Ohlins mechanical suspension as opposed to the semi-active suspension of the V4 S. The Ohlins NPX25/30 Ø 43 mm pressurised fork with TiN-treated stanchions is paired with an Ohlins TTX36 shock, complete with hydraulic preload adjuster to facilitate adjustment. The monoshock can be fitted with the rear suspension linear stroke sensor.
Adjustable rear suspension tie-rod
As on SBK bikes, adjustment of the rear height is now carried out using the adjustable suspension tie-rod, and not by modifying shock length. The steel tie-rod acts on bearings, and has a design derived from that used in SBK. With respect to the previous adjustment system, the rider can intervene with greater precision and benefit from a wider range of adjustment.
Even more advanced electronics
The Panigale V4 R integrates more advanced electronic strategies for use on track and road. With respect to the Panigale V4 S, the main new features include Race Brake Control (RBC), for sports riding, and Engine Brake Control (EBC) DVO, which uses the Ducati Vehicle Observer algorithm to precisely manage the engine brake. This allows for more accurate control of the forces applied to the tyre, making the engine brake action more gradual and predictable. The Race Brake Control logic is the result of internal Ducati development and allows riders to emulate the riding techniques of professional riders with results that outstrip even those achieved by the Panigale V4.
A special numbered series
The Panigale V4 R is produced as a numbered series, with the progressive number and name of the model featured on the steering head to emphasise its exclusivity.
Aluminium alloy "Front Frame" with optimized stiffnesses
Front suspension
Fully adjustable 43 mm Öhlins NPX pressurized fork with TiN treatment.
Front Wheel
5-spokes forged aluminium alloy 3.50" x 17"
Front Tyre
Pirelli Diablo Supercorsa SP-V4 120/70 ZR17
Rear suspension
Fully adjustable Öhlins TTX36 unit with adjustable rebound, compression and hydraulic spring preload. Aluminium Hollow Symmetrical Swingarm.
Adjustable pivot position +/- 3 mm.
Adjustable rear suspension tie-rod length +/- 5mm
Rear Wheel
5-spokes forged aluminium alloy 6.00" x 17"
Rear Tyre
Pirelli Diablo Supercorsa SP-V4 200/60 ZR17
Wheel Travel (Front/Rear)
125 mm / 130 mm (4,9 in / 5,1 in)
Front Brake
2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc Hypure® 4-piston callipers.
Self bleeding master cylinder.
ABS cornering with eCBS.
Rear Brake
Ø 245 mm disc, 2-piston calliper. ABS cornering with eCBS.
Instrumentation
Digital unit with 6,9" TFT display and Optical Bonding - 480x1280 resolution
Wet weight no fuel
186,5 kg (411 lb)
Seat Height
855 mm (33.7 in)
Wheelbase
1.477 mm (58,1 in)
Rake
24°
Trail
98 mm (3,9 in)
Fuel Tank Capacity
17 l (4,5 US gal)
Number of Seats
Single seat Two seats, if passenger seat kit accessory is mounted
Safety Equipment
Riding Modes, Power Modes, Ducati Slide Control (DSC), Bosch Cornering ABS, Ducati Brake Light (DBL), Ducati Vehicle Observer (DVO), Ducati Traction Control (DTC) DVO, Ducati Wheelie Control (DWC) DVO, Auto tyre calibration, Engine Brake Control (EBC) DVO, Race Brake Control, Road eCBS
Standard Equipment
Öhlins suspension, Lithium-ion battery, Quick adjustment buttons, Forged aluminium wheels, Coming Home, Single seat configuration, Ducati Power Launch (DPL) DVO, TFT colour display, Full LED lighting system, Full LED headlight, Daytime Running Light (DRL), Self cancelling turn indicators, Lap Timer, Pit Limiter, Rear suspension rod with adjustable length, Ducati Racing Gearbox (DRG) with Ducati Neutral Lock (DNL), Ducati Quick Shift (DQS) up/down 2.0, Billet aluminium steering stem with bike number, Öhlins SD20 steering damper
Provided Equipment
Machined mirror block-off plates*, Open clutch cover in carbon fibre*, License plate mount removal plug*
Ready for
Anti-Theft, Tyre Pressure Monitoring System (TPMS), Cruise control, Ducati Data Logger (DDL), Ducati Multimedia System (DMS), Lap Timer Pro, Heated grips, Turn-by-Turn navigation system, USB port, Passenger seat and footpegs, Linear shock travel sensor
Warranty
24 months, unlimited mileage
Annual Service
12 months
Oil Service
12,000 km / 24 months
Valve Clearance Check
24,000 km
Notes
* Equipment not for road use Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
Racing is just the beginning
The latest evolution of a legendary saga that epitomises Ducati sports attitude. Developed to respect the WorldSBK championship regulation, the new Panigale V4 R embodies the success achieved by Ducati in MotoGP and Superbike. Powered by the 998 cc Desmosedici Stradale, it is the first bike homologated for road use to feature Corner Sidepods and the Ducati Racing Gearbox with Ducati Neutral Lock (DNL).
content_description2
Engine;Transmission;Chassis;Dimensions And Weights;Equipment;Warranty;Notes
#####Type|Desmosedici Stradale 90° V4, counter-rotating crankshaft, Desmodromic timing, 4 valves per cylinder, liquid-cooled;Displacement|998 cc (60,9 cu in);Bore x Stroke|81 mm x 48,4 mm (3,2 in x 1,9 in);Compression Ratio|14:1;Power|218 hp (160,3 kW) @ 15.750 rpm;Torque|114,5 Nm (11,7 kgm, 84 lb ft) @ 12.000 rpm;Fuel Injection|Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system;Exhaust|4-2-1-2 system, with 2 catalytic converters and 6 lambda probes.
#####Gearbox|6 speed;Primary drive|Straight cut gears, Ratio 1.80:1;Ratio|1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22;Final drive|Chain 520, Front sprocket 16, Rear sprocket 43;Clutch|Hydraulically controlled slipper dry clutch. Self bleeding master cylinder.
#####Frame|Aluminium alloy "Front Frame" with optimized stiffnesses;Front suspension|Fully adjustable 43 mm Öhlins NPX pressurized fork with TiN treatment.;Front Wheel|5-spokes forged aluminium alloy 3.50" x 17";Front Tyre|Pirelli Diablo Supercorsa SP-V4 120/70 ZR17;Rear suspension|Fully adjustable Öhlins TTX36 unit with adjustable rebound, compression and hydraulic spring preload. Aluminium Hollow Symmetrical Swingarm.;Adjustable pivot position +/- 3 mm.|Adjustable rear suspension tie-rod length +/- 5mm;Rear Wheel|5-spokes forged aluminium alloy 6.00" x 17";Rear Tyre|Pirelli Diablo Supercorsa SP-V4 200/60 ZR17;Wheel Travel (Front/Rear)|125 mm / 130 mm (4,9 in / 5,1 in);Front Brake|2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc Hypure® 4-piston callipers.;Self bleeding master cylinder.|ABS cornering with eCBS.;Rear Brake|Ø 245 mm disc, 2-piston calliper. ABS cornering with eCBS.;Instrumentation|Digital unit with 6,9" TFT display and Optical Bonding - 480x1280 resolution
#####Wet weight no fuel|186,5 kg (411 lb);Seat Height|855 mm (33.7 in);Wheelbase|1.477 mm (58,1 in);Rake|24°;Trail|98 mm (3,9 in);Fuel Tank Capacity|17 l (4,5 US gal);Number of Seats|Single seat<br />Two seats, if passenger seat kit accessory is mounted
#####Safety Equipment|Riding Modes, Power Modes, Ducati Slide Control (DSC), Bosch Cornering ABS, Ducati Brake Light (DBL), Ducati Vehicle Observer (DVO), Ducati Traction Control (DTC) DVO, Ducati Wheelie Control (DWC) DVO, Auto tyre calibration, Engine Brake Control (EBC) DVO, Race Brake Control, Road eCBS;Standard Equipment|Öhlins suspension, Lithium-ion battery, Quick adjustment buttons, Forged aluminium wheels, Coming Home, Single seat configuration, Ducati Power Launch (DPL) DVO, TFT colour display, Full LED lighting system, Full LED headlight, Daytime Running Light (DRL), Self cancelling turn indicators, Lap Timer, Pit Limiter, Rear suspension rod with adjustable length, Ducati Racing Gearbox (DRG) with Ducati Neutral Lock (DNL), Ducati Quick Shift (DQS) up/down 2.0, Billet aluminium steering stem with bike number, Öhlins SD20 steering damper;Provided Equipment|Machined mirror block-off plates*, Open clutch cover in carbon fibre*, License plate mount removal plug*;Ready for|Anti-Theft, Tyre Pressure Monitoring System (TPMS), Cruise control, Ducati Data Logger (DDL), Ducati Multimedia System (DMS), Lap Timer Pro, Heated grips, Turn-by-Turn navigation system, USB port, Passenger seat and footpegs, Linear shock travel sensor
#####Warranty|24 months, unlimited mileage;Annual Service|12 months;Oil Service|12,000 km / 24 months;Valve Clearance Check|24,000 km
#####Notes|* Equipment not for road use<br />Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
