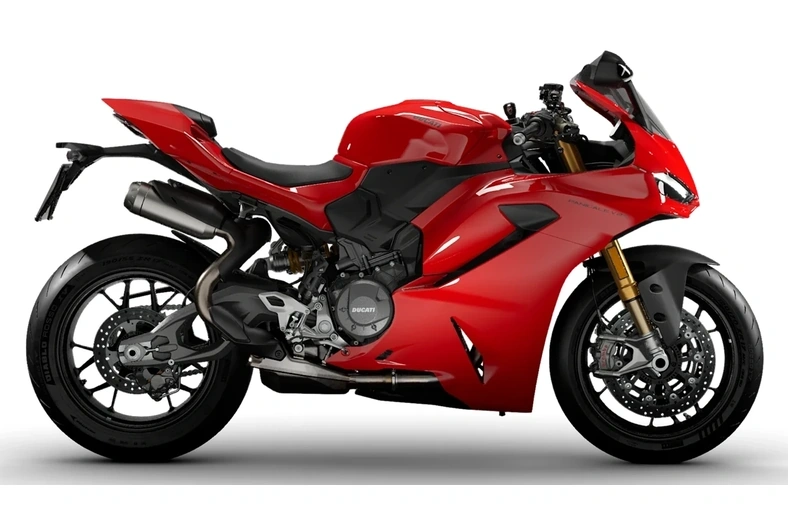

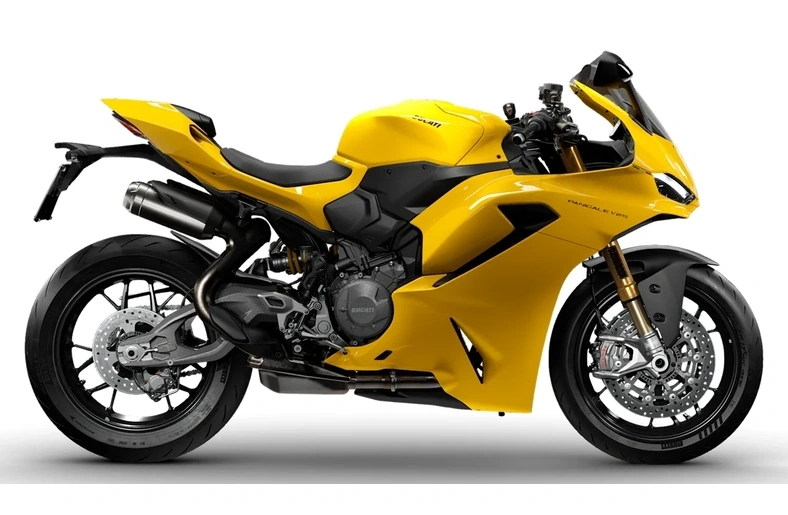

The lightest Panigale of all time.
The new Ducati Panigale V2 marks a historic transition in the history of Borgo Panigale twin-cylinder sports bikes. For the first time it does not derive from the larger motorcycle that competes in Superbike and has been designed from scratch, which has resulted in the creation of the lightest ever Panigale. It weighs a good 17 kg less than the previous model, inheriting the characteristic sports attitude and track performance of that bike and adding a level of ease, comfort and riding pleasure.
Featuring the classic 90° architecture, a Ducati twin trademark, the new V2 is equipped with an innovative electronic variable timing system that ensures substantial torque delivery at all engine speeds and real sports performance at the top end. Homologated in accordance with the Euro5+ standard, with displacement of 890 cc, it weighs just 54.4 kg, making it the lightest twin-cylinder ever produced in Borgo Panigale.
Adjustable suspension
The standard version of the Panigale V2 is equipped with a fully adjustable 43 mm Marzocchi fork at the front and a Kayaba shock at the rear. The Panigale V2 S, complete with 43 mm Ohlins NIX30 fork and Ohlins shock, sets the benchmark for suspension in its category.
Benchmark electronics
The Panigale V2 flaunts electronics derived from those of the Panigale V4. The new 5" TFT colour display allows the rider to modify the levels of Cornering ABS, Traction Control, Wheelie Control and Engine Brake even while riding, in real time. The Panigale V2 is also equipped with the new Ducati Quickshift 2.0 as standard.
Modern racing ergonomics
The ergonomic triangle of the Panigale V2 is modern, with a contained seat to handlebar height difference to ensure maximum feeling at the front end without excessively overloading the arms. This translates into comfort on the road and heightened performance on track. The footpegs are high and allow for significant lean angles but without locking the knees, for guaranteed comfort also during everyday use.
Brakes
The Panigale V2 is equipped with Brembo M50 callipers, which ensure outstanding performance on track and excellent controllability on the road. The master cylinder is radial while the brake discs measure 320 mm at the front and 245 mm at the rear. The coloured callipers, available as an accessory, add another personalised touch to the aesthetic.
Thermal Comfort
The Panigale V2 guarantees the rider real thermal comfort thanks to passive ventilation ducts designed to optimise the air flow and reduce heat during riding. This solution improves the riding experience, ensuring a comfortable temperature on even the hottest days.
Lightweight aluminium wheels
The Panigale V2 is equipped with new die-cast aluminium wheels featuring six "Y" spokes arranged in three groups of two. The Pirelli Diablo Rosso IV tyres, 120/70 at the front and 190/55 at the rear, offer an impressive footprint and exceptional handling on the road. Those seeking maximum performance on track can mount slick tyres with a 190/60 rear, the same size used in the Supersport World Championship.
2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M50 piston calipers with Bosch Cornering ABS.
Rear Brake
245 mm disc, 2-piston caliper with Bosch Cornering ABS
Instrumentation
Digital unit with 5" TFT colour display, 800 x 480 px resolution
Wet weight no fuel
176 kg (388 lb)
Seat Height
837 mm (33 in)
Wheelbase
1,465 mm (57.7 in)
Rake
23.6°
Trail
93 mm (3.7 in)
Fuel Tank Capacity
15 l - 4 gallon (US)
Number of Seats
Single seat Two seats, if passenger seat kit accessory is mounted
Safety Equipment
Riding Modes, Power Modes, Bosch Cornering ABS, Ducati Traction Control (DTC), Ducati Wheelie Control (DWC), Engine Brake Control (EBC), Auto tyre calibration, Ducati Brake Light (DBL)
Standard Equipment
Ducati Quick Shift (DQS) up/down 2.0, Full LED headlights with Daytime Running Light (DRL), Auto-off indicators, Lithium-ion battery, Ducati Power Launch (DPL), Pit Limiter, Coming Home, Single seat configuration
Ready for
Lap Timer Pro, Anti-Theft, Cruise Control, Tyre Pressure Monitoring System (TPMS), USB port, Ducati Multimedia System (DMS), "Turn By Turn" navigator, Heated Grips
Warranty
24 months unlimited mileage
Annual Service
12 months
Oil Service
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
45,000 km (28,000 miles)
Notes
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
The lightest Panigale of all time.
The new Ducati Panigale V2 marks a historic transition in the history of Borgo Panigale twin-cylinder sports bikes. For the first time it does not derive from the larger motorcycle that competes in Superbike and has been designed from scratch, which has resulted in the creation of the lightest ever Panigale. It weighs a good 17 kg less than the previous model, inheriting the characteristic sports attitude and track performance of that bike and adding a level of ease, comfort and riding pleasure.
content_description2
Engine;Transmission;Chassis;Dimensions And Weights;Equipment;Warranty;Emissions And Consumption
#####Type|Ducati V2 engine: 90° V2, 4 valves per cylinder, intake variable valves timing system, liquid cooled;Displacement|890 cc;Bore x Stroke|96 x 61.5 mm;Compression Ratio|13.1:1;Power|88 kW (120 hp) @ 10,750 rpm;Torque|93.3 Nm (69 lb-ft) @ 8,250 rpm;Fuel Injection|Electronic fuel injection system. One injector per cylinder. Full ride-by-wire.;Exhaust|2-1-2 system, with 1 catalytic converters and 3 lambda probes
#####Gearbox|6 speed with Ducati Quick Shift (DQS) up/down 2.0;Primary drive|Straight cut gears, Ratio 1.84:1;Ratio|1=38/14 2=34/17 3=32/20 4=29/22 5=24/21 6=26/25;Final drive|Chain 520, Front sprocket 15, Rear sprocket 42;Clutch|Hydraulically controlled slipper and self-servo wet multiplate clutch.
#####Frame|Monocoque Aluminium;Front suspension|Öhlins NIX30 43 mm with TiN treatment, fully adjustable usd fork;Front Wheel|Y-shape, 6-spokes light alloy, 3.50" x 17";Front Tyre|Pirelli Diablo Rosso IV 120/70 ZR17;Rear suspension|Fully adjustable Öhlins monoshock. Aluminium double-sided swingarm;Rear Wheel|Y-shape, 6-spokes light alloy, 5,50” x 17”;Rear Tyre|Pirelli Diablo Rosso IV 190/55 ZR17;Wheel Travel (Front/Rear)|120 mm - 150 mm;Front Brake|2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M50 piston calipers with Bosch Cornering ABS.;Rear Brake|245 mm disc, 2-piston caliper with Bosch Cornering ABS;Instrumentation|Digital unit with 5" TFT colour display, 800 x 480 px resolution
#####Wet weight no fuel|176 kg (388 lb);Seat Height|837 mm (33 in);Wheelbase|1,465 mm (57.7 in);Rake|23.6°;Trail|93 mm (3.7 in);Fuel Tank Capacity|15 l - 4 gallon (US);Number of Seats|Single seat<br />Two seats, if passenger seat kit accessory is mounted
#####Safety Equipment|Riding Modes, Power Modes, Bosch Cornering ABS, Ducati Traction Control (DTC), Ducati Wheelie Control (DWC), Engine Brake Control (EBC), Auto tyre calibration, Ducati Brake Light (DBL);Standard Equipment|Ducati Quick Shift (DQS) up/down 2.0, Full LED headlights with Daytime Running Light (DRL), Auto-off indicators, Lithium-ion battery, Ducati Power Launch (DPL), Pit Limiter, Coming Home, Single seat configuration;Ready for|Lap Timer Pro, Anti-Theft, Cruise Control, Tyre Pressure Monitoring System (TPMS), USB port, Ducati Multimedia System (DMS), "Turn By Turn" navigator, Heated Grips
#####Warranty|24 months unlimited mileage;Annual Service|12 months;Oil Service|15,000 km (9,000 miles) / 24 months;Valve Clearance Check|45,000 km (28,000 miles)
#####Notes|Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
