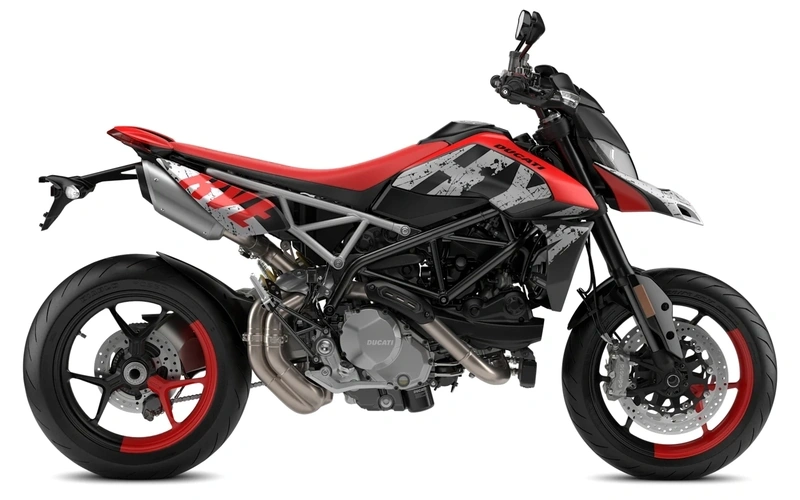

The brand new Graffiti Evo livery
The Hypermotard is the quintessential fun bike for those who want to enjoy every turn and cannot resist the style of the boldest Ducati liveries. The 950 RVE version is updated with the Graffiti Evo livery, which emphasizes the bikes youthful, sporty character.
The new colour scheme uses water decals with the aim of achieving refined, complex graphics inspired by works of street art. The graphics cover the entire motorcycle, for an overall effect similar to that of an aerograph. The RVE logo, positioned on the rear panels, is an added touch identifying the new Graffiti Evo livery.
Engine
The Hypermotard 950 RVE is equipped with a revised version of the 937cc Ducati Testastretta 11° twin-cylinder compliant with Euro 5 emissions regulations*.
*only in countries where Euro 5 applies
High-tech fun
The modern and sophisticated electronics aboard the Hypermotard 950 include Bosch Cornering ABS EVO, integrated with the Slide by Brake function that allows for controlled and safe slides into the corners, and Ducati Wheelie Control (DWC) EVO, which can be monitored at all times on the 4.3 TFT display.
Lightness and simplicity
The rear subframe is particularly narrow in the area where it meets the main frame, which allows for a saddle that is narrow at the sides with an increasingly reduced straddle arch. This means that, compared to any other seat of similar height, the rider can more easily reach the ground with both feet.
Technical Specifications
Type
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled, magnesium head covers
Displacement
937 cc (57 cu in)
Bore x Stroke
94 x 67.5 mm
Compression Ratio
13.3:1
Power
84 kW (114 hp) @ 9,000 rpm
Torque
96 Nm (71 lb-ft) @ 7,250 rpm
Fuel Injection
Electronic fuel injection system, Ø 53 mm throttle bodies with Ride-by-Wire system
Exhaust
Double under-tail aluminium muffler, catalytic converter and two lambda probes.
Gearbox
6 speed with Ducati Quick Shift up/down
Primary drive
Straight cut gears, Ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain Front sprocket 15, Rear sprocket 43
Clutch
Slipper and self-servo wet multiplate clutch, hydraulic control
Frame
Tubular steel Trellis frame
Front suspension
Marzocchi aluminium fully adjustable, upside-down Ø 45 mm
Front Wheel
Y shaped 3-spoke light alloy 3.5" x 17"
Front Tyre
Pirelli Diablo Rosso III, 120/70 ZR17
Rear suspension
Progressive linkage with adjustable spring preload and rebound damping Sachs monoshock. Aluminium single-sided swingarm
Rear Wheel
Y shaped 3-spoke light alloy 5.5" x 17"
Rear Tyre
Pirelli Diablo Rosso III, 180/55 ZR17
Wheel Travel (Front/Rear)
170 mm (6.7 in) - 150 mm (5.9 in)
Front Brake
2 x 320 mm semi-floating aluminium flange discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, radial pump with adjustable lever, with Bosch Cornering ABS
Rear Brake
245 mm disc, 2-piston caliper, with Bosch Cornering ABS
Instrumentation
Full-TFT colour display
Wet weight no fuel
193 kg (425 lb)
Seat Height
870 mm (34.2 in)
Kerb Weight
200 kg (440 lb)
Wheelbase
1,493 mm (58.8 in)
Rake
25°
Trail
104 mm (4.1 in)
Fuel Tank Capacity
14.5 l (3.8 US gal)
Number of Seats
2
Safety Equipment
Riding Modes, Bosch Cornering ABS, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO.
Standard Equipment
Power Modes, Day Time Running Light (DRL), Ducati Quick Shift (DQS) up/down EVO, Tapered aluminium handlebars, Removable passenger footpegs, USB power
Ready for
Anti-theft system, Heated grips, Ducati Multimedia System (DMS)
Warranty
24 Months, Unlimited mileage
Maintenance service intervals
15,000 km (9,000 miles) / 12 months
Valve Clearance Check
30,000 km (18,000 miles)
Notes
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
