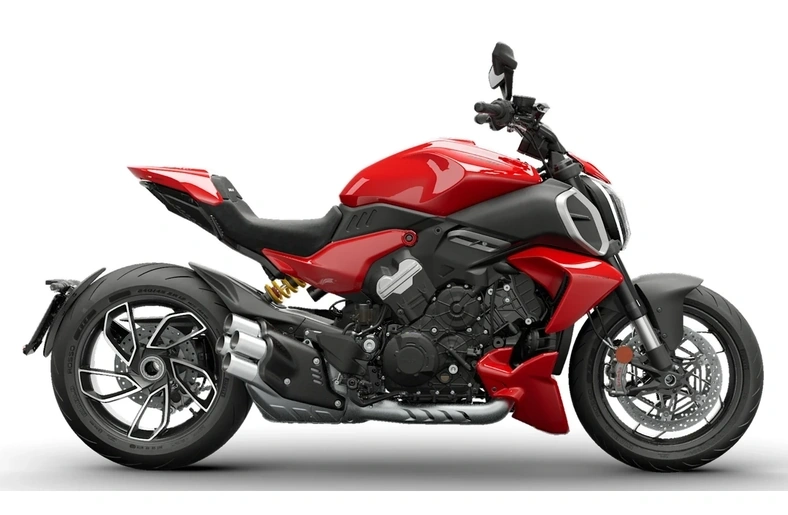

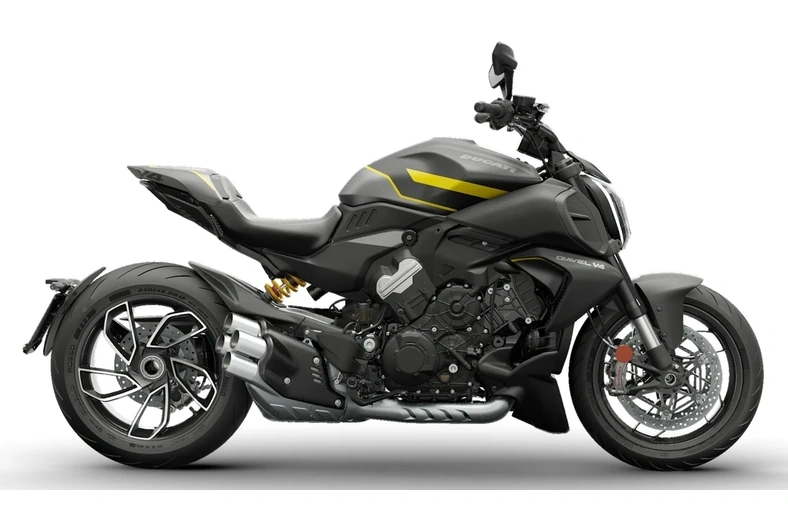

Muscular, sporty, exaggerated and elegant at the same time, able to magnetize attention in any context, Diavel V4 synthesizes seemingly distant technical, dynamic and stylistic features, such as those of sport nakeds and muscle roadster.
In the Diavel philosophy, the engine is the core around which everything revolves: performance, character and style. That's why Ducati designers started with the V4 Granturismo, making it the heart of all design elements, with the mechanics prominently displayed as a distinctive feature.
Sporty and muscular design
With a steel fuel tank and a muscled, sculptural shape recalling Ducati sports bikes, the tail is light, slender and sharp. The air intakes are a breaking element in the side view, communicating all the muscular power.
The unmistakable Diavel signature
The rear light cluster consists of a matrix of punctiform LEDs positioned under the tail, also with an unmistakably Diavel optical signature: a unique, unprecedented and spectacular solution that makes the bike instantly recognisable
Passenger Folding Footrests
To maintain a clean design in the single-seater configuration and at the same time offer the possibility to ride with a passenger, there are folding footpegs and a retractable rear handle: two solutions capable of perfectly synthesizing style and practicality.
Exhaust
The exhaust design is prominent in the side view and ends with a four-outlet muffler that immediately reveals of the 4-cylinder architecture of the V4 Granturismo engine.
Tyres and rims
Five-spoke wheels featuring an exclusive design with machined surfaces. At the front, the wheel rim is 3.5'' x 17'', while at the rear there is an 8.0'' x 17'' rim. A 120/70 ZR17 tyre is mounted on the front rim, while the rear tyre is 240/45 ZR17. The tyres are Pirelli Diablo Rosso III.
Muscular, sporty, exaggerated and elegant at the same time, able to magnetize attention in any context, Diavel V4 synthesizes seemingly distant technical, dynamic and stylistic features, such as those of sport nakeds and muscle roadster.
content_description2
Engine;Transmission;Chassis;Dimensions & Weights;Equipment;Warranty;Emissions & Consumption#####Type|V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled;Displacement|1,158 cc (71 cu in);Bore x Stroke|83 mm x 53.5 mm;Compression Ratio|14.0:1;Power|168 hp (124 kW) @ 10,750 rpm;Torque|12.8 kgm (126 Nm, 93 lb ft) @ 7,500 rpm;Fuel Injection|Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system;Exhaust|Stainless steel exhaust muffler with 4 exit pipes#####Gearbox|6 speed with Ducati Quick Shift up/down;Primary drive|Straight cut gears, Ratio 1.80:1;Ratio|1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25;Final drive|Chain, front sprocket z16, rear sprocket z43;Clutch|Hydraulically controlled slipper and self-servo wet multiplate clutch#####Frame|Aluminium monocoque frame;Front suspension|Ø 50 mm fully adjustable usd fork;Front Wheel|Light alloy cast, 3,5" x 17";Front Tyre|Pirelli Diablo Rosso III, 120/70 ZR17;Rear suspension|Fully adjustable monoshock, aluminium single-sided swingarm;Rear Wheel|Light alloy cast, 8,0" x 17";Rear Tyre|Pirelli Diablo Rosso III, 240/45 ZR17;Wheel Travel (Front/Rear)|120 mm / 145 mm (4.7 in / 5.7 in);Front Brake|2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston calipers, radial master cylinder PR16/19, Cornering ABS;Rear Brake|Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS;Instrumentation|5" TFT colour display#####Wet weight no fuel|223 kg (492 lb);Seat Height|790 mm (31.1 in);Wheelbase|1,593 mm (62.7 in);Rake|26°;Trail|112 mm (4.4 in);Fuel Tank Capacity|20 l (5.3 US gal);Number of Seats|2#####Safety Equipment|Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Brake Light;Standard Equipment|Ducati Quick Shift, Ducati Power Launch, Cruise control, Hands-Free, 5" TFT colour display, Ducati Multimedia System, Backlit handlebar switches, Full-LED lighting system, Dynamic turn indicators*;Ready for|Turn-by-Turn navigation system#####Warranty|24 months, unlimited mileage;Annual Service|12 months;Oil Service|15,000 km (9,000 miles) / 24 months;Valve Clearance Check|60,000 km (37,000 miles)#####CO2 Emissions|60,000 km (37,000 miles)+C43
