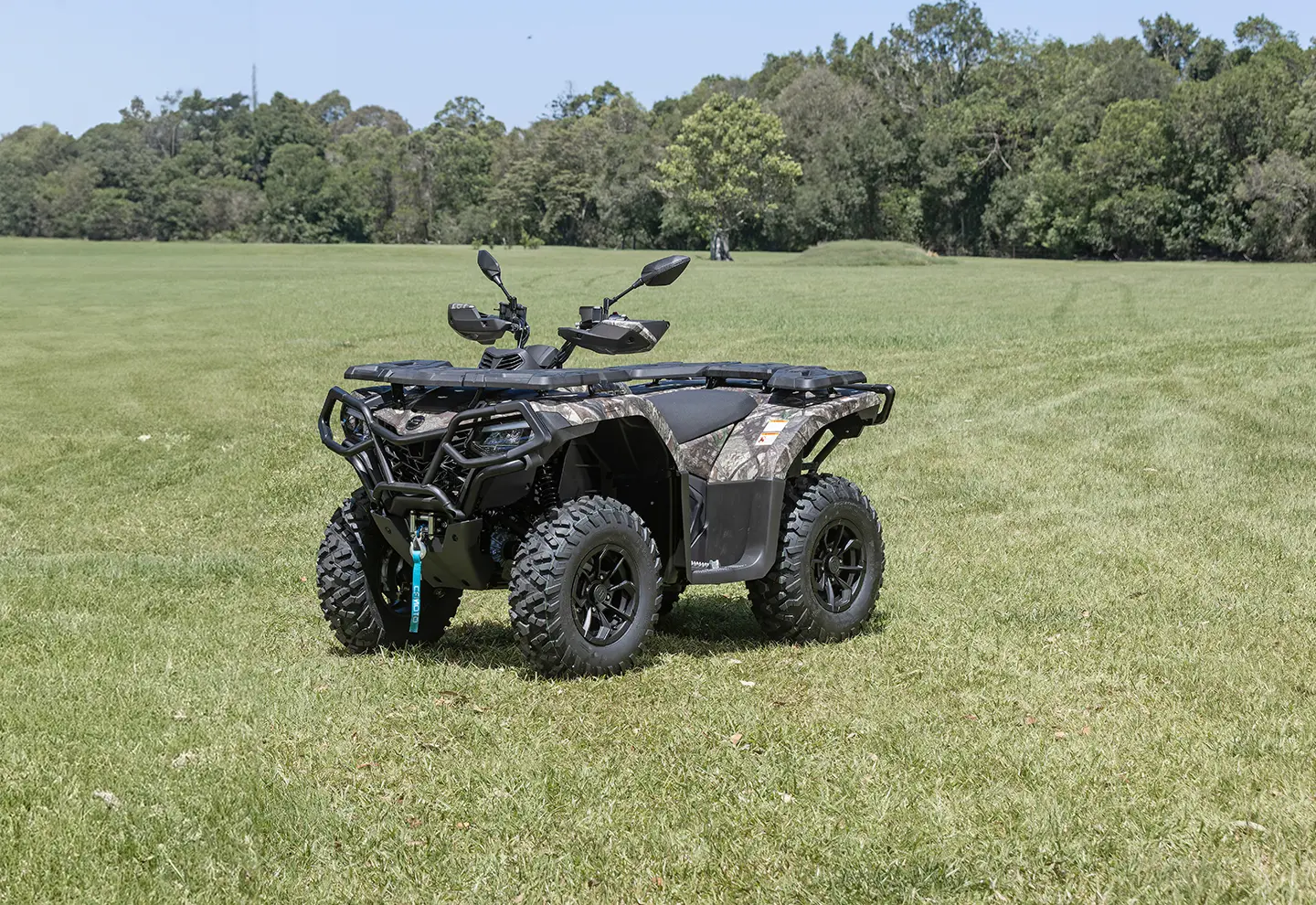

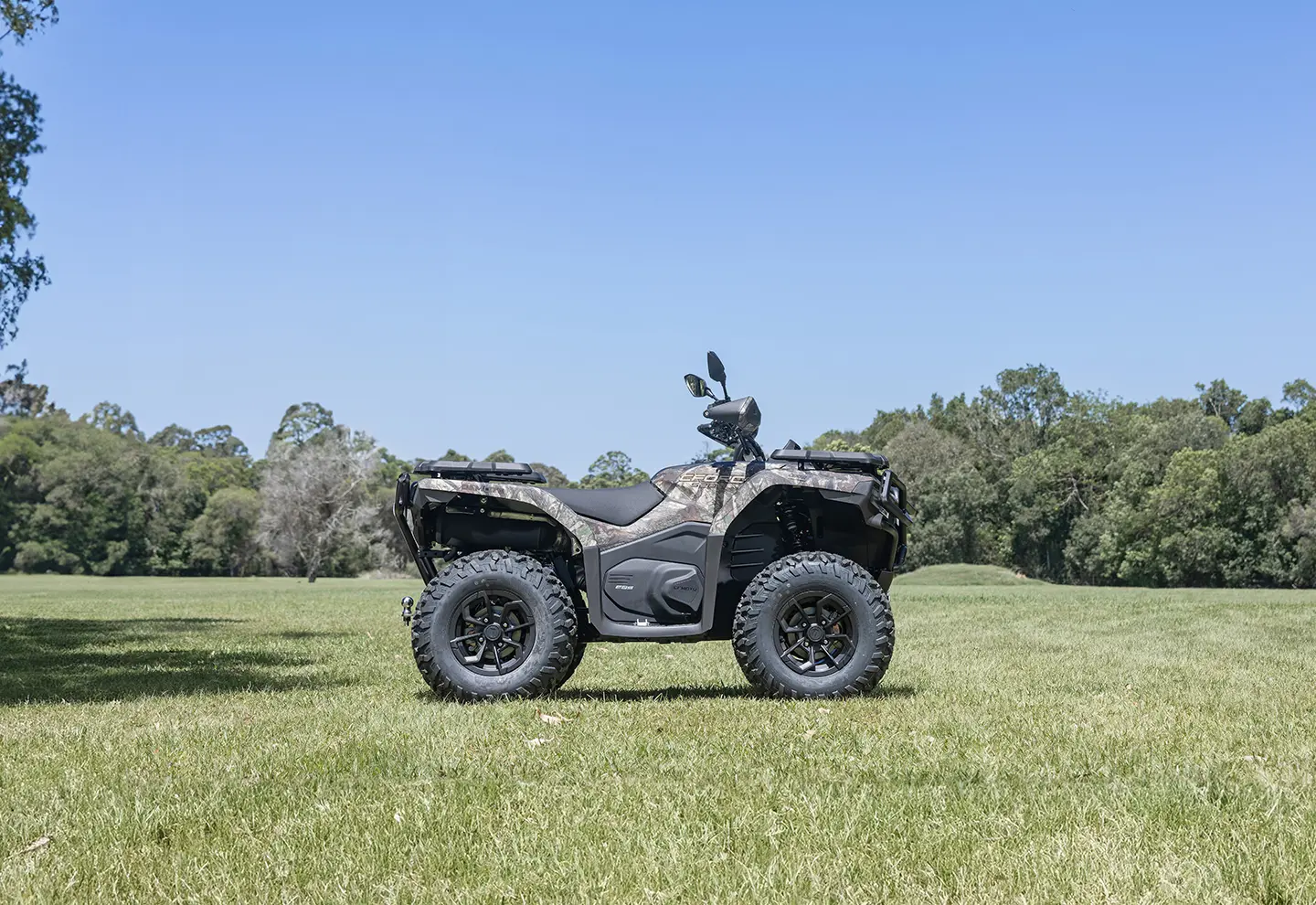

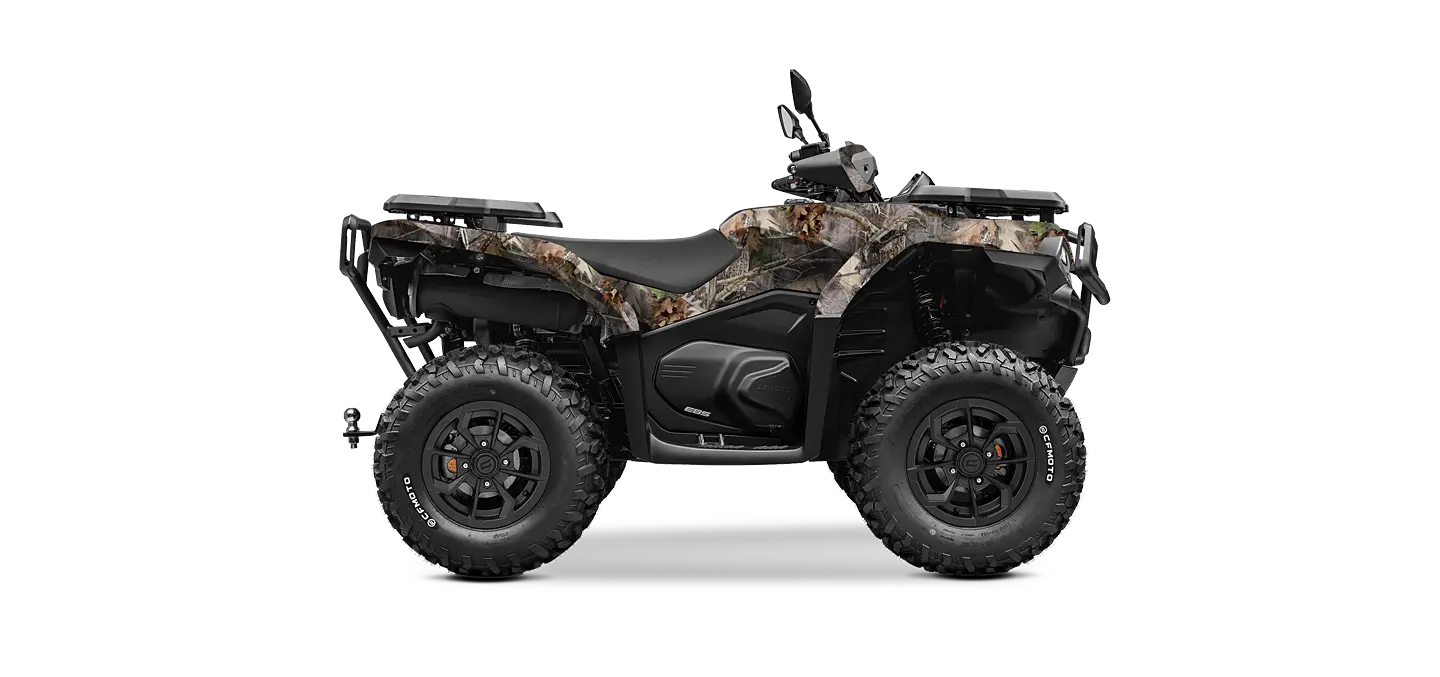

CForce 520 EPS Hunt

HUNT EDITION

The CFORCE 520 EPS HUNT stands out with a range of purpose-driven enhancements specifically designed to meet the demands of outdoor enthusiasts and hunters alike, including front and rear steel protection bars, rugged HPDE A-Arm guards, and an exclusive Camo colour scheme.

*Overseas model without Quadbar OPD installed.

MAKE AN ENQUIRY

Features

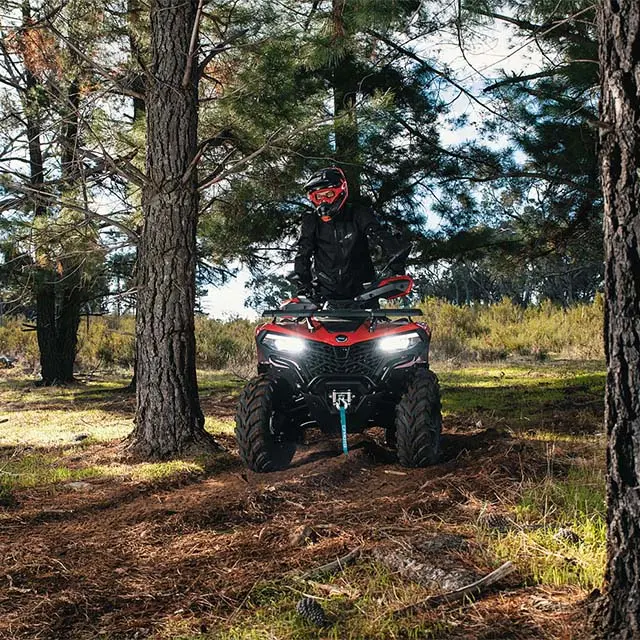

WORK ASSETS
WORK ASSETS

The CFORCE 520's work-ready attitude starts with the 34hp, 495cc, fuel-injected, four-stroke single-cylinder engine ‐ perfect for the farm ‐ with 2WD/4WD and a locking front differential. Other premium features: Force Red livery, alloy wheels, handguards, LED lights, five-inch LCD dash with Bluetooth connectivity, 2500lb winch, plastic racks and 25-inch tyres.

CFORCE 520 EPS model displayed.

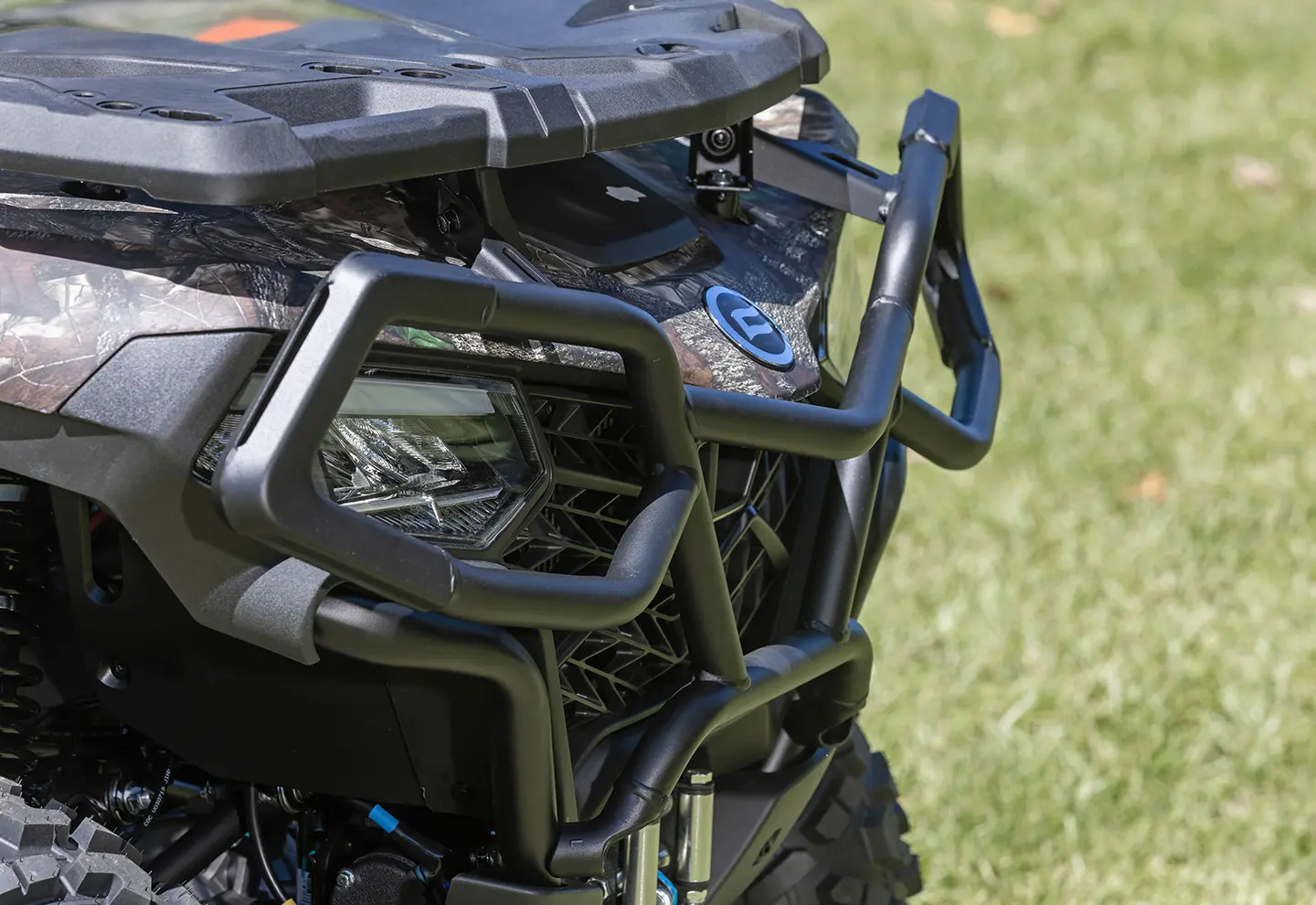

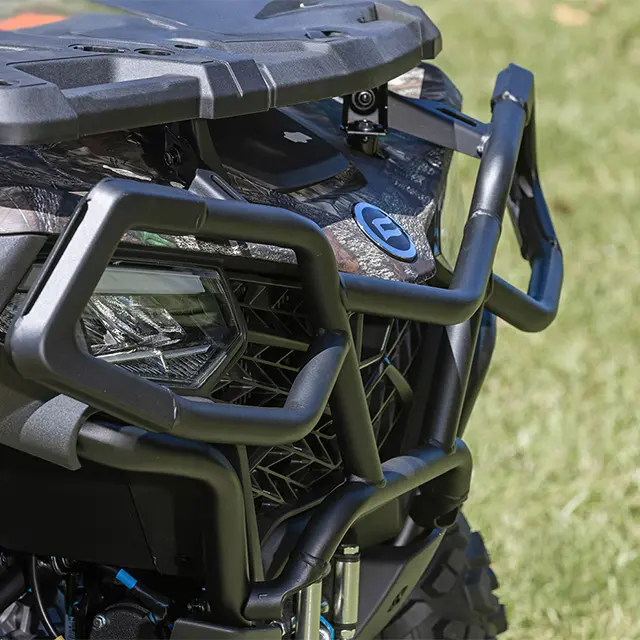

ADDED PROTECTION
ADDED PROTECTION

Crafted from steel tubes and finished with durable black powder-coating, the front and rear protection bars are designed and engineered to perfectly harmonise with the ATV's contours. These bars are not only built to safeguard the ATV but are also suitable for use within cattle herds, offering protection to the vehicle and livestock.

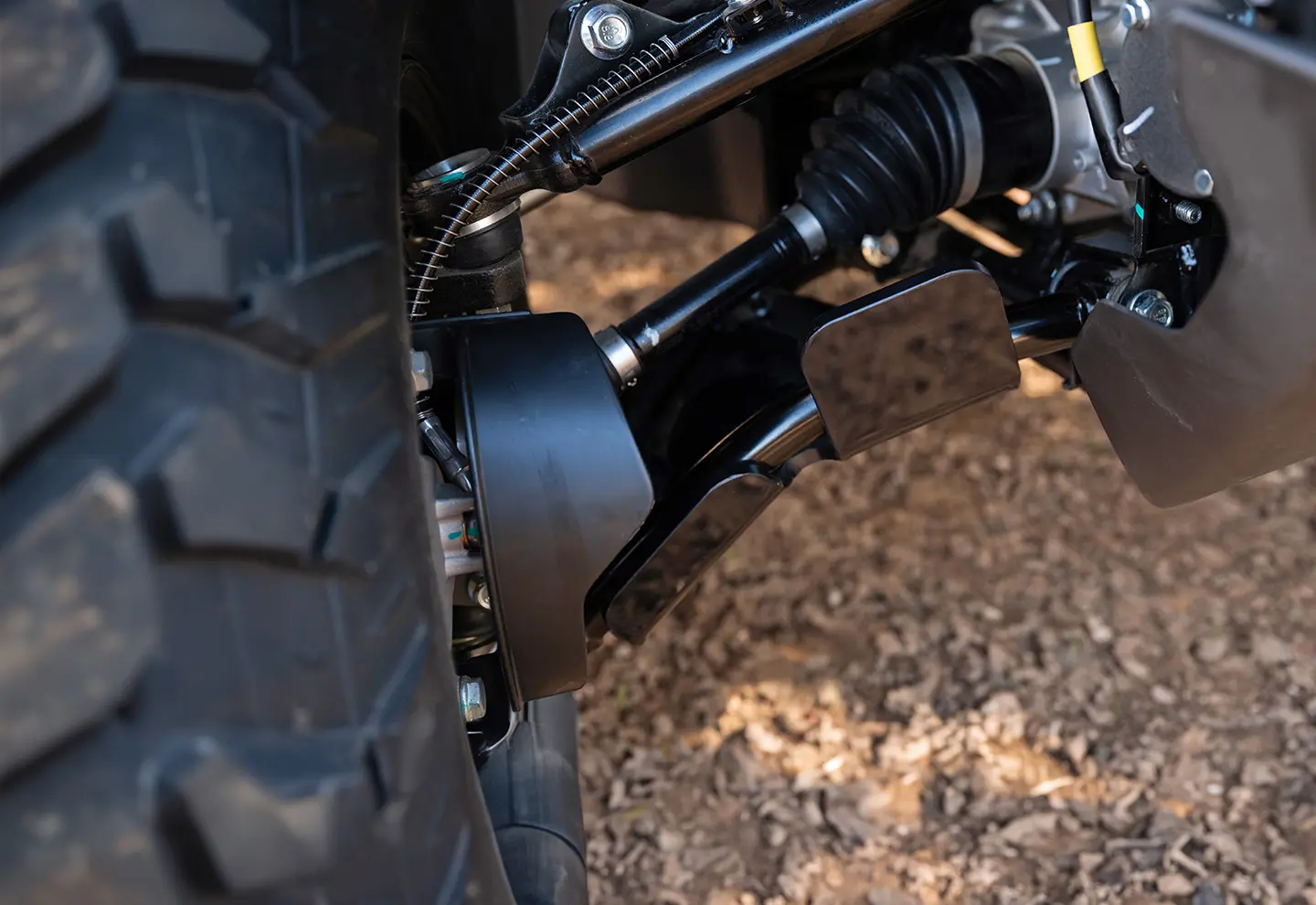

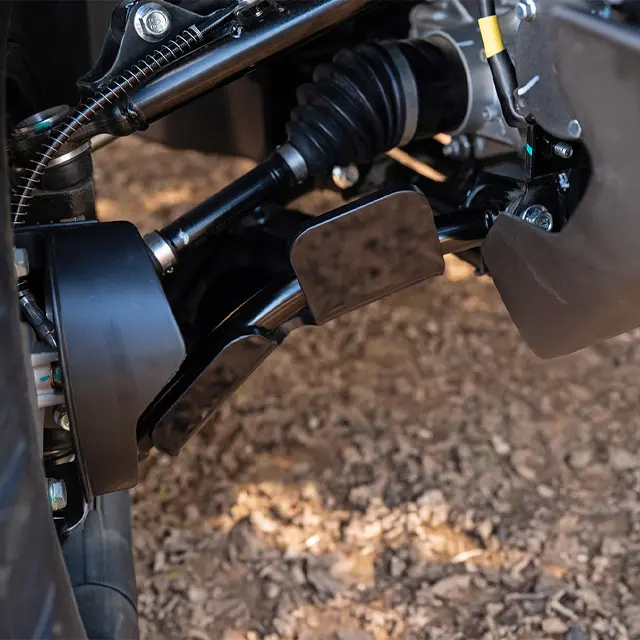

HDPE GUARDS
HDPE GUARDS

Precision-cut and constructed with high-strength materials, the A-Arm guards provide essential protection for the ATV's CV joints and rubber boots, ensuring your vehicle's longevity in the harshest terrains.

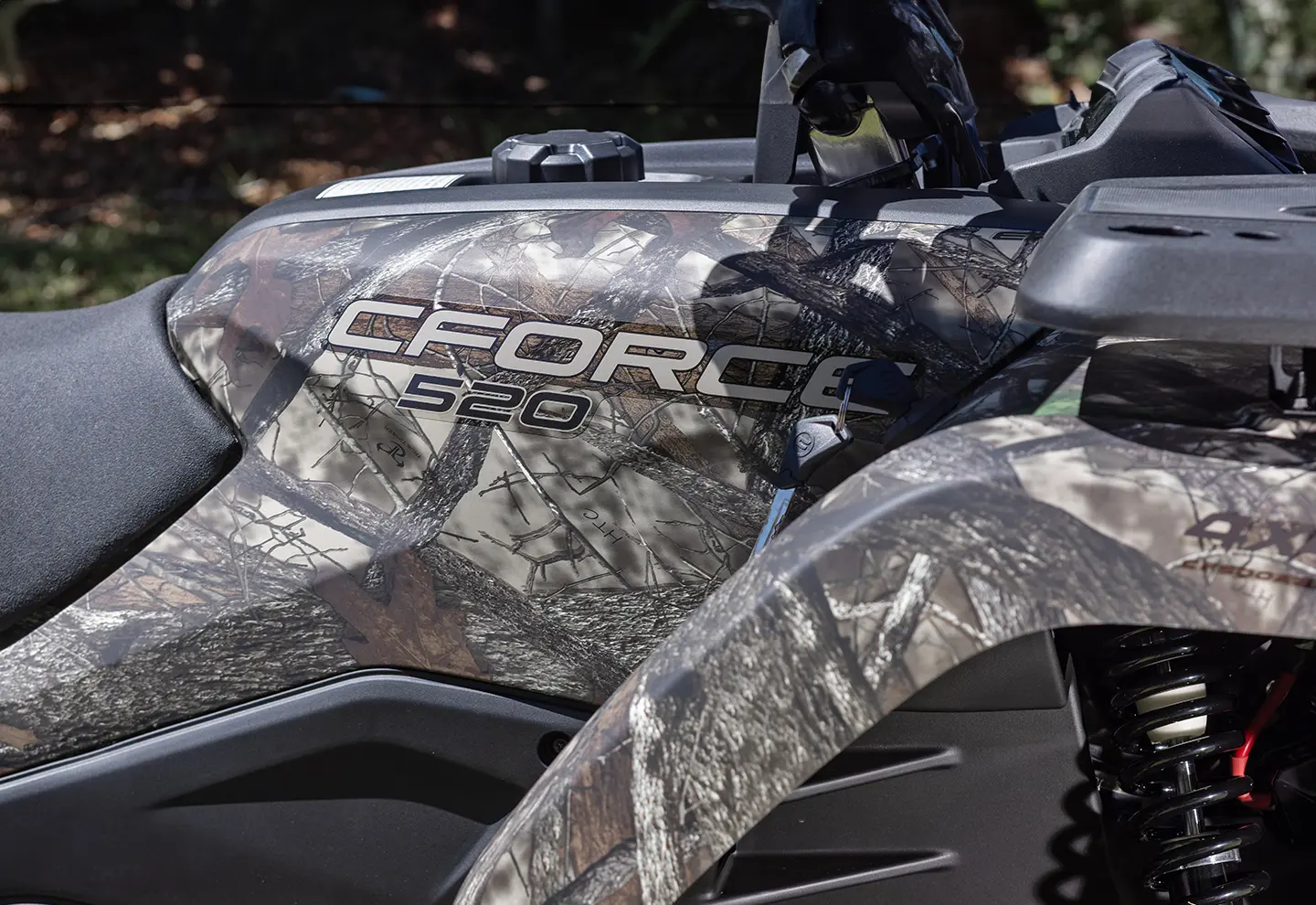

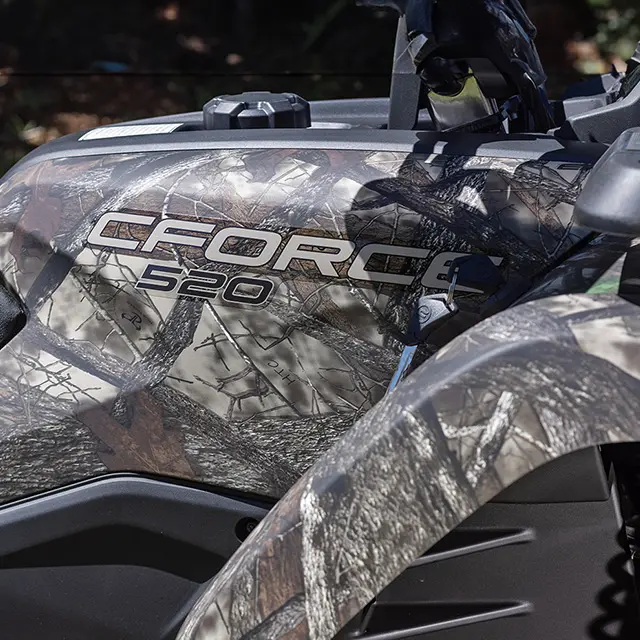

CAMO
CAMO

The distinctive matte camo livery of the CFORCE 520 EPS HUNT allows it to blend into a wide range of environments seamlessly. This feature appeals to hunters and outdoor enthusiasts, providing the stealth and style needed for a successful outing.

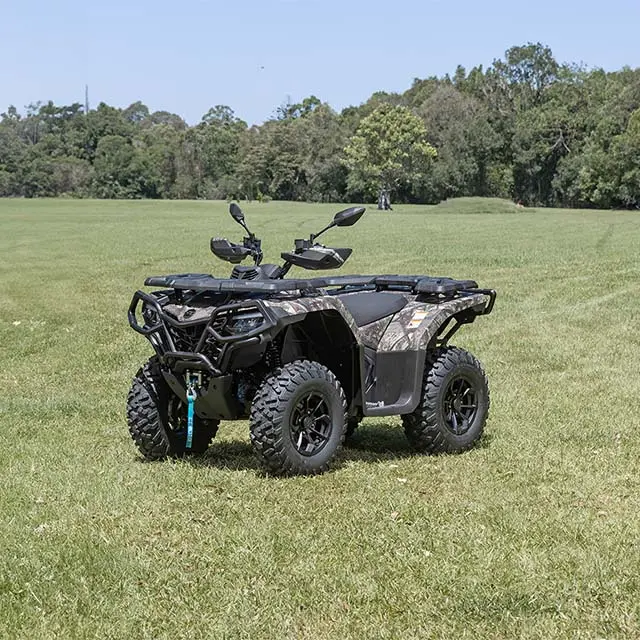

NUMBERS GAME
NUMBERS GAME

CFMOTO has left no stone unturned with the new CFORCE 520, and the results are compelling:

  • Stronger than ever with a 612kg towing capacity;
  • 25 per cent tighter turning radius, now down to 5.6 metres one-up;
  • 50 per cent more front and rear rack loading capacity;
  • 30 per cent stronger and 10 per cent lighter frame;
  • 26 per cent more suspension travel;
  • 21 per cent more fuel capacity;
  • 25 per cent less leg area temperature; and
  • Reduced vibration through handlebar, footrests and seat.

CFORCE 520 EPS model displayed.

NEW ATV LEGISLATION
NEW ATV LEGISLATION

Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the 'Quad Bike Safety Standard Compliant' logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery. For more information on Quadbar OPDs, visit www.quadbar.com.

Overseas model shown without Quadbar OPD installed. For more information on the new ATV legislation, head to our ATV legislation page in the menu or speak to your local dealer.

CFORCE 520 EPS model displayed.

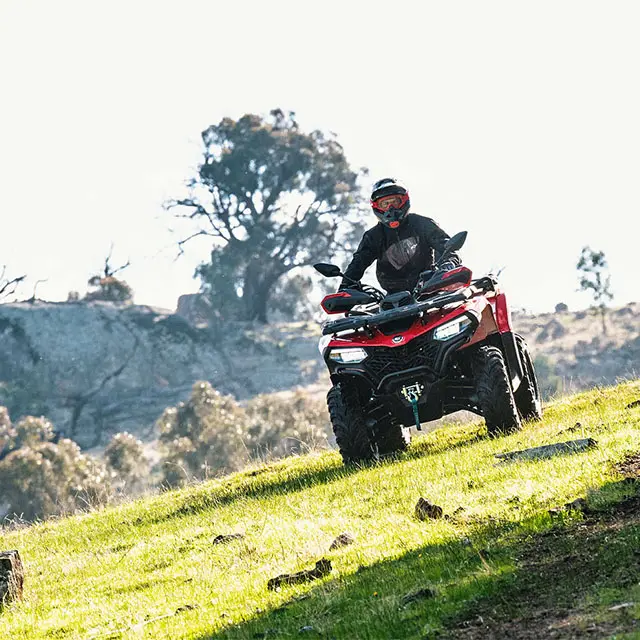

TILT ANGLE
TILT ANGLE

To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 520 EPS (MY23) exceeds the minimum lateral stability tilt angle test with a result of 30.3 degrees.

CFORCE 520 EPS model displayed.

SUPPORT YOU CAN TRUST
SUPPORT YOU CAN TRUST

Trusted by more than 30,000 Aussie Farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by an 80-plus national dealer network to keep you going 24/7.

Technical Specifications

Engine type
Four-stroke single-cylinder
Displacement
495cc
Maximum power
38hp (28.3kW) at 7,000rpm
Maximum torque
39Nm at 5,750rpm
Fuel system
BOSCH EFI
Transmission
CVT with engine braking
Drive
H-L-N-R-Park
4WD
2WD/4WD with locking front differential
Rear differential
Fixed
Steering
Power
Suspension
Double A-Arm, independent
Brakes
Hydraulic disc brakes
Wheels
12-inch alloy
Tyres
25-inch 6-ply CST
L x W x H
2,186 x 1,125 x 1,162mm
Wheelbase
1,260mm
Ground clearance
262mm
Wet weight
351kg
Towing capacity
612kg
Carrying capacity
30kg front/60kg rear
Payload capacity
240kg
Person
One
Fuel capacity
17lt
HUNT Protector bars
Both front and rear
HUNT HDPE A-arm guards
Yes
HUNT Camo colour scheme
Yes
Power steering
Yes
Alloy wheels
Yes
25 inch tyres
Yes
Premium carrier racks
Yes
LED headlights
Yes
5-inch LCD display
Yes

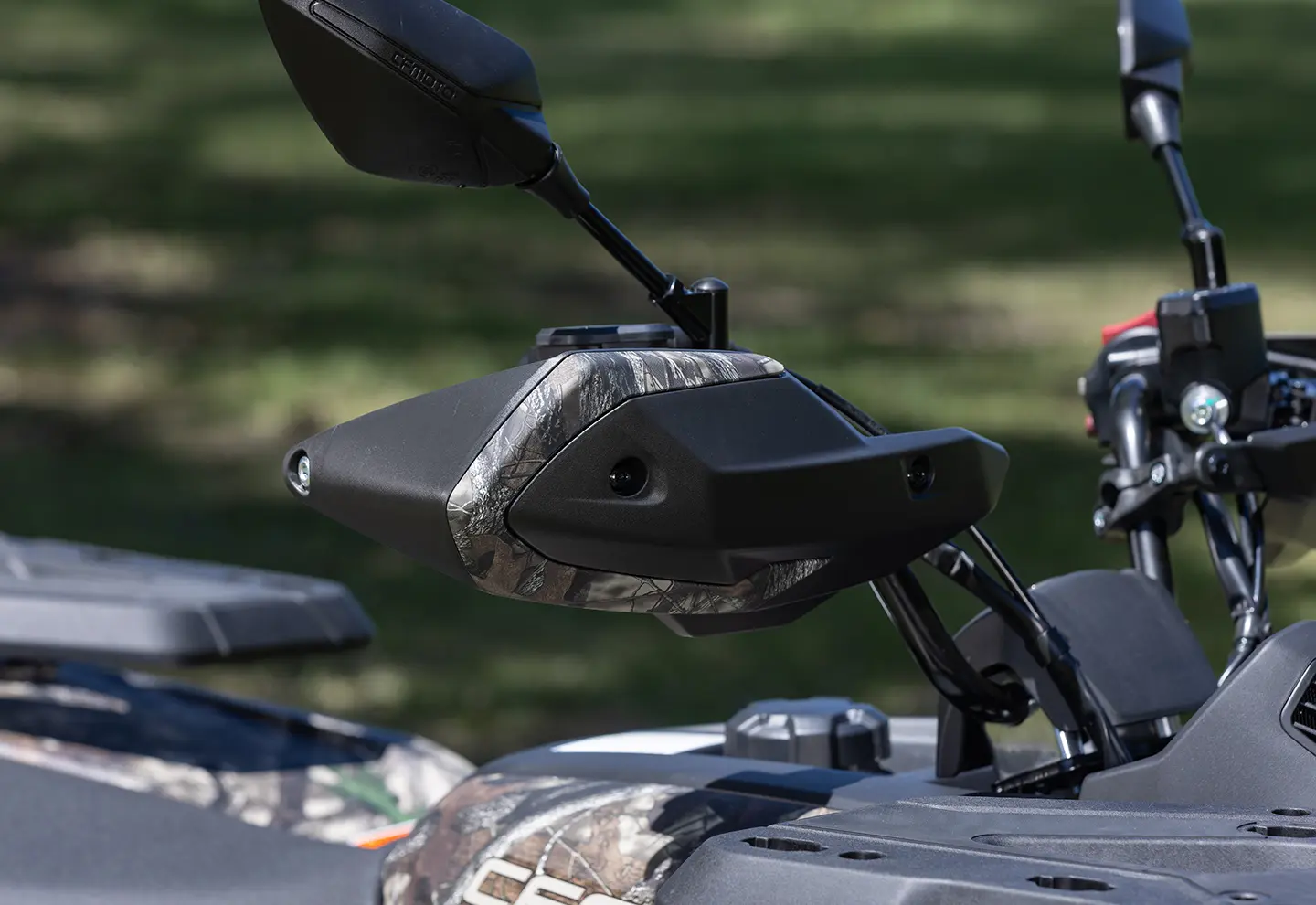

Handguards
Yes
Winch
2,500lb electric winch
Colour
Camo
Warranty
Two years
Tow pack, horn, lights and mirrors
Yes
