S 1000 XR FEATURES SPECS GALLERY

The BMW S 1000 XR is the ultimate symbiosis of long-distance capability and high-performance in a sportbike. Chase as many bends as you like – you alone decide when the ride ends. Improved in key areas, it now achieves a maximum output of 170 hp and offers you more comfort thanks to substantial adjustments. With the S 1000 XR, you can experience superior, sporty riding pleasure, even over longer distances. So what are you waiting for? Satisfy your hunger for adrenaline and show everyone what you've got: #NeverStopChallenging.

MAKE AN ENQUIRY

Features

The journey is the destination

For more comfort, even on long journeys: the optimised seat geometry provides more freedom of movement during the ride thanks to an increase in the usable seat length and width. The seat is available in three heights and is a real eye-catcher. And the rear end also stands out with a new, fresher look due to the air inlets familiar from motorsport.

Agility meets exclusivity

The M Forged wheels, which are available for the first time and come as part of the M package on the S 1000 XR M Sport, or individually as optional equipment, ensure especially good handling of the bike by reducing rotational mass. They are permitted for two people with luggage and are also a real eye-catcher thanks to standard rim stickers.

More power for more mileage

Thanks to various refinements, the power of the new S 1000 XR has increased by 5 hp. As a result, it now achieves a maximum output of 170 hp. The four-cylinder in-line engine continues to impress as a superb source of power for sporty, long-distance journeys. In addition, the bike now meets the latest EU5+ emissions standard. The software of the shift assistant Pro has been expanded by various functions and thus enables, among other things, improved load change damping during gear changes.

Cutting a dash

Not only technically, but also visually, a lot has changed here. The intake duct of the S 1000 XR stands out in a new design, and the beak is painted in the respective vehicle colour for the first time. The new colour scheme and exclusive tapes emphasise the bike's striking look. The front side trim panel has also been refined with black graining.

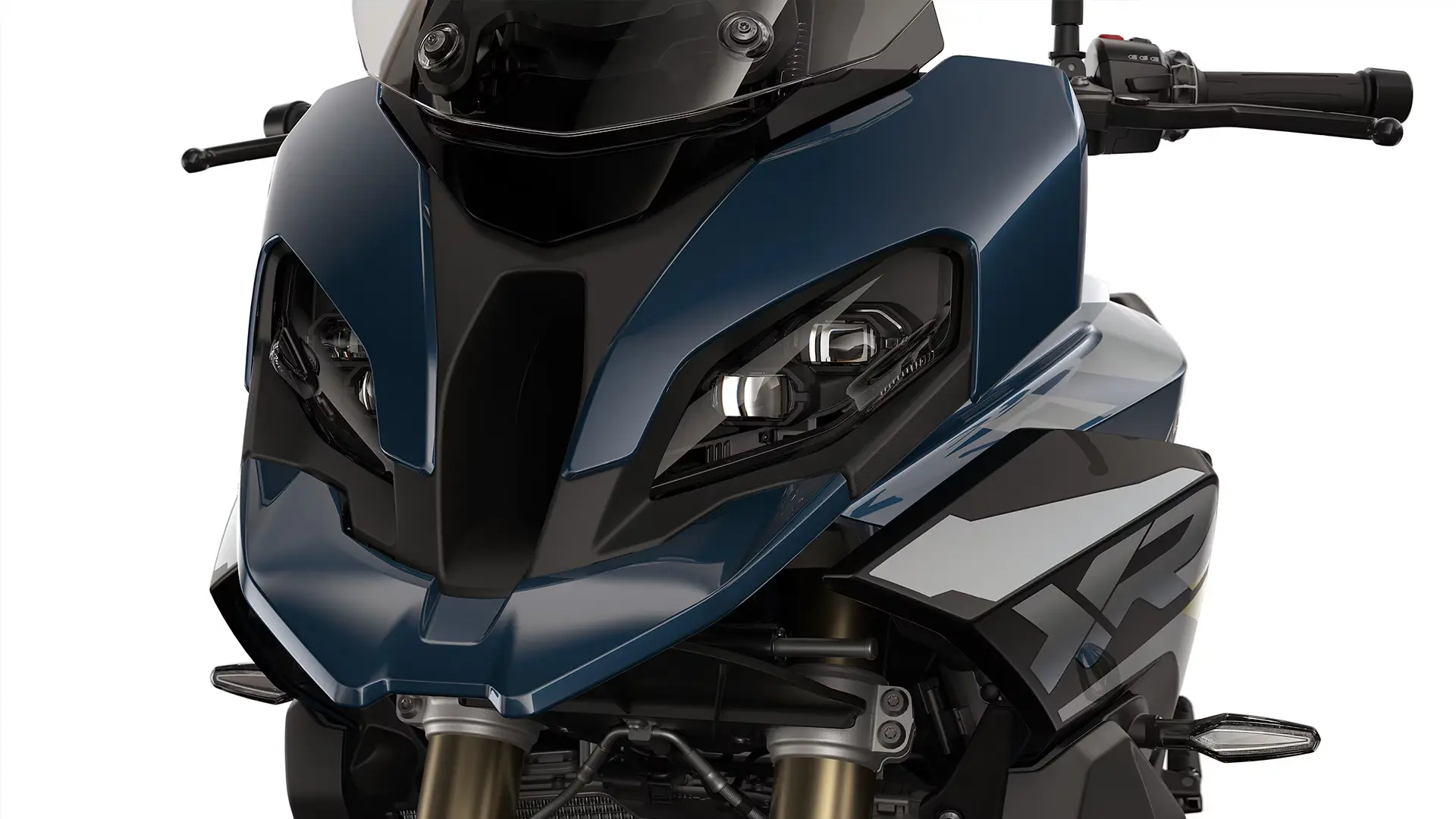

Striking front design

The front design with LED light stands out with an intensely sporty look, and the beak is painted in the respective vehicle colour for the first time.

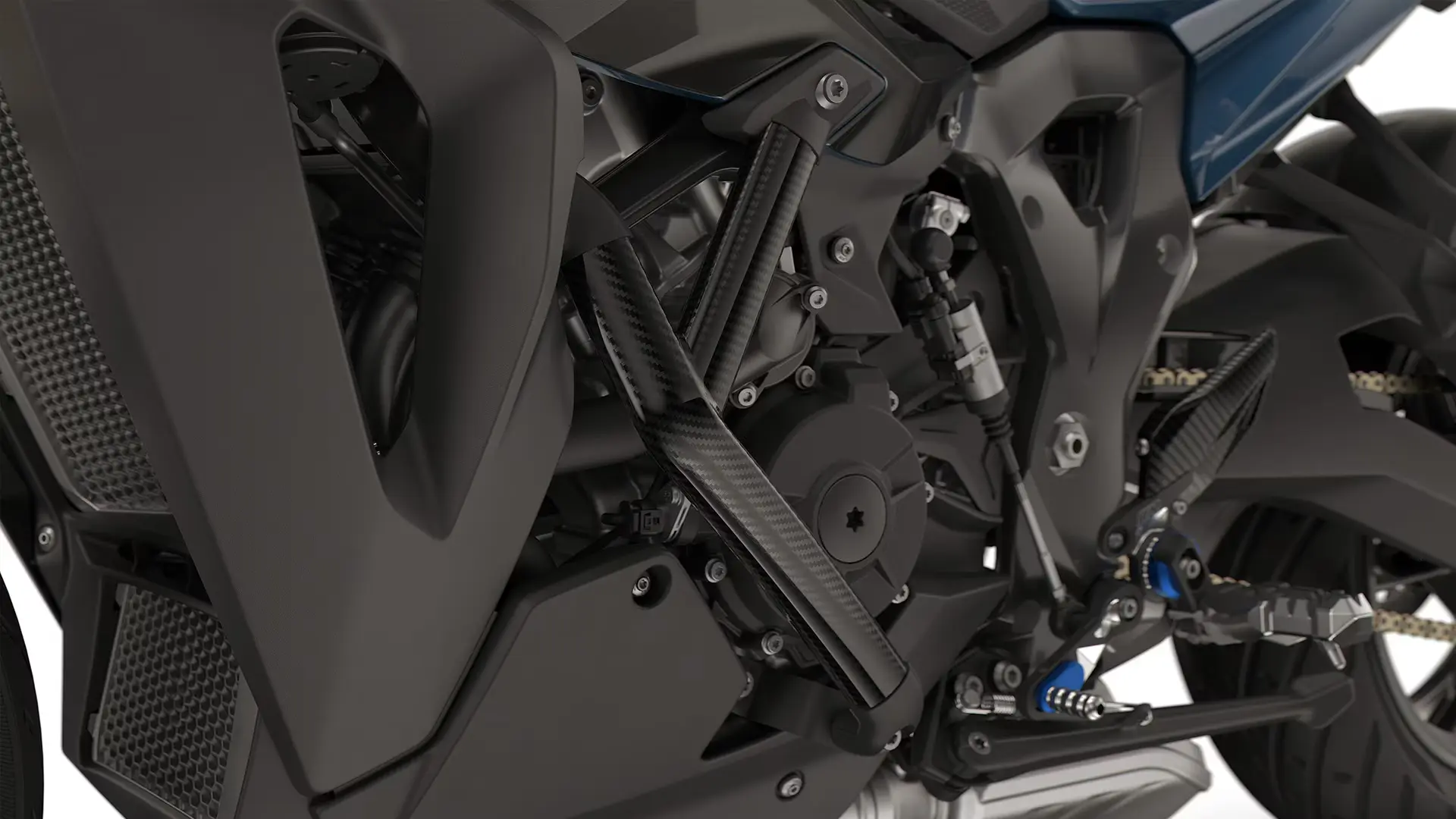

Comprehensive range of accessories

Whether it's high-quality milled parts or carbon equipment: our M Performance Parts from the factory or as accessories are developed for true enthusiasts.

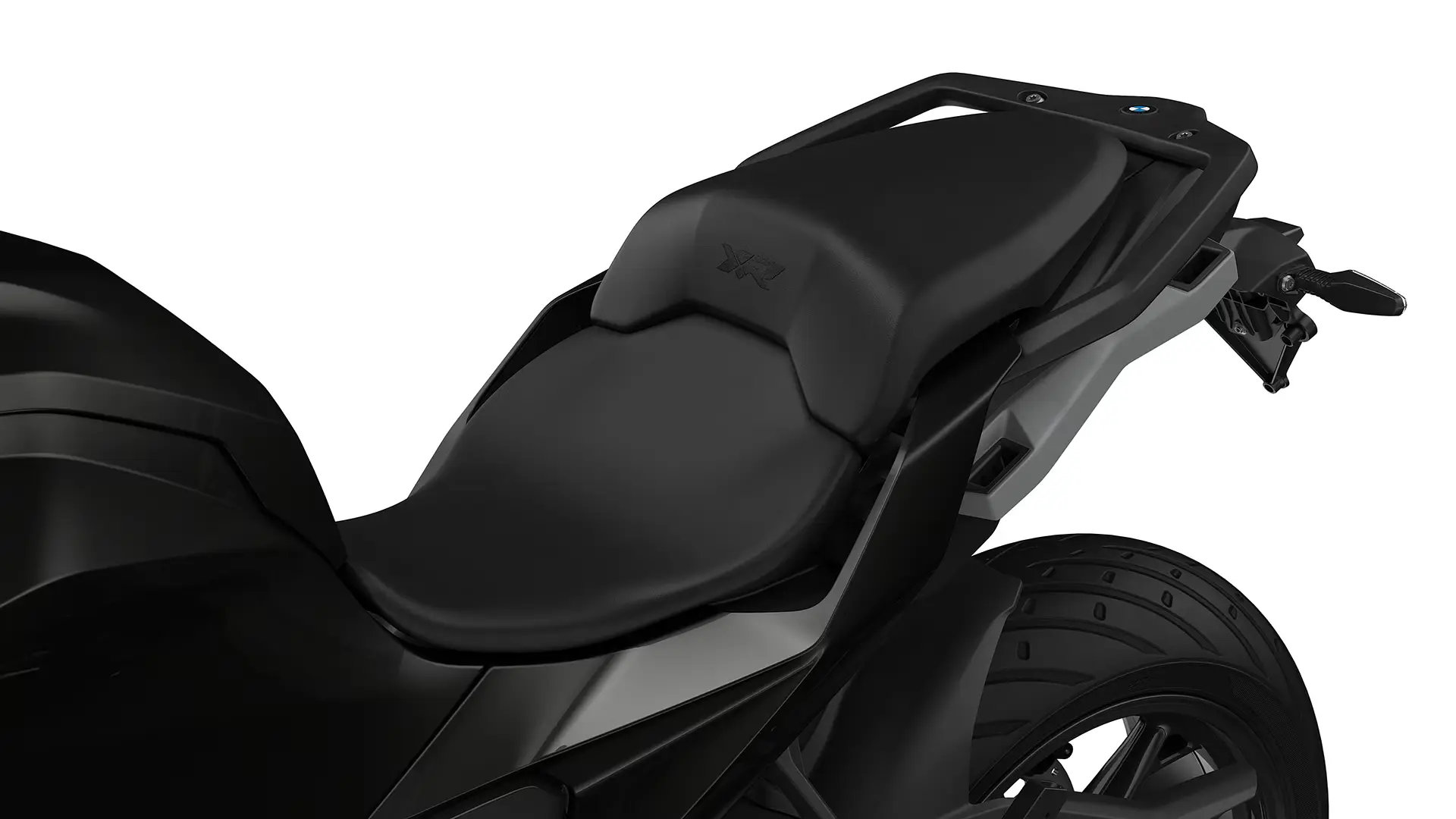

Various seat heights

With a range of seat heights available including low and high options, there is something for every rider.

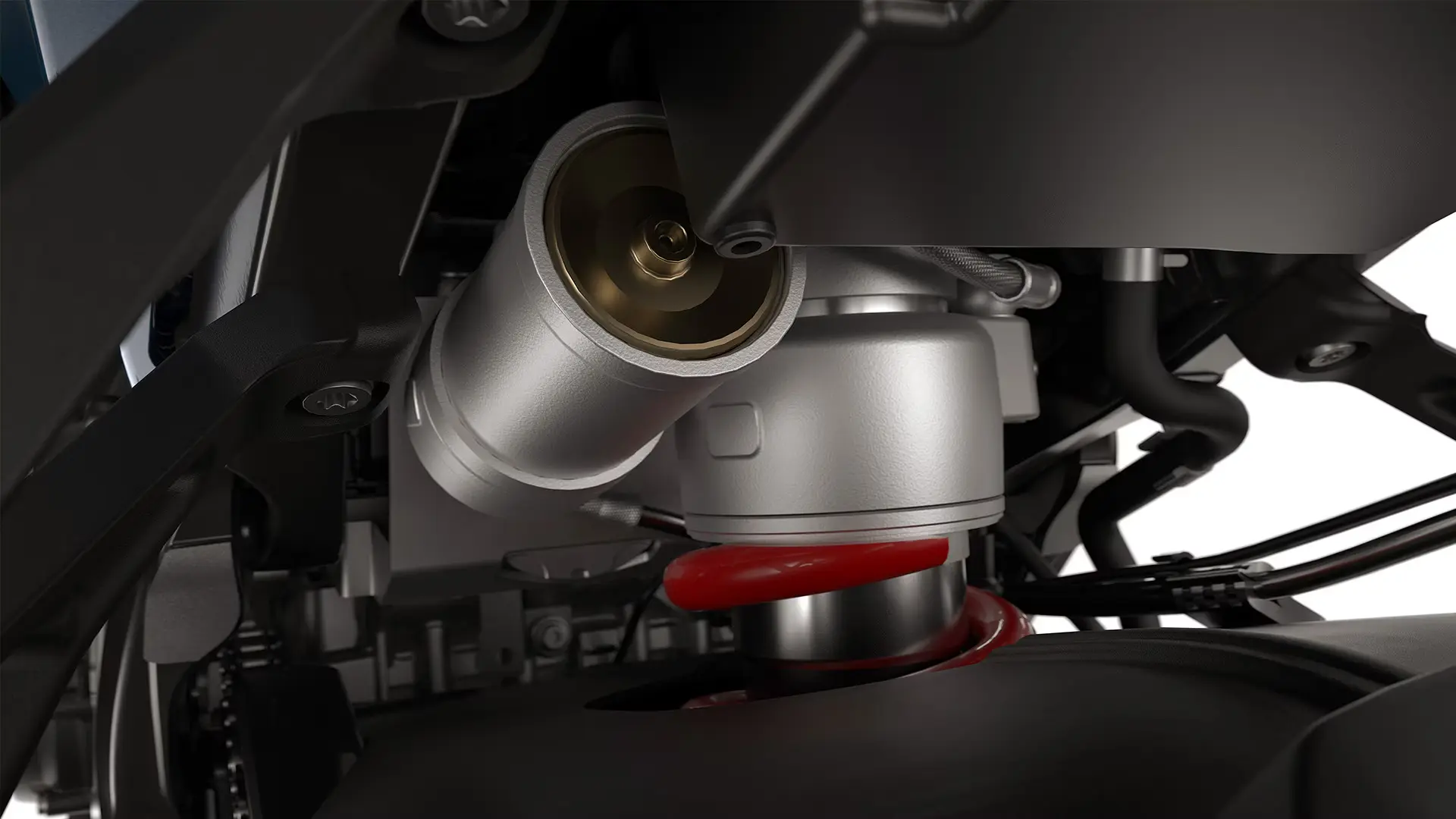

Dynamic ESA Pro

A new valve technology and a shim package like in racing: for an unprecedented control range between long distances and the racetrack. Available in the optional Dynamic Package.

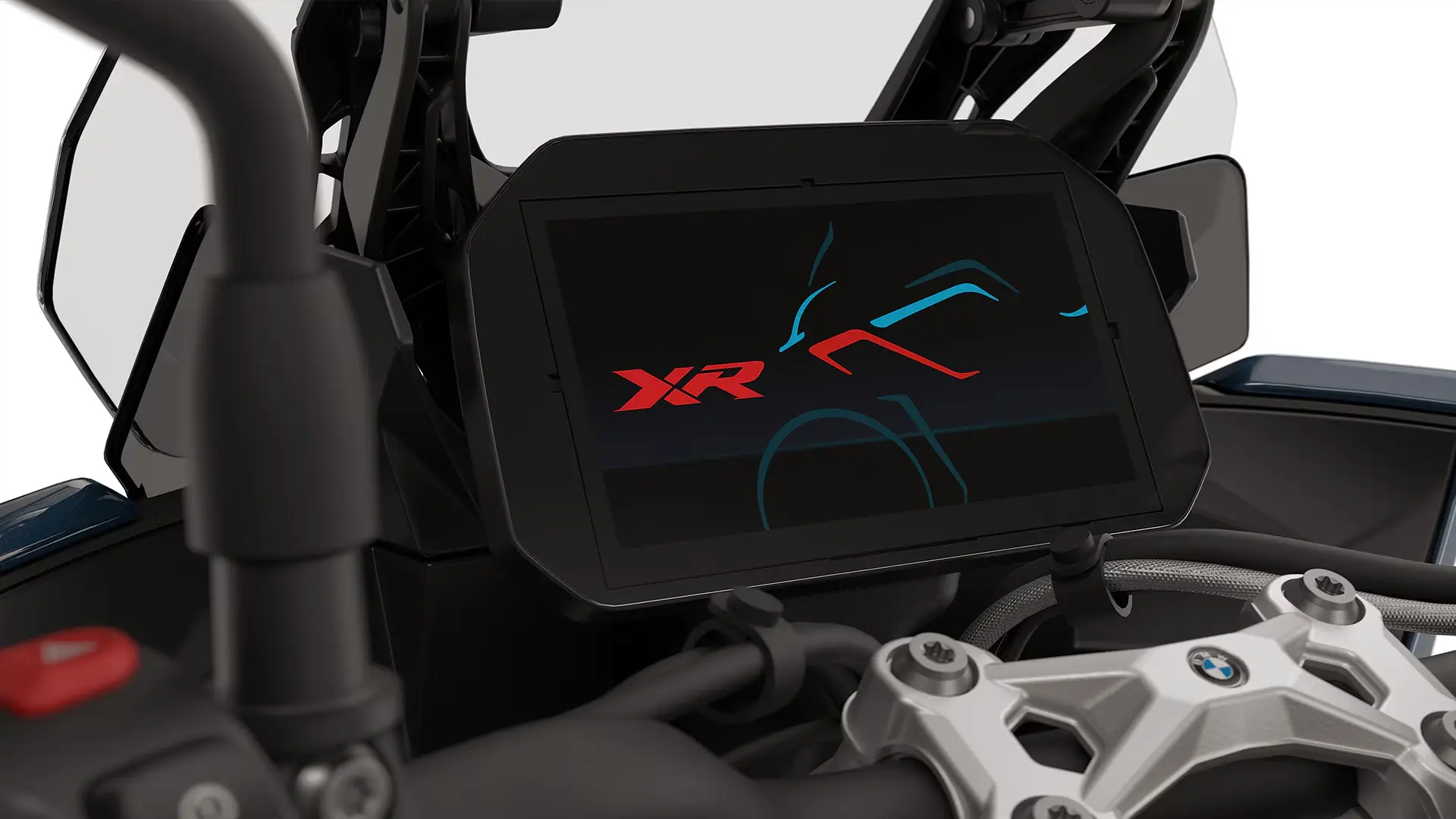

TFT with Connectivity

The 6.5" TFT display replaces the instrument panel. BMW Motorrad Connectivity connects smartphone, bike and helmet via Bluetooth. For navigation, your favourite songs and conversations.

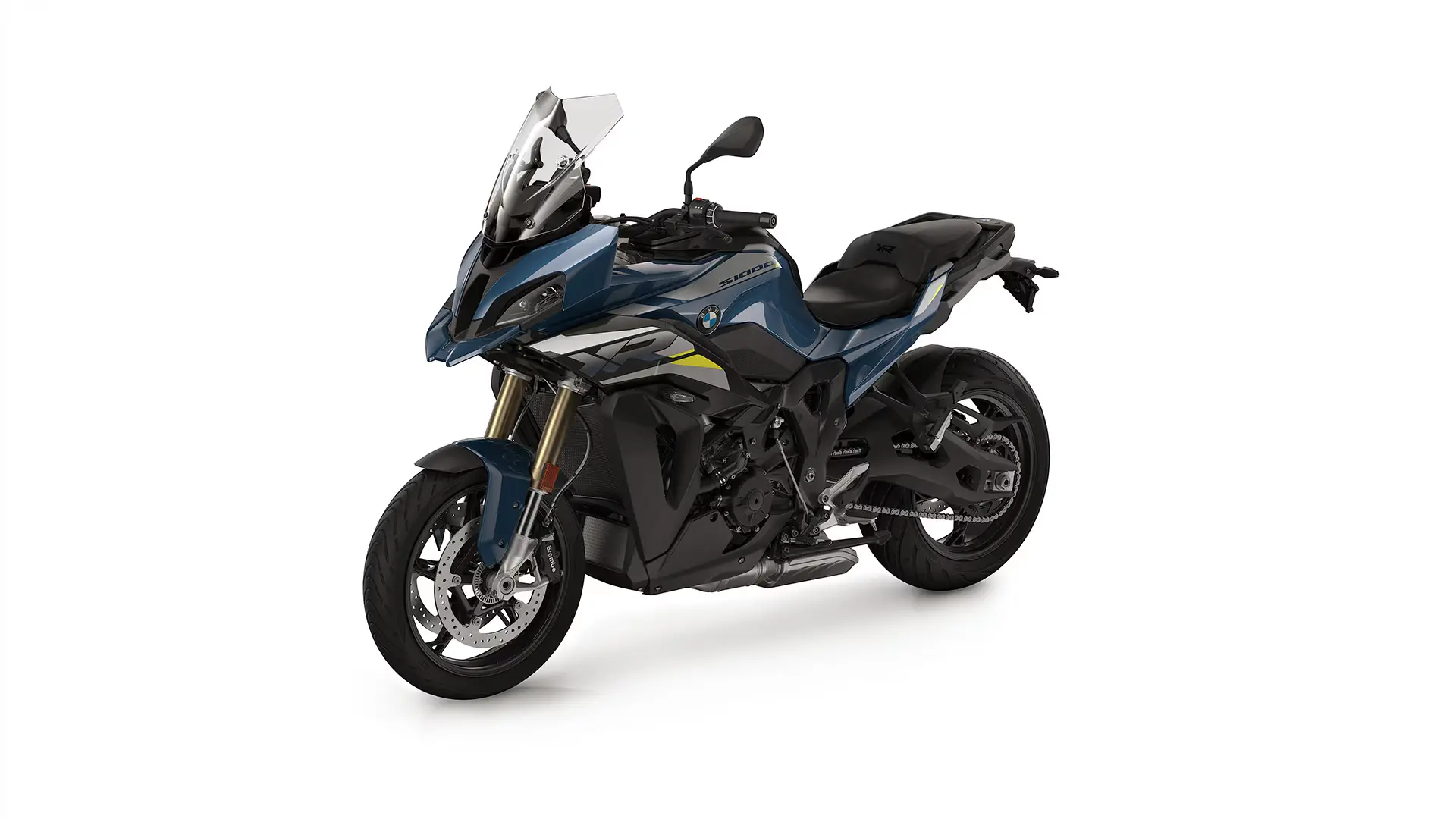

Optimised weight

The low weight delivers better acceleration and higher agility. In other words: more riding enjoyment and a sporty advantage.

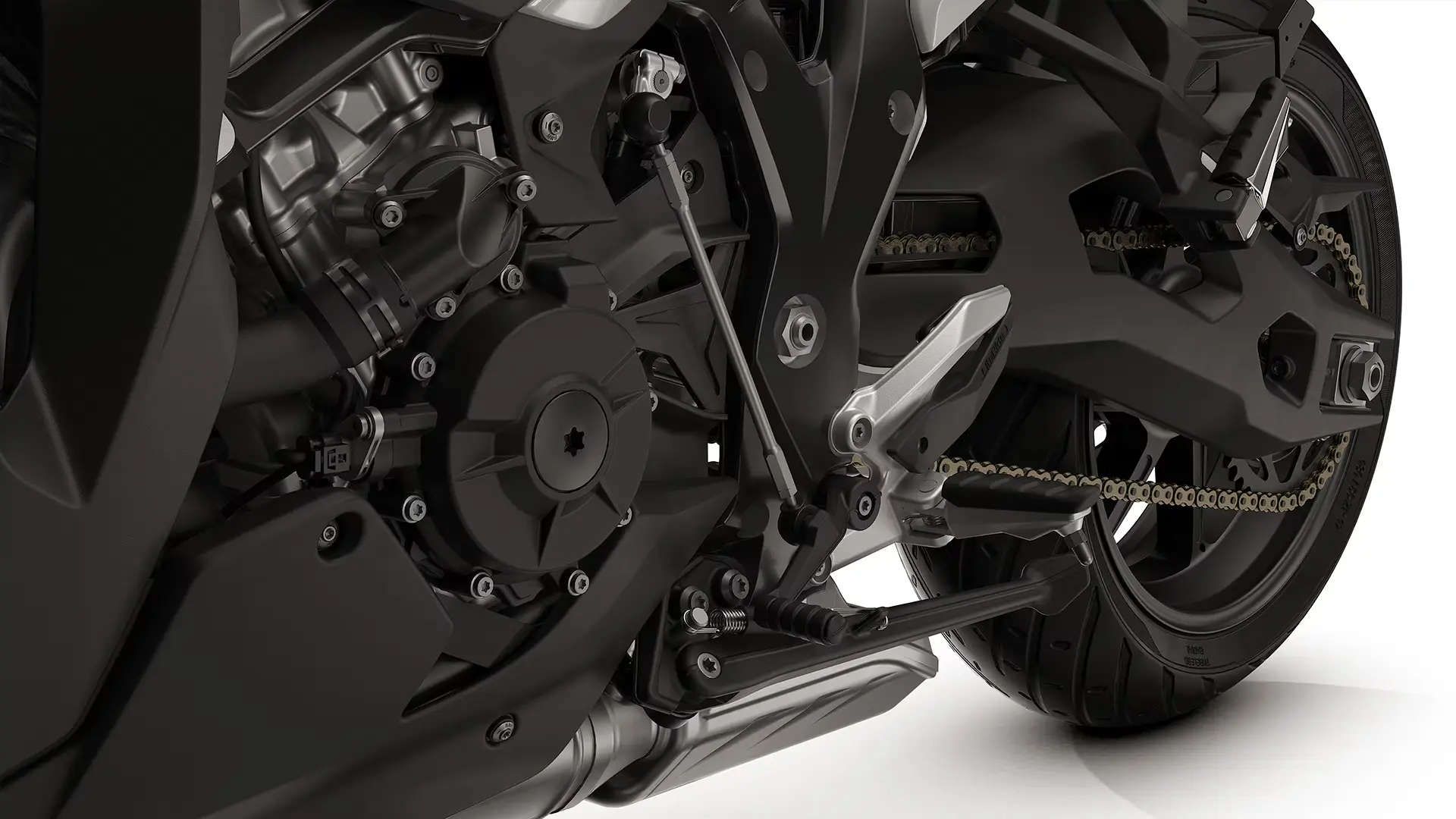

M package

The optional M package boosts the sporty profile of the S 1000 XR and provides a powerful and high-quality look.

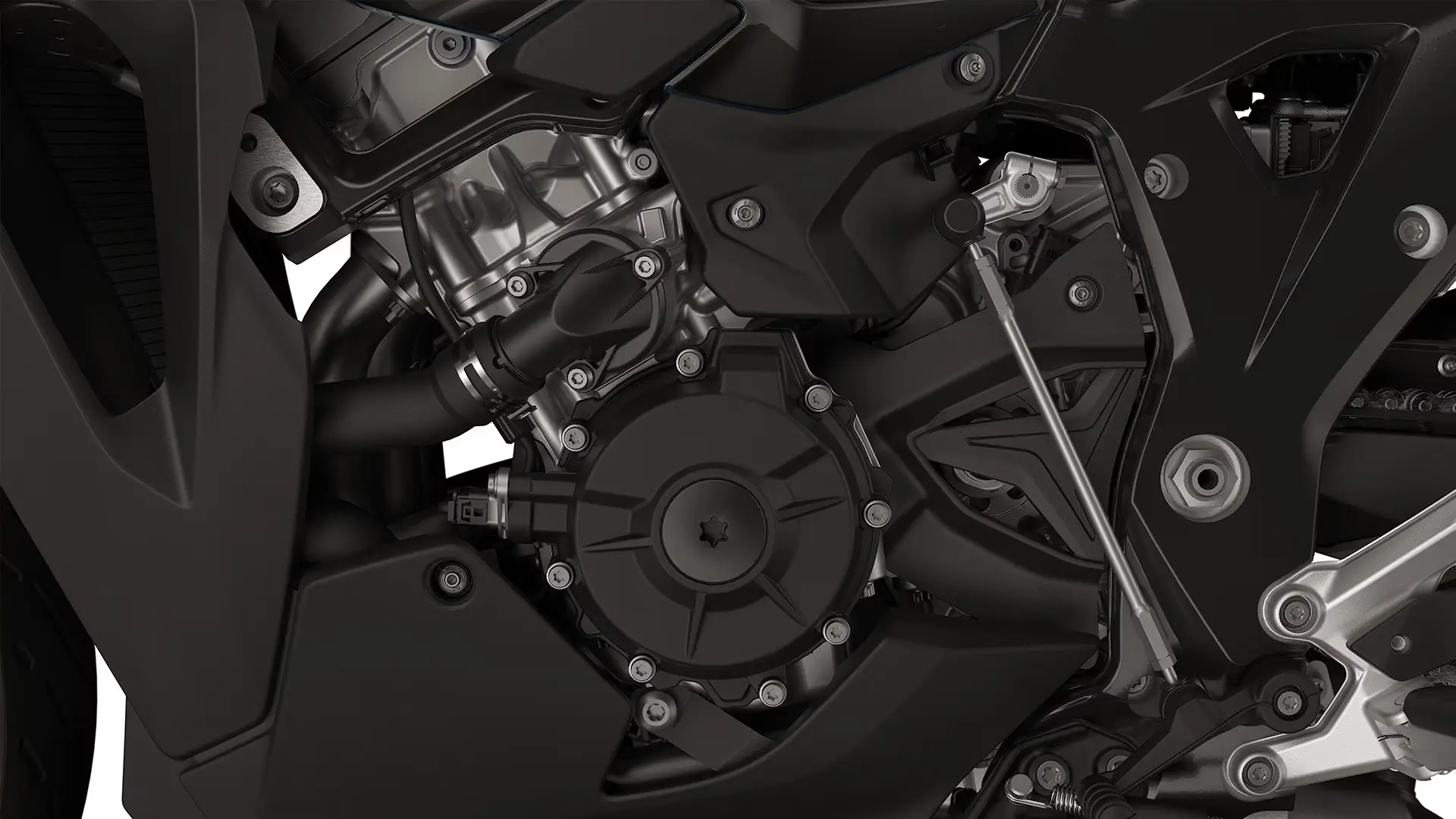

Engine and performance

The engine of the S 1000 XR is uncompromisingly designed for long-distance capability and sportiness.

Technical Specifications

EnginePerformanceElectricalTransmissionChassis & BrakesWeights & Dimensions

Rated output

125 kW (170 hp) at 11,000 rpm

Type

Oil/water-cooled, four-cylinder, four-stroke, in-line engine with four valves per cylinder

Bore x stroke

80 mm x 49.7 mm

Capacity

999 cc

Max. torque

114 Nm at 9,250 rpm

Compression ratio

12.5 : 1

Mixture control

Electronic intake pipe injection / digital engine management system: BMS-O with throttle-by-wire

Exhaust emission standards

EU 5+

Max. RPM

12,000 rpm

Maximum speed

over 250 km/h

Fuel consumption per 100 km based on WMTC

6.2 l

CO2 emission based on WMTC

144 g/km

Fuel type

Premium unleaded (max. 5 % ethanol, E5), 98 ROZ/RON, 93 AKI

Alternator

Permanent magnet alternator with 493 W (nominal power)

Battery

12 V / 12 Ah, maintenance-free

Clutch

Multiplate clutch in oil bath, anti-hopping clutch, with self-reinforcement

Gearbox

Claw-shifted 6-speed gearbox integrated in the transmission housing

Drive

Chain 525 17/45

Traction control

BMW Motorrad DTC

Frame

Bridge-type frame, cast aluminium, co-supporting engine

Front wheel location / suspension

Upside-down telescopic fork, diameter 45 mm, electronic self-adjusting rebound/compression damping (Dynamic ESA)

Rear wheel location / suspension

Aluminium double-sided swing-arm, central shock absorber, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)

Suspension travel, front / rear

150 mm / 150 mm

Wheelbase

1,541 mm

Castor

118 mm

Steering head angle

64.8°

Wheels

Aluminium cast wheels

Rim, front

3.50 x 17"

Rim, rear

6.00 x 17"

Tyre, front

120/70 ZR17

Tyre, rear

190/55 ZR17

Brake, front

Twin disc brake, diameter 320 mm, 4-piston fixed caliper

Brake, rear

Single disc brake, diameter 265 mm, 2-piston floating caliper

ABS

BMW Motorrad Integral ABS (partial integral)

Seat height at unladen weight

850 mm (OE lowering: 790 mm)

Inner leg curve at unladen weight

1,905 mm (OE lowering: 1,809 mm)

Usable tank volume

20 l

Reserve

approx. 4 l

Length

2,156 mm (over rear wheel)

Height

1,460 mm (without mirror)

Width

850 mm (without accessories)

Unladen weight, road ready, fully fuelled

227 kg

Permitted total weight

450 kg

Payload (with standard equipment)

223 kg
